Kyocera KTKB32-2S 2.0-2.4mm 150mm OAL Neutral Parting Toolholder

In stock
$223.30

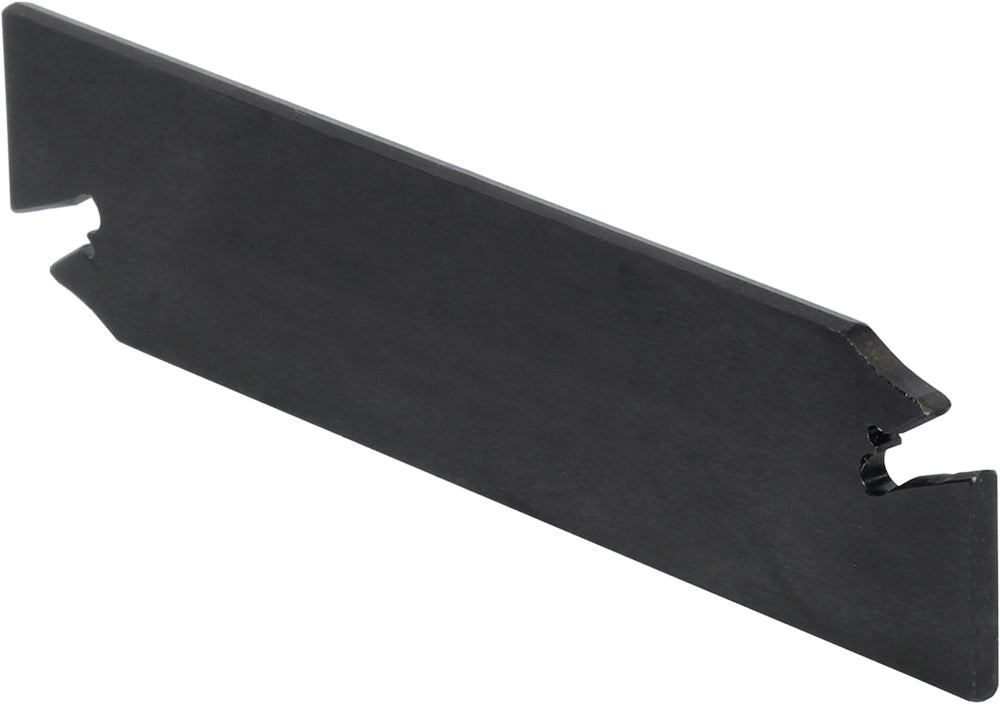

The Kyocera KTKB32-2S is a turning toolholder featuring a 2.00-2.40 mm grooving width, 150 mm overall length and a maximum workpiece parting diameter of 50 mm. The toolholder has a neutral hand configuration, 25 mm functional height and a 2.6 mm shank width. Kyocera item number THP05210 and EAN 4960664157921.

Key Features

  • Kyocera KTKB series turning toolholder
  • 2.00-2.40 mm grooving width
  • 1.8 mm blade dimension
  • 2.6 mm shank width
  • 150 mm overall and functional length
  • 25 mm functional height
  • Maximum workpiece parting diameter of 50 mm
  • Neutral hand configuration

Technical Specifications

  • Brand: Kyocera
  • Model: KTKB32-2S
  • Item No.: THP05210
  • EAN: 4960664157921
  • Tool Type: Turning Toolholder
  • Grooving Width: 2.00-2.40 mm
  • Blade Dimension: 1.8 mm
  • Shank Width: 2.6 mm
  • Maximum Workpiece Parting Diameter: 50 mm
  • Hand: Neutral
  • Functional Height: 25 mm
  • Functional Length: 150 mm
  • Overall Length: 150 mm
