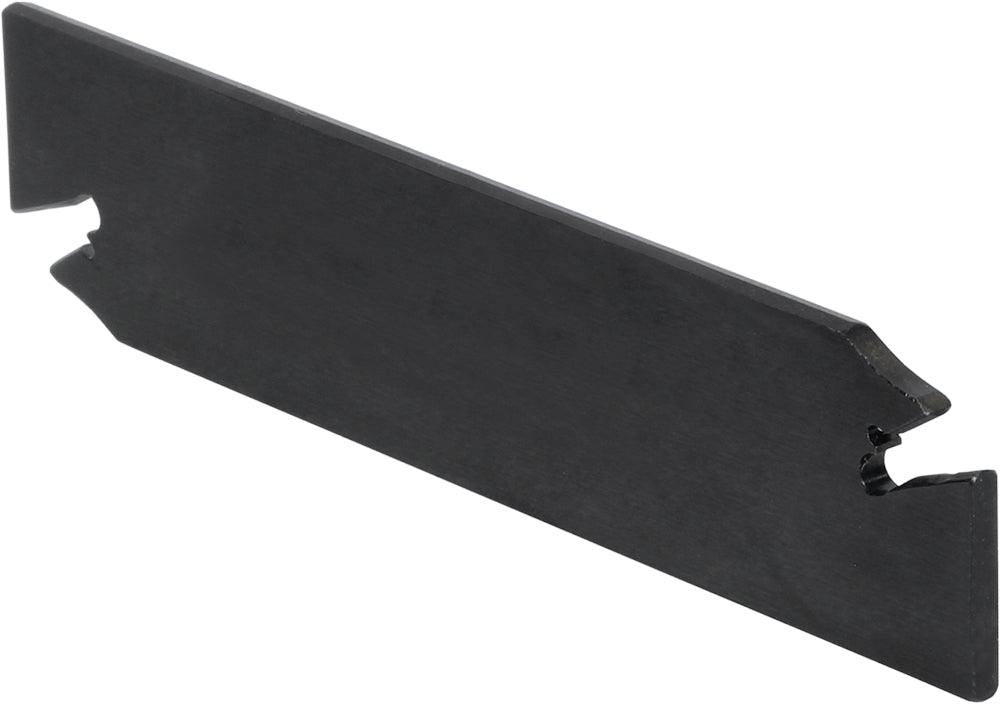

Kyocera KTKB26-5S 5.0mm 110mm OAL Neutral Parting Toolholder

Out of stock
$281.46

The Kyocera KTKB26-5S is a turning toolholder featuring a 5.00 mm grooving width, 110 mm overall length and a maximum workpiece parting diameter of 80 mm. The toolholder has a neutral hand configuration, a 4.2 mm blade dimension and a 21.4 mm functional height.

Key Features

  • Kyocera KTKB series turning toolholder
  • 5.00 mm grooving width
  • 4.2 mm blade dimension
  • 110 mm overall and functional length
  • 21.4 mm functional height
  • Maximum workpiece parting diameter of 80 mm
  • Neutral hand configuration

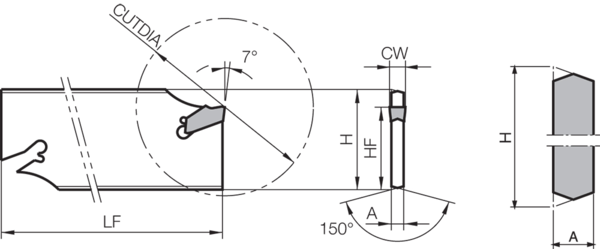

Technical Specifications

  • Brand: Kyocera
  • Model: KTKB26-5S
  • Item No.: THP05190
  • Tool Type: Turning Toolholder
  • Grooving Width: 5.00 mm
  • Blade Dimension: 4.2 mm
  • Maximum Workpiece Parting Diameter: 80 mm
  • Hand: Neutral
  • Functional Height: 21.4 mm
  • Functional Length: 110 mm
  • Overall Length: 110 mm
