SKU: KTKB26-2S
(0)

Kyocera KTKB26-2S 2.00-2.40 mm 110mm OAL Neutral Parting Toolholder

In stock
$163.90

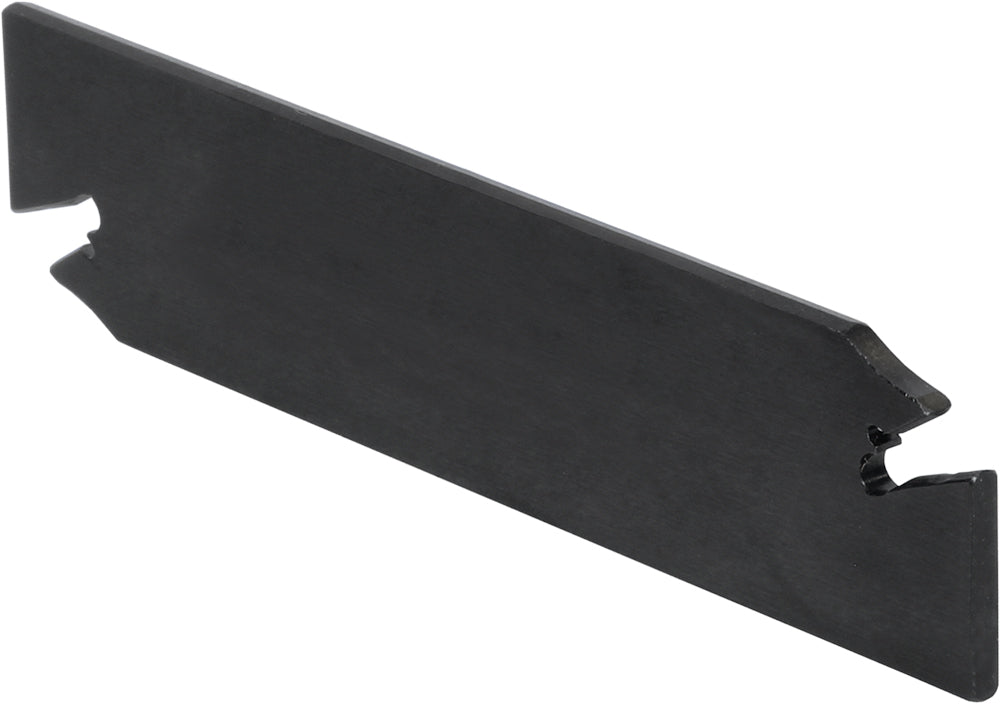

The Kyocera KTKB26-2S is a turning toolholder featuring a 2.00-2.40 mm grooving width, 110 mm overall length and a maximum workpiece parting diameter of 50 mm. The toolholder has a neutral hand configuration, a 1.8 mm blade dimension and a 21.4 mm functional height.

Key Features

  • Kyocera KTKB series turning toolholder
  • 2.00-2.40 mm grooving width
  • 1.8 mm blade dimension
  • 110 mm overall and functional length
  • 21.4 mm functional height
  • Maximum workpiece parting diameter of 50 mm
  • Neutral hand configuration

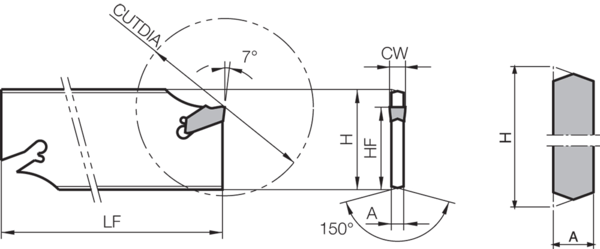

Technical Specifications

  • Brand: Kyocera
  • Model: KTKB26-2S
  • Item No.: THP05160
  • Tool Type: Turning Toolholder
  • Grooving Width: 2.00-2.40 mm
  • Blade Dimension: 1.8 mm
  • Maximum Workpiece Parting Diameter: 50 mm
  • Hand: Neutral
  • Functional Height: 21.4 mm
  • Functional Length: 110 mm
  • Overall Length: 110 mm
