Home » Kyocera KTKB19-2S 2.0-2.4mm 86mm OAL Neutral Parting Toolholder

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KTKB192S
(0)

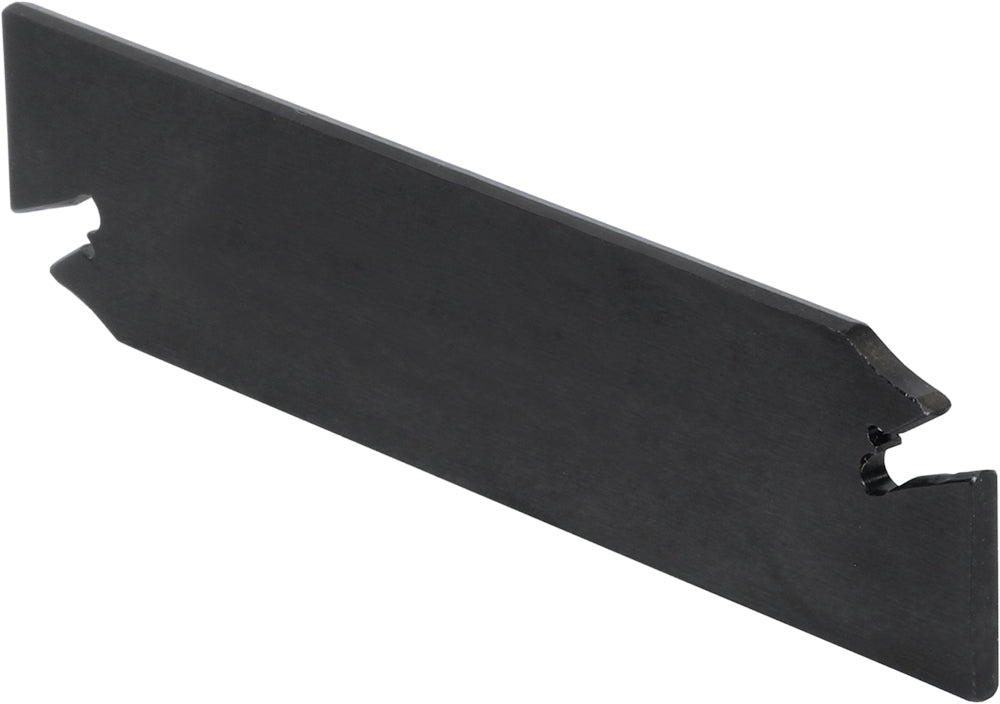

Kyocera KTKB19-2S 2.0-2.4mm 86mm OAL Neutral Parting Toolholder

Only 1 left
$270.18

The Kyocera KTKB19-2S is a turning toolholder featuring a 2.00-2.40 mm grooving width, 86 mm overall length and a maximum workpiece parting diameter of 40 mm. The toolholder has a neutral hand configuration and a functional height of 15.7 mm. Kyocera item number THP05110 and EAN 4960664157853.

Key Features

  • Kyocera KTKB series turning toolholder
  • 2.00-2.40 mm grooving width
  • 1.8 mm blade dimension
  • 86 mm overall and functional length
  • 15.7 mm functional height
  • Maximum workpiece parting diameter of 40 mm
  • Neutral hand configuration

Technical Specifications

  • Brand: Kyocera
  • Model: KTKB19-2S
  • Item No.: THP05110
  • Tool Type: Turning Toolholder
  • Grooving Width: 2.00-2.40 mm
  • Blade Dimension: 1.8 mm
  • Maximum Workpiece Parting Diameter: 40 mm
  • Hand: Neutral
  • Functional Height: 15.7 mm
  • Functional Length: 86 mm
  • Overall Length: 86 mm
