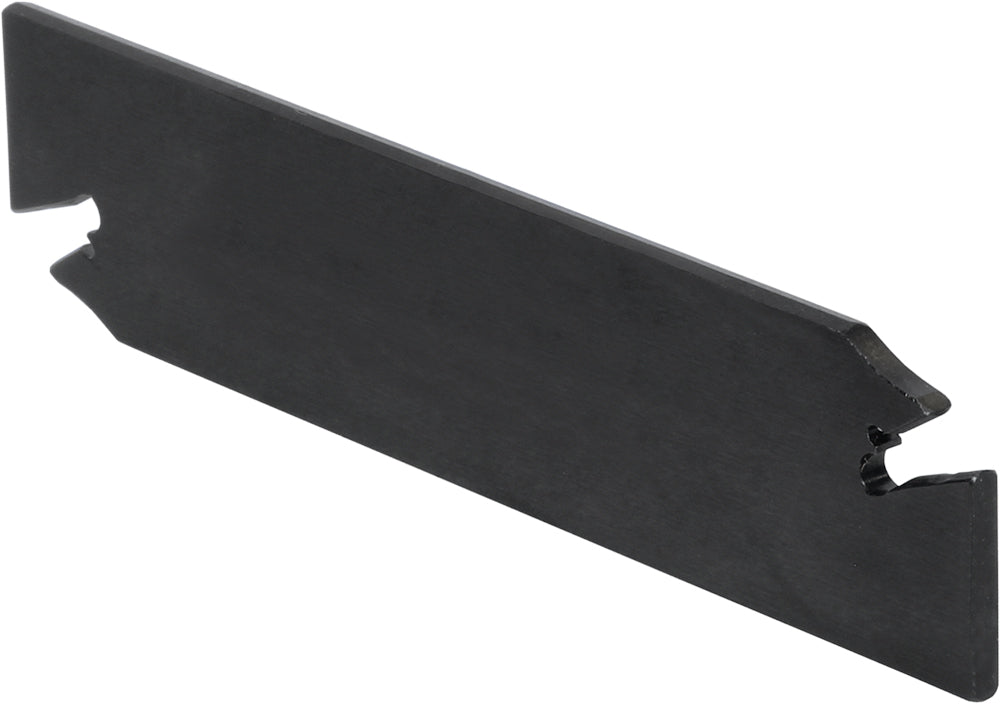

Kyocera KTKB19-1SS 1.6mm Neutral Parting Blade 19mm Shank

In stock
$267.06

The Kyocera KTKB19-1SS is a 1.6 mm grooving and parting blade designed for use with compatible KTKTB tool blocks. It features a 19 mm shank height, 2.4 mm shank width, 86 mm overall length and a maximum workpiece parting diameter of 32 mm. The KTKB19-1SS has a neutral hand orientation and is specified for a 1.6 mm cutting width.

Key Features

  • Kyocera KTKB-SS series parting blade
  • 1.6 mm grooving and cutting width
  • 19 mm shank height
  • 2.4 mm shank width
  • 86 mm overall length
  • Maximum workpiece parting diameter of 32 mm
  • Neutral hand configuration
  • Compatible with KTKTB 16-19 and KTKTB 20-19 tool blocks

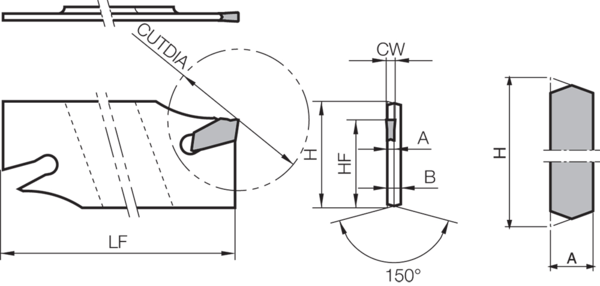

Technical Specifications

  • Brand: Kyocera
  • Model: KTKB19-1SS
  • Item No.: THP05305
  • EAN: 4960664343393
  • Tool Type: Parting / Grooving Blade
  • Grooving Width: 1.60 mm
  • Cutting Width: 1.60 mm
  • Shank Height: 19 mm
  • Shank Width: 2.4 mm
  • Functional Height: 15.7 mm
  • Functional Length: 86 mm
  • Overall Length: 86 mm
  • Maximum Workpiece Parting Diameter: 32 mm
  • Hand: Neutral
