SKU: KPKB32-4
(0)

Kyocera KPKB32-4 4.00 mm 150mm OAL Neutral Parting Toolholder 32 mm Shank

In stock
$200.23

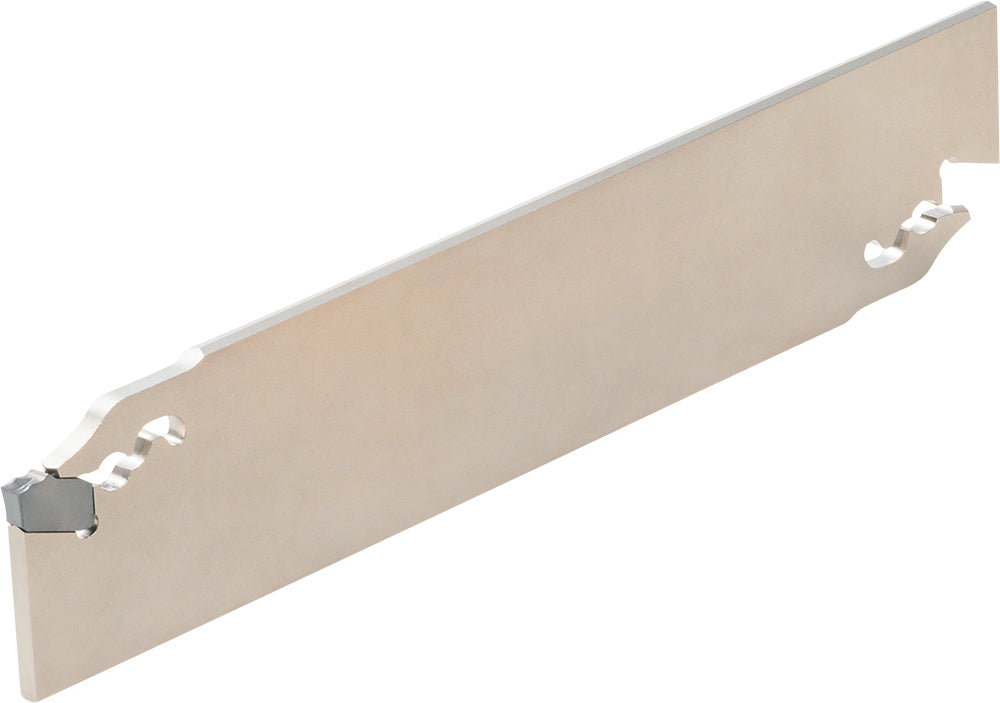

The Kyocera KPKB32-4 is a turning toolholder featuring a 4.00 mm grooving width, 150 mm overall length and a maximum workpiece parting diameter of 100 mm. The toolholder has a neutral hand configuration, a 3.4 mm blade dimension, a 32 mm shank height, a 4 mm cutting width and a 25 mm functional height.

Key Features

  • Kyocera KPKB series turning toolholder
  • 4.00 mm grooving width
  • 3.4 mm blade dimension
  • 4 mm cutting width
  • 32 mm shank height
  • 150 mm overall and functional length
  • 25 mm functional height
  • Maximum workpiece parting diameter of 100 mm
  • Neutral hand configuration

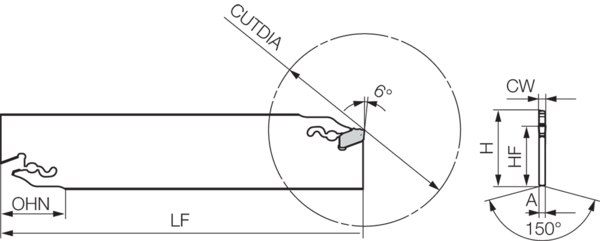

Technical Specifications

  • Brand: Kyocera
  • Model: KPKB32-4
  • Item No.: THP06805
  • Tool Type: Turning Toolholder
  • Grooving Width: 4.00 mm
  • Blade Dimension: 3.4 mm
  • Cutting Width: 4 mm
  • Maximum Workpiece Parting Diameter: 100 mm
  • Shank Height: 32 mm
  • Hand: Neutral
  • Functional Height: 25 mm
  • Functional Length: 150 mm
  • Overall Length: 150 mm
