Kyocera KPKB26-3 3.00 mm 110mm OAL Neutral Parting Toolholder 26 mm Shank

In stock
$180.87

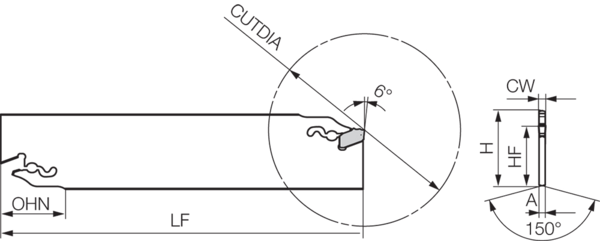

The Kyocera KPKB26-3 is a turning toolholder featuring a 3.00 mm grooving width, 110 mm overall length and a maximum workpiece parting diameter of 75 mm. The toolholder has a neutral hand configuration, a 2.6 mm blade dimension, a 26 mm shank height, a 3 mm cutting width and a 21.4 mm functional height.

Key Features

  • Kyocera KPKB series turning toolholder
  • 3.00 mm grooving width
  • 2.6 mm blade dimension
  • 3 mm cutting width
  • 26 mm shank height
  • 110 mm overall and functional length
  • 21.4 mm functional height
  • Maximum workpiece parting diameter of 75 mm
  • Neutral hand configuration

Technical Specifications

  • Brand: Kyocera
  • Model: KPKB26-3
  • Item No.: THP06797
  • Tool Type: Turning Toolholder
  • Grooving Width: 3.00 mm
  • Blade Dimension: 2.6 mm
  • Cutting Width: 3 mm
  • Maximum Workpiece Parting Diameter: 75 mm
  • Shank Height: 26 mm
  • Hand: Neutral
  • Functional Height: 21.4 mm
  • Functional Length: 110 mm
  • Overall Length: 110 mm
