Home » Kyocera KPKB26-2 2.00 mm 110mm OAL Neutral Parting Toolholder 26 mm Shank

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: KPKB26-2
(0)

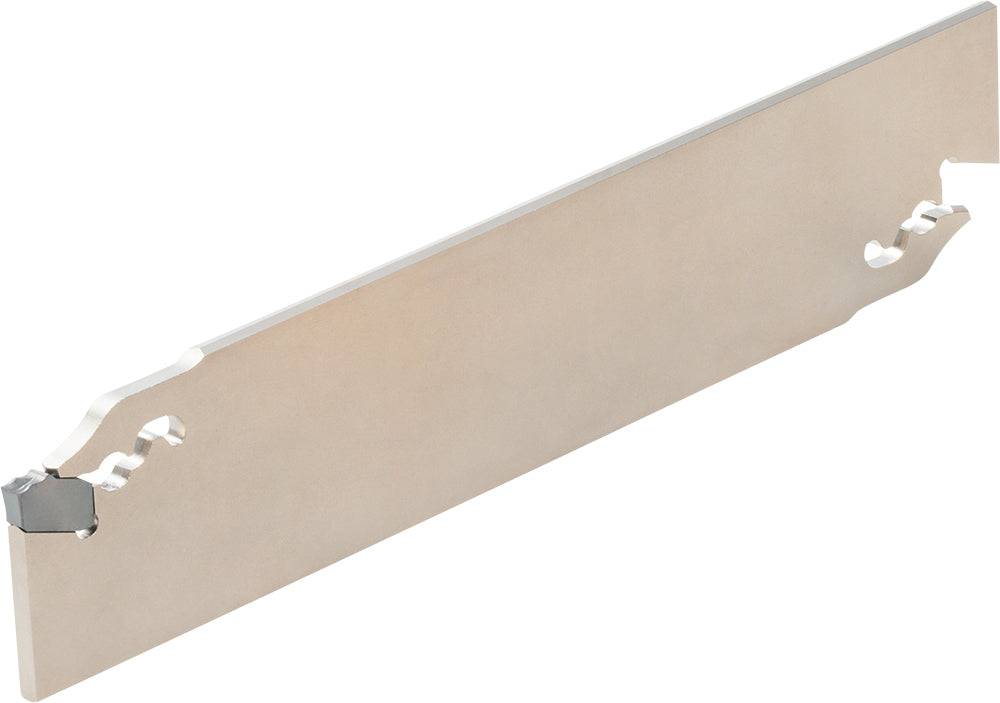

Kyocera KPKB26-2 2.00 mm 110mm OAL Neutral Parting Toolholder 26 mm Shank

In stock
$141.90

The Kyocera KPKB26-2 is a turning toolholder featuring a 2.00 mm grooving width, 110 mm overall length and a maximum workpiece parting diameter of 50 mm. The toolholder has a neutral hand configuration, a 1.8 mm blade dimension, a 26 mm shank height and a 21.4 mm functional height.

Key Features

  • Kyocera KPKB series turning toolholder
  • 2.00 mm grooving width
  • 1.8 mm blade dimension
  • 26 mm shank height
  • 110 mm overall and functional length
  • 21.4 mm functional height
  • Maximum workpiece parting diameter of 50 mm
  • Neutral hand configuration

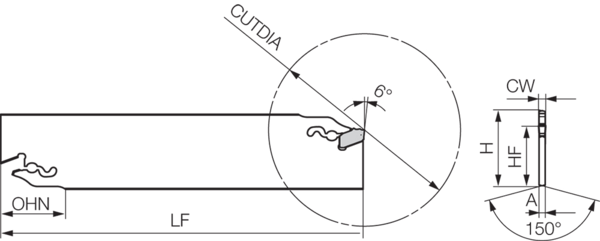

Technical Specifications

  • Brand: Kyocera
  • Model: KPKB26-2
  • Item No.: THP06795
  • Tool Type: Turning Toolholder
  • Grooving Width: 2.00 mm
  • Blade Dimension: 1.8 mm
  • Maximum Workpiece Parting Diameter: 50 mm
  • Shank Height: 26 mm
  • Hand: Neutral
  • Functional Height: 21.4 mm
  • Functional Length: 110 mm
  • Overall Length: 110 mm
