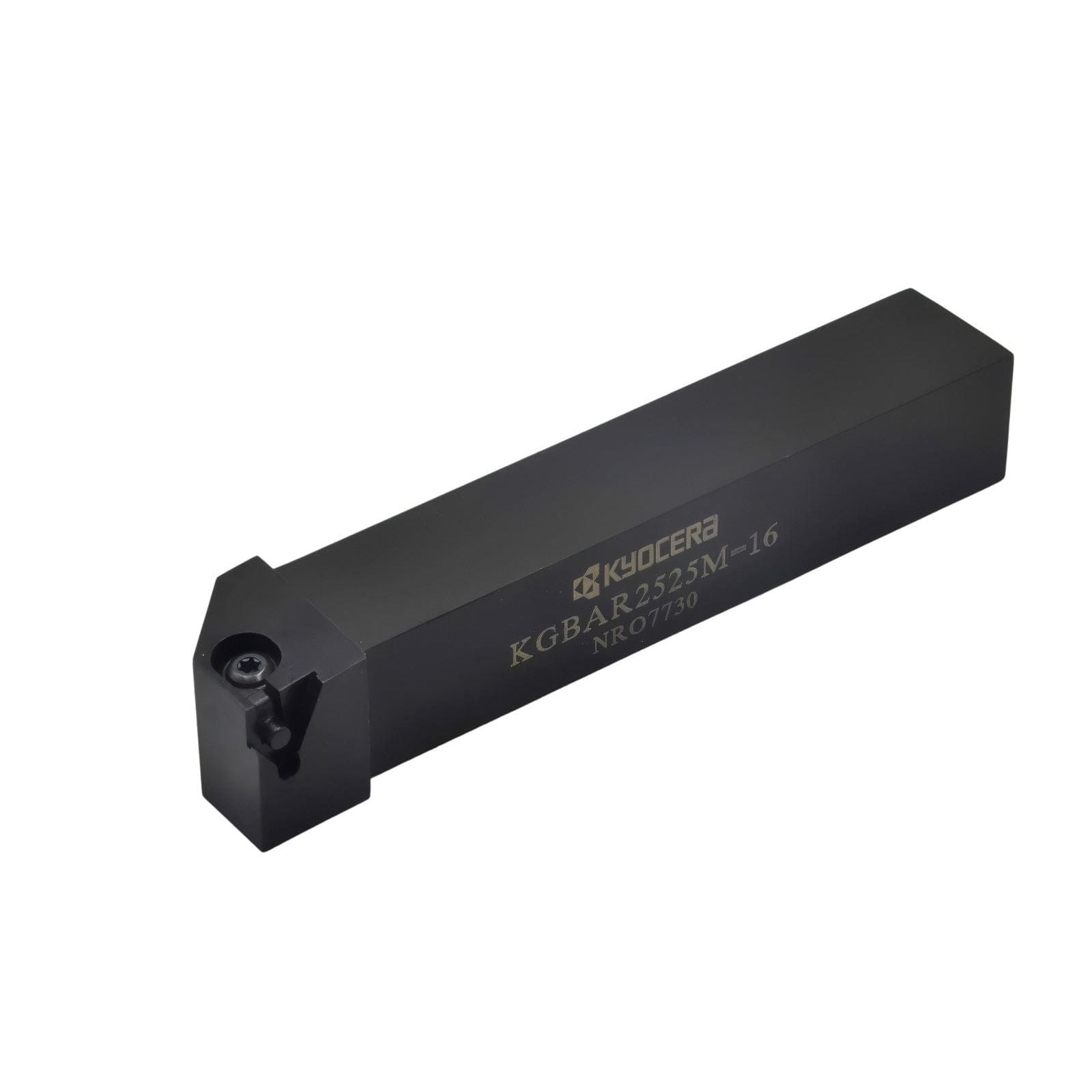

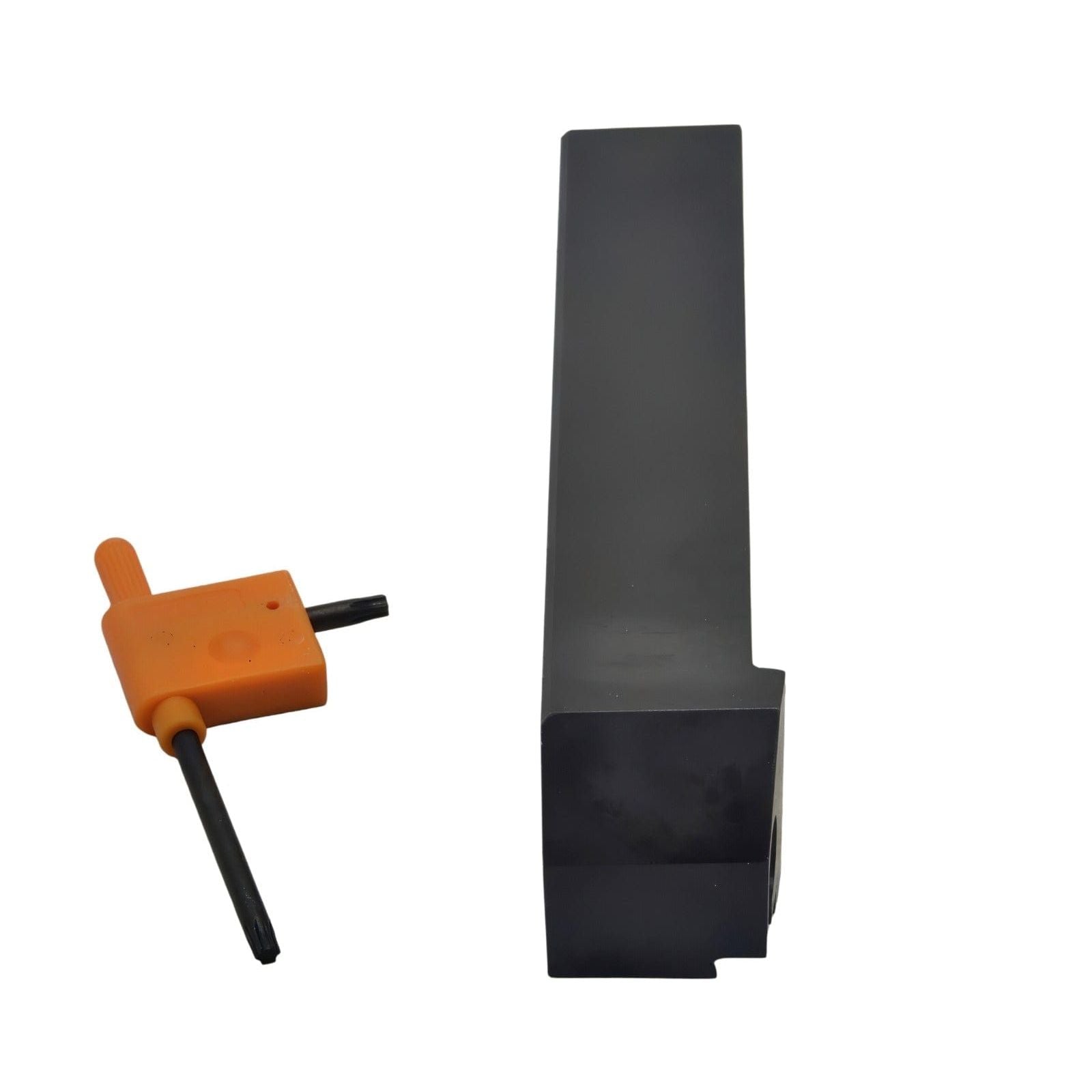

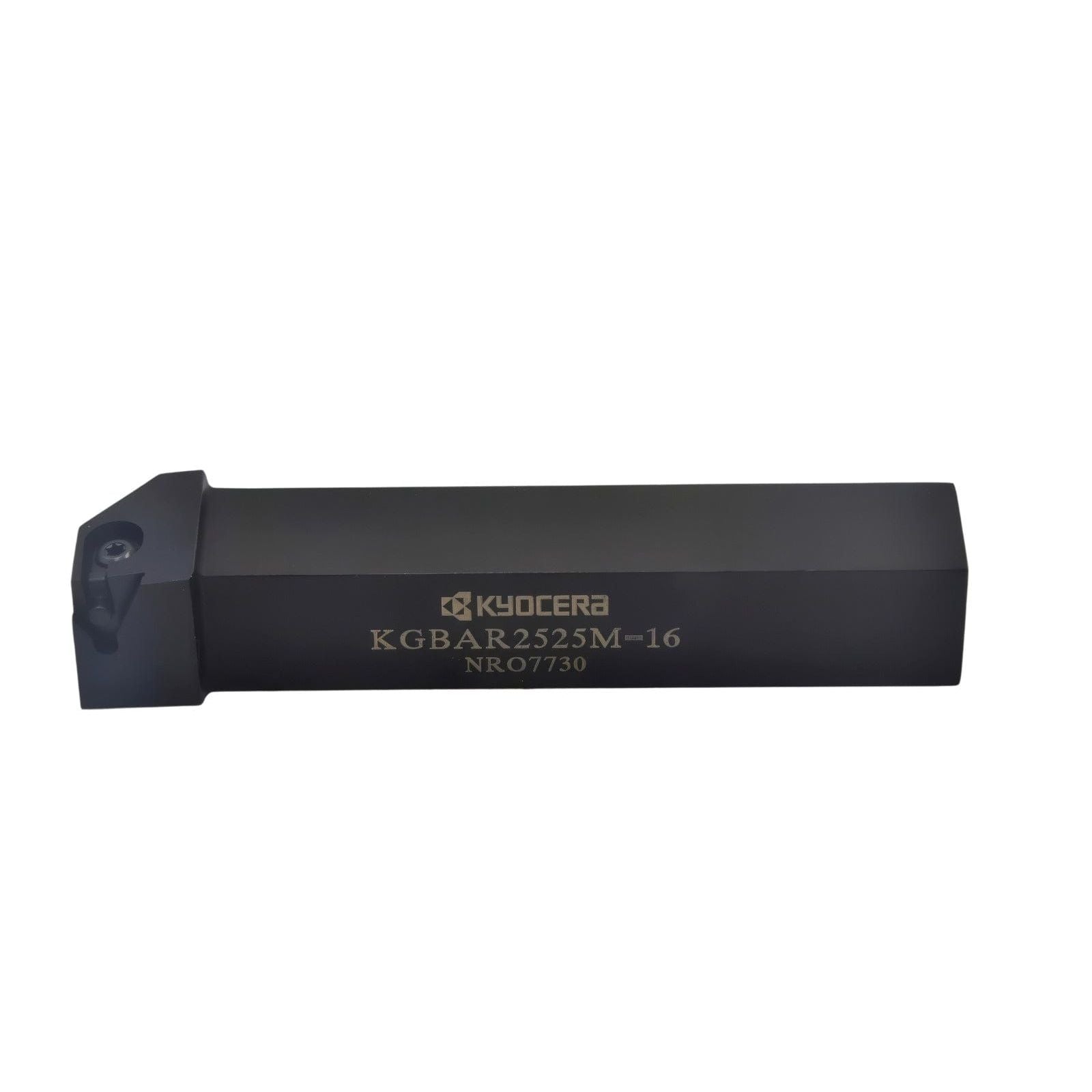

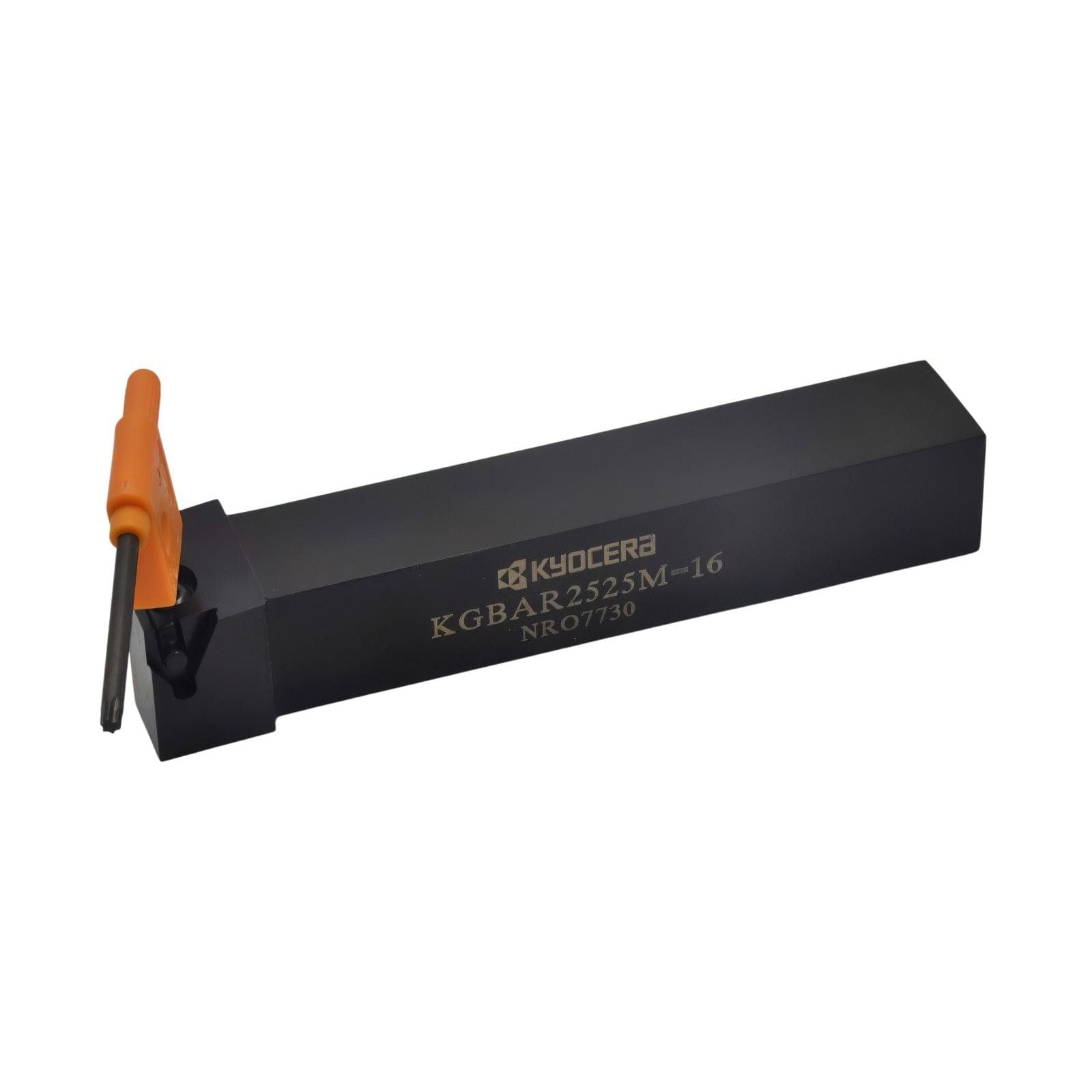

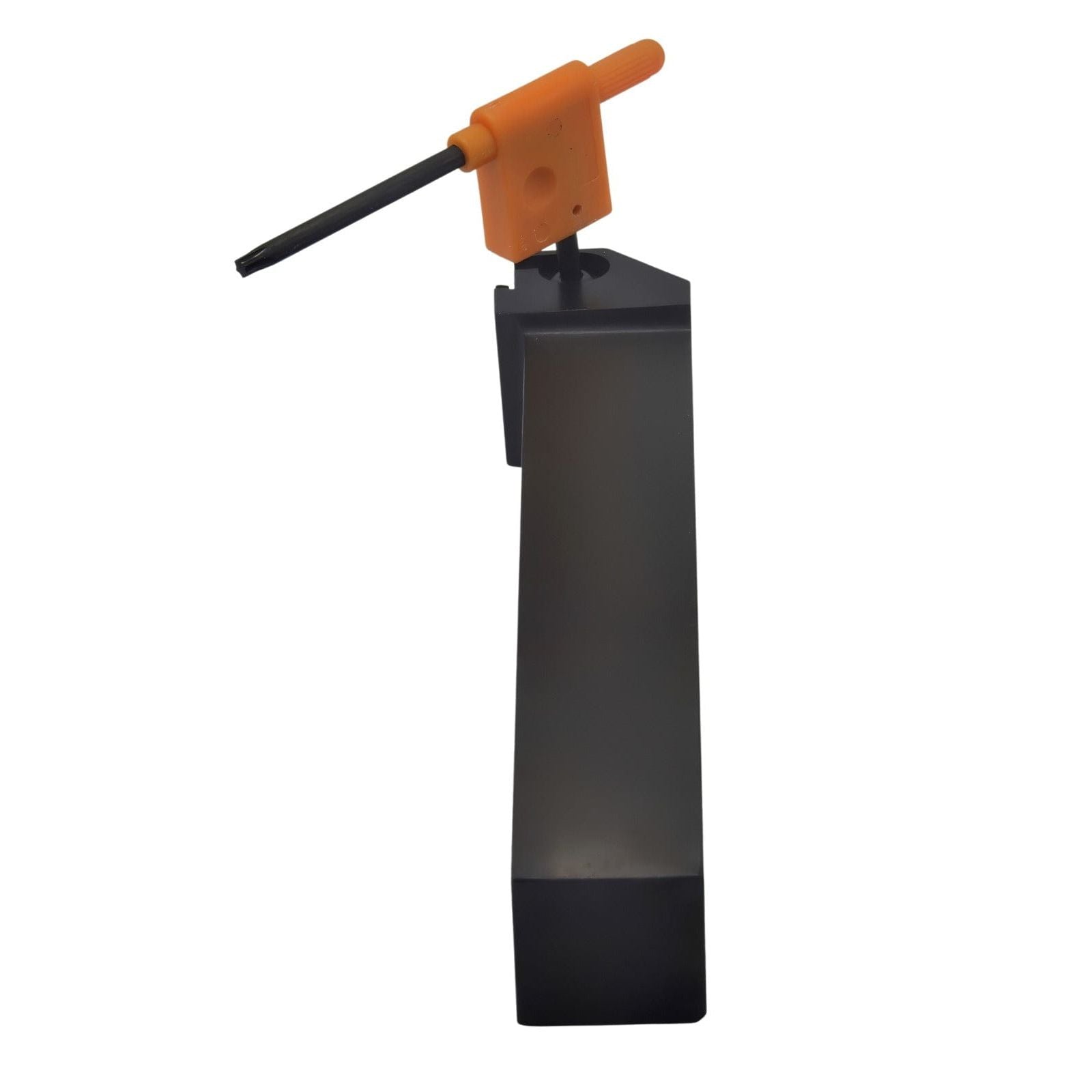

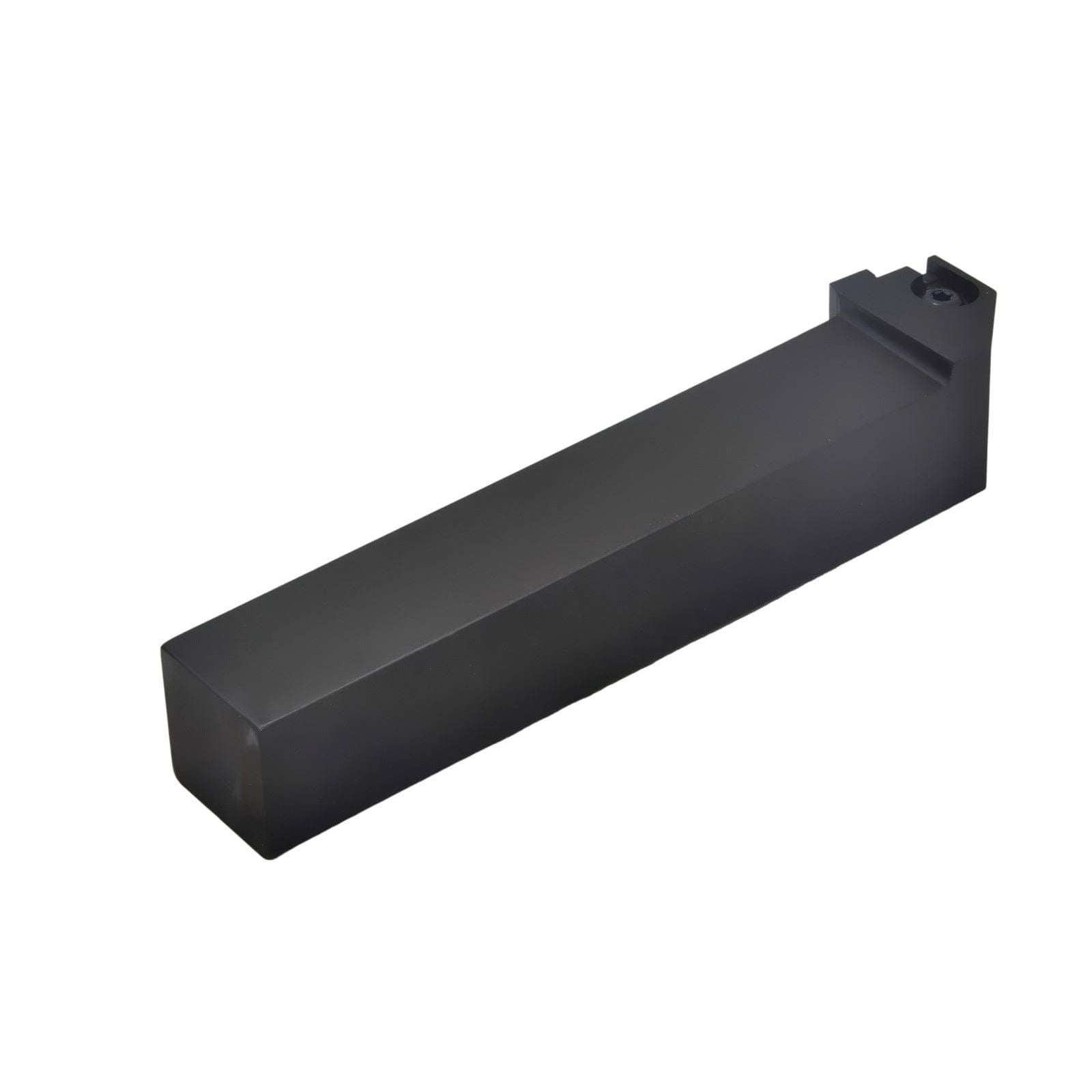

Kyocera KGBAR2525M-16 – External Grooving Toolholder (THC08152)

Kyocera KGBAR2525M-16 – External Grooving Toolholder (THC08152)

The Kyocera KGBAR2525M-16 is a precision external grooving toolholder designed for shallow groove and cut-off operations. With a square shank of 25 mm width and 25 mm height, this right-hand holder features a total length (OAL) of 150 mm and a head length (LH) of 25.5 mm. The tool supports groove widths from 0.33 mm to 3.00 mm and is built for strong stability and consistent performance in external grooving applications.

Key Features & Benefits

• Shank width 25 mm and height 25 mm – optimal rigidity and fit for standard grooving setups.
• Groove width range 0.33–3.00 mm – allows versatile shallow grooving coverage.
• Total length 150 mm with head length 25.5 mm – extended reach while maintaining toolholder stability.
• Right-hand orientation – suited for standard turning/grooving machines.
• Non-coolant-through design – simplifies maintenance and setup for dry or flood coolant operation.

Technical Specifications

Item No: THC08152
Shank Width (B): 25 mm
Shank Height (H): 25 mm
Grooving Width: 0.33–3.00 mm
Type: Right-hand
Total Length (OAL): 150 mm
Head Length (LH): 25.5 mm
