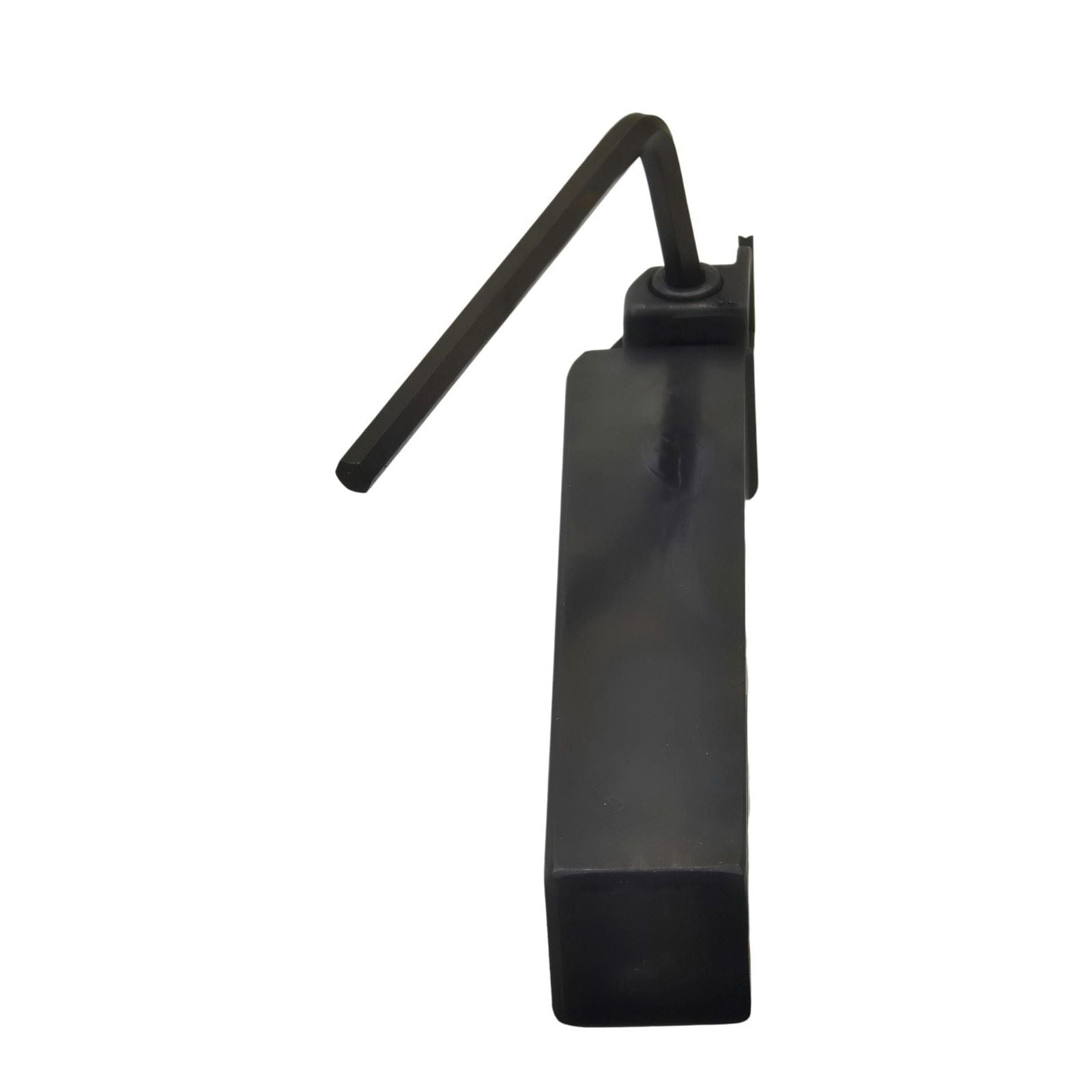

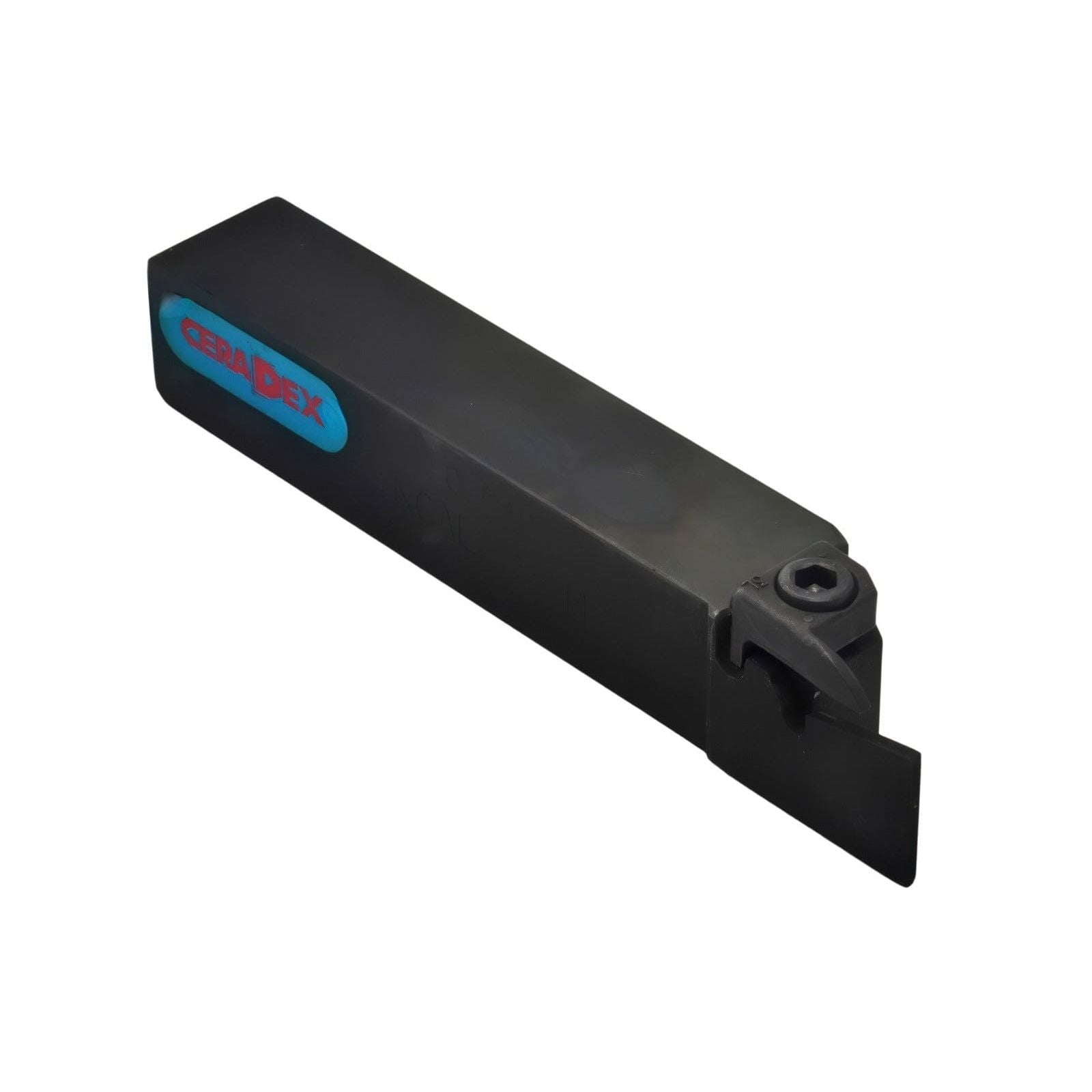

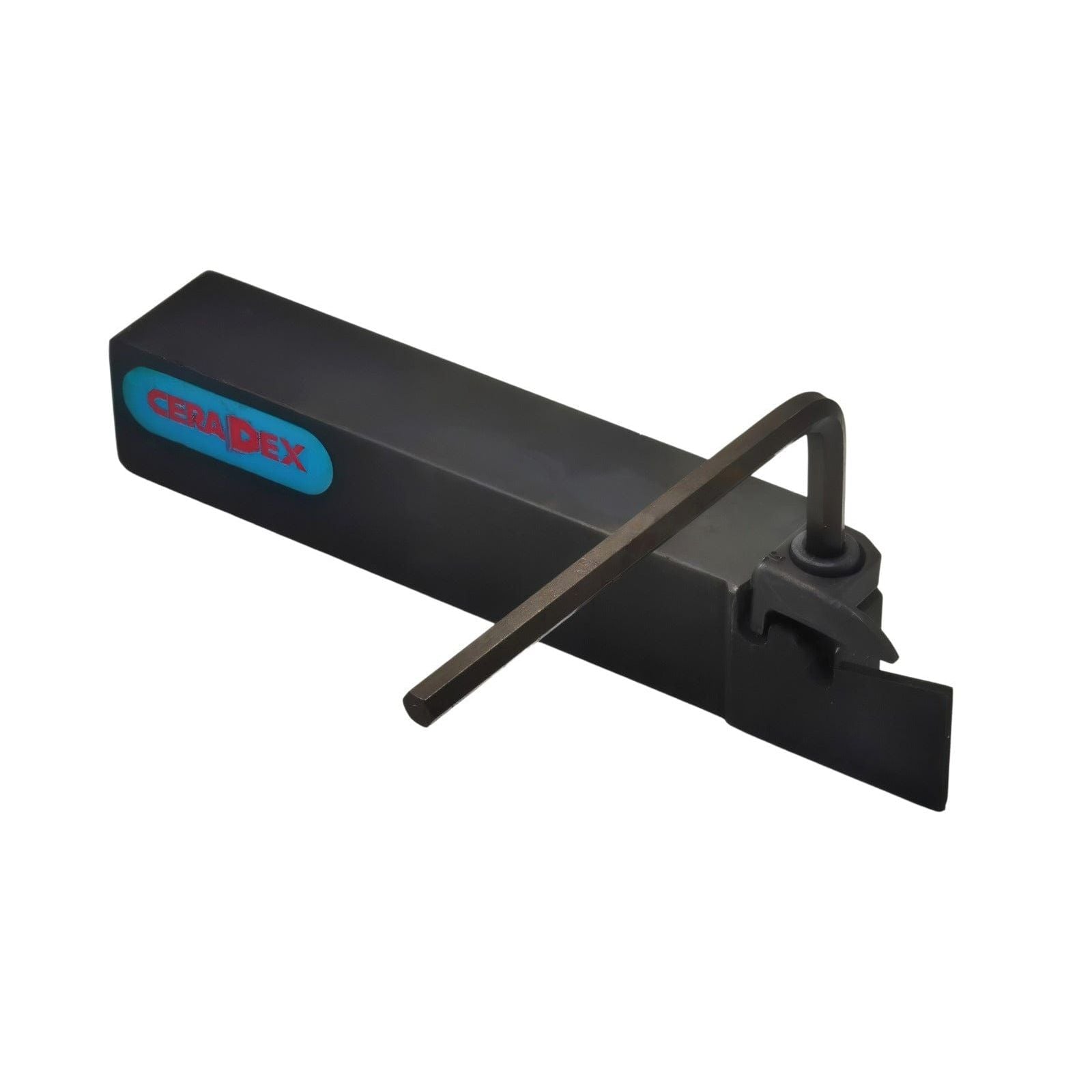

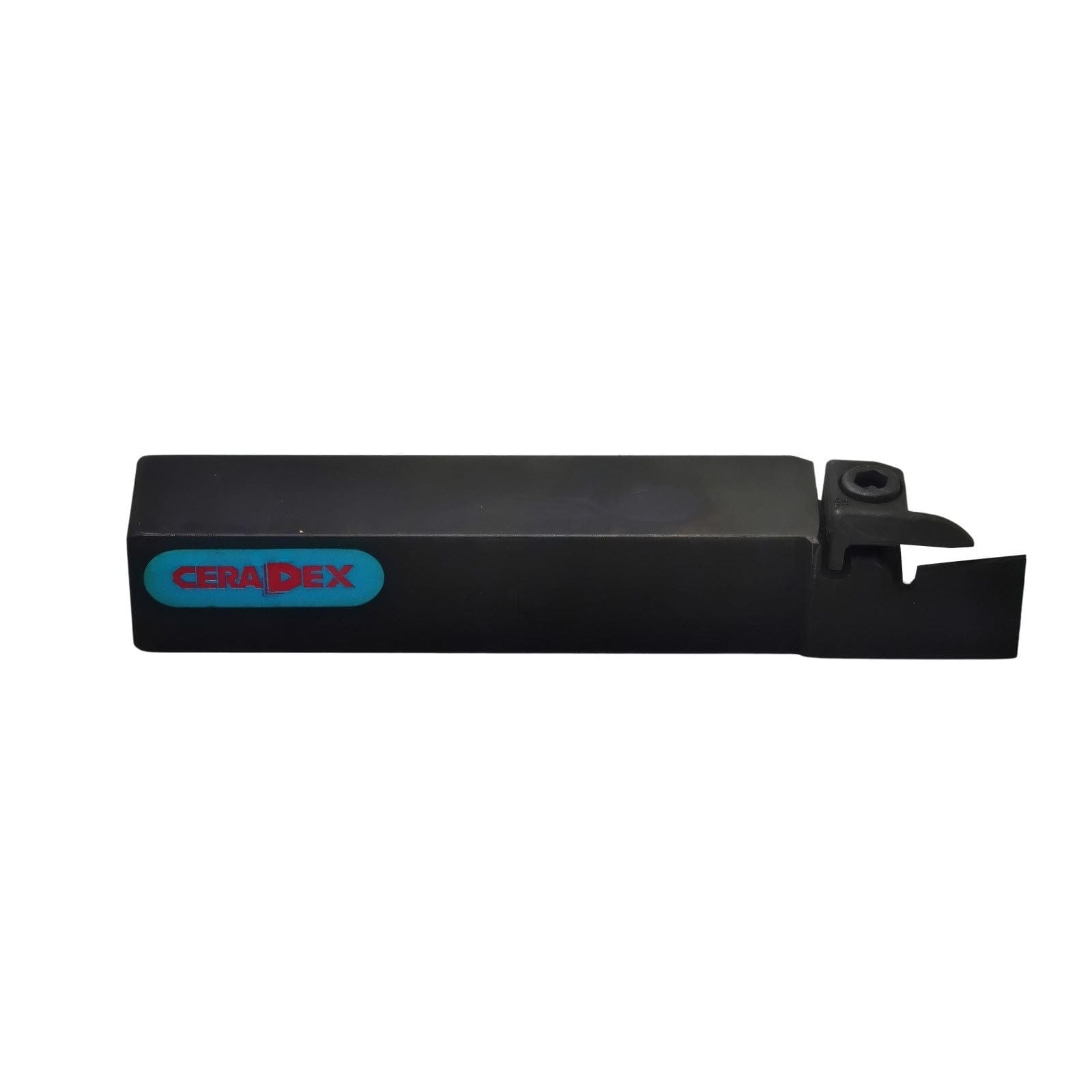

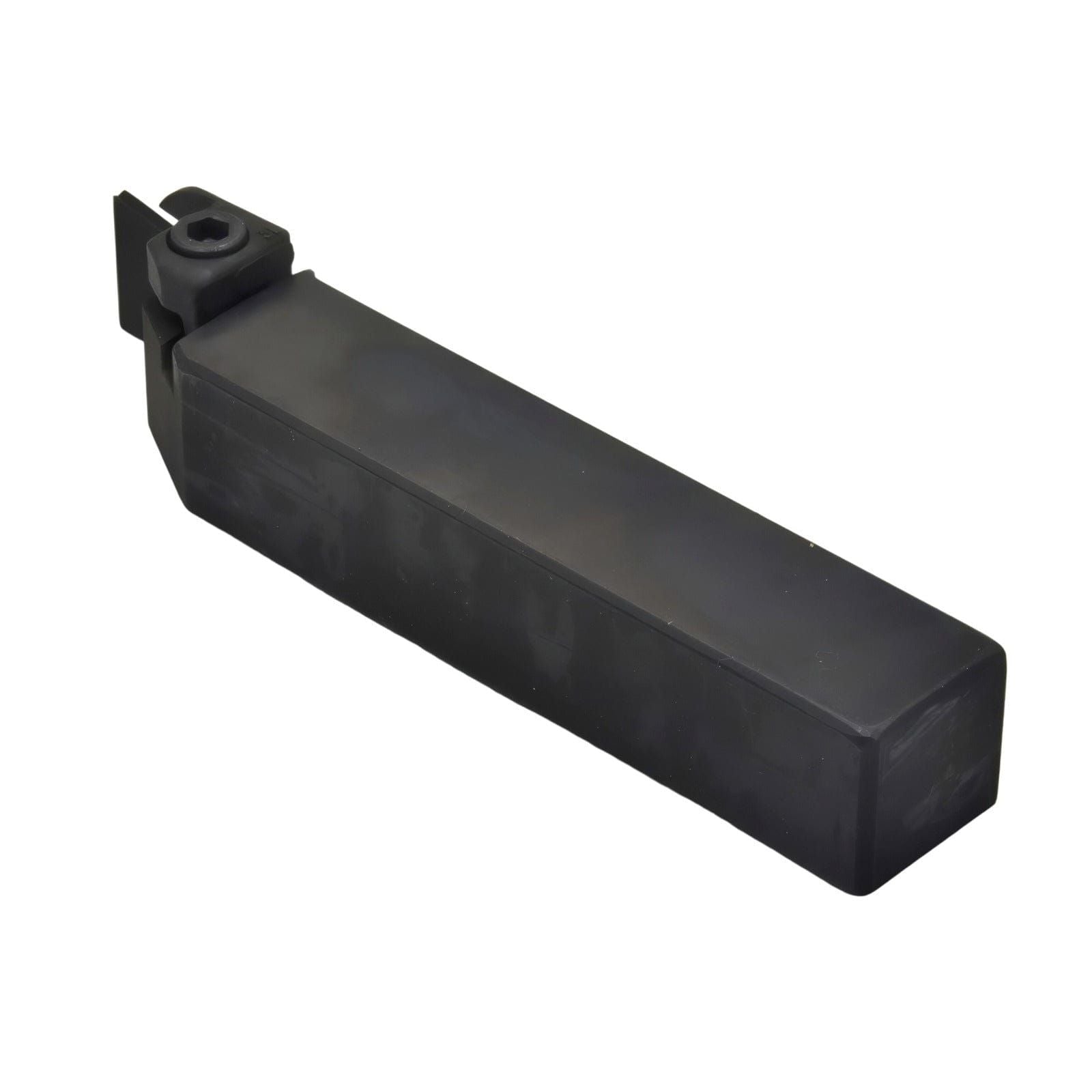

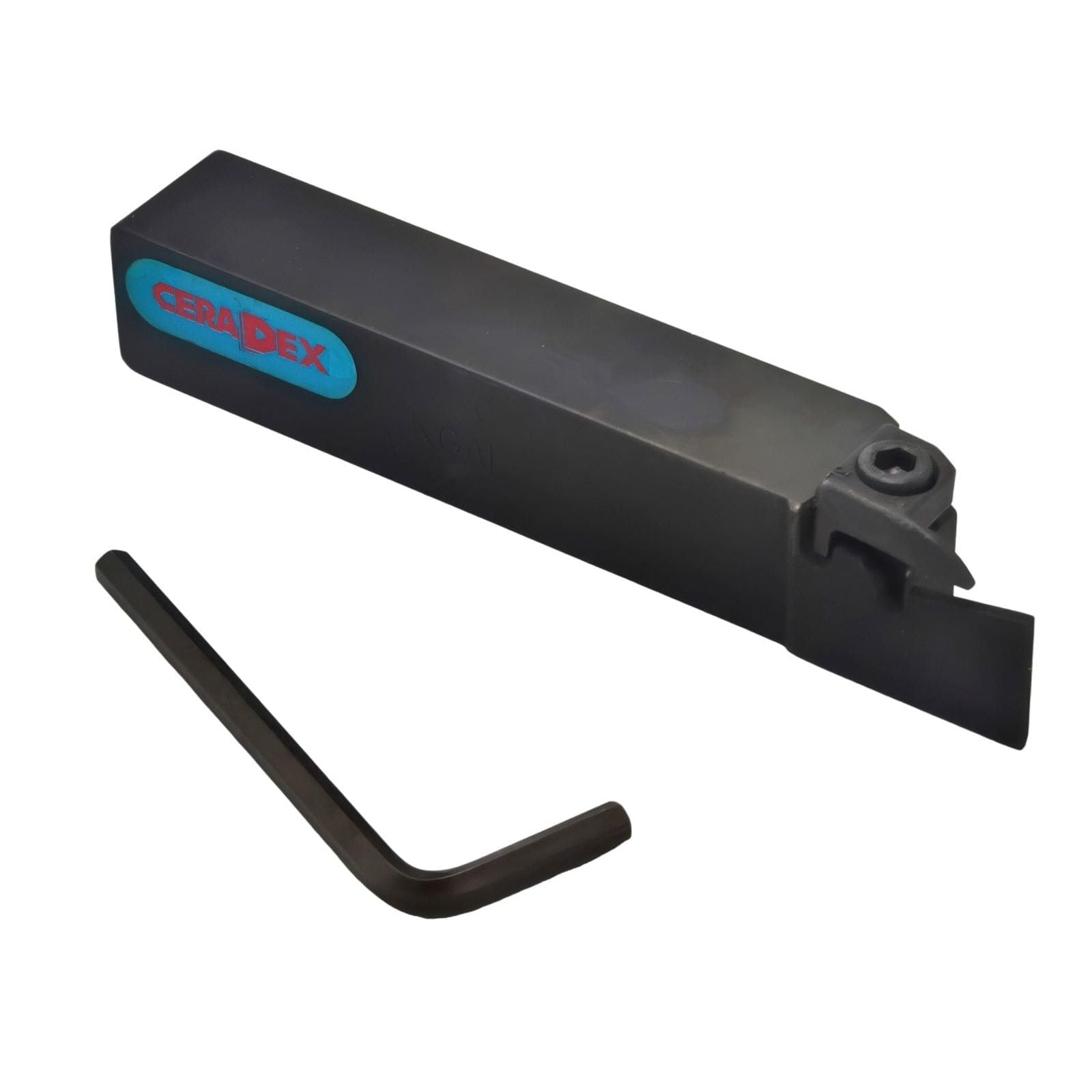

Kyocera KGAL2525M-3 – External Grooving Toolholder (THC04641)

Kyocera KGAL2525M-3 – External Grooving Toolholder (THC04641)

The Kyocera KGAL2525M-3 is a high-precision external grooving toolholder with a square 25 mm × 25 mm shank and a maximum groove width of 3.00 mm, designed for robust cut-off and grooving operations. It features a groove depth of 20.0 mm, a total length (OAL) of 150 mm and a head length (LH) of 37.0 mm—engineered for stable machining and excellent tool support.

Key Features & Benefits

• Shank width 25 mm and height 25 mm — ensures high rigidity and stability in external grooving setups.
• Grooving width 3.00 mm — suitable for shallow groove applications and cut-off operations.
• Groove depth 20.0 mm — supports effective material removal while maintaining toolholder strength.
• Total length 150 mm with head length 37.0 mm — provides reach and rigidity for challenging operations.
• Left-hand orientation — designed for specific machine configurations and sub-spindle use.

Technical Specifications

Item No: THC04641
Shank Width (B): 25 mm
Shank Height (H): 25 mm
Grooving Width: 3.00 mm
Grooving Depth: 20.0 mm
Type: Left
Total Length (OAL): 150 mm
Head Length (LH): 37.0 mm
