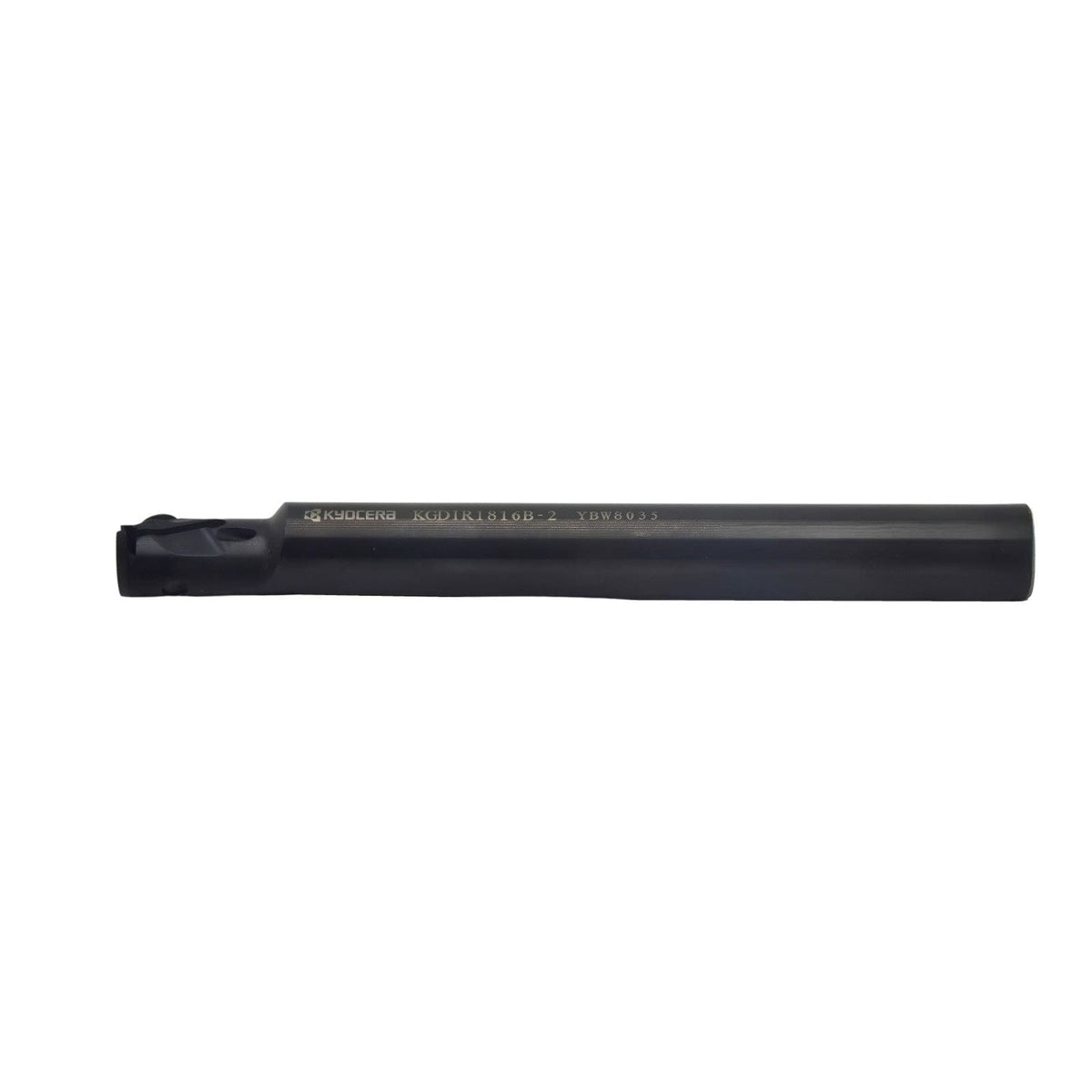

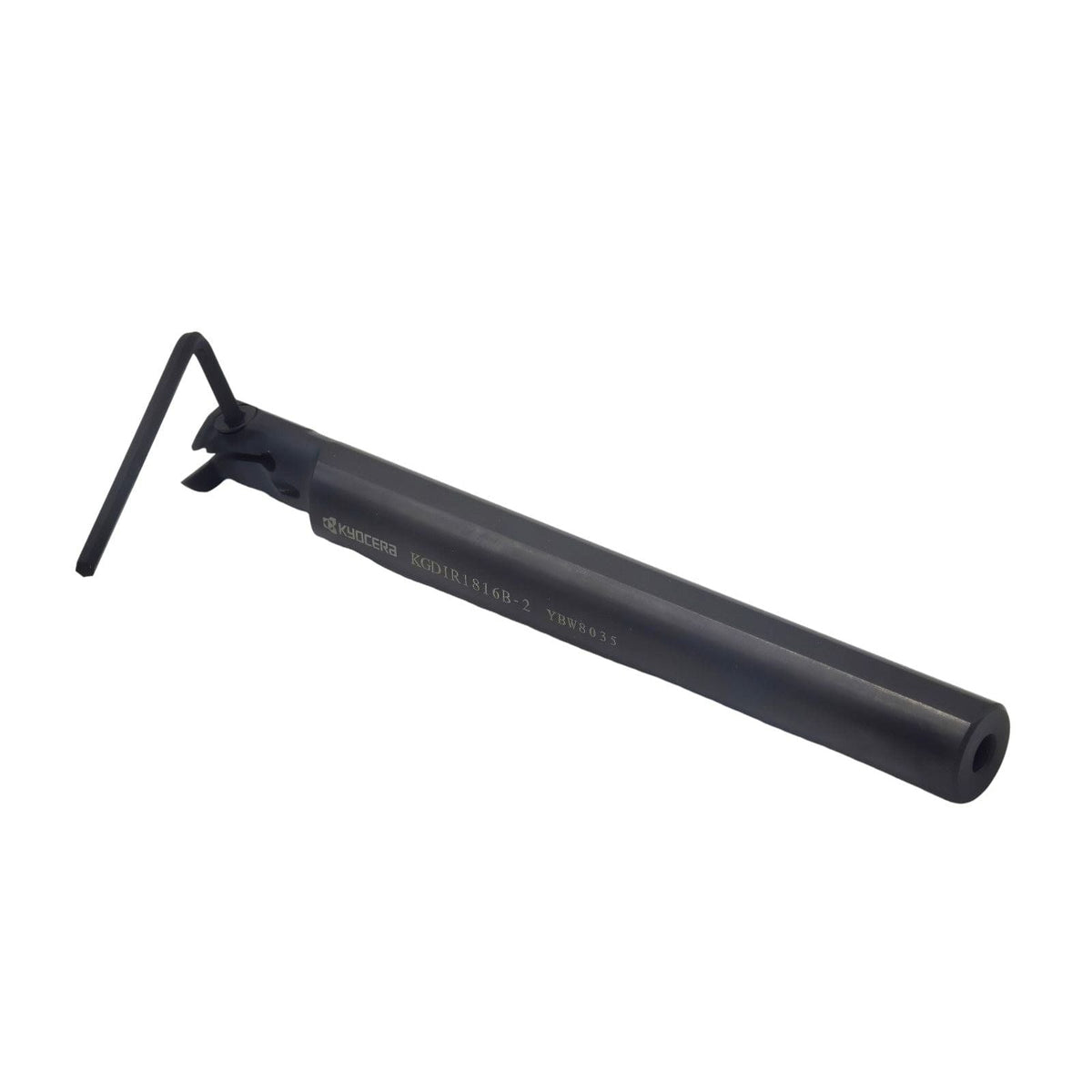

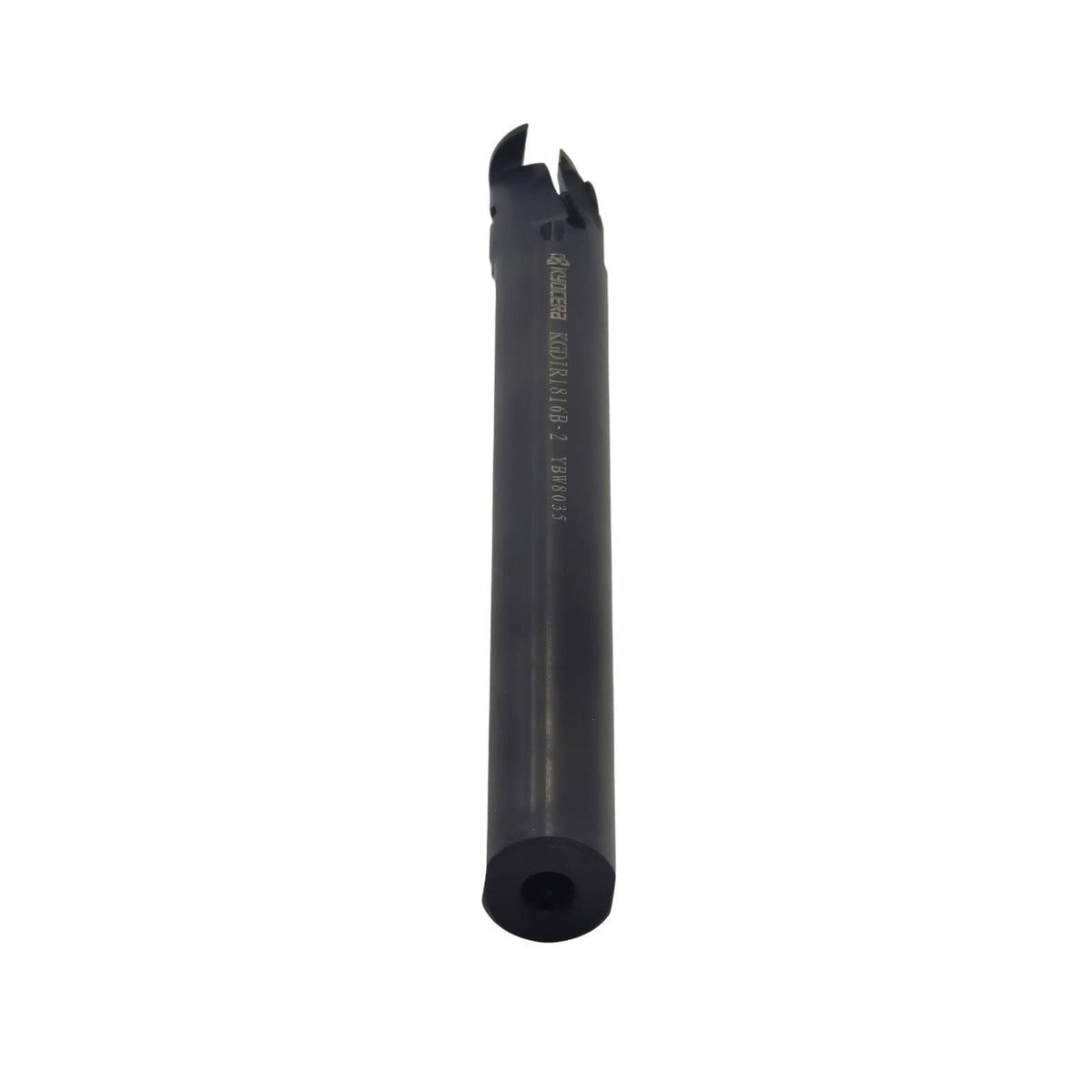

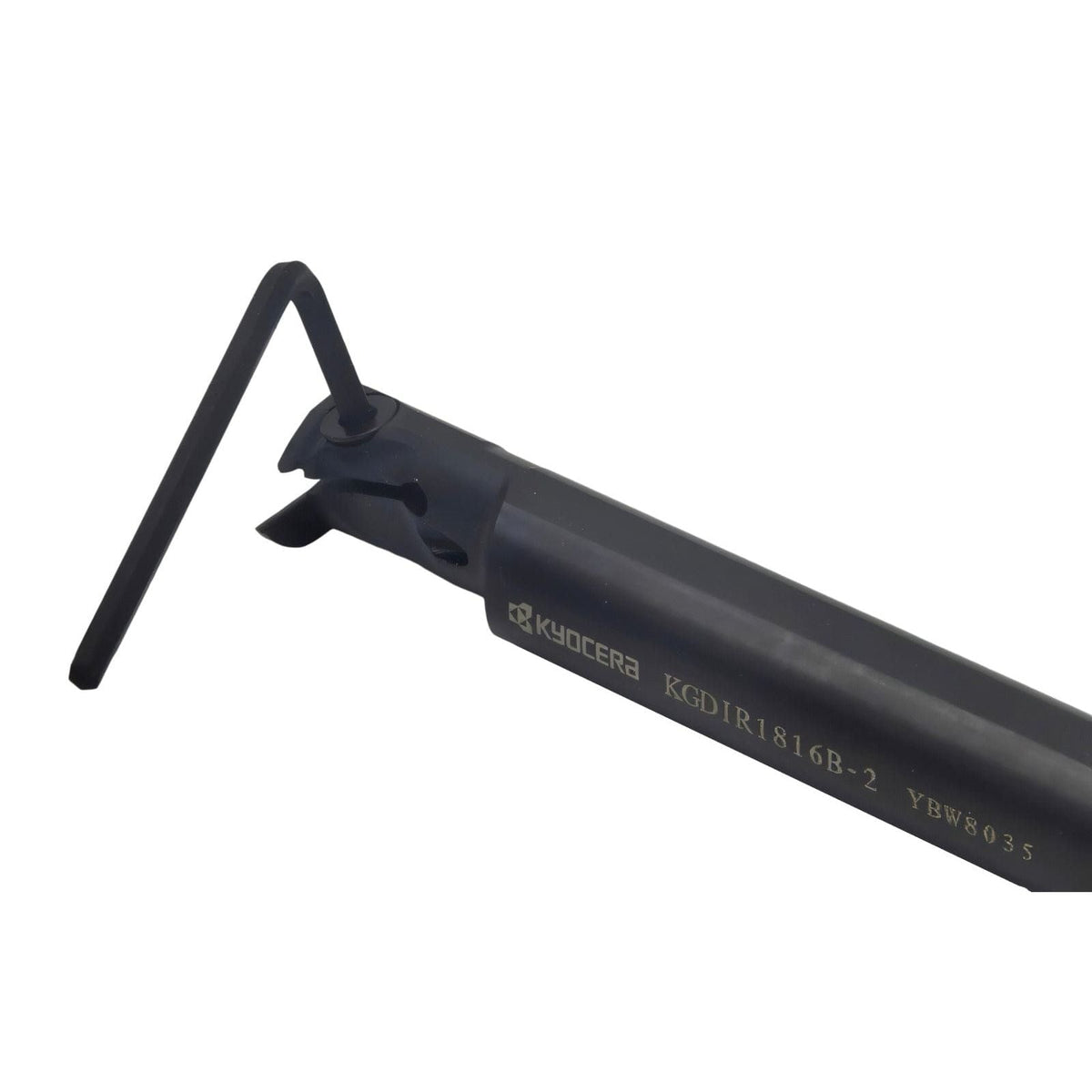

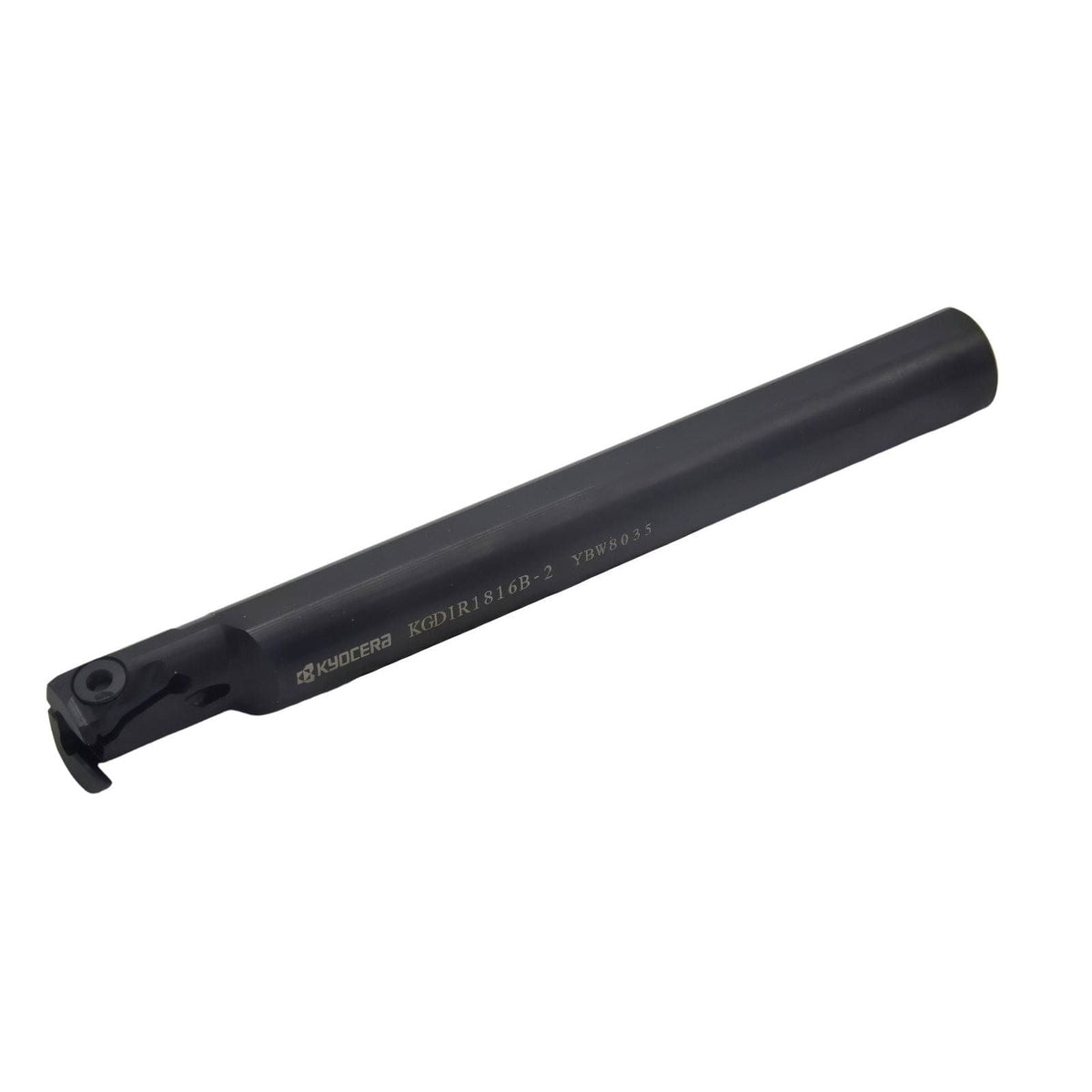

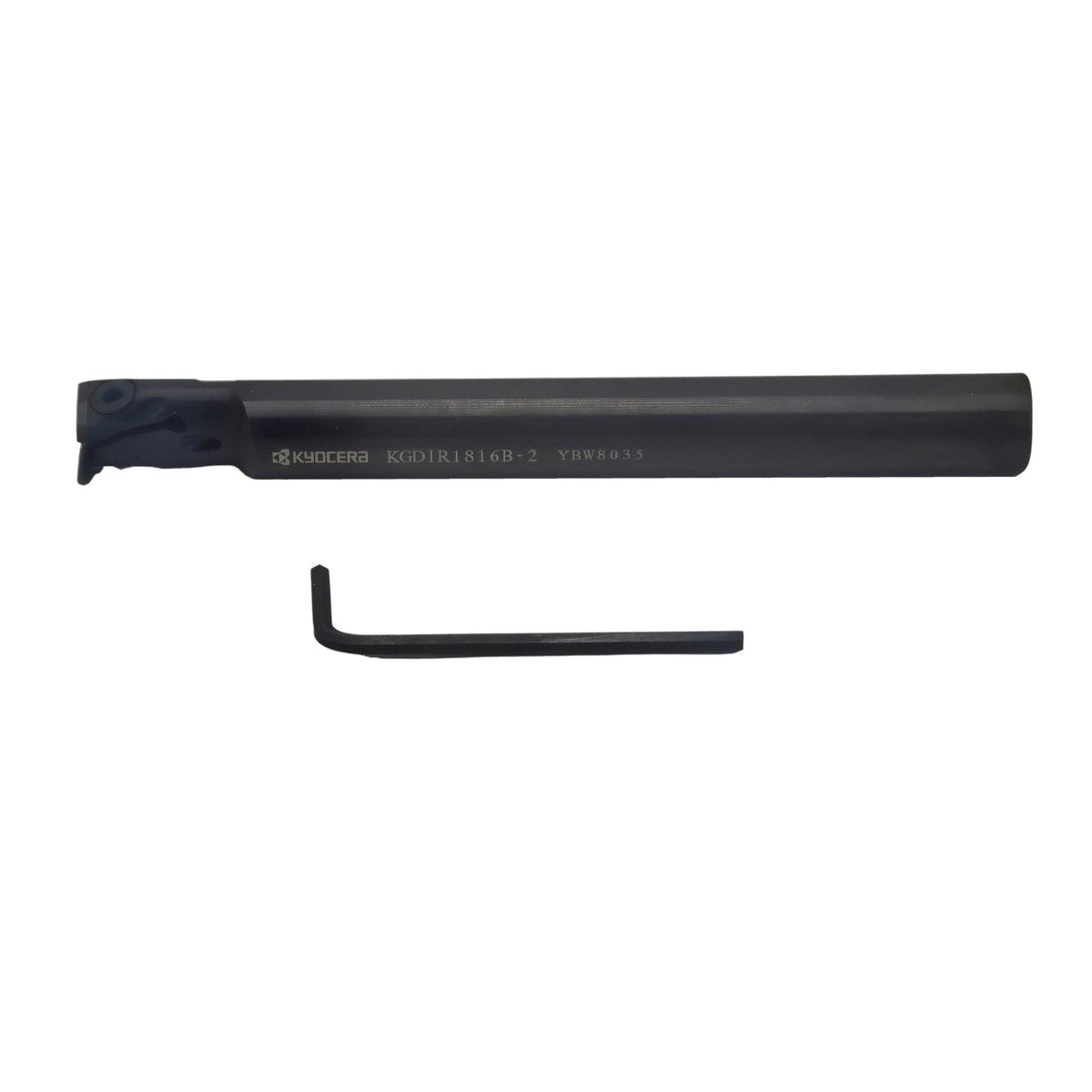

Kyocera KGDIR1816B-2 Internal Grooving Toolholder 16mm Shank

Professional quality Kyocera KGDIR1816B-2 internal grooving toolholder designed for precise and stable internal grooving operations. Featuring a 16 mm cylindrical shank and right-hand configuration, this toolholder is suitable for machining internal grooves in bores with a minimum diameter of 18 mm.

Manufactured from steel for reliable rigidity and durability, the KGDIR1816B-2 features internal coolant delivery to support efficient chip evacuation and improved cutting performance. With a 2 mm grooving width and 4.5 mm maximum grooving depth, it provides a dependable solution for precision internal grooving applications on CNC and conventional lathes.

Product Features

• Genuine Kyocera internal grooving toolholder
• Designed for precision internal grooving applications
• 16 mm cylindrical shank for secure and rigid tool mounting
• Suitable for minimum bore diameters of 18 mm
• 2 mm grooving width
• 4.5 mm grooving depth
• Right-hand configuration
• Internal coolant capability
• Steel construction for strength and rigidity
• Suitable for CNC and conventional lathe operations

Technical Specifications

• Brand: Kyocera
• Model: KGDIR1816B-2
• Product Code: THC14529
• EAN: 4960664756063
• Tool Type: Internal Grooving Toolholder
• Hand: Right Hand
• Shank Diameter (DCON): 16 mm
• Minimum Bore Diameter: 18 mm
• Grooving Width: 2 mm
• Grooving Depth: 4.5 mm
• Center Height (HF): 15 mm
• Head Length (LH): 25 mm
• Overall Length (OAL): 150 mm
• Material: Steel
• Internal Coolant: Yes

Applications

The Kyocera KGDIR1816B-2 is suitable for precision internal grooving operations on CNC and conventional lathes. Its compact 16 mm shank and 18 mm minimum bore diameter capability make it suitable for machining internal grooves in smaller bores while maintaining stable and accurate cutting performance.

Note: Cutting insert is not included unless specifically stated in the product listing.
