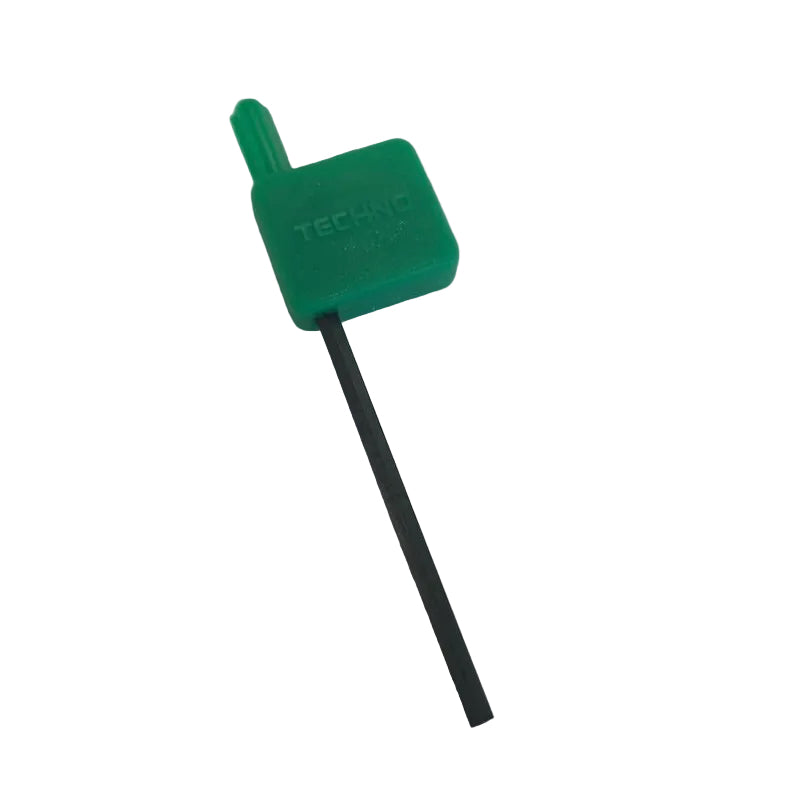

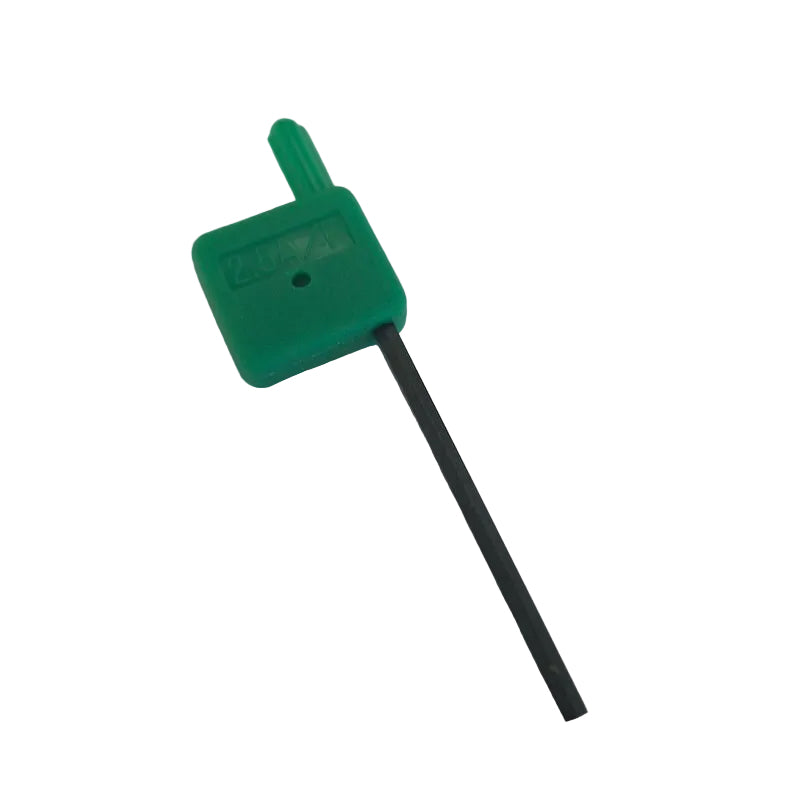

Kyocera FH-2.5 Wrench Spare Part TPC00842

In stock
$22.00

The Kyocera FH-2.5 is a replacement wrench spare part for compatible Kyocera PCLN toolholder configurations. It is specified for the PCLN toolholders listed below and their corresponding spare-part assemblies.

Key Features

  • Kyocera FH-2.5 replacement wrench
  • Spare part for PCLN toolholders
  • Compatible with specified PCLN toolholder configurations
  • Used with the corresponding lever, lock screw, punch, shim pin, and shim assemblies listed

Product Specifications

  • Brand: Kyocera
  • Spare Part Type: Wrench
  • Part Number: FH-2.5
  • Item Number: TPC00842
  • Tool Type: PCLN Toolholder
  • Compatible Toolholders: PCLN& 1616H-09, 2020K-09, 2525M-09
  • Applicable Inserts: CNUG0904...
  • Spare Parts: LL-1N, LS-1N, PC-1, LSP-1, LC-32N
  • Compatible Toolholders: PCLN& 2020H-12, 2020K-12, 2525M-12, 3225P-12
  • Applicable Inserts: CNUA1204..., CNUG1204..., CNUM1204...
  • Spare Parts: LL-2N, LS-2N, PC-2, LSP-2, LC-42N, LC-42N-C*, LC-42N-20*
  • Compatible Toolholders: PCLN& 2525M-16, 3232P-16
  • Applicable Inserts: CNMG1606..., CNMM1606...
  • Spare Parts: LL-5N, LS-4N, LSP-3, LC-53N, LC-53N-C*
  • Compatible Toolholders: PCLN& 3232P-19
  • Applicable Inserts: CNMG1906..., CNMM1906...
  • Spare Parts: LL-6, LS-5, LSP-4, LC-63, LC-63-C*
  • Wrench: FH-2.5

Note: When using inserts with a corner-R (RE) greater than 1.6 mm, a shim should be purchased and used to prevent interference between the workpiece and shim. When using inserts with an SX chipbreaker, prepare the corresponding -C type shim separately.
