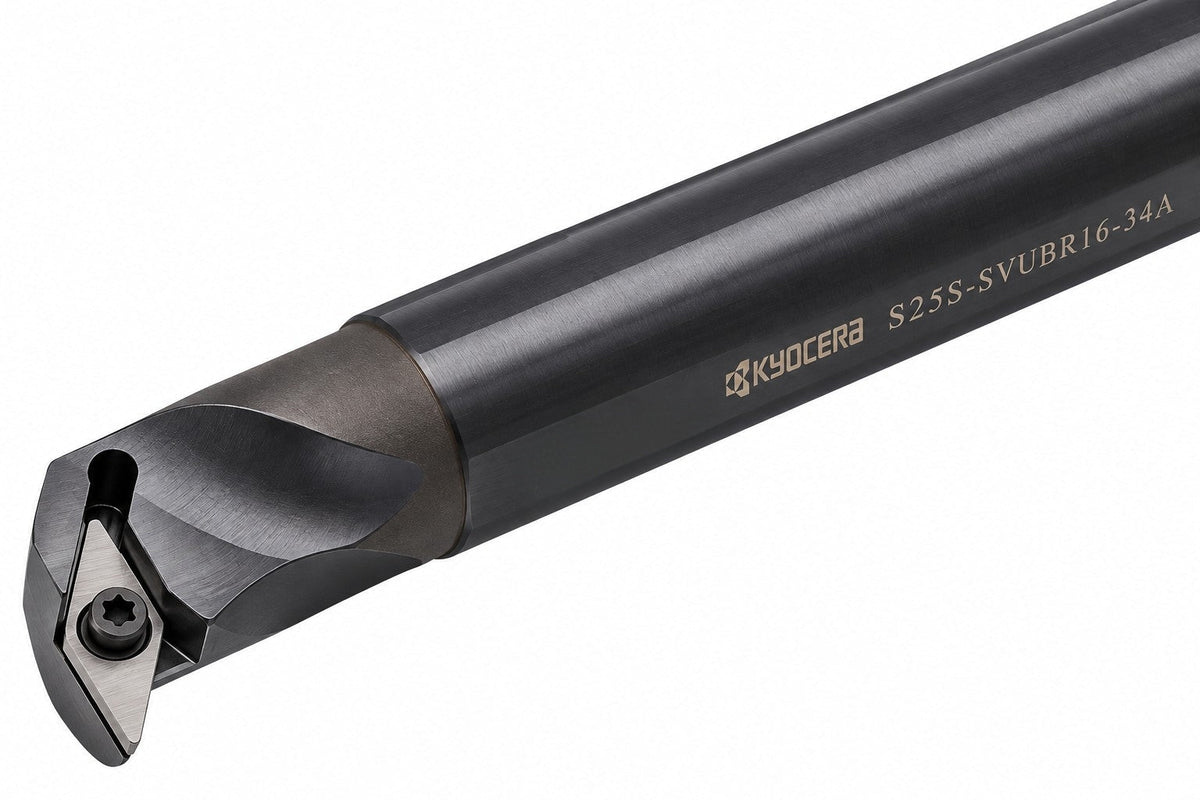

Kyocera Dynamic Boring Bar S25S-SVUBR16-34A suits VBMT 16 Inserts
Couldn't load pickup availability

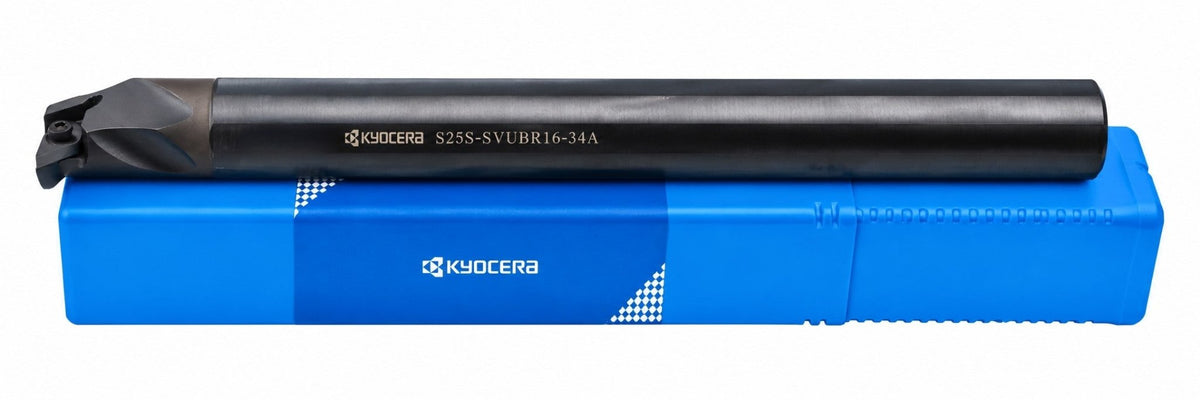

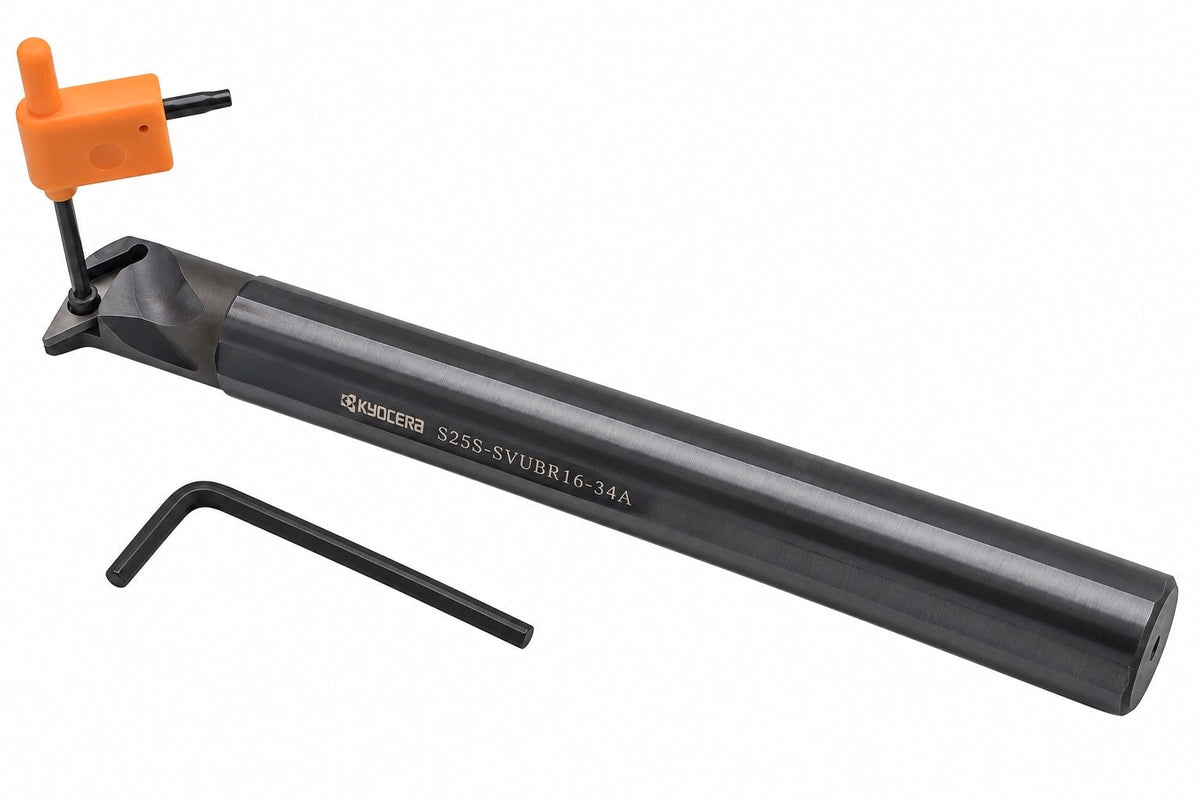

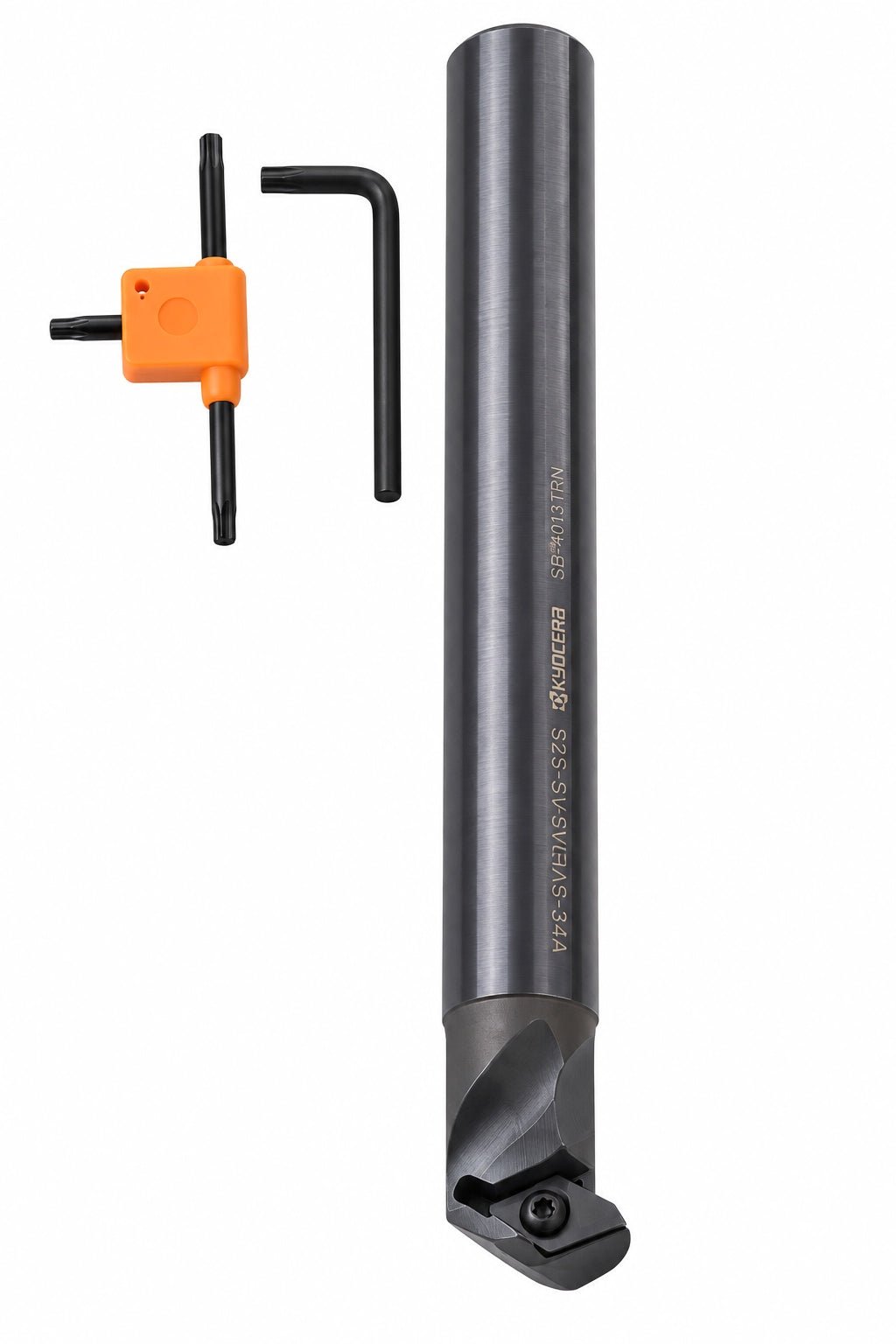

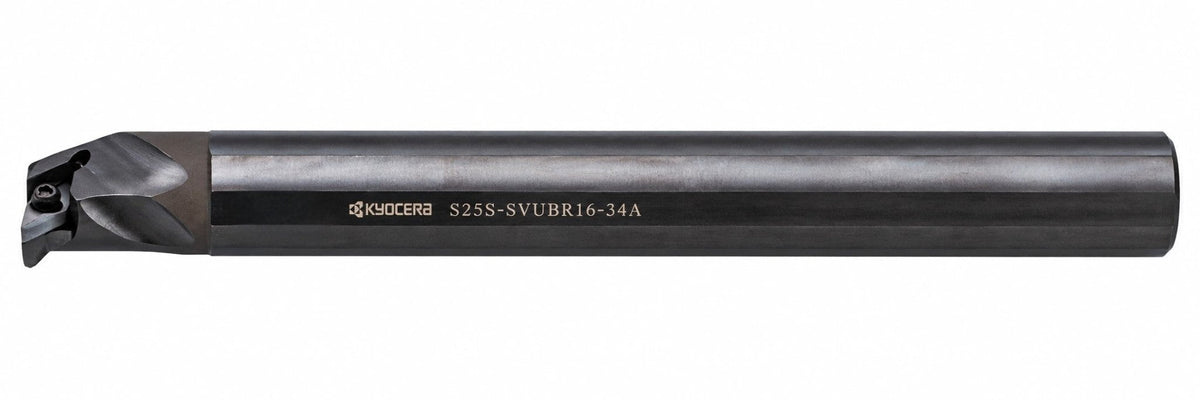

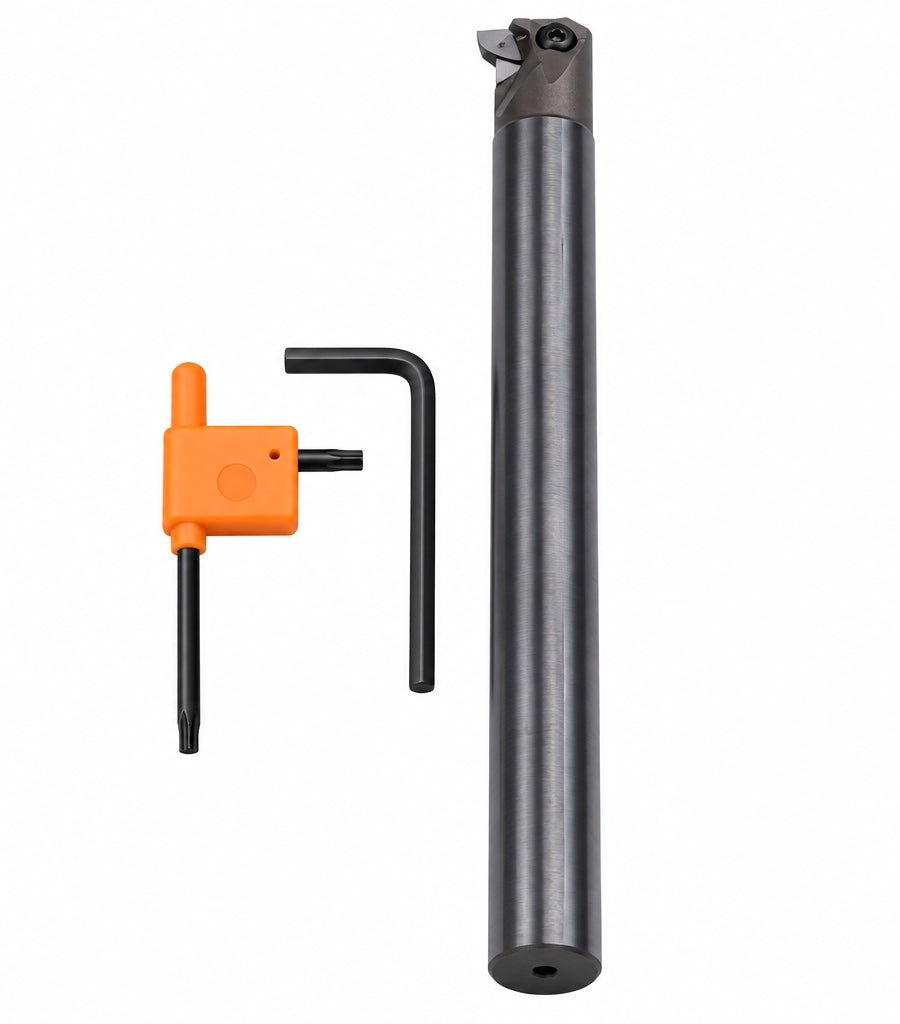

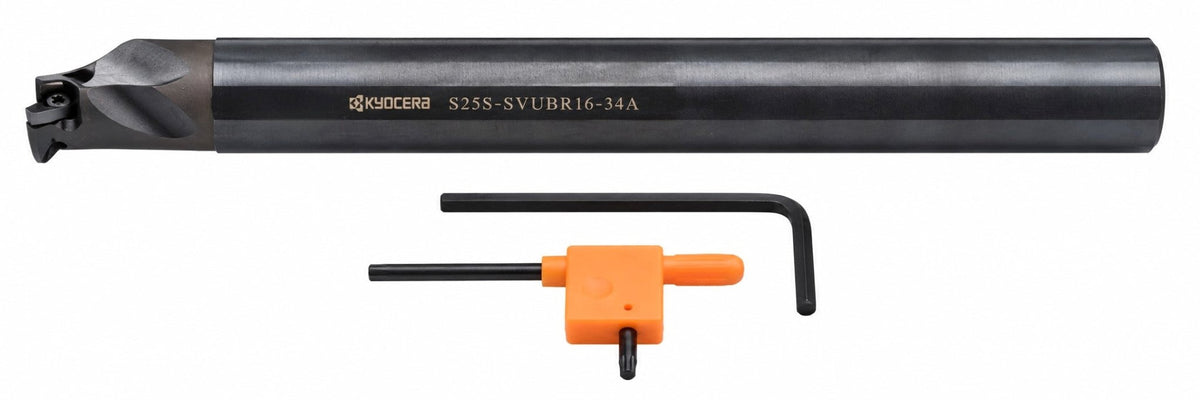

Professional quality Kyocera S25S-SVUBR16-34A turning toolholder designed for external and internal turning applications using compatible 16mm inserts. This right-hand toolholder features a 25.0mm steel shank, 250.0mm overall length and 34mm minimum bore diameter for reliable and precise machining operations.
The S25S-SVUBR16-34A features a 35° insert included angle, 93° cutting edge angle and 0.4mm corner radius specification. The toolholder is designed for use with compatible inserts having a 9.525mm inscribed circle diameter and 4.76mm insert thickness.
Product Features
- Genuine Kyocera turning toolholder
- Right-hand configuration
- Designed for 16mm insert size
- 25.0mm steel shank diameter
- 34mm minimum bore diameter
- 250.0mm overall length
- 40mm head length
- 35° insert included angle
- 93° tool cutting edge angle
- 0.4mm corner radius specification
- 24mm shank height
- 20.5mm functional width
- 8.5mm functional width 2
Technical Specifications
- Brand: Kyocera
- Part Number: S25S-SVUBR16-34A
- Tool Type: Turning Toolholder
- Material: Steel
- Type: Right
- Hand: Right
- Insert Size: 16
- Shank Diameter (DCON): 25.0mm
- Shank Height (H): 24mm
- Minimum Bore Diameter (DMIN): 34mm
- Overall Length (OAL): 250.0mm
- Functional Length (LF): 250mm
- Head Length (LH): 40mm
- Insert Included Angle (EPSR): 35°
- Tool Cutting Edge Angle (KAPR): 93°
- Major Clearance Angle (AN): 5°
- Radial Rake Angle (GAMF): 0°
- Axial Rake Angle (GAMP): 0°
- Inscribed Circle Diameter (IC): 9.525mm
- Cutting Edge Length (L): 16.606mm
- Corner Radius (RE): 0.4mm
- Insert Thickness (S): 4.76mm
- Functional Width (WF): 20.5mm
- Functional Width 2 (WF2): 8.5mm
Applications
The Kyocera S25S-SVUBR16-34A is designed for turning operations requiring a right-hand toolholder with a 25.0mm shank and 34mm minimum bore diameter. It is suitable for use with compatible 16mm inserts matching the specified insert geometry and dimensions.
