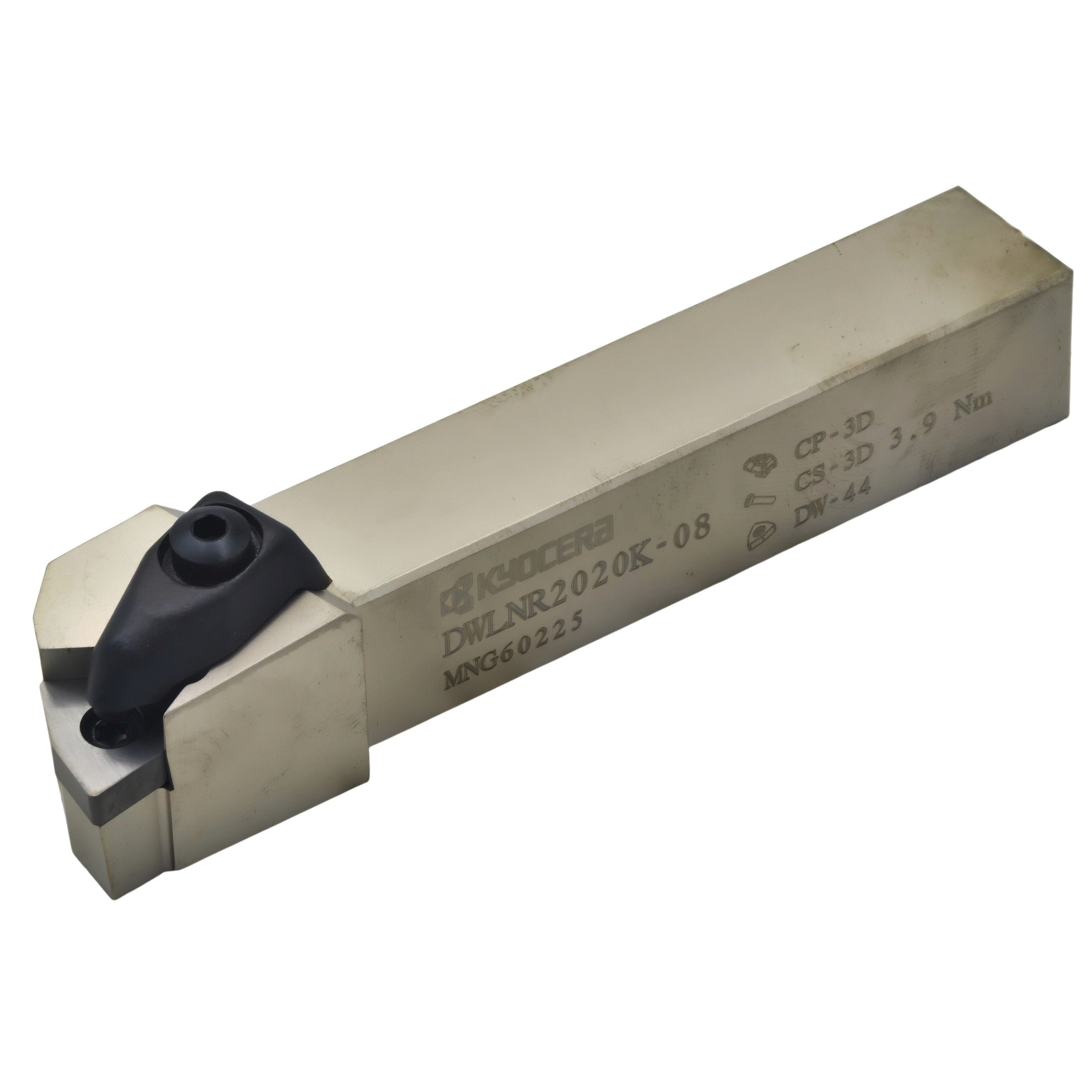

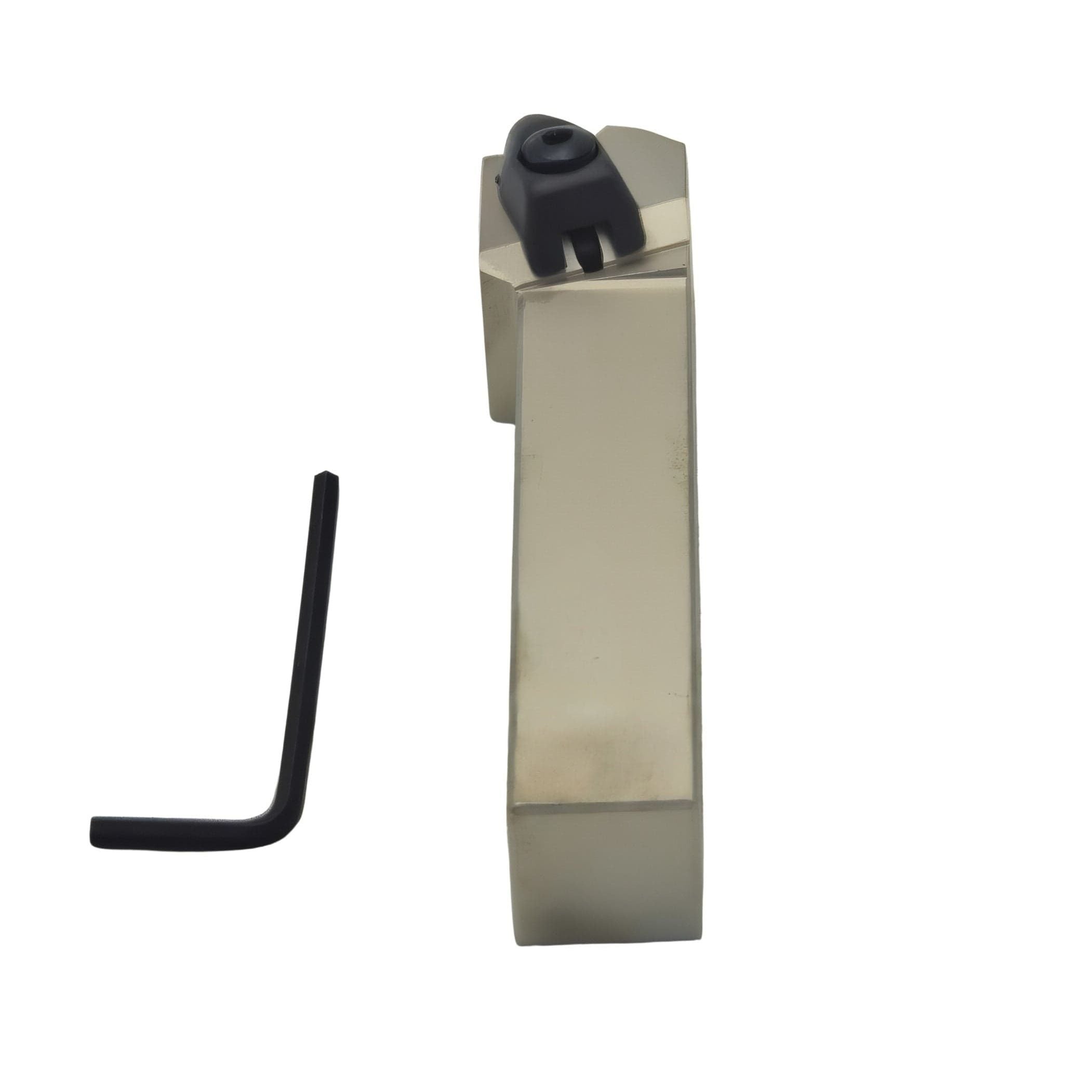

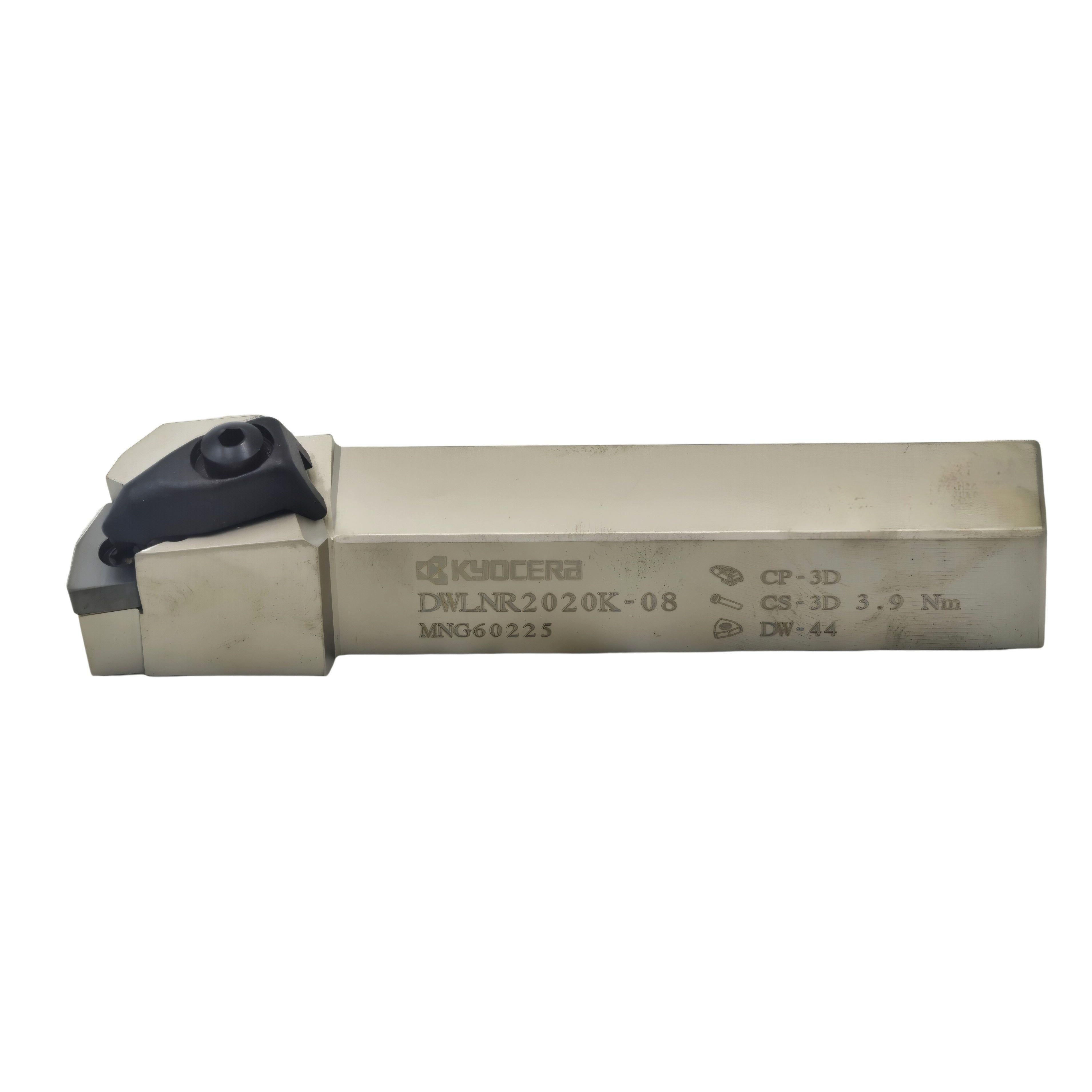

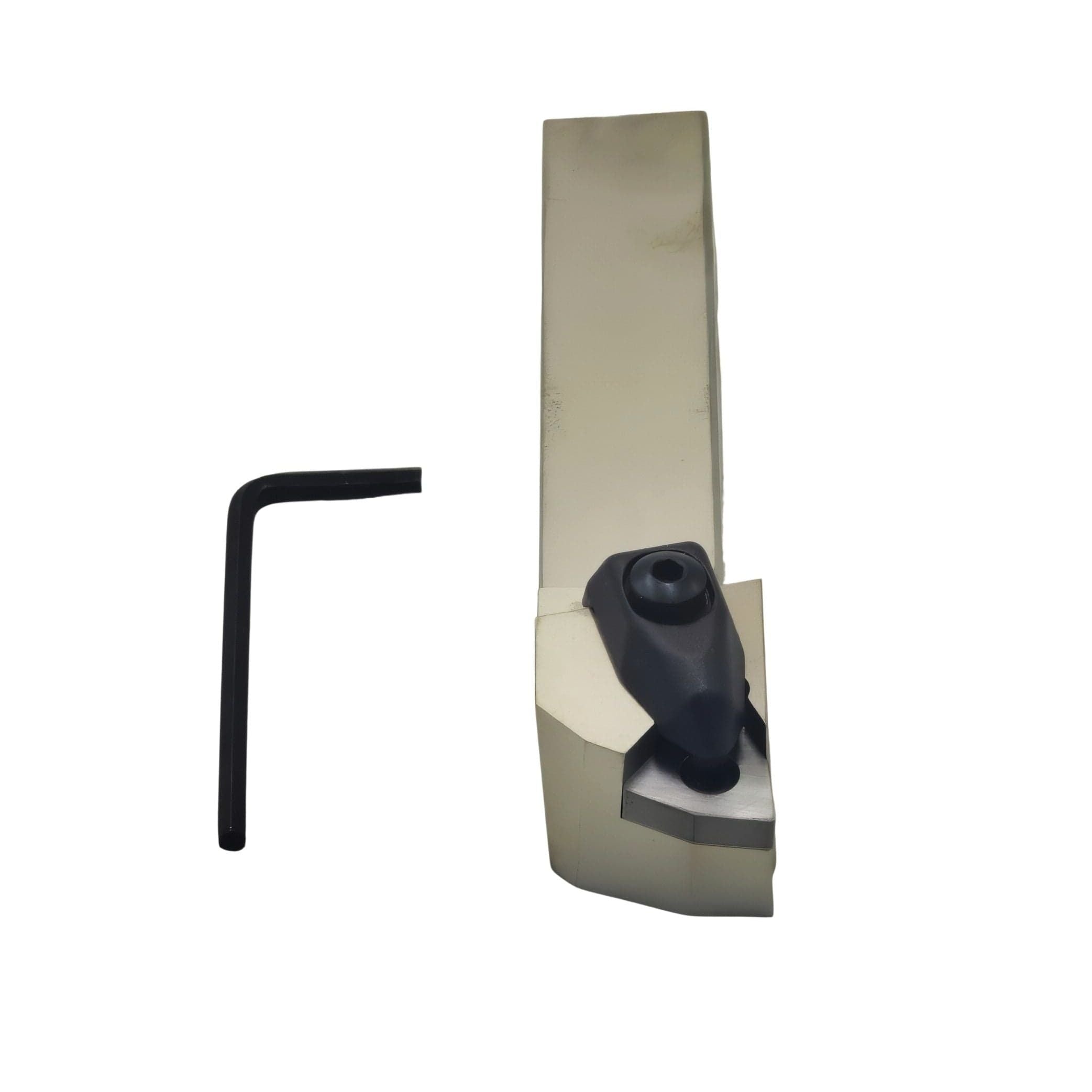

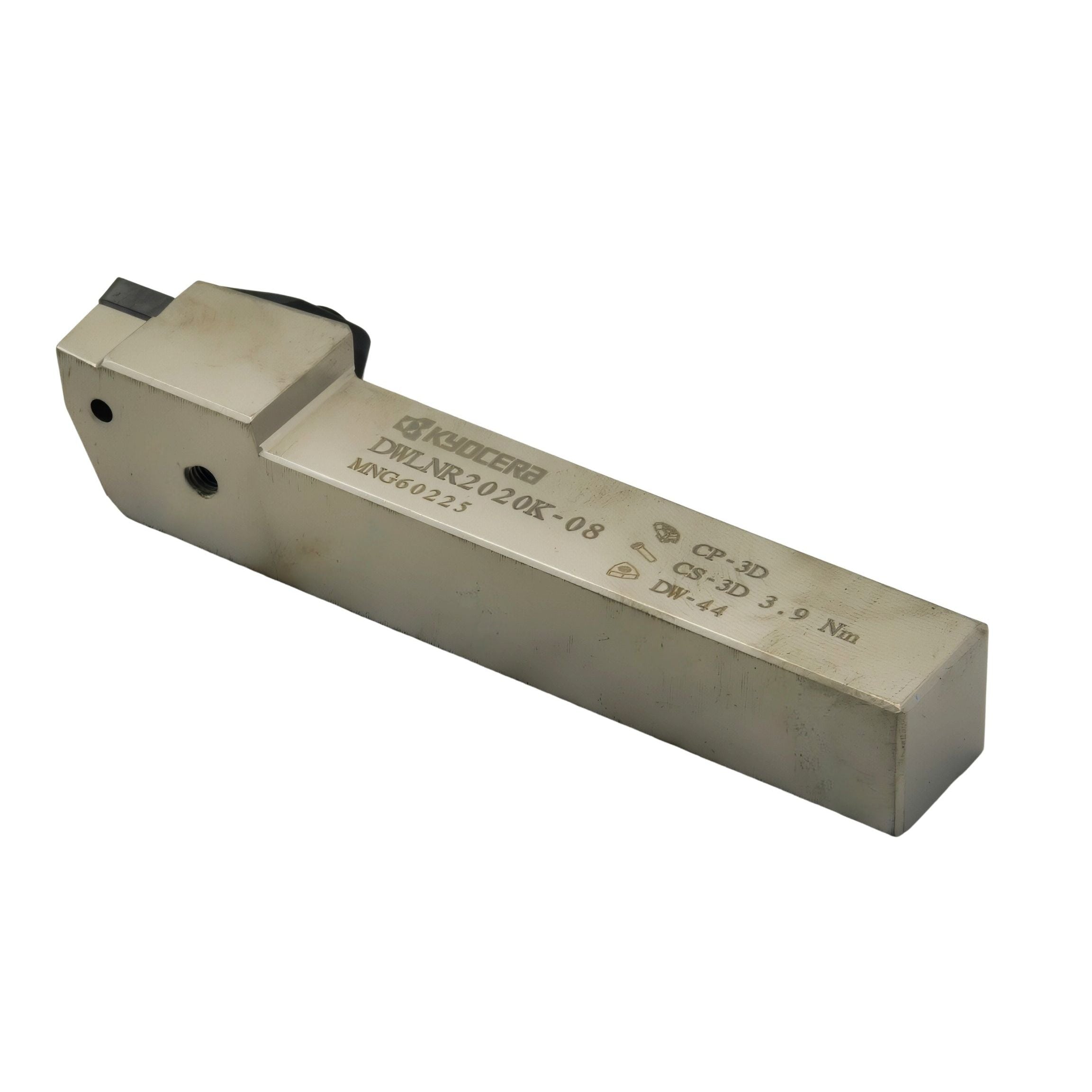

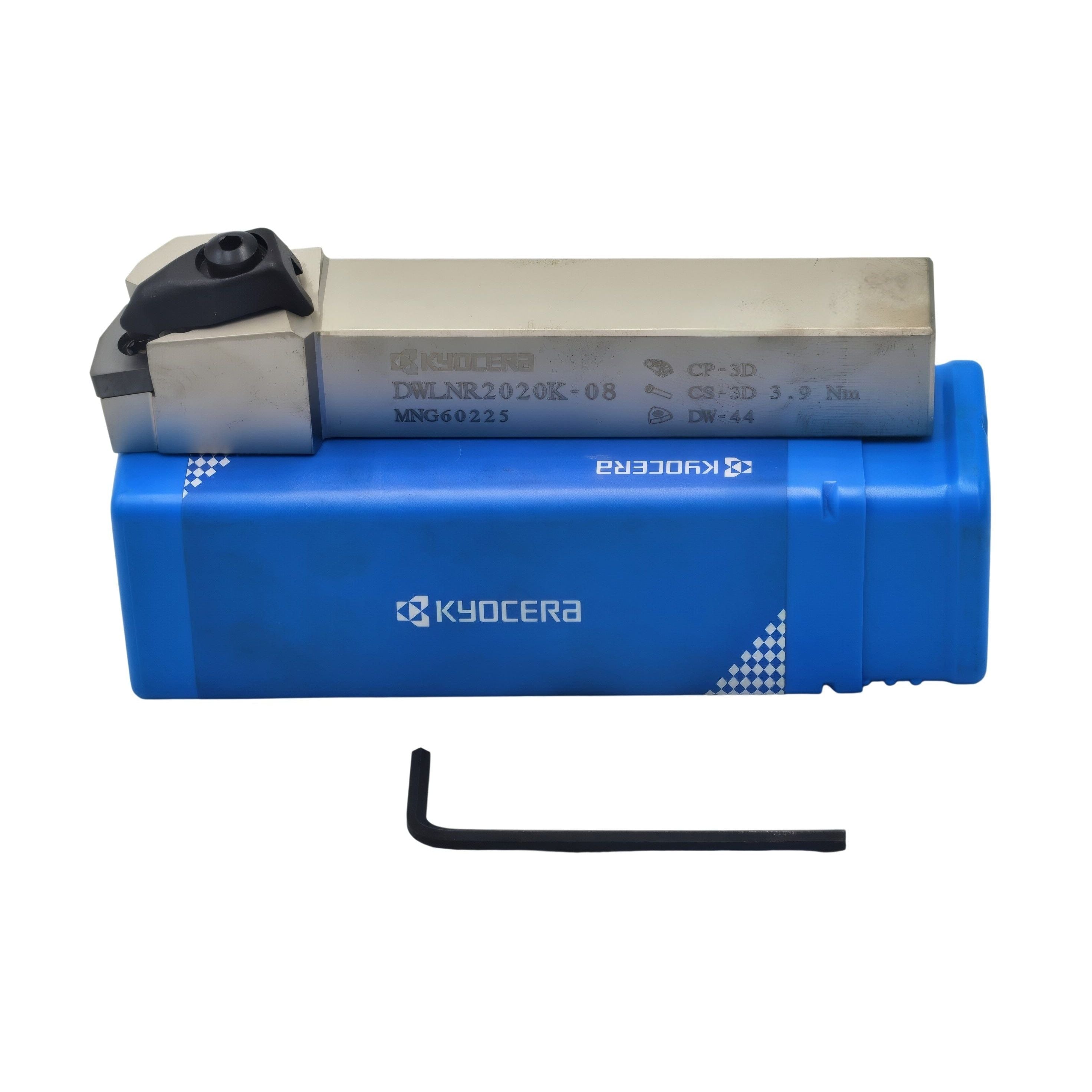

Kyocera DWLNR2020K-08 External Turning Toolholder
Couldn't load pickup availability
The Kyocera DWLNR2020K-08 is a compact, rigid external turning toolholder designed for use with WNMG 08 series negative trigon inserts. Engineered for strength and stability, this toolholder is ideal for general turning, facing, and semi-roughing applications where reliable performance and consistent results are required.
Featuring a rigid 20 × 20 mm square shank and a right-hand cutting direction, the DWLNR2020K-08 provides excellent vibration resistance and secure insert seating. The robust clamping system ensures dependable performance under moderate to high cutting loads, making it suitable for machining steel, stainless steel, and cast iron.
Key Features & Benefits
- Insert Compatibility – Designed for WNMG 08 size negative inserts.
- Right-Hand Cutting – Suitable for standard external turning and facing operations.
- Rigid Square Shank – 20 × 20 mm shank for stable, low-vibration machining.
- Secure Insert Clamping – Reliable seating for consistent tool life and accuracy.
- Versatile Application – Ideal for general turning and semi-roughing work.
Technical Specifications
- Model: DWLNR2020K-08
- Brand: Kyocera
- Category: External Turning Toolholder
- Measurement System: Metric
- Shank Width (B): 20 mm
- Shank Height (H): 20 mm
- Total Length (LF/OAL): 125 mm
- Head Length (LH): 34 mm
- Insert Shape: W – Trigon 80° (Negative)
- Insert Size: 08
- Cutting Direction: Right Hand
- Internal Coolant: No
- Reference / Code: THC13295
Kyocera turning toolholders are manufactured to deliver durability, accuracy, and repeatable cutting performance, making them a trusted choice for CNC production, toolrooms, and general engineering workshops.
