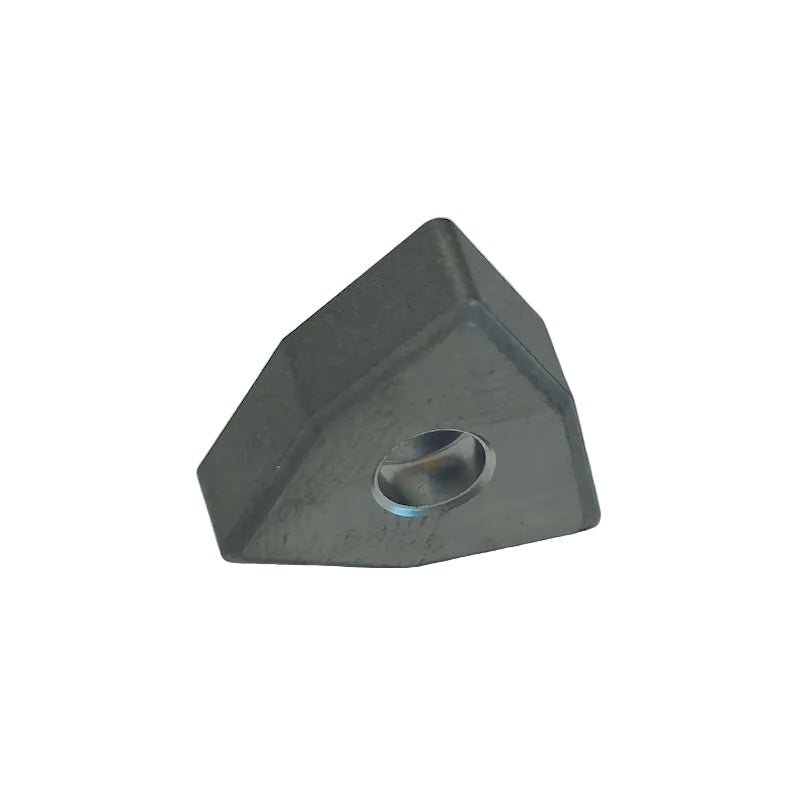

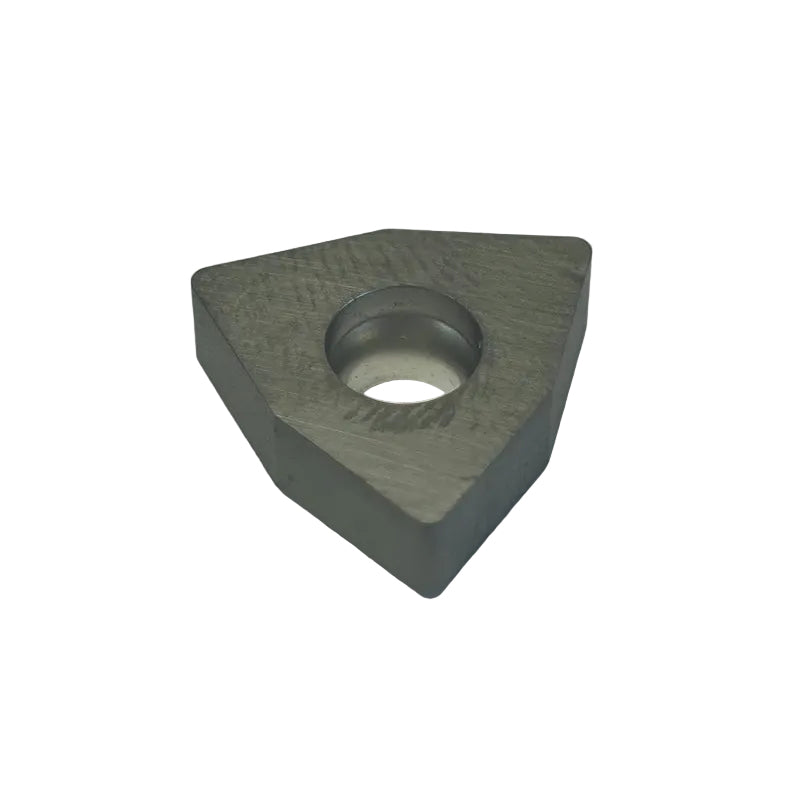

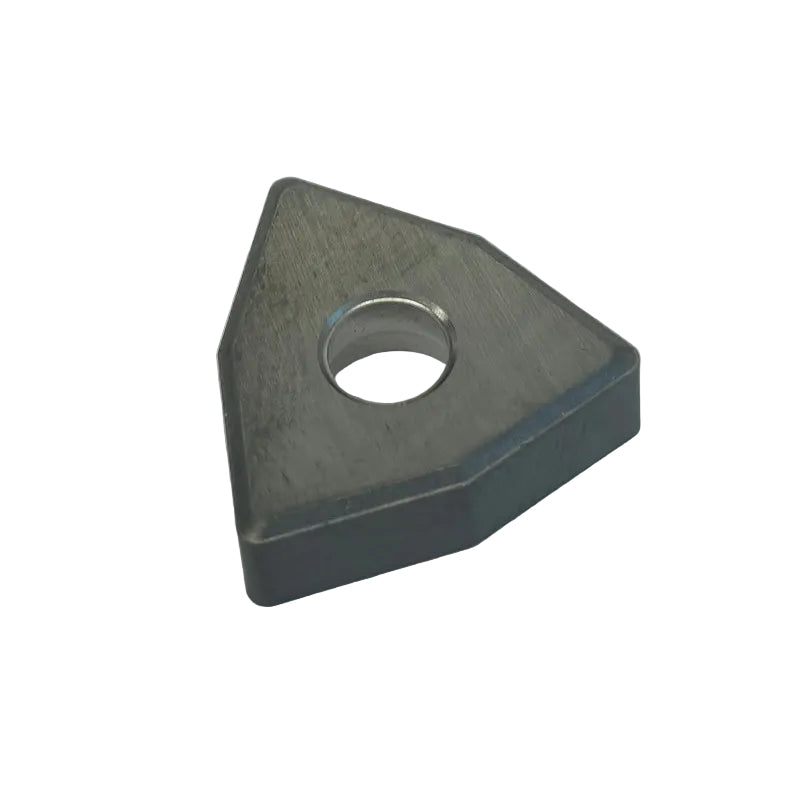

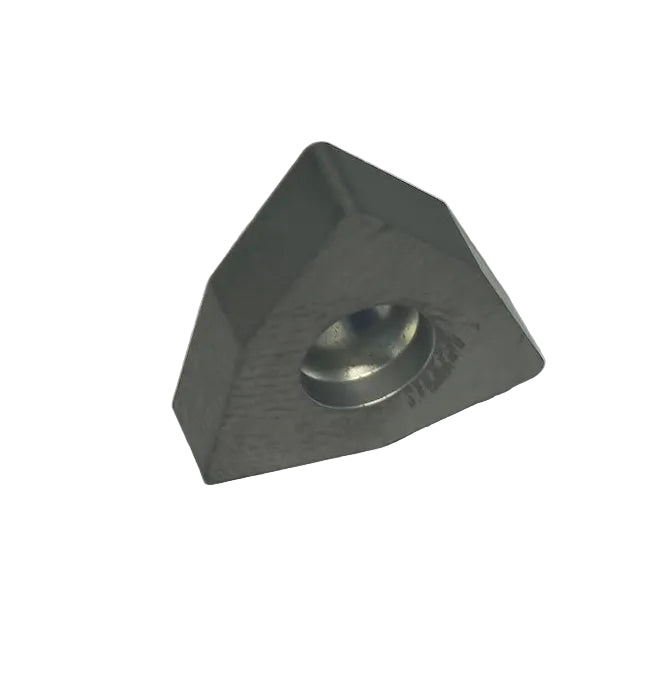

Kyocera DW-44 Shim Spare Part TPC00827

In stock
$22.00

The Kyocera DW-44 is a replacement shim spare part for compatible Kyocera DWLN toolholder configurations. It is specified for DWLN& 2020K-08JCT and 2525M-08JCT configurations using the CP-3D-&-JCT clamp assembly.

Key Features

  • Kyocera DW-44 replacement shim
  • Spare part for DWLN toolholder configurations
  • Compatible with 2020K-08JCT and 2525M-08JCT configurations
  • For use with the specified CP-3D-&-JCT clamp assembly
  • Recommended tightening torque: 3.9 N·m

Product Specifications

  • Brand: Kyocera
  • Spare Part Type: Shim
  • Part Number: DW-44
  • Item Number: TPC00827
  • Compatible Toolholders: DWLN& 2020K-08JCT, 2525M-08JCT
  • Clamp: CP-3D-R-JCT for right-hand toolholder; CP-3D-L-JCT for left-hand toolholder
  • Pipe Connection: FP-12
  • Clamp Screw: CS-3D-TR
  • Screw: SB-4085TR
  • Shim: DW-44
  • Spring: SP-3D
  • Wrench: FT-15
  • Recommended Tightening Torque: 3.9 N·m

Note: For coolant-through holders, the piping parts are specified separately. Only the O-ring (SS-035) included with the pipe connection can be ordered.
