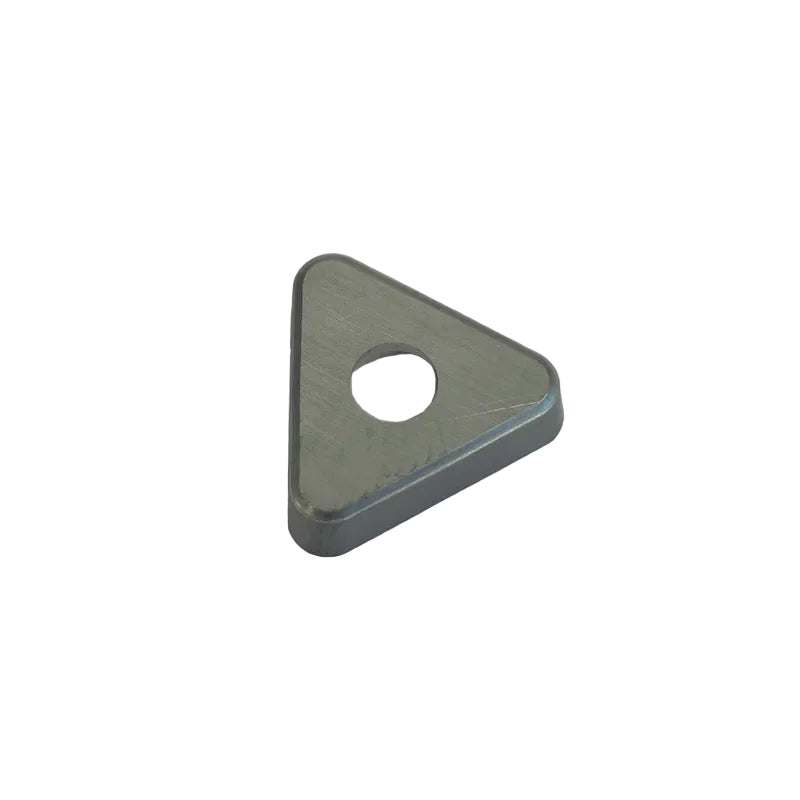

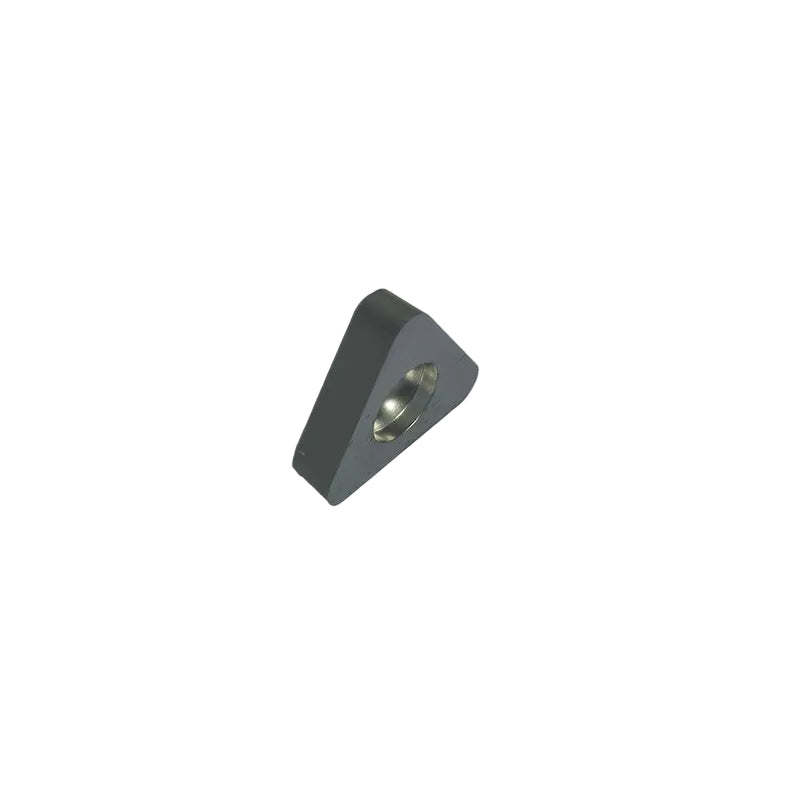

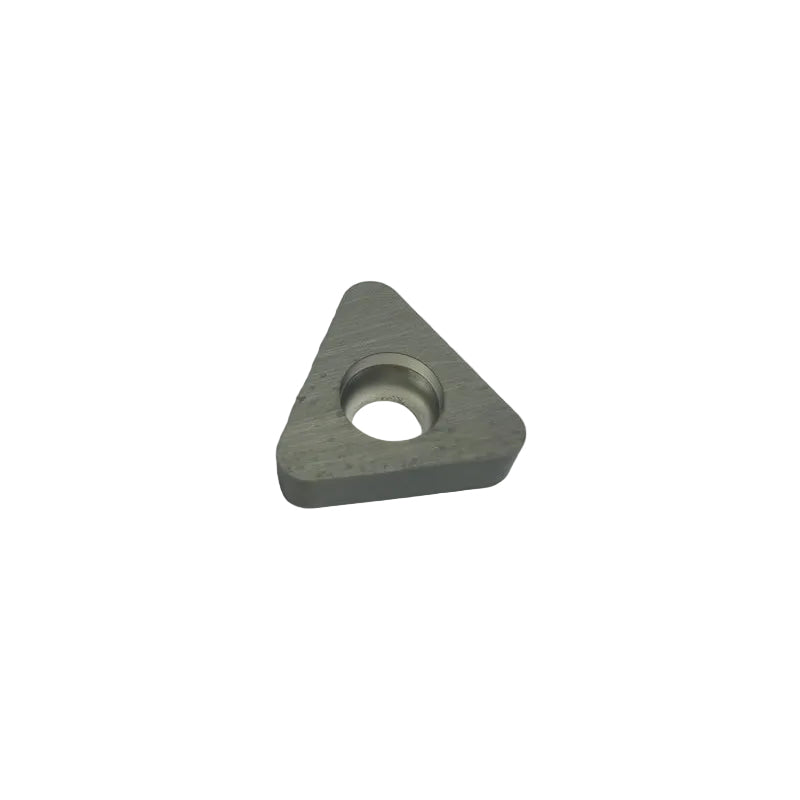

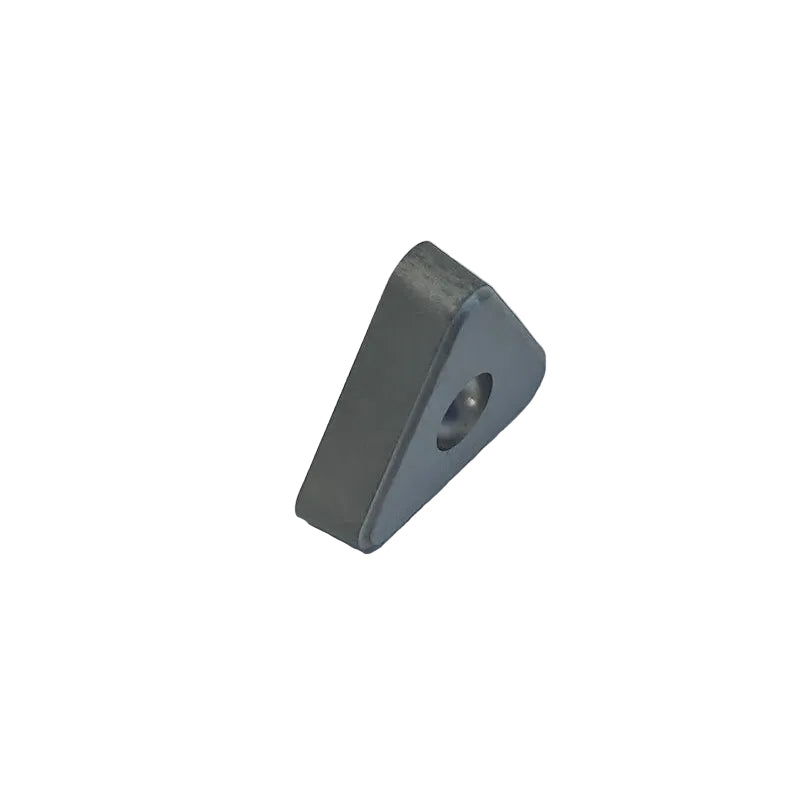

Kyocera DT-32 Shim Spare Part TPC00831

In stock
$29.15

The Kyocera DT-32 is a replacement shim spare part for compatible Kyocera KPC-DTGN toolholder configurations. It is specified for KPC3-DTGN, KPC4-DTGN, and KPC5-DTGN configurations using the CP-2D clamp, CS-2D clamp screw, SP-2D spring, and LW-2.5 wrench.

Key Features

  • Kyocera DT-32 replacement shim
  • Spare part for KPC-DTGN toolholder configurations
  • Compatible with KPC3-DTGN, KPC4-DTGN, and KPC5-DTGN configurations
  • Applicable to both -16A and -16S configurations listed
  • Recommended tightening torque: 1.7 N·m
  • Applicable pressure: up to approximately 7 MPa

Product Specifications

  • Brand: Kyocera
  • Spare Part Type: Shim
  • Part Number: DT-32
  • Item Number: TPC00831
  • Compatible Toolholders: KPC3-DTGN, KPC4-DTGN, KPC5-DTGN
  • Compatible Configurations: 22040-16A, 27050-16A, 35060-16A, 22040-16S, 27050-16S, 35060-16S
  • Clamp: CP-2D
  • Clamp Screw: CS-2D
  • Spring: SP-2D
  • Wrench for Clamp: LW-2.5
  • Clamp Screw: SB-3080TR
  • Wrench: FT-10
  • Recommended Tightening Torque: 1.7 N·m
  • Applicable Pressure: Approximately 7 MPa

Note: When using inserts with a corner-R (RE) greater than 1.6 mm, additional modifications to the toolholder or shim are necessary to prevent interference between the workpiece and shim.
