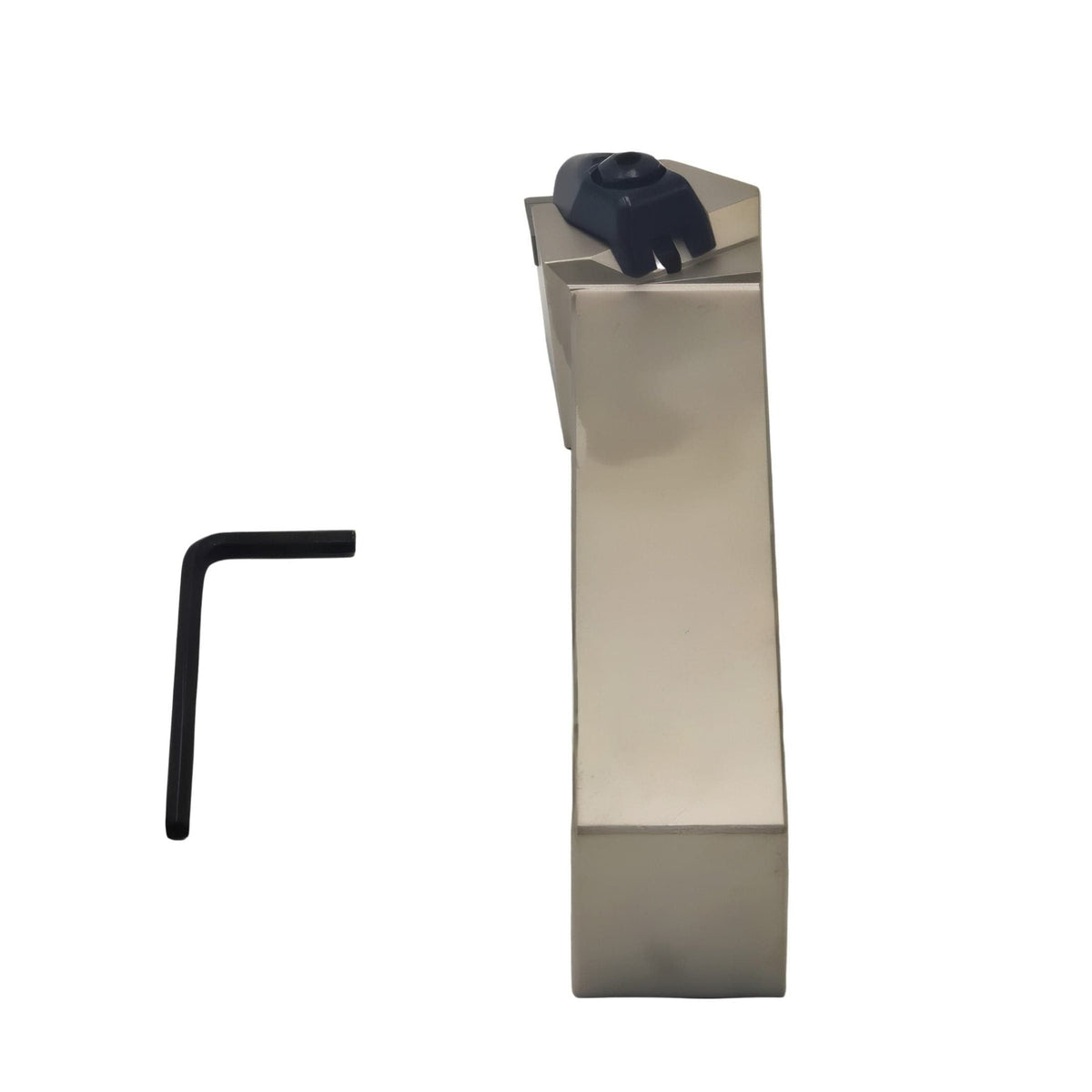

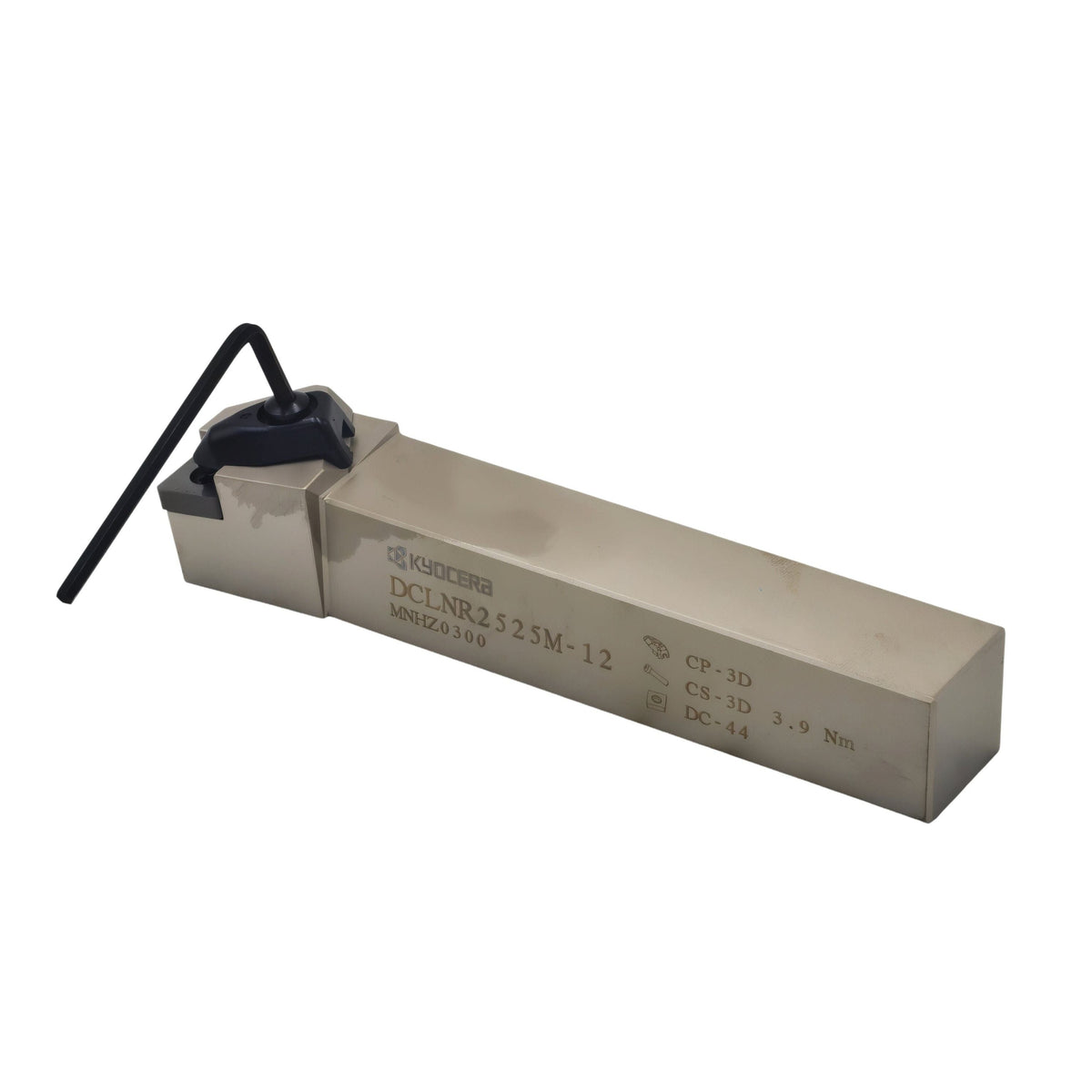

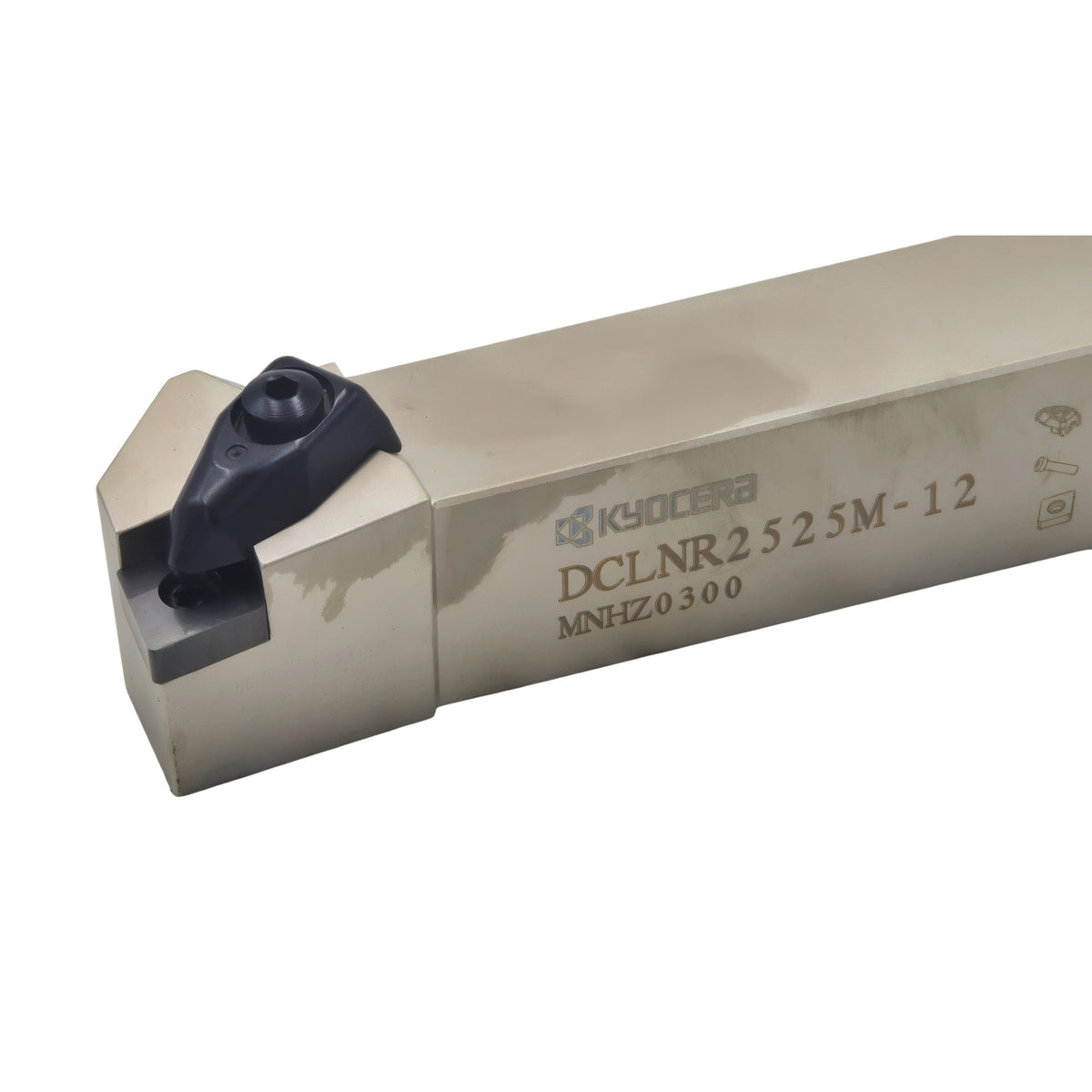

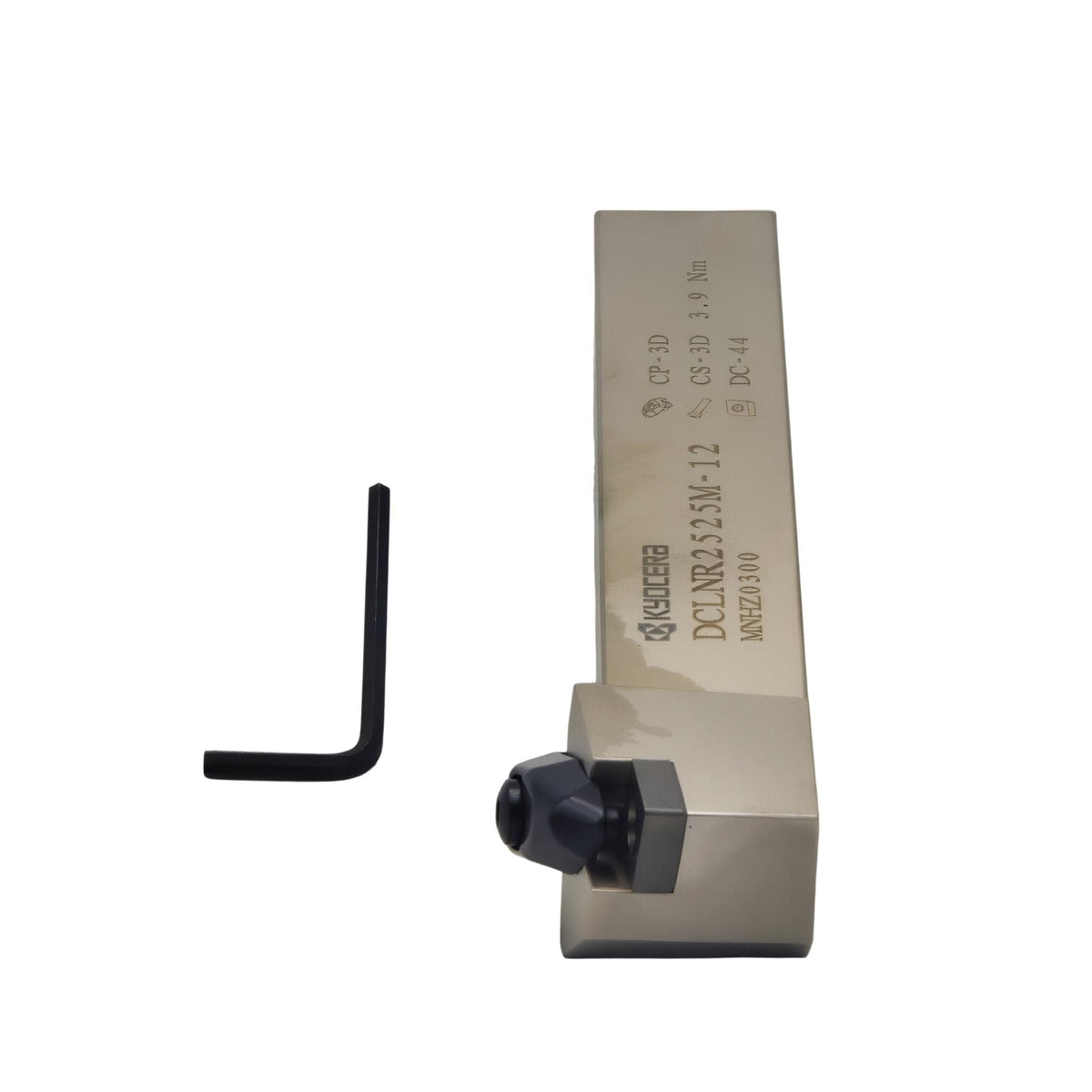

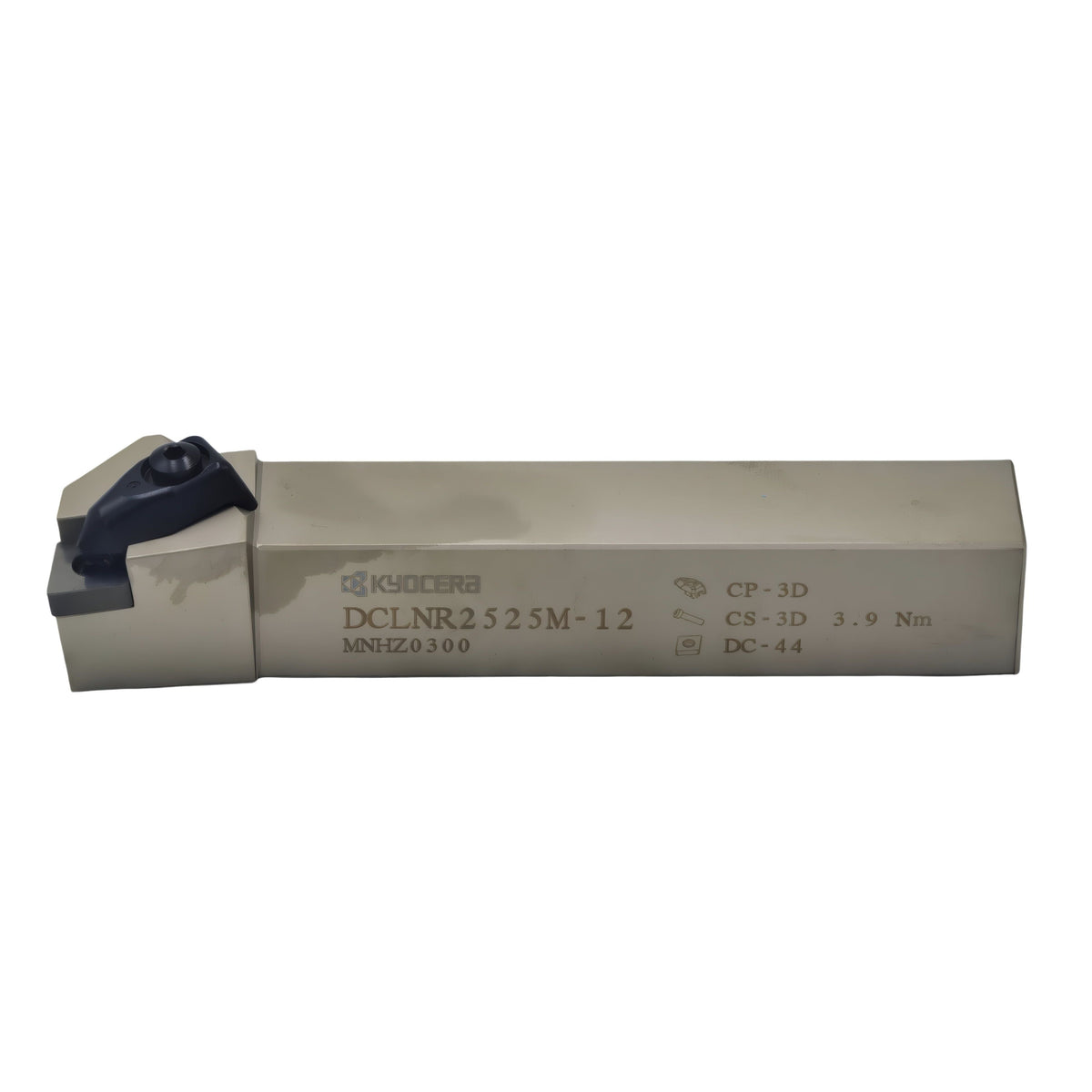

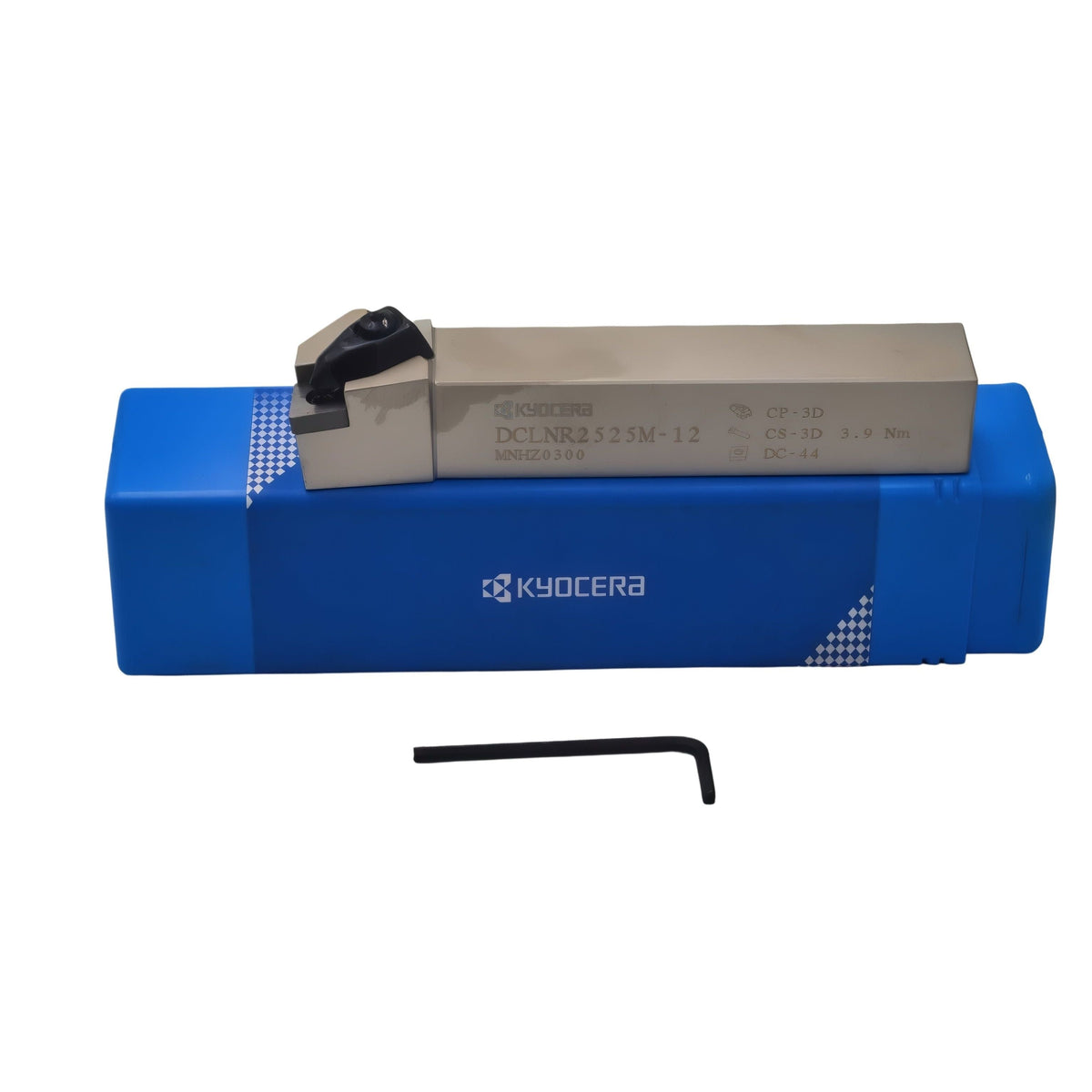

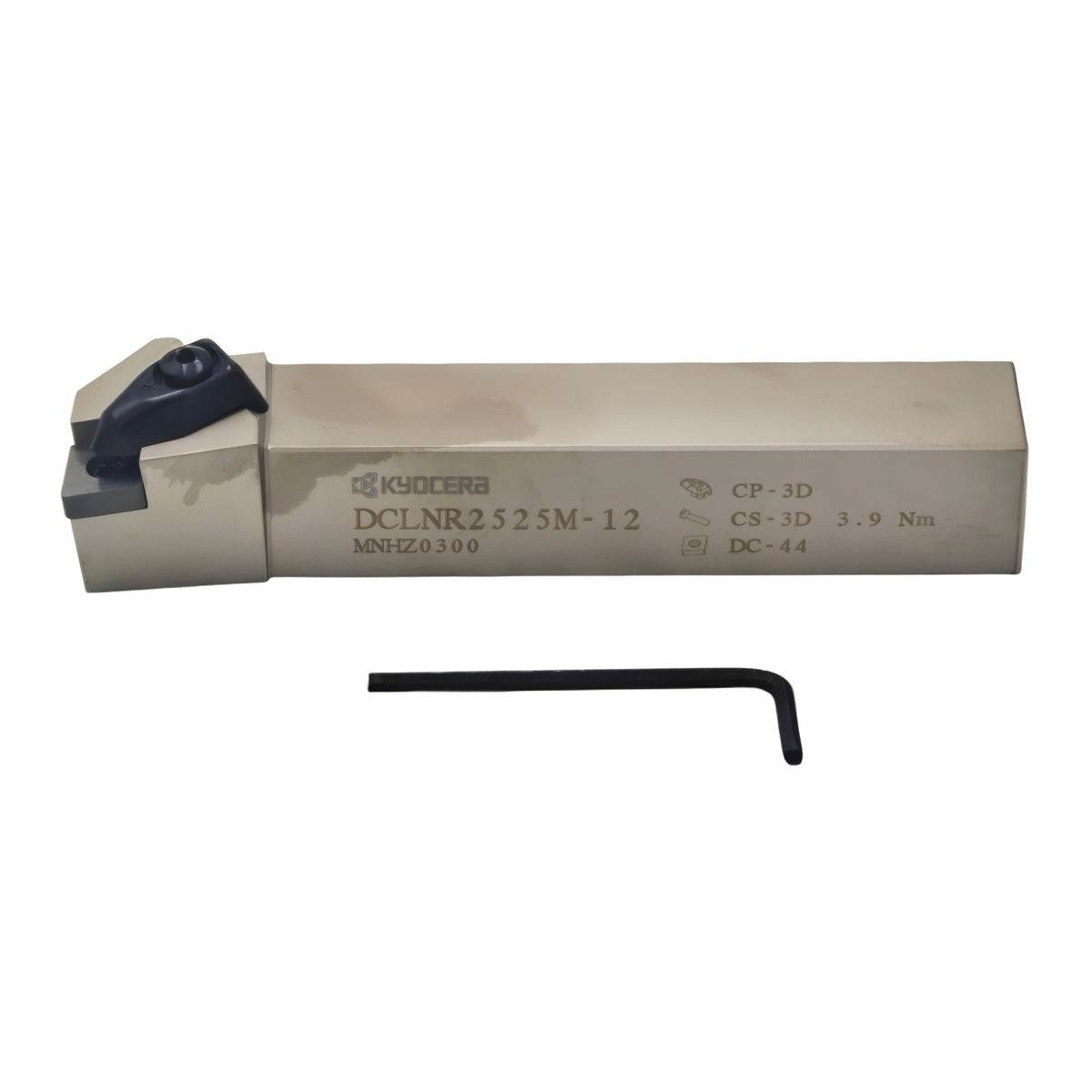

Kyocera DCLNR2525M-12 External Turning Toolholder
Couldn't load pickup availability
The Kyocera DCLNR2525M-12 is a robust external turning toolholder designed for reliable roughing and finishing operations on CNC lathes and conventional turning machines. Featuring a rigid 25 × 25 mm square shank and right-hand cutting orientation, this toolholder delivers excellent stability and consistent cutting performance in demanding machining environments.
Manufactured to ISO standards, the DCLNR configuration accepts CNMG 12 size inserts, making it well suited for machining steels, stainless steels, and cast irons. Its rigid clamping system ensures secure insert seating, repeatable accuracy, and long tool life across a wide range of external turning applications.
Key Features & Benefits
- Toolholder Type: External turning toolholder (DCLNR)
- Shank Size: 25 × 25 mm square shank
- Insert Size: 12 (CNMG style inserts)
- Cutting Direction: Right-hand
- Clamping Method: Rigid top clamp system for secure insert retention
- Applications: Roughing, semi-finishing, and general external turning
- ISO Standard: ISO-compliant design for consistent insert compatibility
Technical Specifications
- Part Number: DCLNR2525M-12
- Shank Width (B): 25 mm
- Shank Height (H): 25 mm
- Insert Size: 12
- Cutting Direction: Right
- Total Length (OAL): 150 mm
- Head Length (LH): 33 mm
- Internal Coolant: No
- Brand: Kyocera
Kyocera is a global leader in cutting tool technology, renowned for precision engineering, advanced materials, and exceptional durability. Kyocera toolholders are widely used in automotive, aerospace, and general engineering industries for their reliability and machining accuracy.
