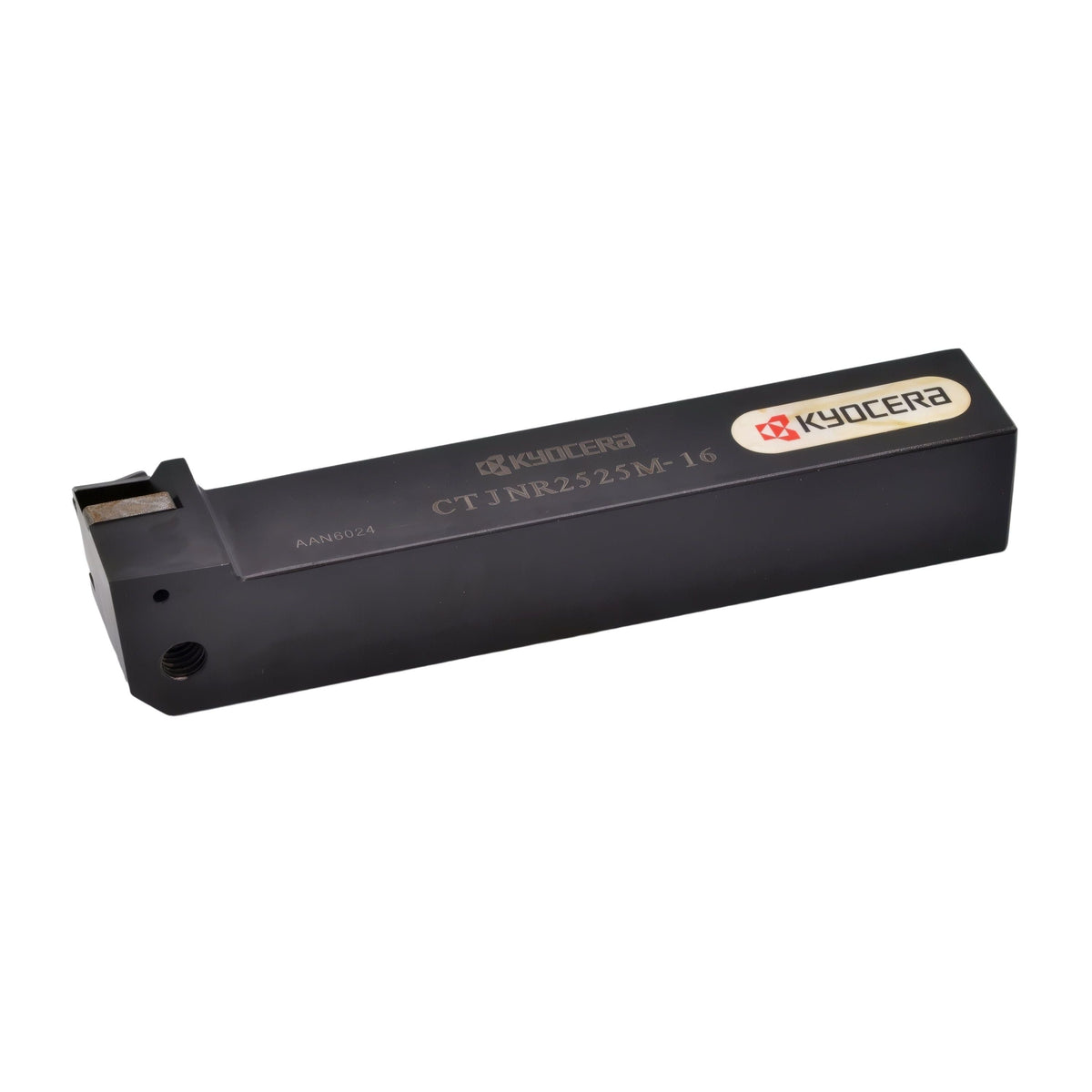

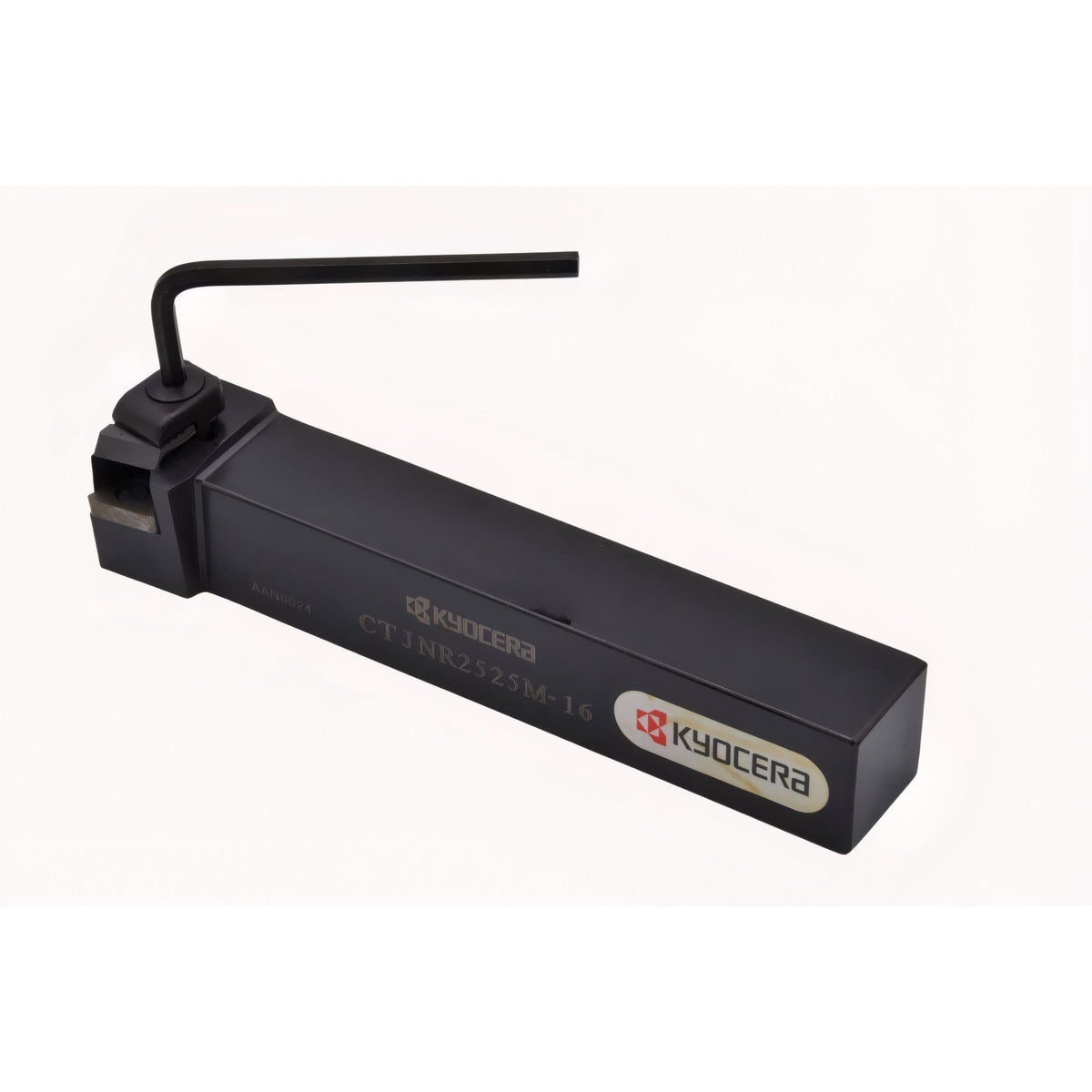

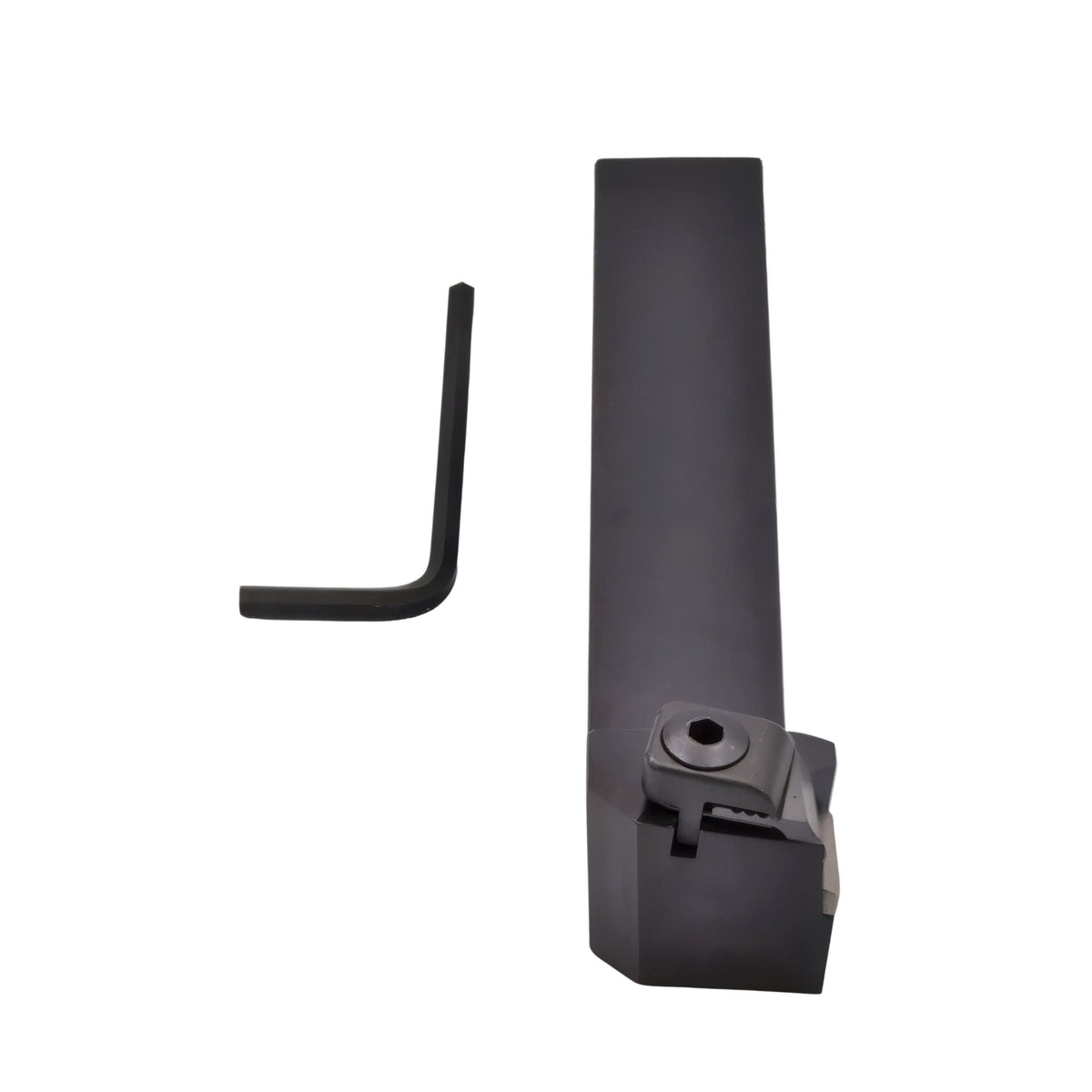

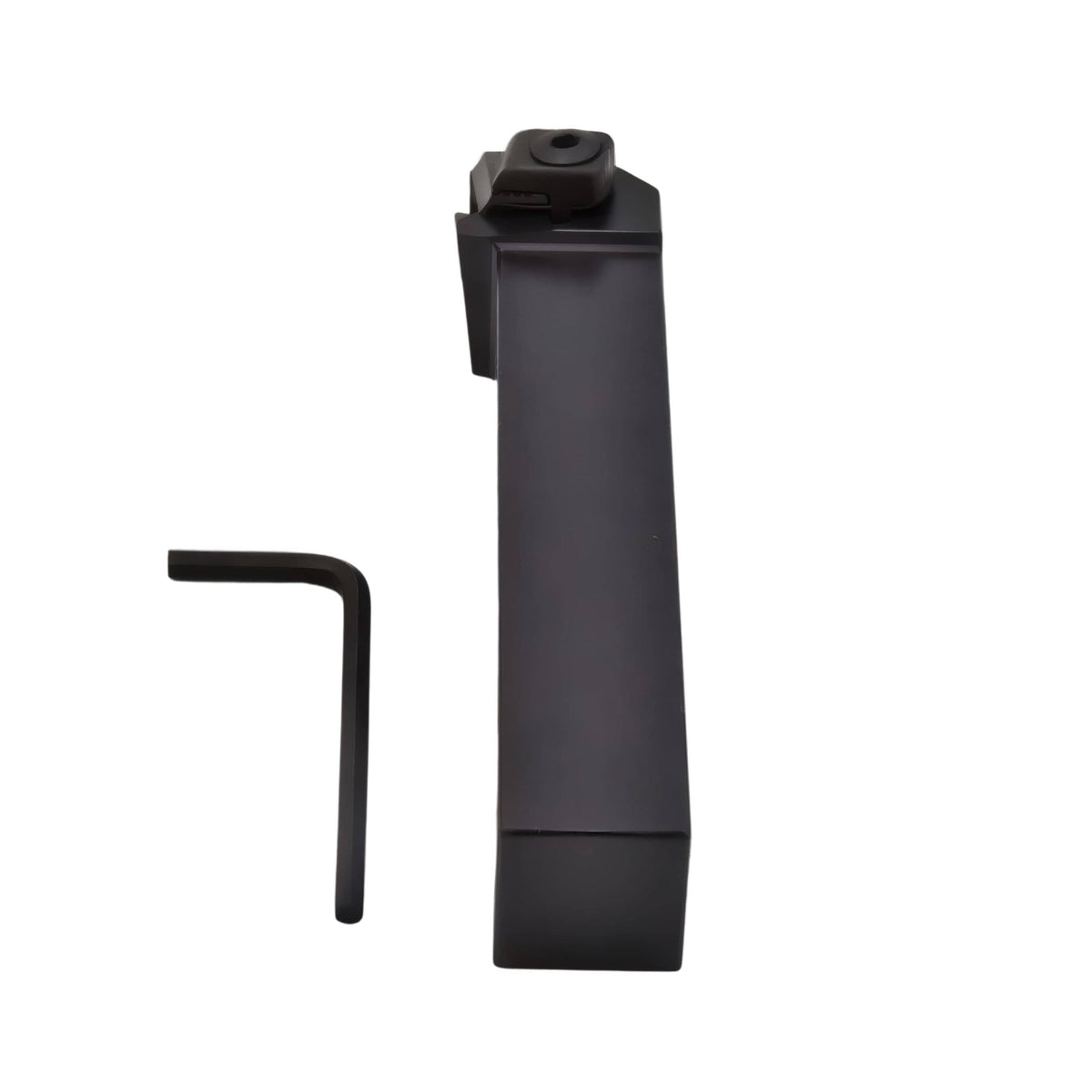

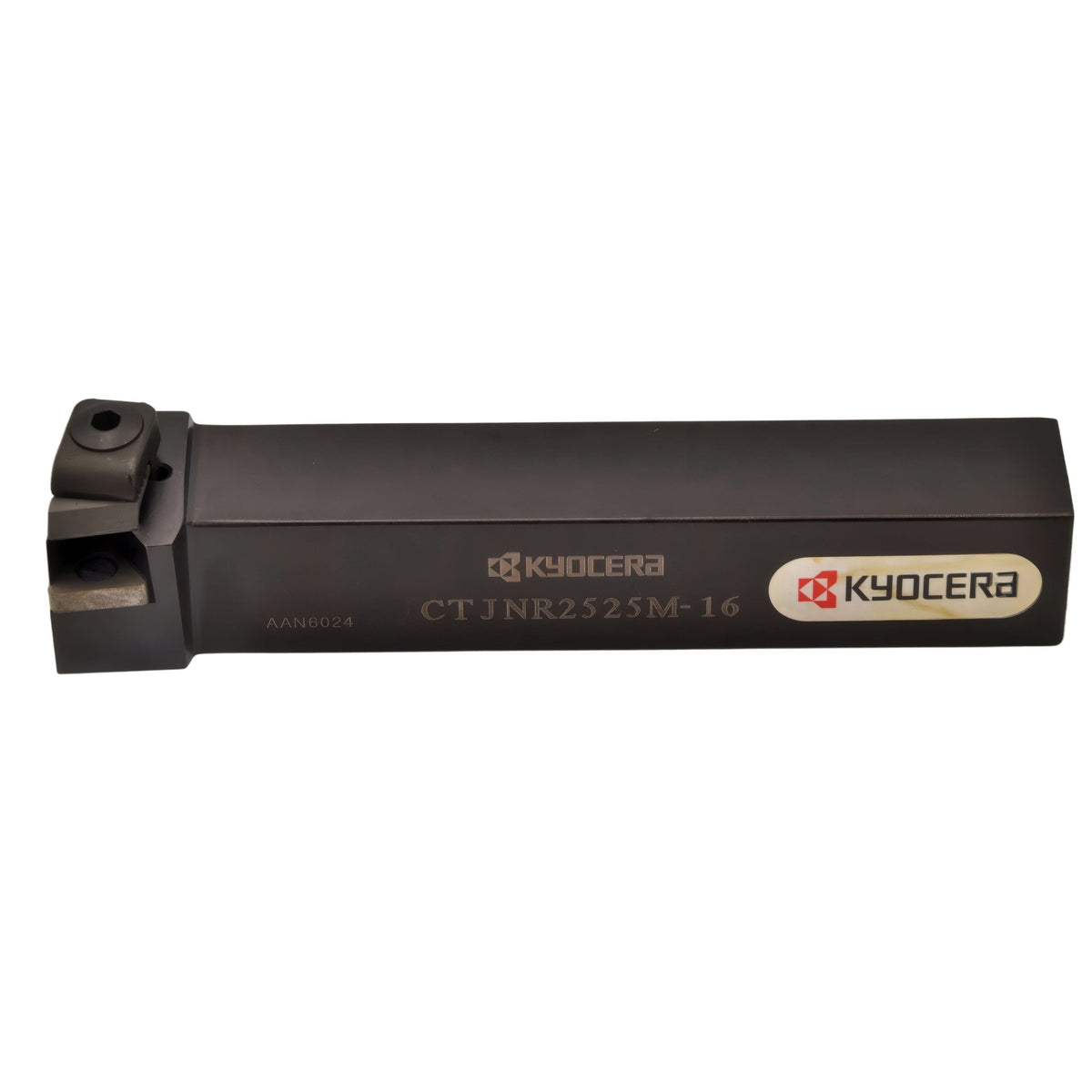

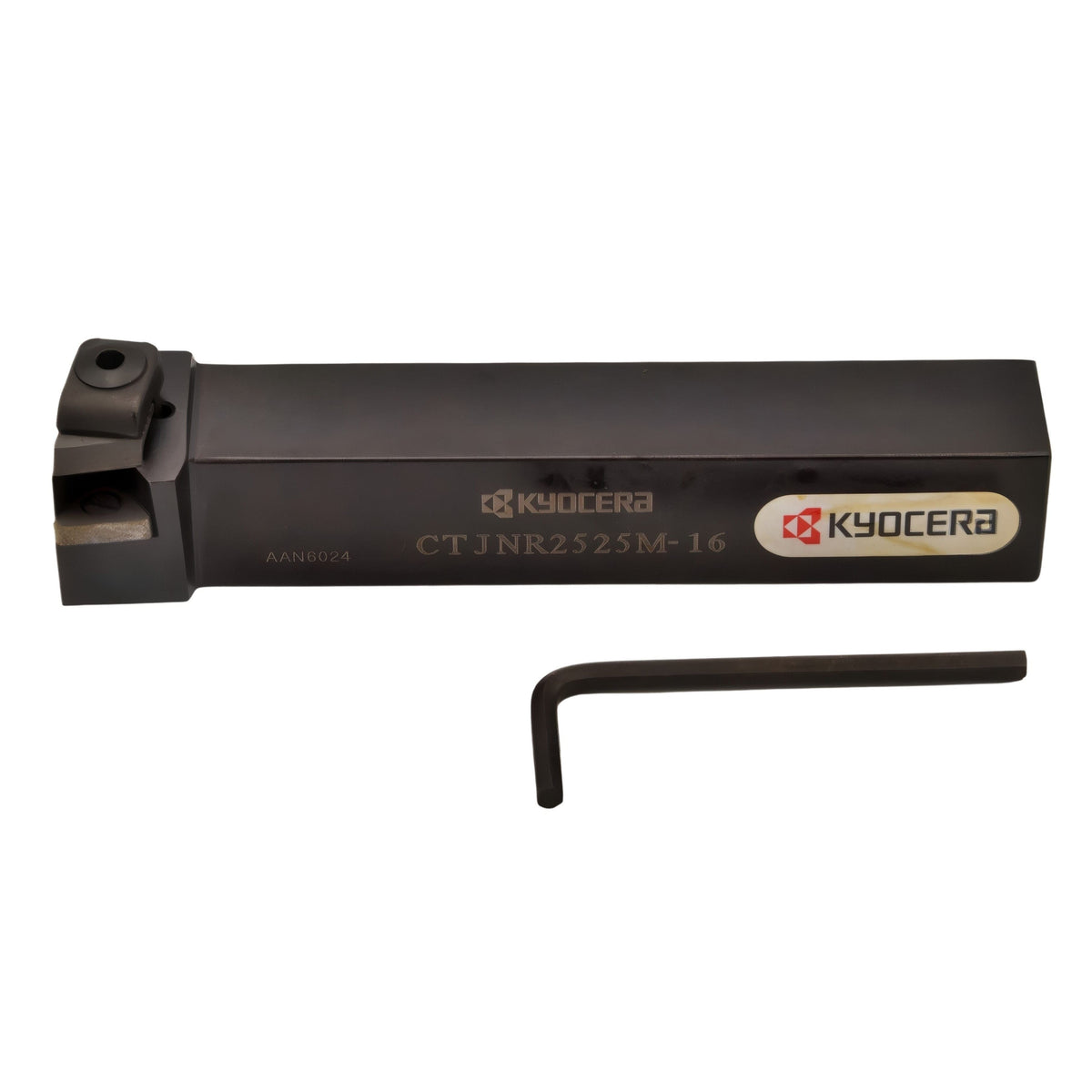

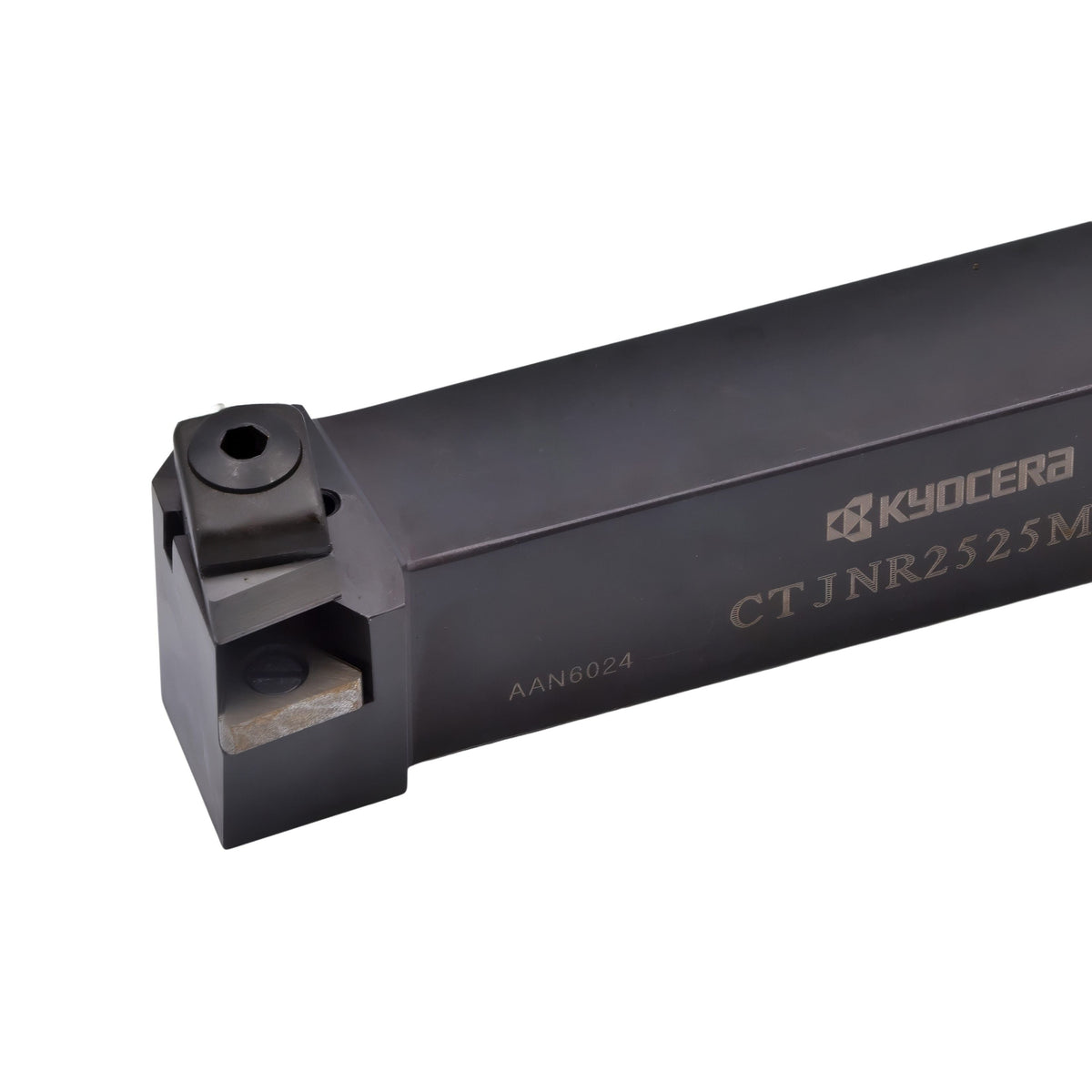

Kyocera CTJNR2525M-16 External Turning Toolholder
Couldn't load pickup availability
The Kyocera CTJNR2525M-16 external turning toolholder is designed for reliable and precise machining in general turning applications. Featuring a 93° approach angle and right-hand configuration, this toolholder is ideal for profiling, facing, and longitudinal turning operations across a wide range of materials.
Manufactured from high-quality alloy steel, the CTJNR series ensures excellent rigidity and vibration resistance, resulting in improved surface finish and extended tool life. The secure clamping system provides accurate insert seating, while the 25 x 25 mm shank allows stable mounting on standard toolposts. Designed for use with TNMG-style inserts, this holder delivers consistent performance in both CNC and manual lathe environments.
Key Features & Benefits
- External turning toolholder for versatile machining operations
- Right-hand configuration for standard turning applications
- 93° approach angle for efficient profiling and facing
- Compatible with TNMG inserts for strong cutting performance
- 25 x 25 mm shank for rigid and secure clamping
- Durable alloy steel construction for long tool life
- Stable insert clamping system for precision and repeatability
- Suitable for CNC and conventional lathes
Technical Specifications
- Brand: Kyocera
- Model: CTJNR2525M-16
- Item Number: THC02340
- Product Type: External Turning Toolholder
- Holder Style: CTJNR
- Insert Type: TNMG
- Insert Size: 16
- Shank Size: 25 x 25 mm
- Hand: Right
- Approach Angle: 93°
- Material: Alloy Steel
- Total Length: 150 mm
- Head Length (LH): 21 mm
- Internal Coolant: No
Kyocera tooling is globally recognised for its advanced engineering, durability, and machining performance, making it a trusted choice for precision manufacturing across a wide range of industries.
