Kyocera CPS-5L Clamp Set Spare Part TPC00646

In stock
$30.09

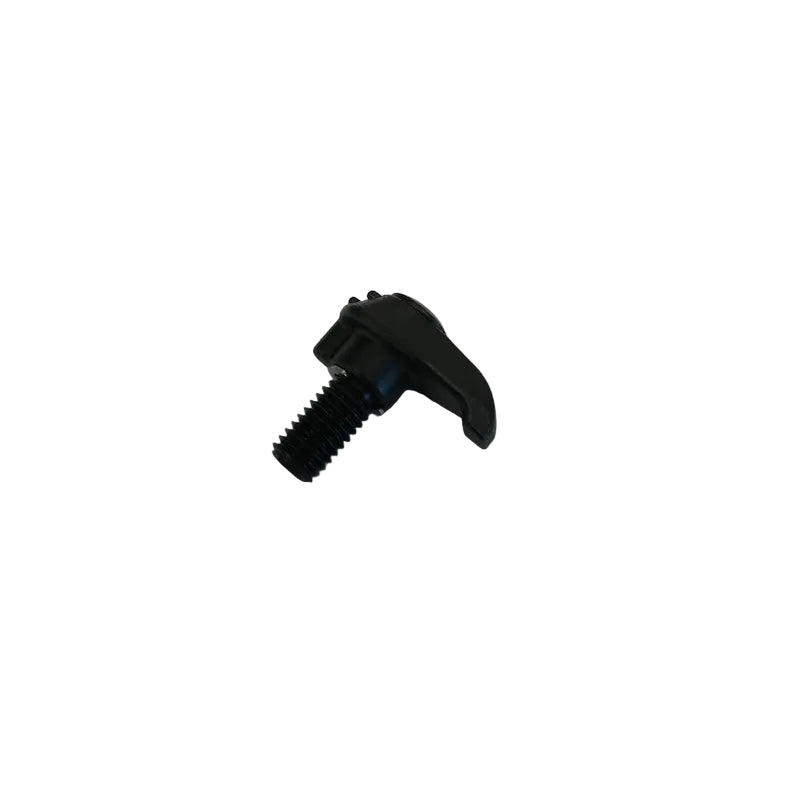

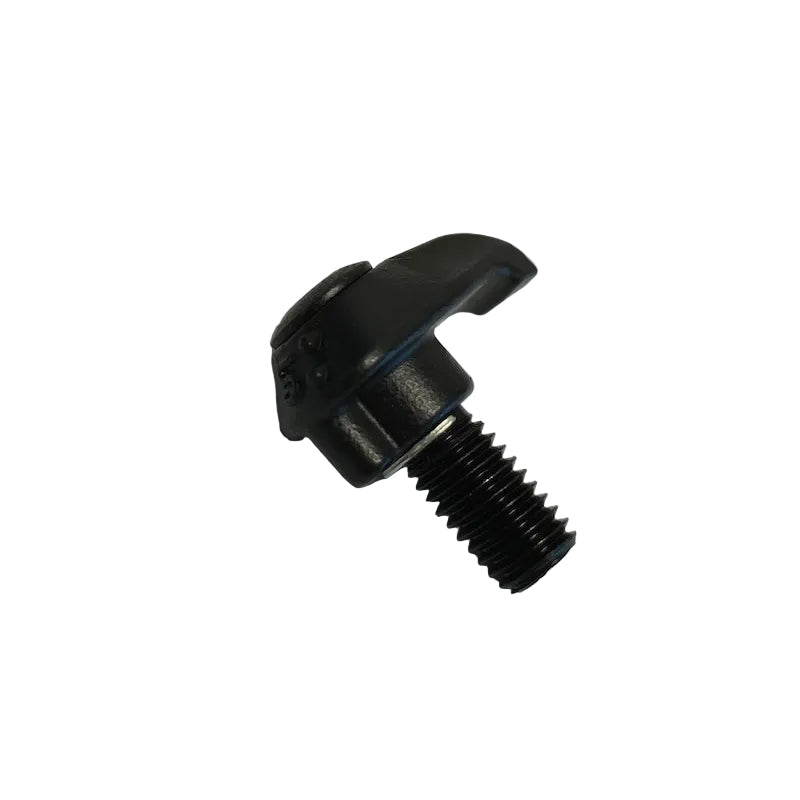

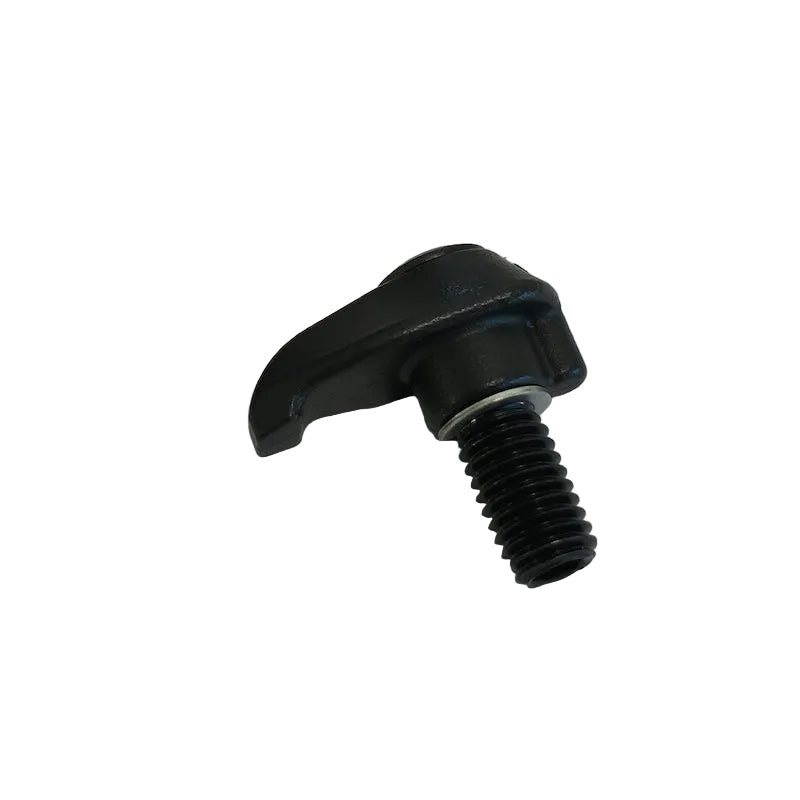

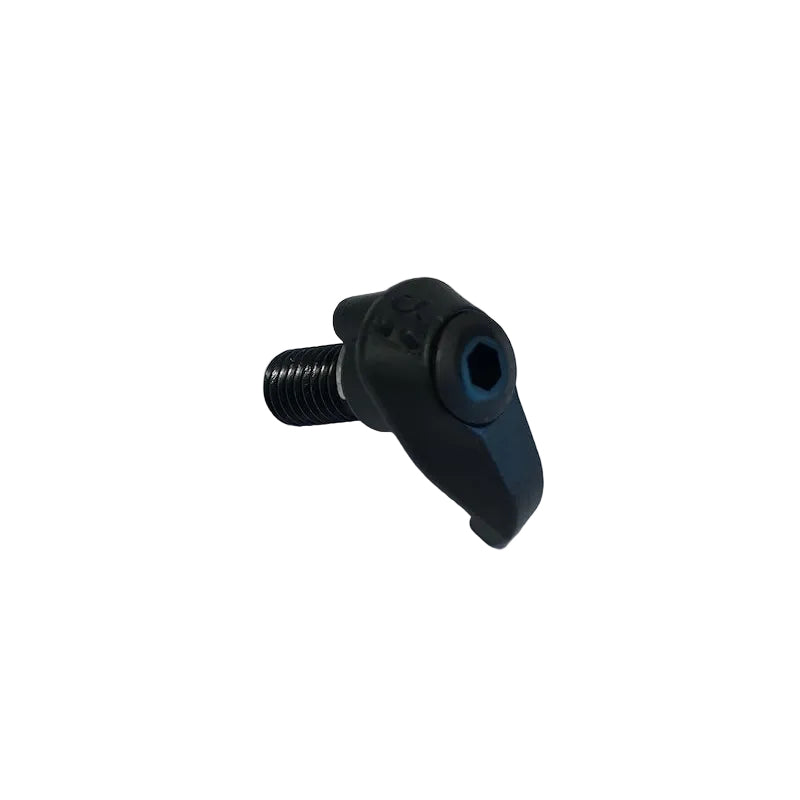

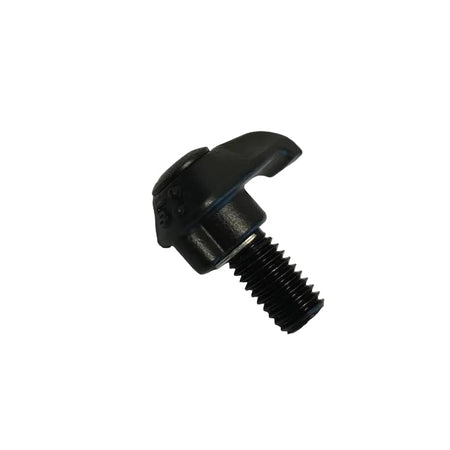

The Kyocera CPS-5L is a replacement clamp set spare part for compatible Kyocera turning toolholders. It is specified for use with MVLN 2020K-16 and 2525M-16 toolholder configurations and is designed for the left-hand toolholder configuration.

The CPS-5L clamp set has a left-hand thread. When clamping the insert, the screw is turned counterclockwise; when removing the insert, the screw is turned clockwise.

Key Features

  • Genuine Kyocera spare part
  • Clamp set model: CPS-5L
  • Left-hand configuration
  • Left-hand thread
  • Compatible with MVLN 2020K-16 and 2525M-16 toolholder configurations
  • Clamp set wrench: FH-2.5
  • Lock pin: TS-3S
  • Lock pin wrench: FH-2

Product Specifications

  • Brand: Kyocera
  • Spare Part Type: Clamp Set
  • Clamp Set Model: CPS-5L
  • Item No.: TPC00646
  • Toolholder Configuration: Left-hand
  • Compatible Toolholder: MVLN 2020K-16, 2525M-16
  • Toolholder Size: 16
  • Clamp Set Wrench: FH-2.5
  • Lock Pin: TS-3S
  • Lock Pin Wrench: FH-2
  • Applicable Inserts: VNUA1604..., VNUG1604..., VNUM1604...
  • Corner-R (RE): 0.8 mm standard
  • Side Rake Angle: -6°
  • Inclination Angle: -9°
