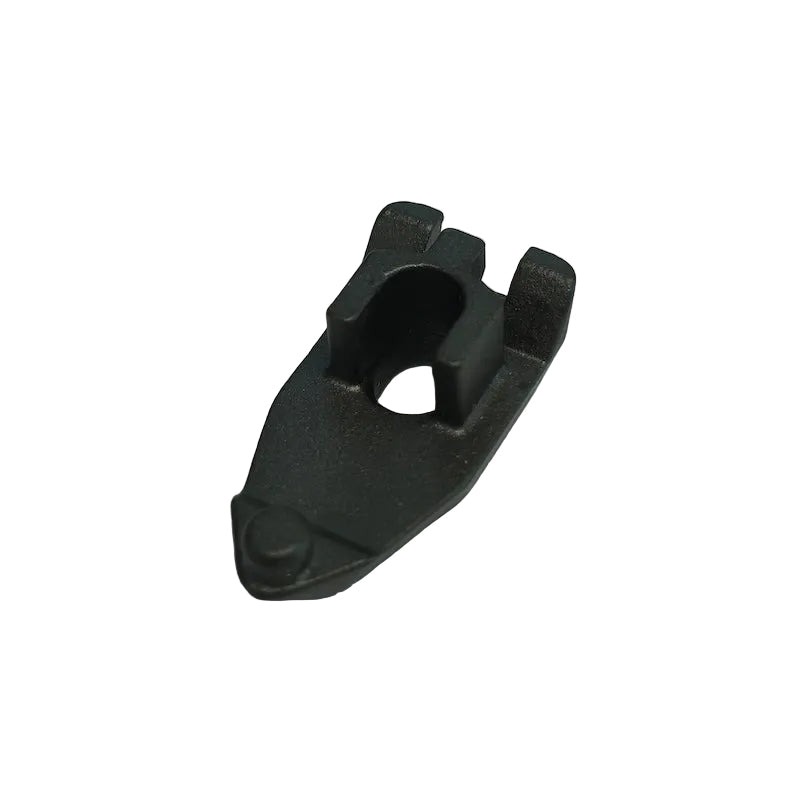

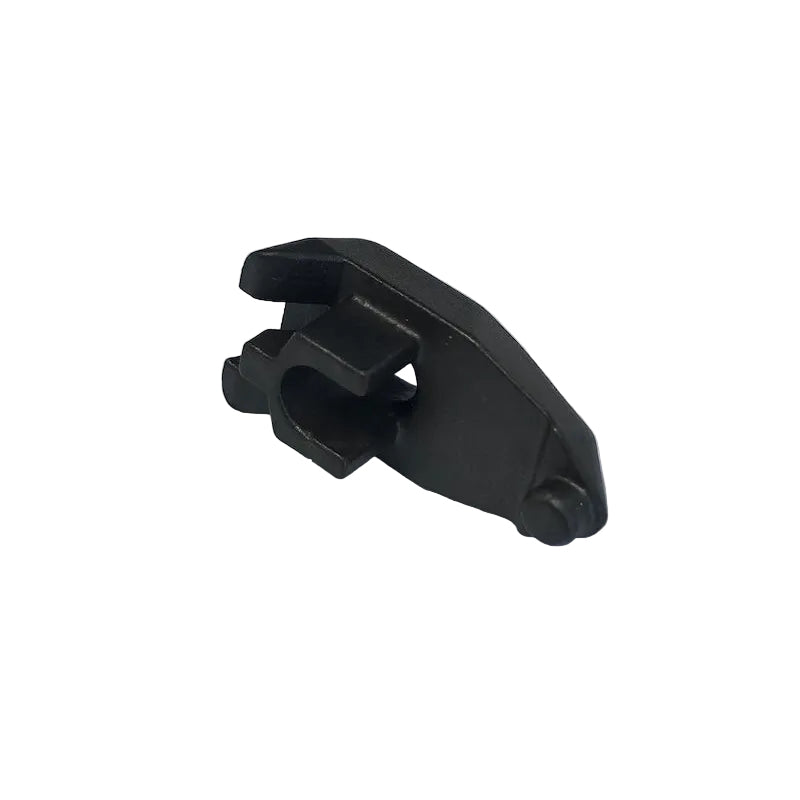

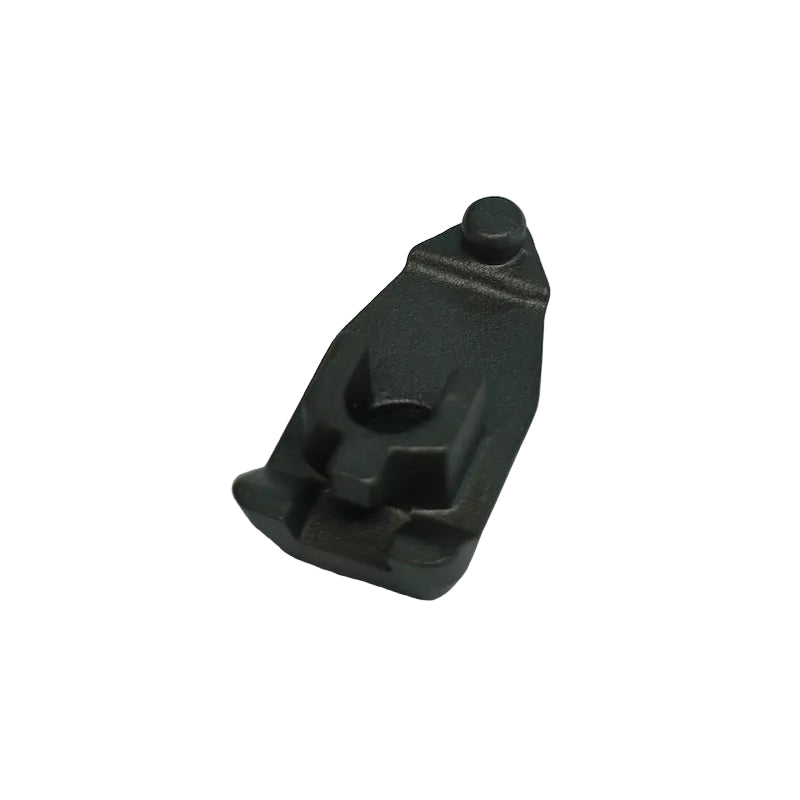

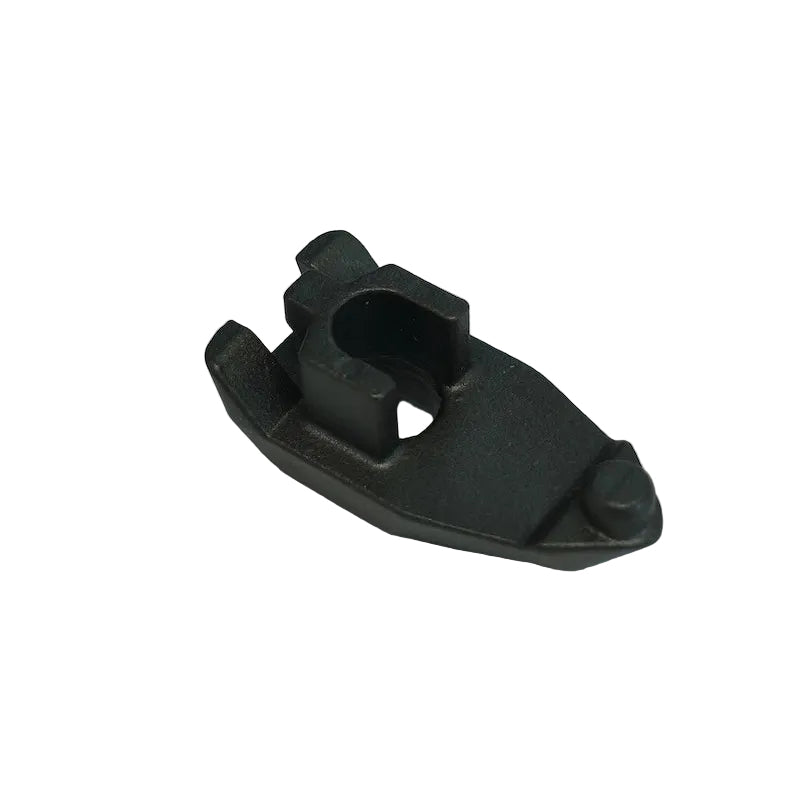

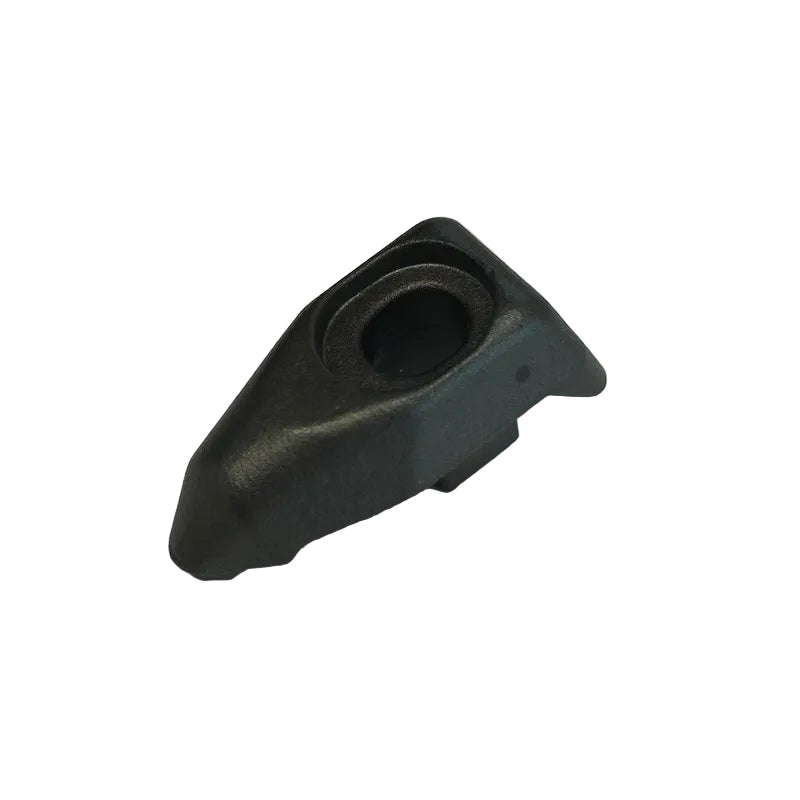

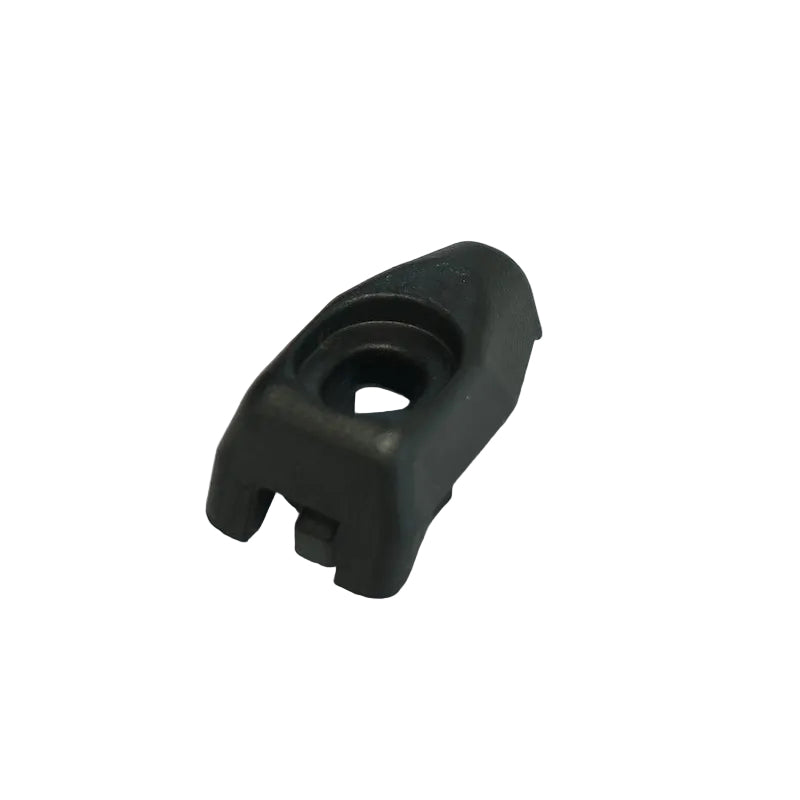

Kyocera CP-3D-S Clamp Spare Part TPC00565

In stock
$50.05

The Kyocera CP-3D-S is a replacement clamp spare part for compatible Kyocera grooving toolholders. It is specified for use with the KPC3-DCLN, KPC4-DCLN, and KPC5-DCLN toolholder configurations.

The CP-3D-S clamp is part of the compatible tooling assembly and is used with the CS-3D-TR screw and SP-3D spring. The recommended tightening torque is 3.9 N·m.

Key Features

  • Genuine Kyocera spare part
  • Clamp model: CP-3D-S
  • Replacement clamp for compatible grooving toolholders
  • Compatible with KPC3-DCLN, KPC4-DCLN and KPC5-DCLN configurations
  • Recommended tightening torque: 3.9 N·m
  • Pressure resistance: up to 7 MPa

Product Specifications

  • Brand: Kyocera
  • Spare Part Type: Clamp
  • Clamp Model: CP-3D-S
  • Item No.: TPC00565
  • Applicable Toolholder Series: KPC3-DCLN, KPC4-DCLN, KPC5-DCLN
  • Associated Screw: CS-3D-TR
  • Associated Spring: SP-3D
  • Associated Shim: SP-441P
  • Associated Wrench: FT-15
  • Recommended Tightening Torque: 3.9 N·m
  • Pressure Resistance: Up to 7 MPa
