Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: S32S-PDUNR15-44
(0)

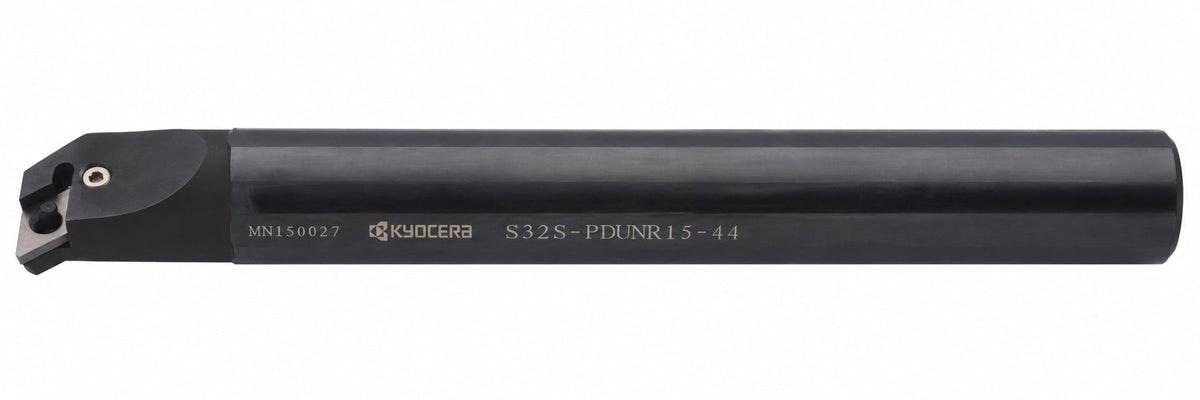

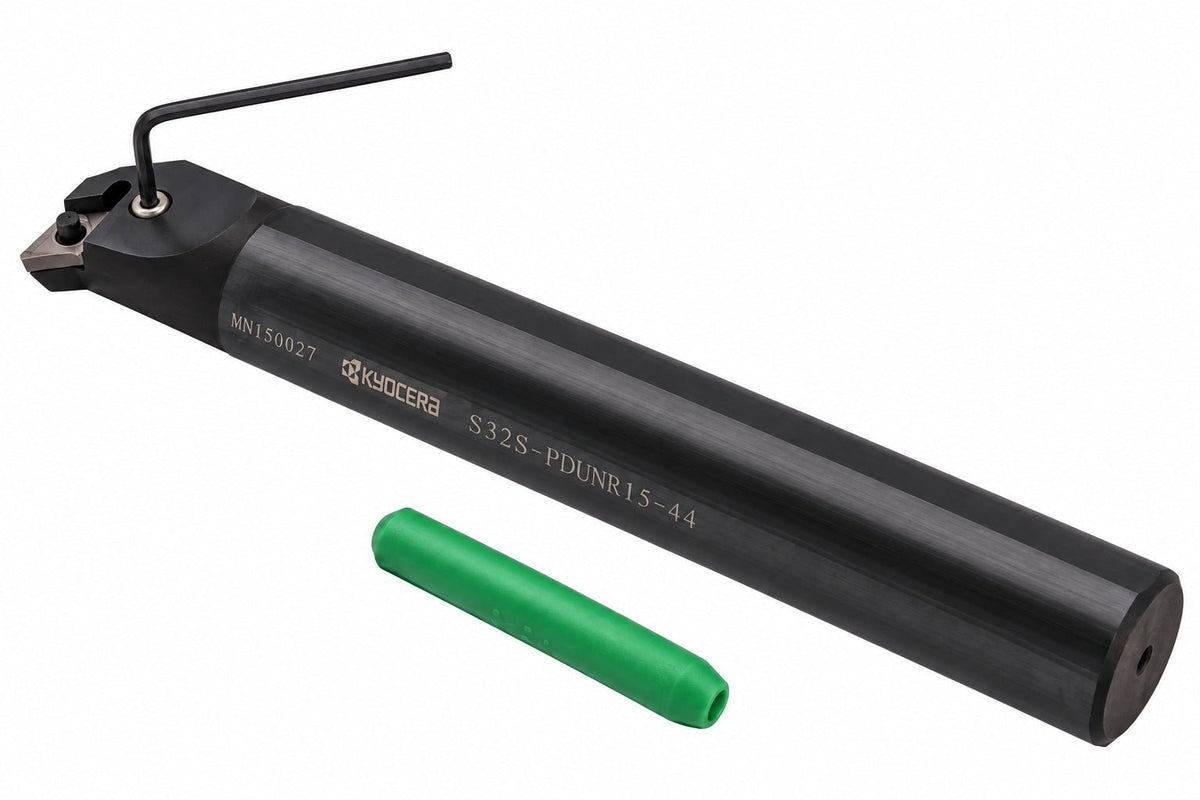

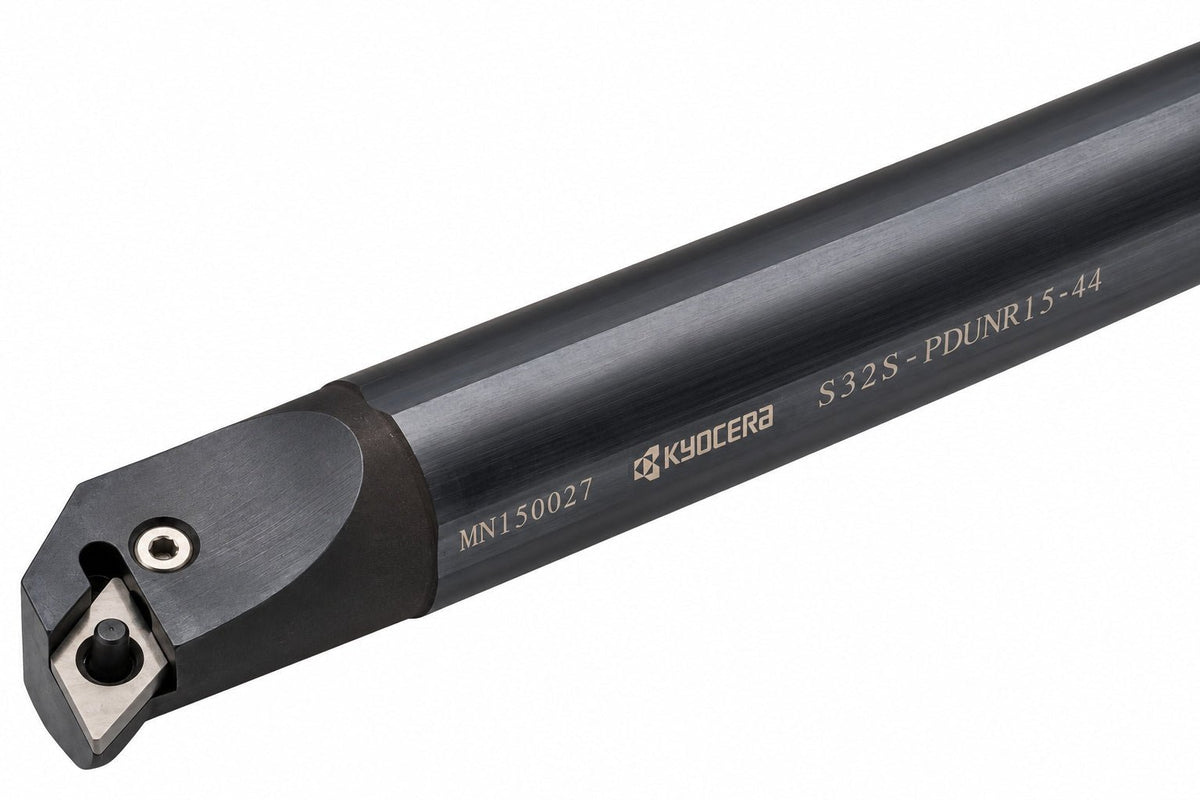

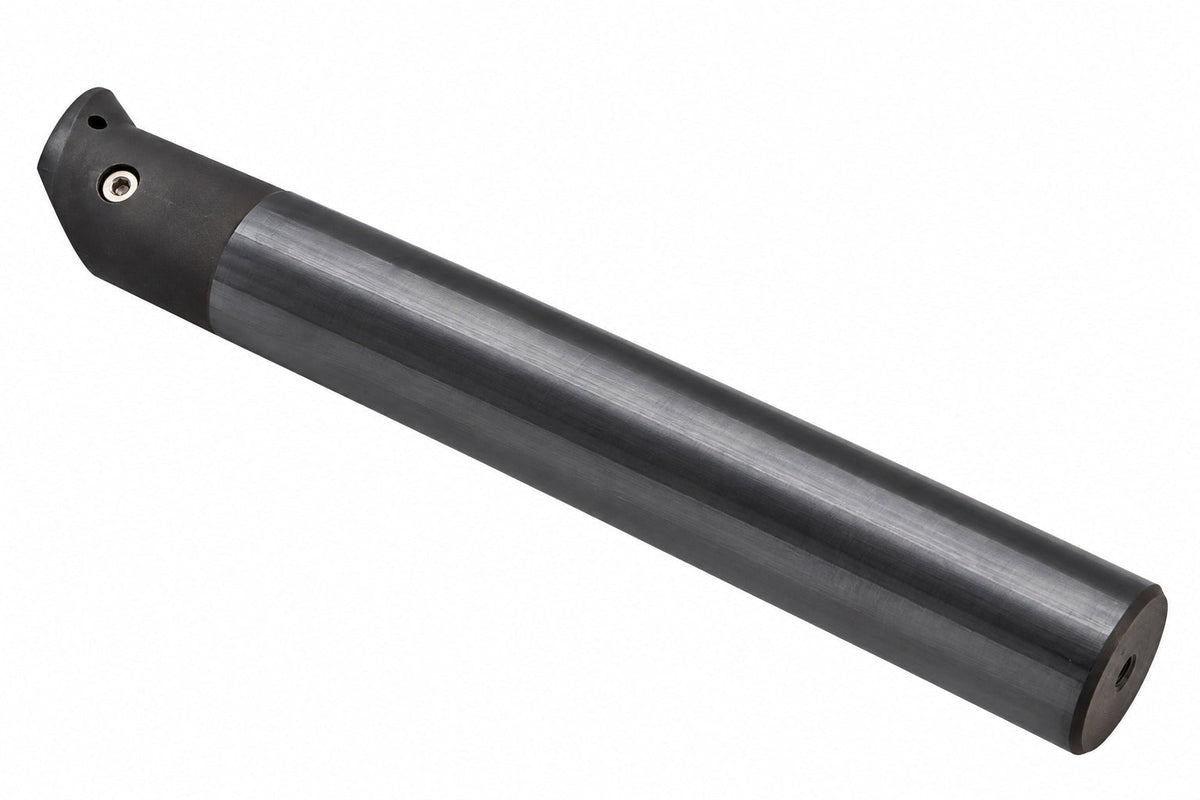

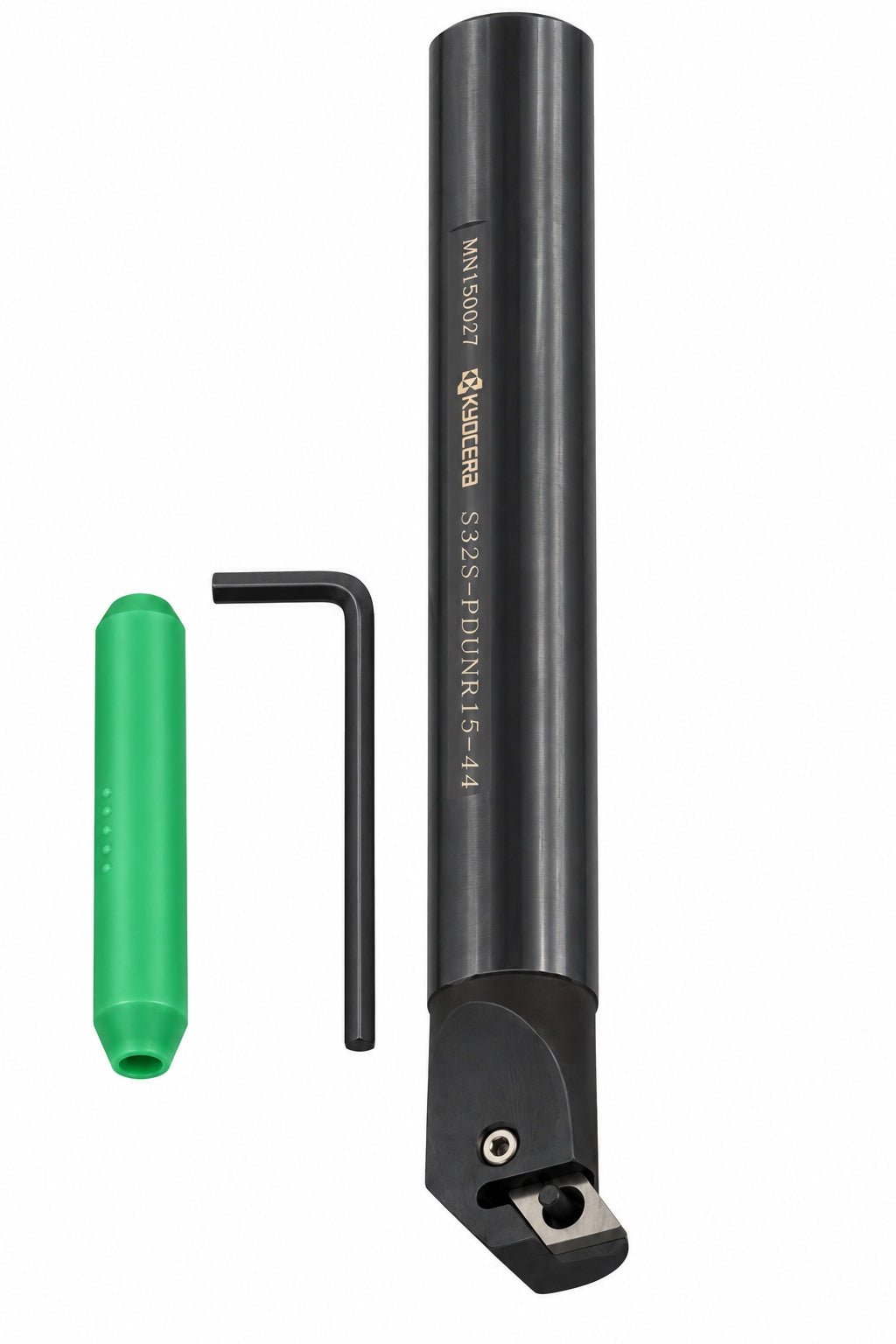

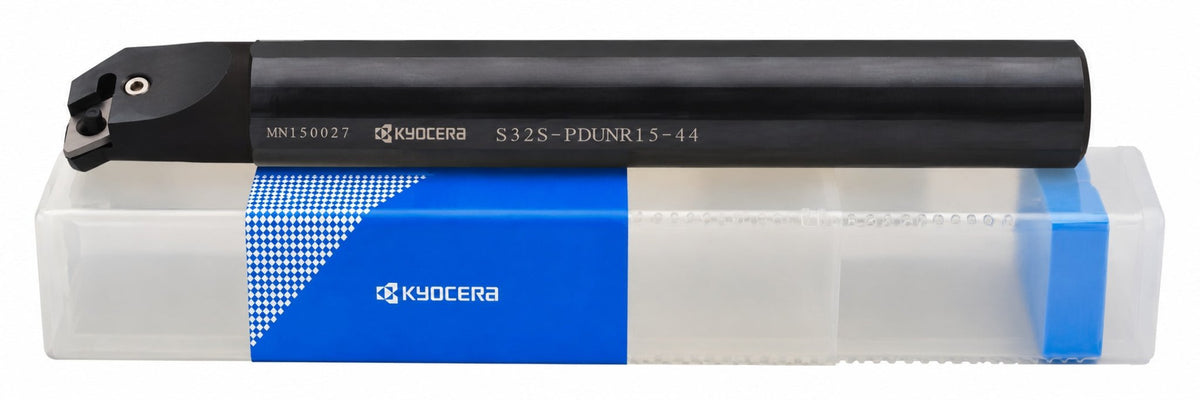

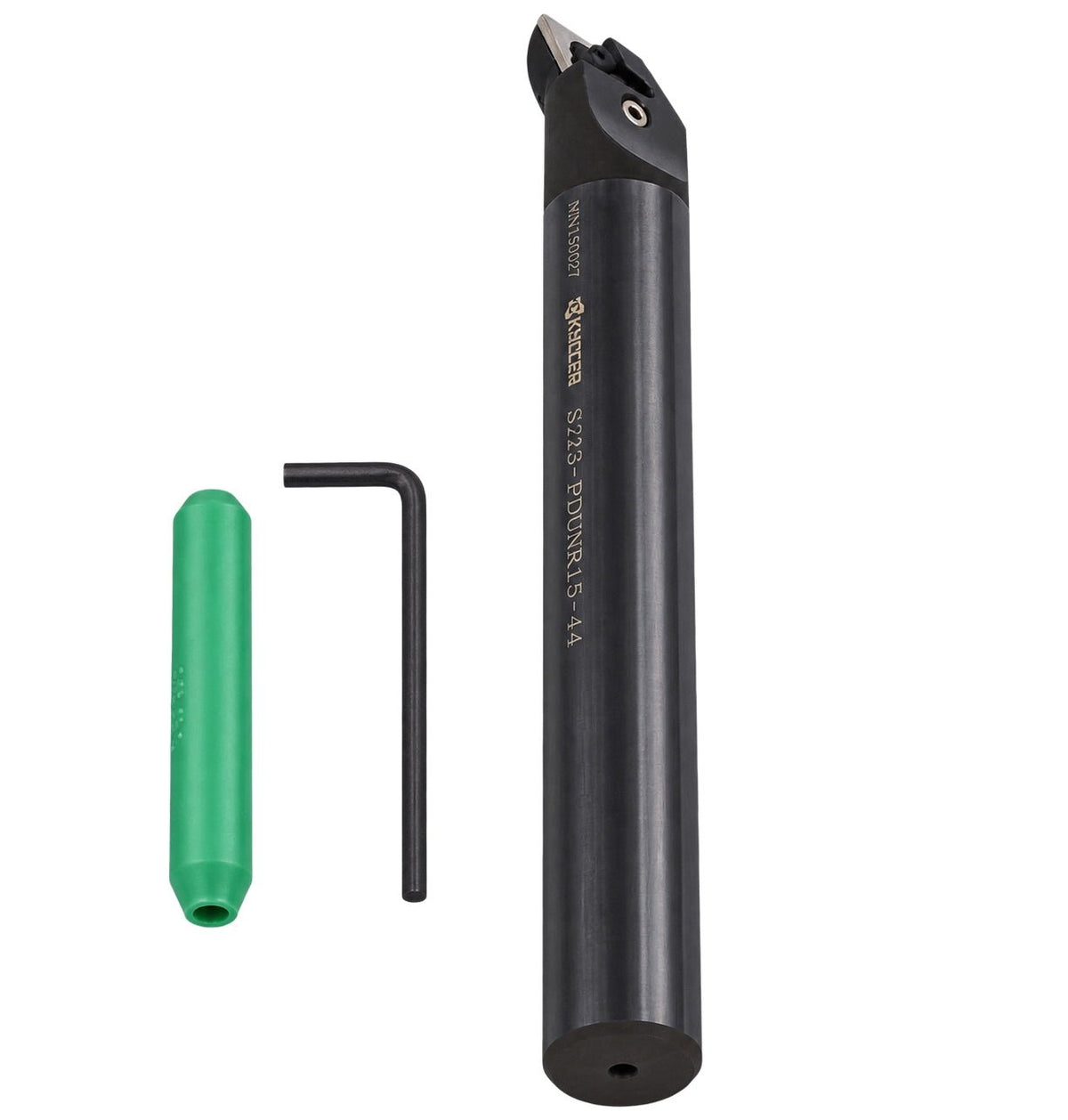

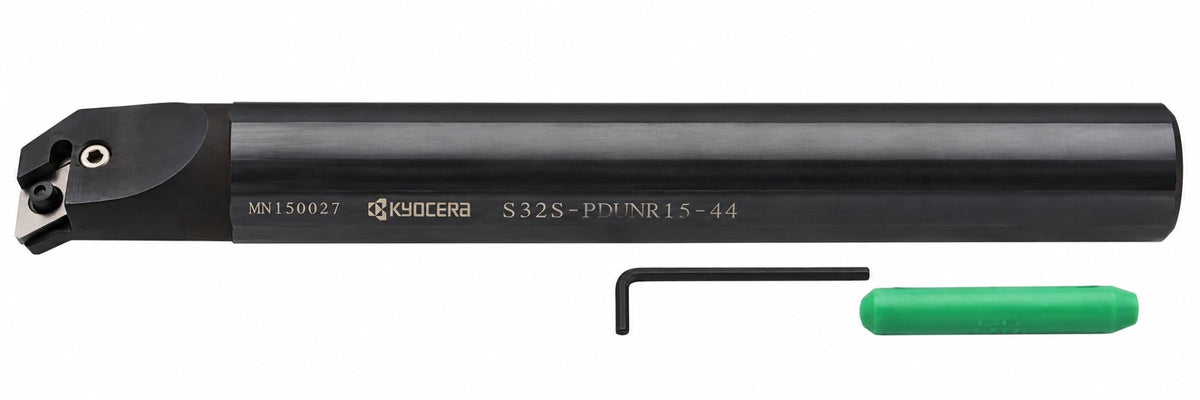

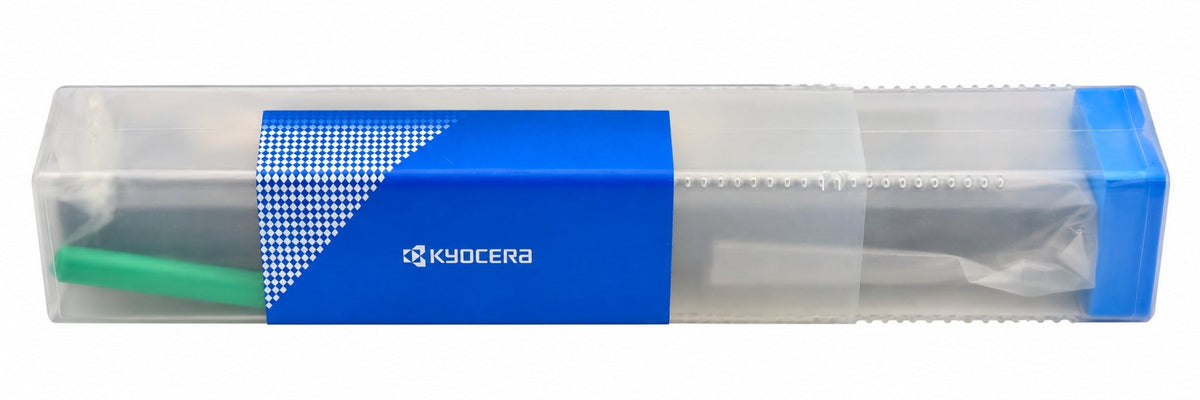

Kyocera Boring Bar S32S-PDUNR15-44 suits DNMG 1504 Inserts

Only 1 left
$489.00

Professional quality Kyocera S32S-PDUNR15-44 turning toolholder designed for compatible 15mm inserts in turning applications. This right-hand toolholder features a 32mm connection diameter, 44mm minimum bore diameter and 250mm overall length, providing a robust tooling solution for machining operations requiring a larger shank size.

The S32S-PDUNR15-44 features a 55° insert included angle, 93° tool cutting edge angle, 6° radial rake angle and -6° axial rake angle. It has a 0.8mm corner radius specification, 31mm shank height and 50mm head and usable lengths.

Product Features

  • Genuine Kyocera turning toolholder
  • Right-hand configuration
  • Designed for 15mm insert size
  • 32mm connection diameter
  • 44mm minimum bore diameter
  • 250mm overall and functional length
  • 50mm head length
  • 50mm usable length
  • 55° insert included angle
  • 93° tool cutting edge angle
  • 6° radial rake angle
  • -6° axial rake angle
  • 0.8mm corner radius specification
  • 31mm shank height

Technical Specifications

  • Brand: Kyocera
  • Part Number: S32S-PDUNR15-44
  • Item Number: THC08076
  • Tool Type: Turning Toolholder
  • Hand: Right
  • Insert Size: 15
  • Connection Diameter (DCON): 32mm
  • Minimum Bore Diameter (DMIN): 44mm
  • Shank Height (H): 31mm
  • Overall Length (OAL): 250mm
  • Functional Length (LF): 250mm
  • Head Length (LH): 50mm
  • Usable Length (LU): 50mm
  • Insert Included Angle (EPSR): 55°
  • Tool Cutting Edge Angle (KAPR): 93°
  • Major Clearance Angle (AN): 0°
  • Radial Rake Angle (GAMF): 6°
  • Axial Rake Angle (GAMP): -6°
  • Inscribed Circle Diameter (IC): 12.7mm
  • Cutting Edge Length (L): 15.504mm
  • Corner Radius (RE): 0.8mm
  • Insert Thickness (S): 4.76mm
  • Functional Width (WF): 22mm
  • Functional Width 2 (WF2): 6.5mm

Applications

The Kyocera S32S-PDUNR15-44 is designed for turning applications requiring a right-hand toolholder with a 32mm connection diameter and 44mm minimum bore diameter. It is suitable for use with compatible 15mm inserts matching the specified insert geometry and dimensions.
