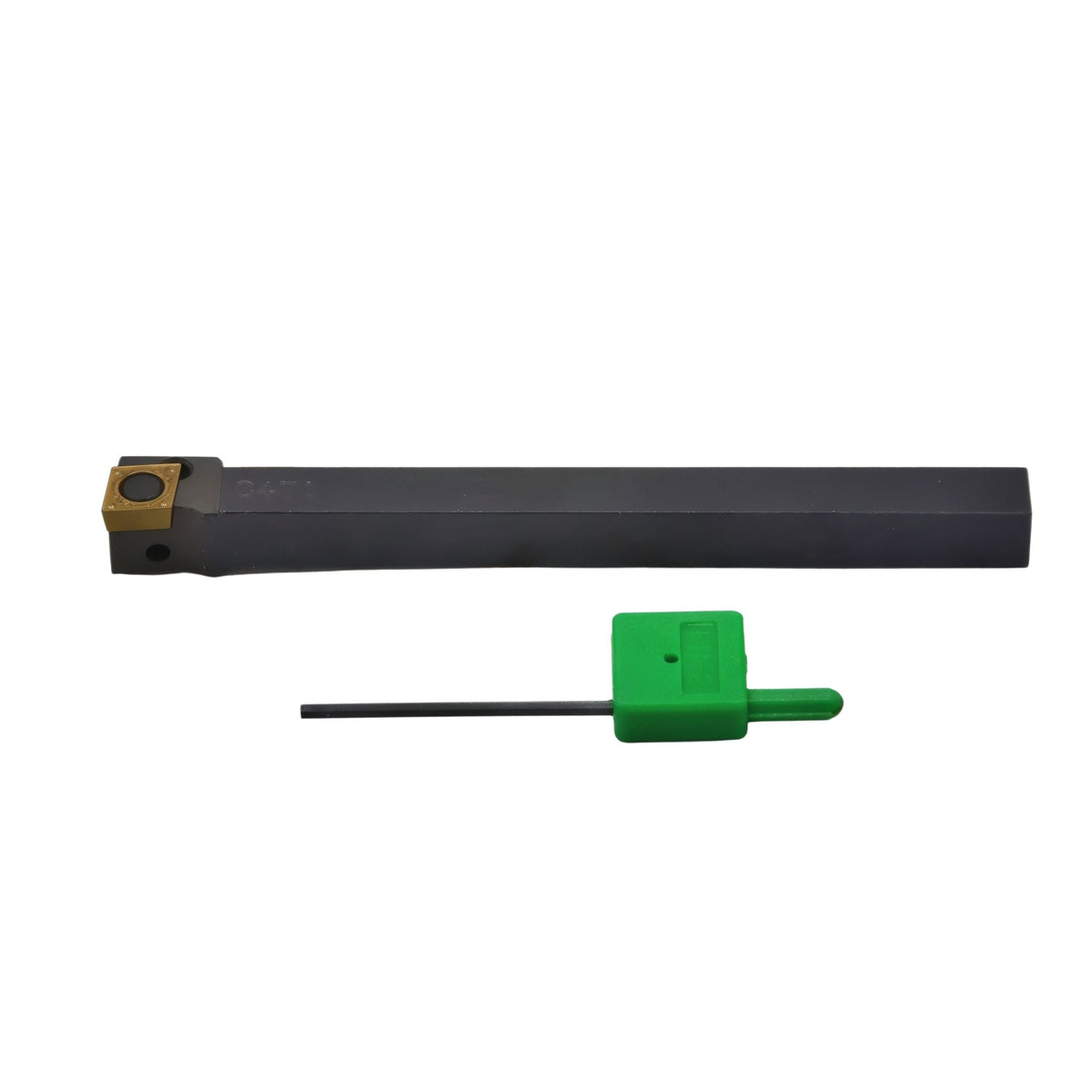

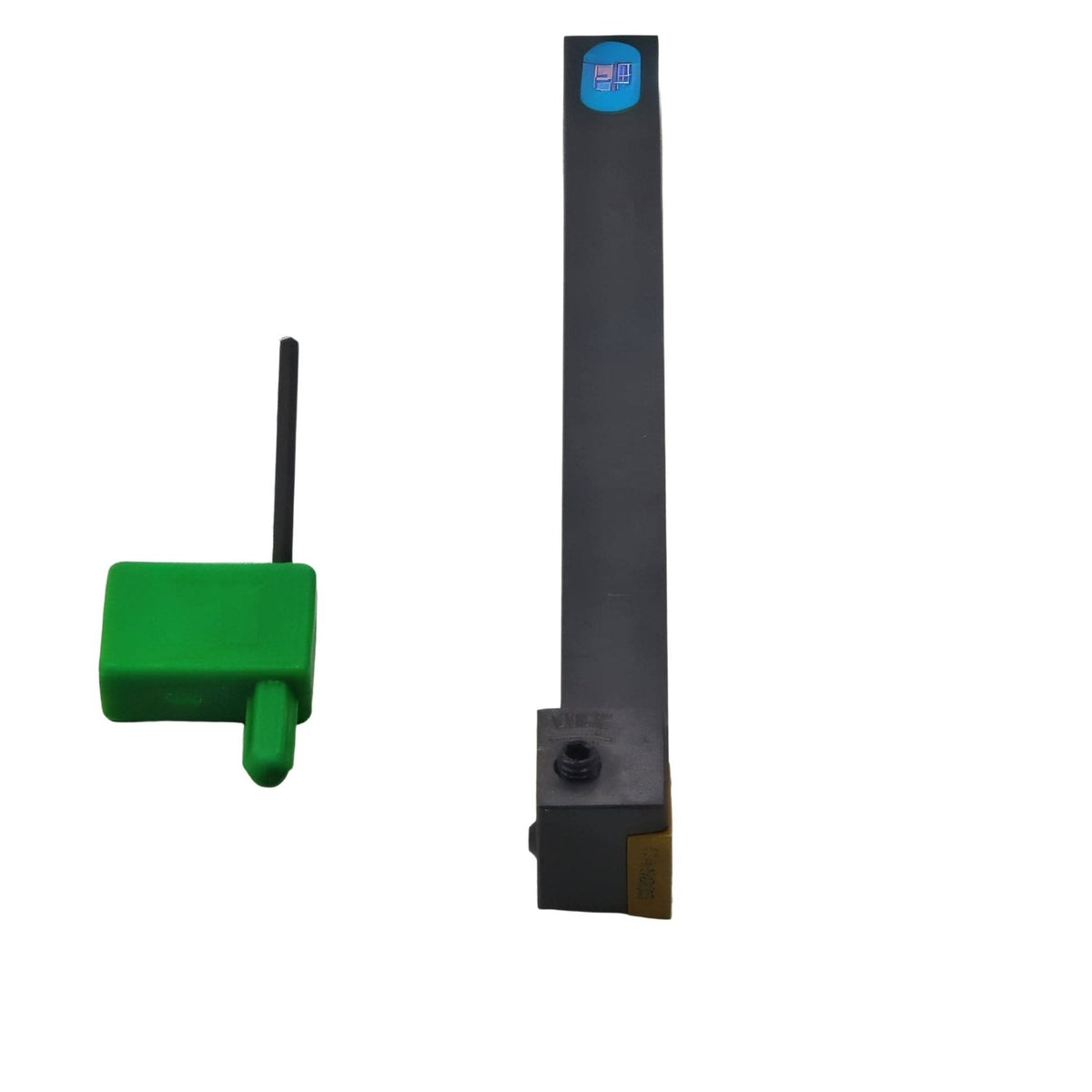

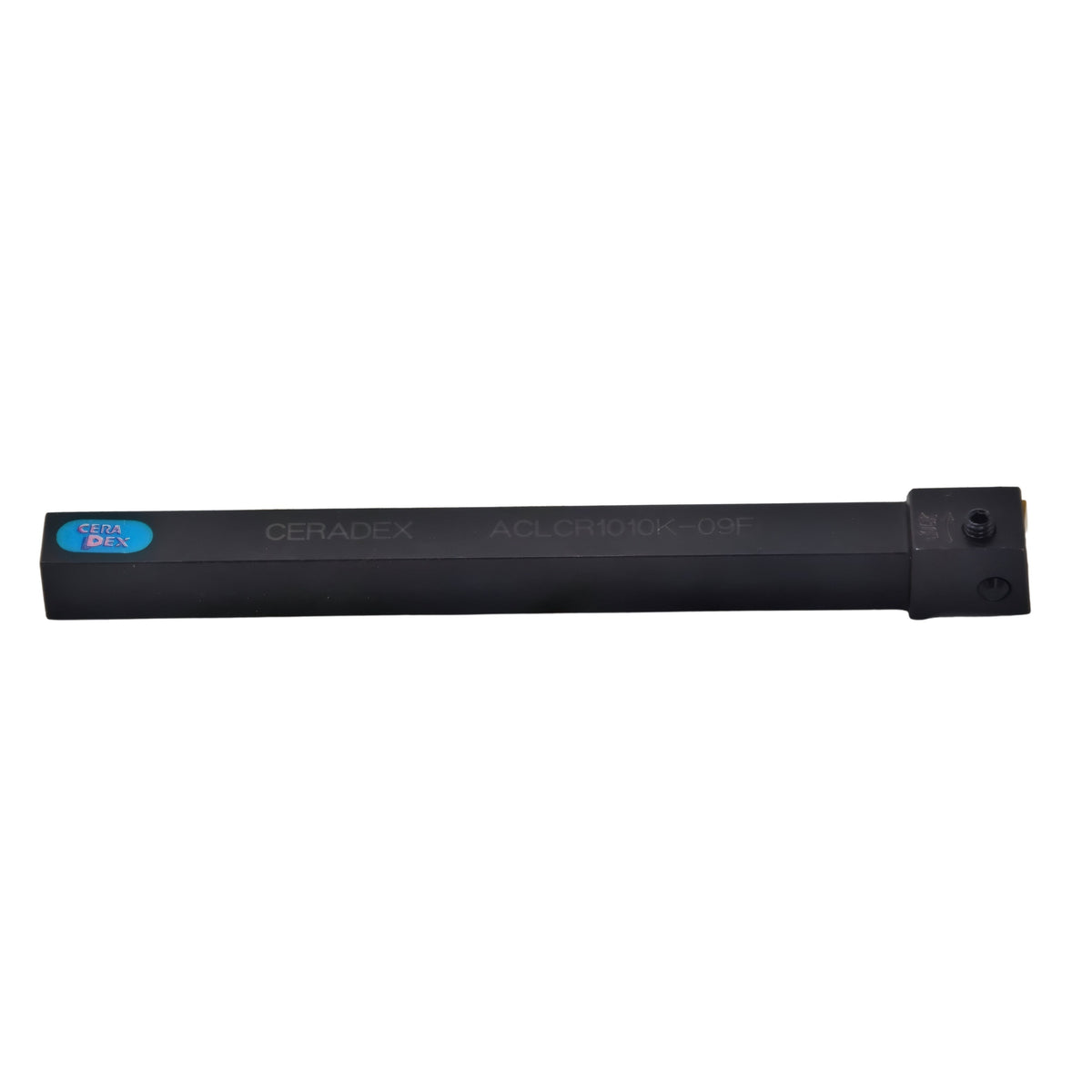

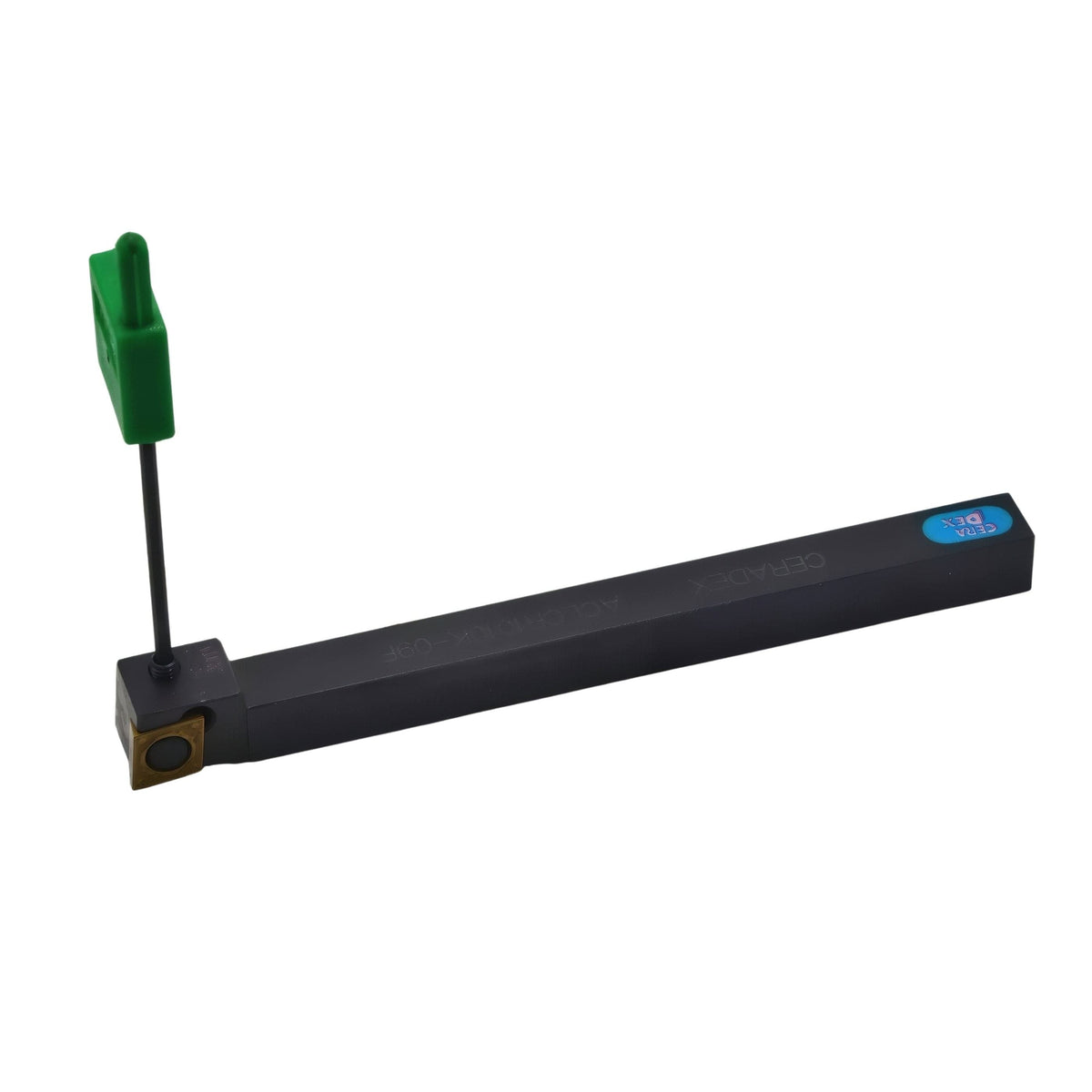

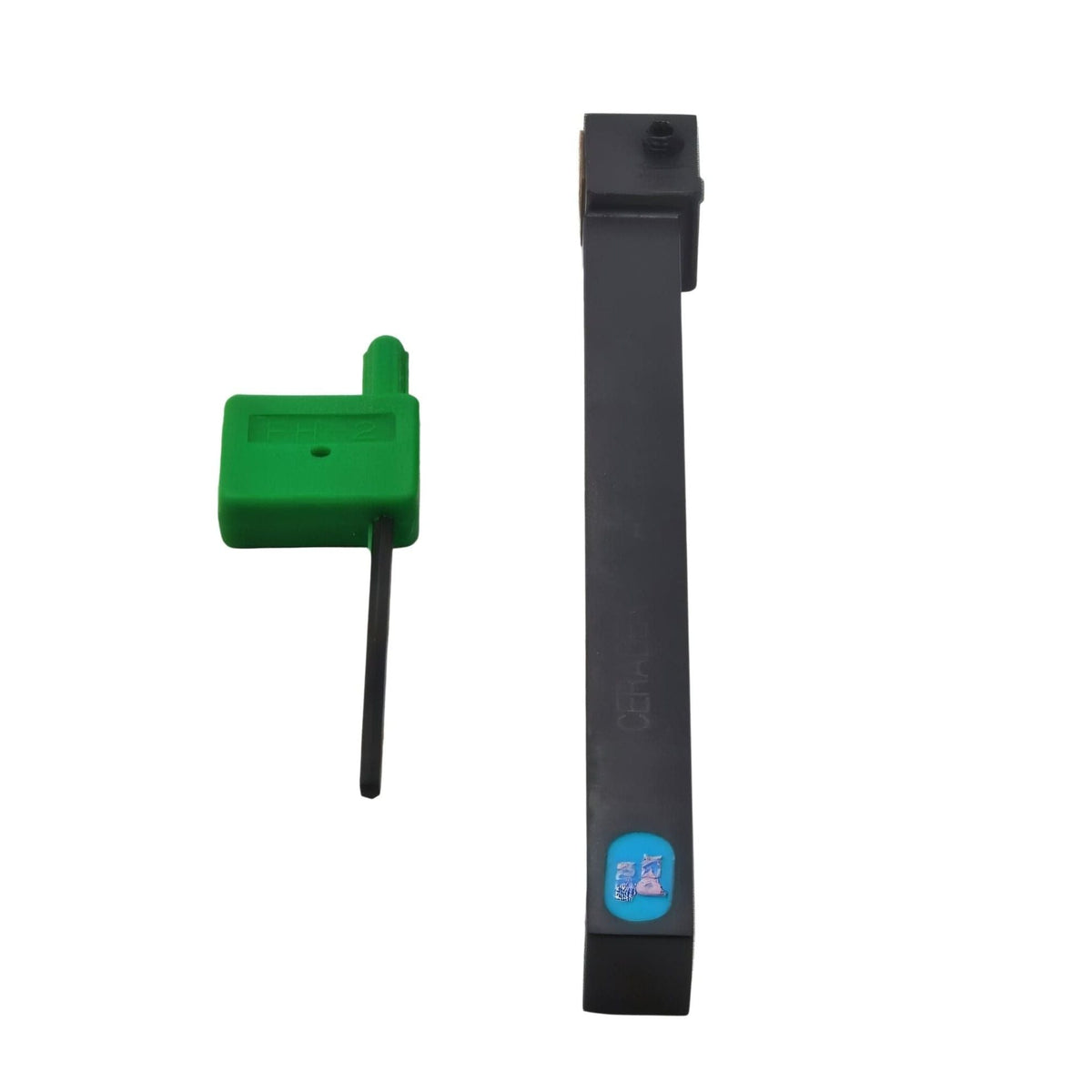

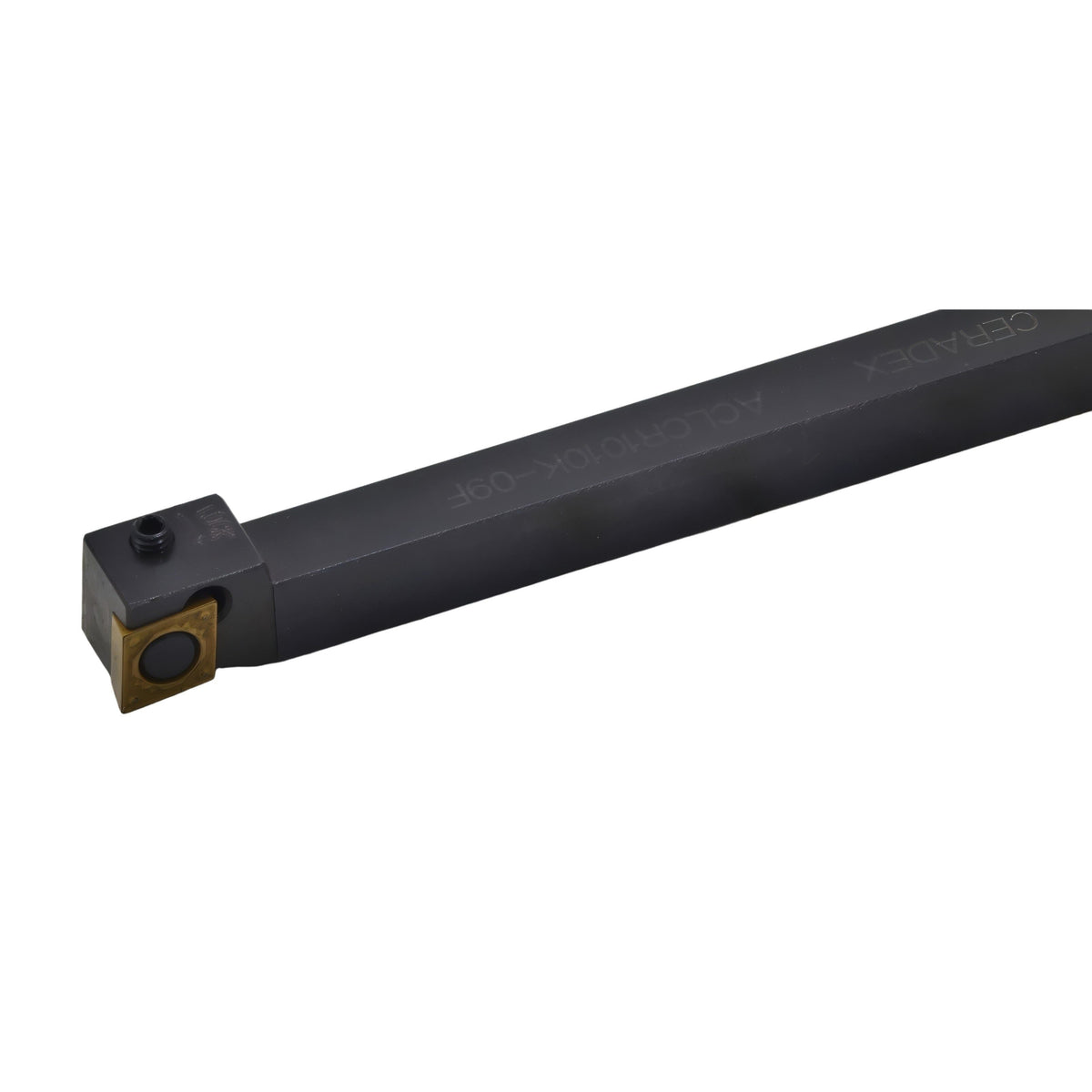

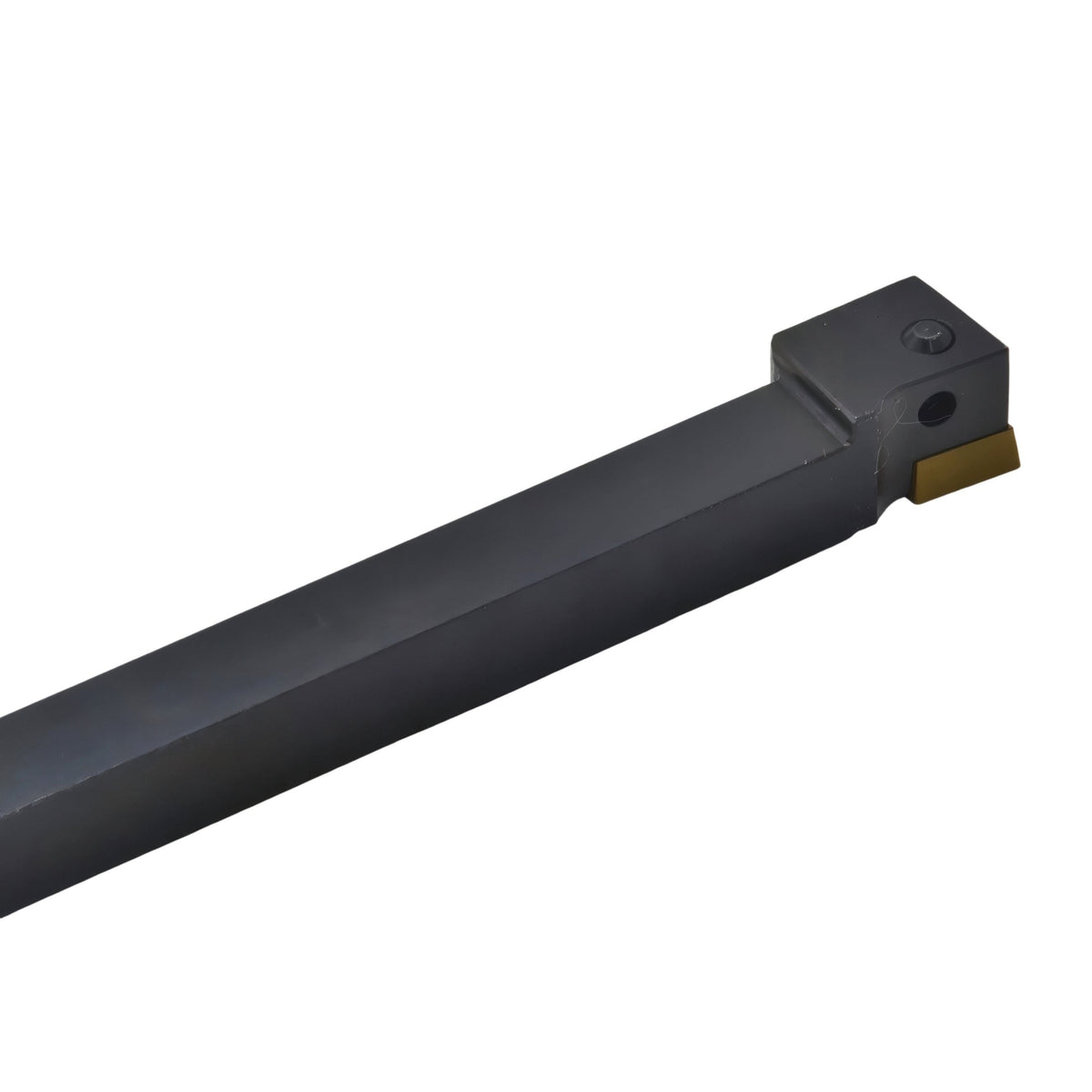

Kyocera ACLCR1616M-09F External Turning Toolholder

The Kyocera ACLCR1616M-09F is a precision external turning toolholder designed for use with CCMT 09 series positive inserts. Optimised for smooth cutting action, this toolholder is ideal for finishing, profiling, and light to medium turning operations where accuracy and surface finish are critical.

Featuring a compact yet rigid 16 × 16 mm square shank and a right-hand cutting direction, the ACLCR1616M-09F offers excellent accessibility and stability on CNC lathes and manual turning machines. The secure screw-clamp insert system ensures reliable insert positioning and repeatable machining performance.

Key Features & Benefits

• Insert Compatibility – Designed for CCMT 09 size positive inserts.
• Right-Hand Cutting – Suitable for standard external turning and facing.
• Compact Square Shank – 16 × 16 mm shank for smaller lathes and tight setups.
• Positive Rake Geometry – Reduced cutting forces and improved surface finish.
• Secure Insert Clamping – Screw clamp system for consistent accuracy.

Technical Specifications

• Model: ACLCR1616M-09F
• Brand: Kyocera
• Category: External Turning Toolholder
• Measurement System: Metric
• Shank Width (B): 16 mm
• Shank Height (H): 16 mm
• Insert Shape: C – Rhombic 80° (Positive)
• Insert Size: 09
• Cutting Direction: Right Hand
• Internal Coolant: No
• Reference / Code: THC07020

Kyocera turning toolholders are manufactured to deliver long tool life, dimensional accuracy, and reliable cutting performance, making them a trusted choice for CNC production, toolrooms, and general engineering applications.
