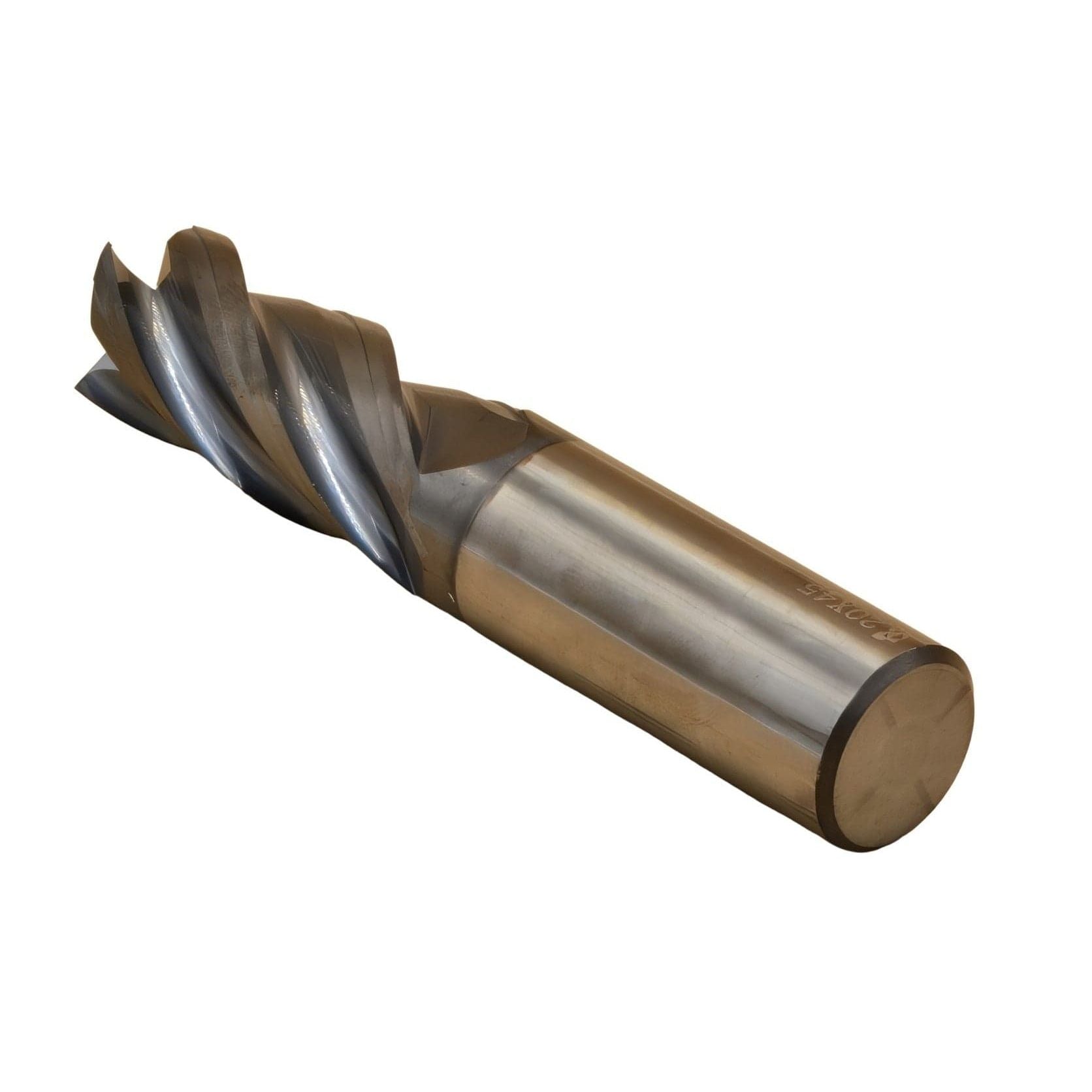

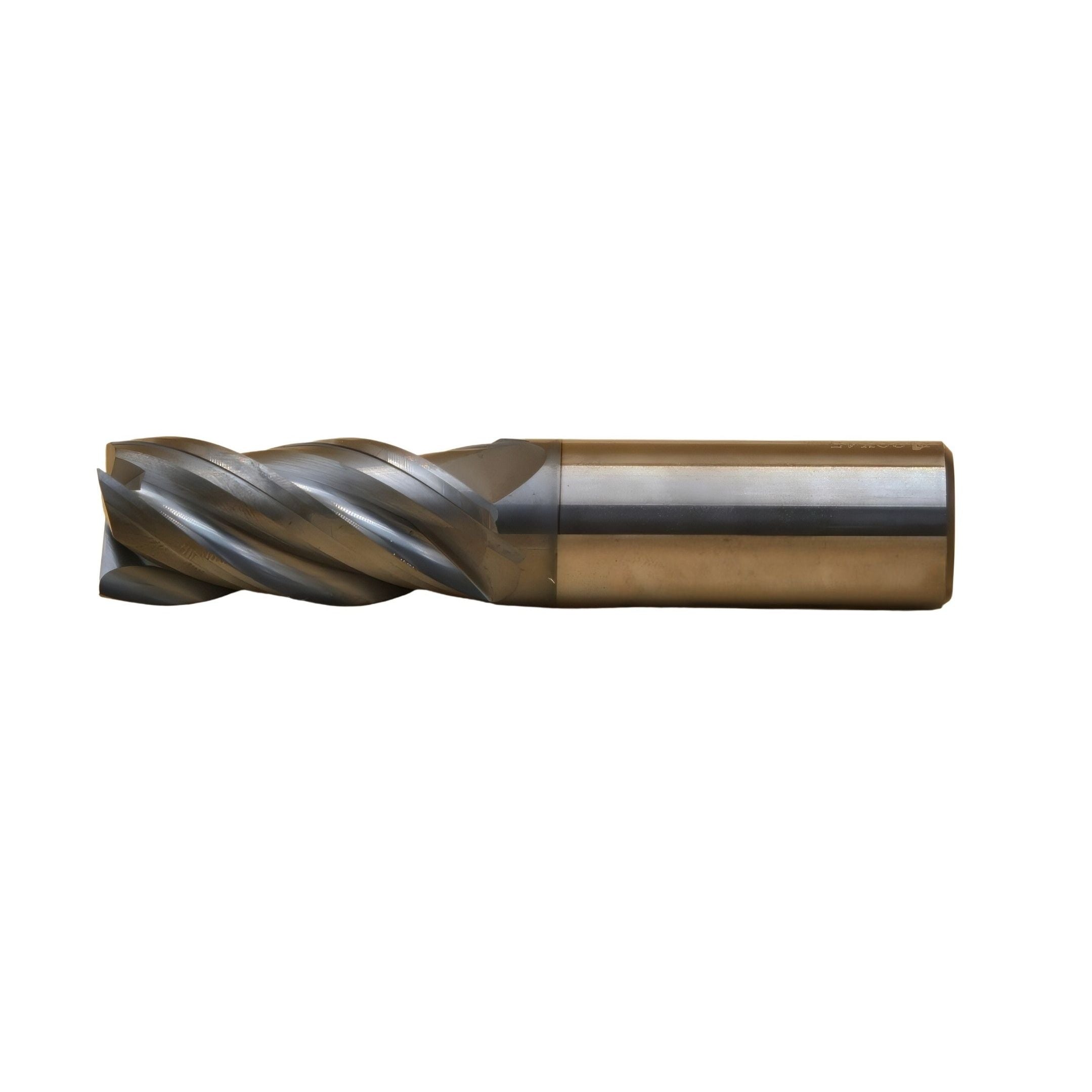

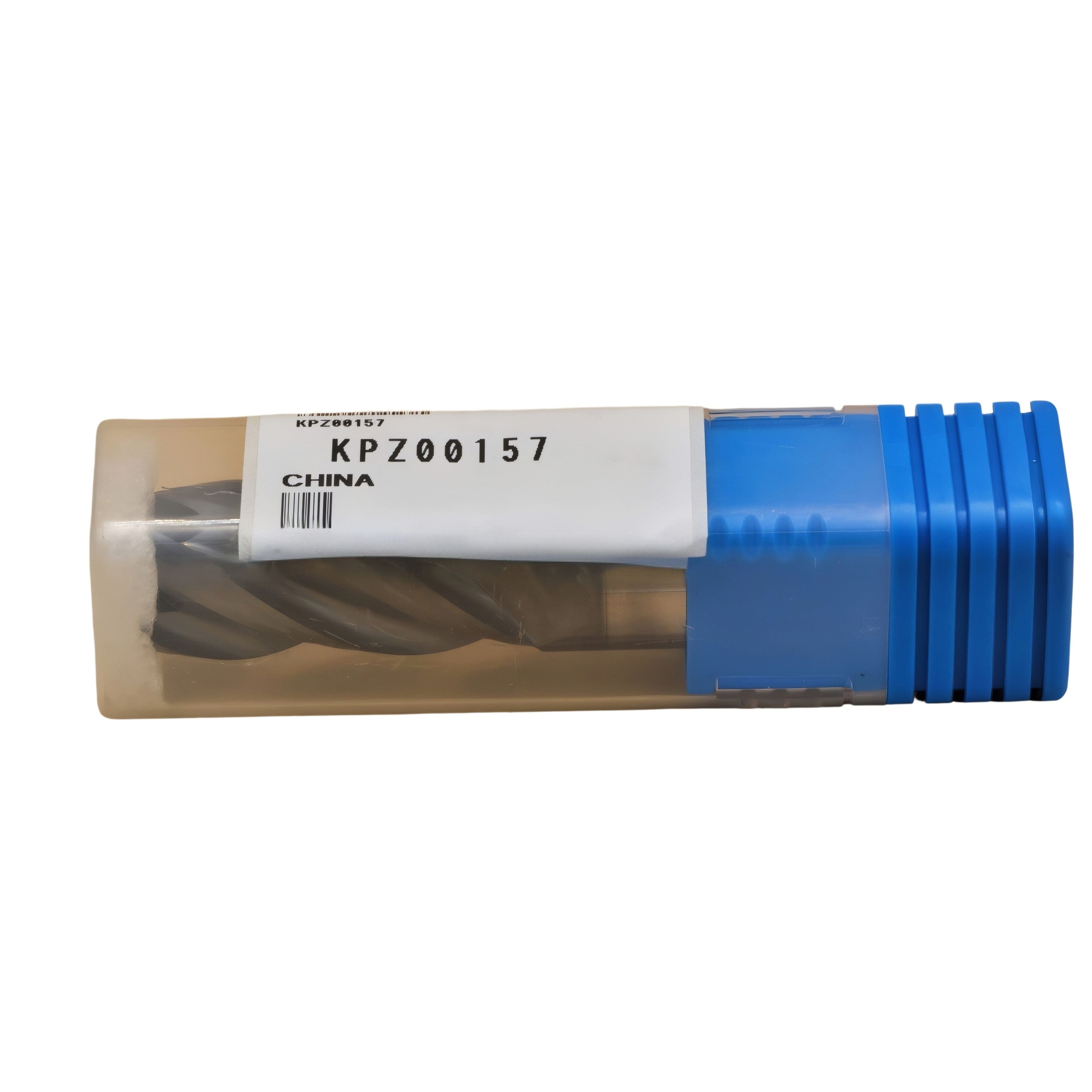

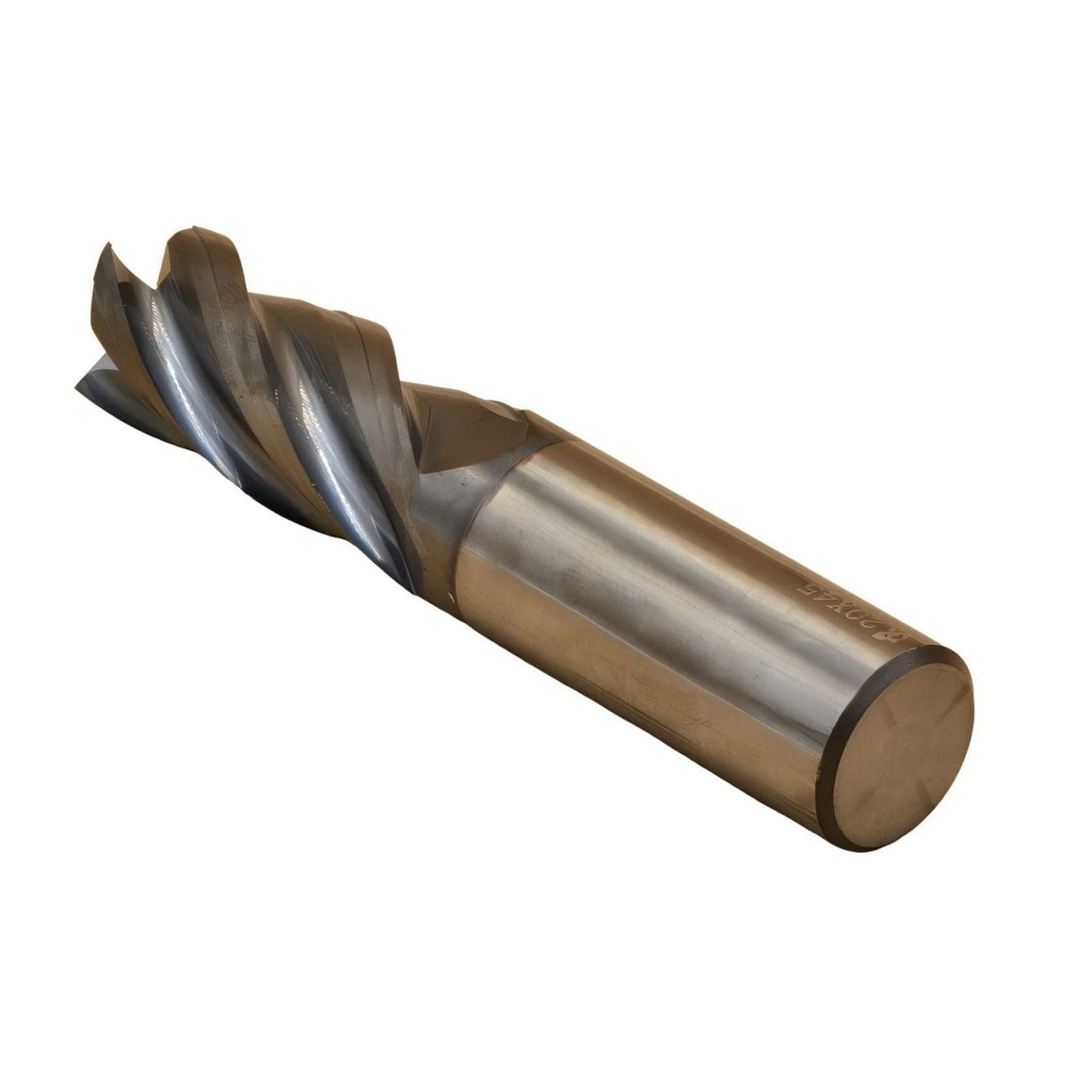

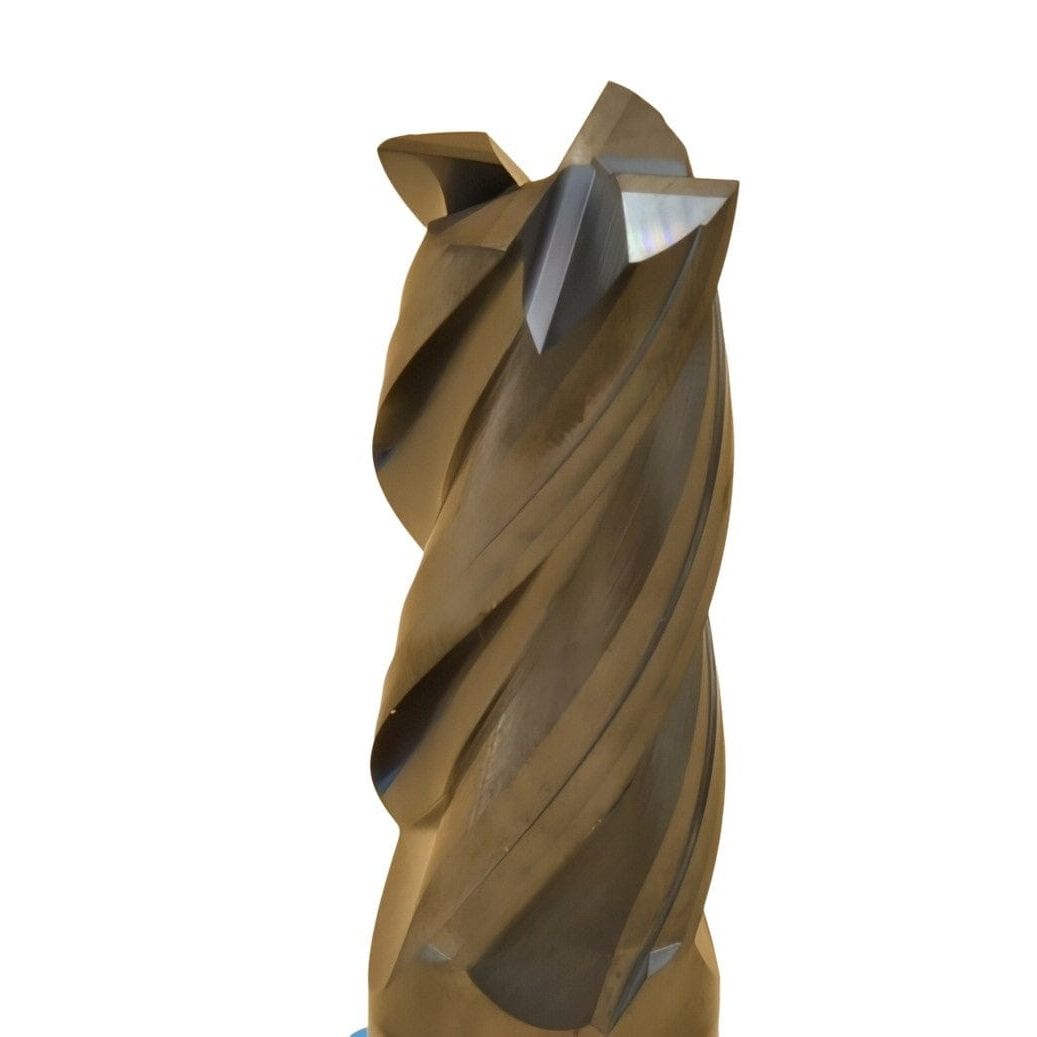

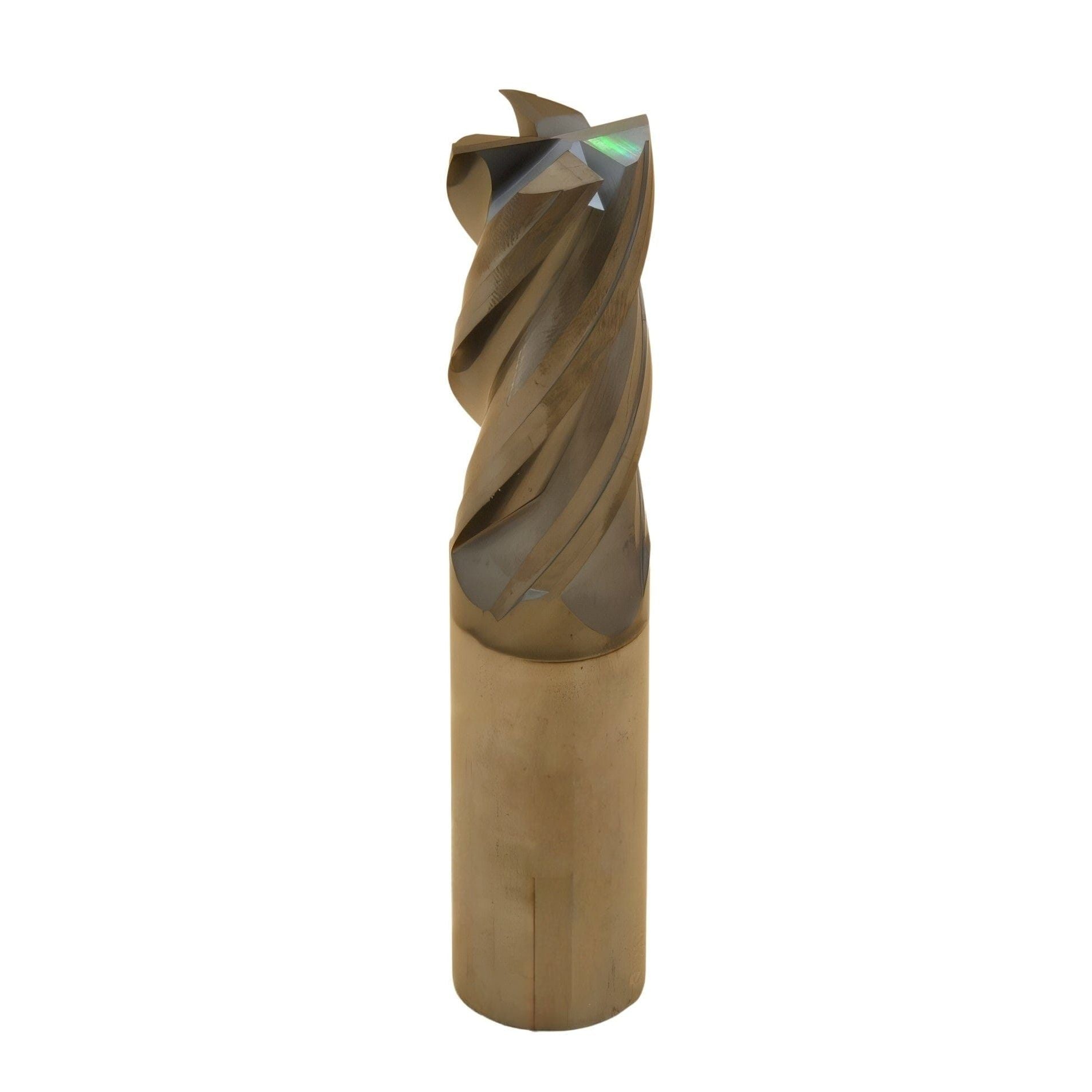

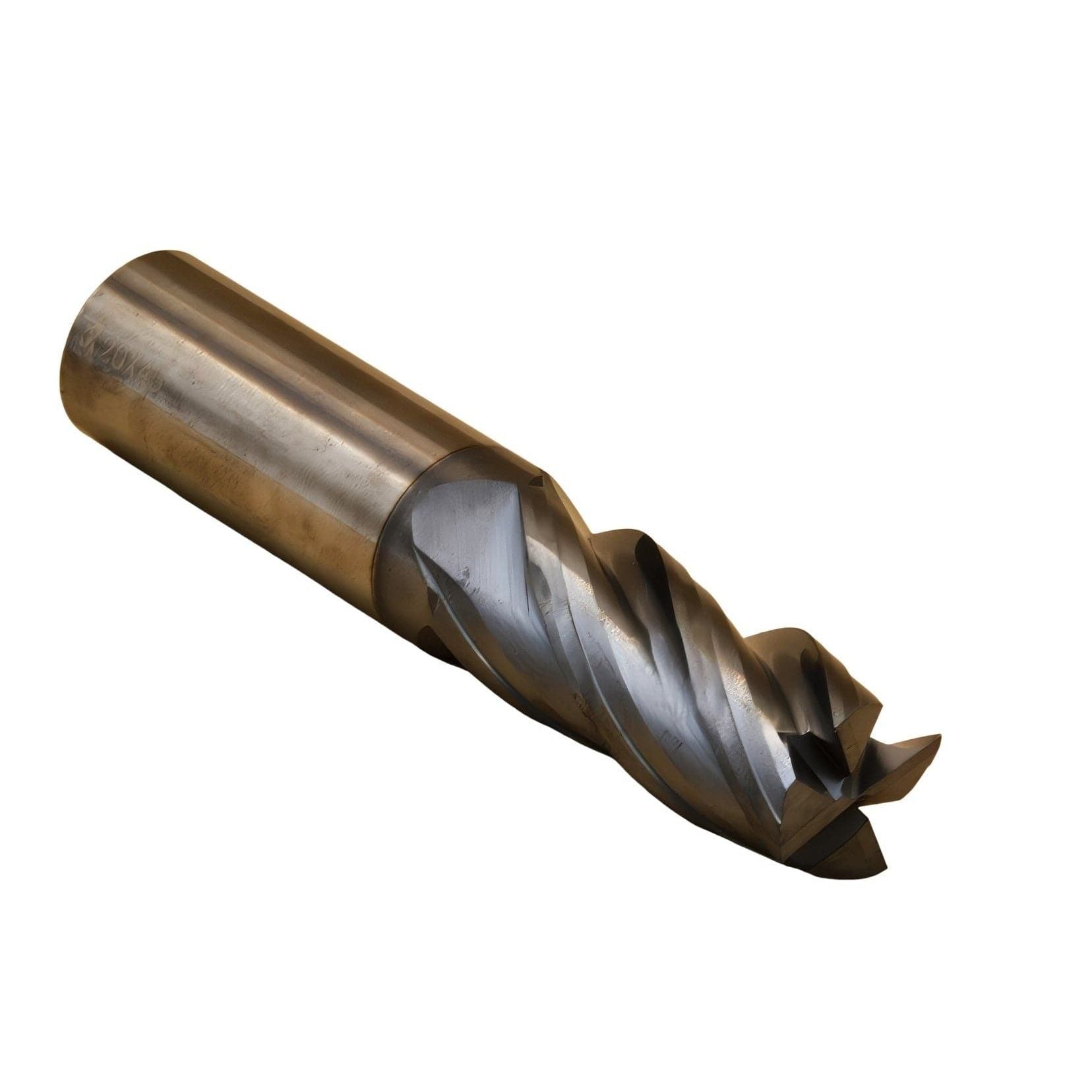

Kyocera 20.0mm 4 Flute Coated Carbide End Mill
Couldn't load pickup availability
The Kyocera KPZ00157 is a 20.0mm diameter solid carbide end mill designed for heavy-duty CNC milling and high-material-removal applications. Manufactured from premium-grade carbide and enhanced with a durable wear-resistant coating, this tool delivers exceptional rigidity, thermal stability, and extended tool life in demanding machining environments.
The 4-flute geometry provides increased core strength and improved surface finish, making it ideal for slotting, side milling, and profiling operations in carbon steels, alloy steels, and general engineering materials. Precision-ground cutting edges promote efficient chip evacuation, while the cylindrical straight shank ensures secure clamping and consistent runout control for reliable machining accuracy.
Key Features & Benefits
- 20.0mm cutting diameter for heavy milling applications
- 4 flute design for enhanced rigidity and stability
- Solid carbide construction for maximum strength and durability
- Wear-resistant coating for improved heat resistance and tool life
- Suitable for CNC slotting, profiling, and side milling
Technical Specifications
- Brand: Kyocera
- Cutting Diameter: 20.0mm
- Product Type: Solid Carbide End Mill
- Flutes: 4
- Coating: Coated
- Shank Type: Cylindrical (Straight Shank)
- SKU: KPZ00157
Kyocera is globally recognised for advanced cutting tool technology, delivering reliable machining performance, extended tool life, and consistent precision across modern manufacturing industries.
