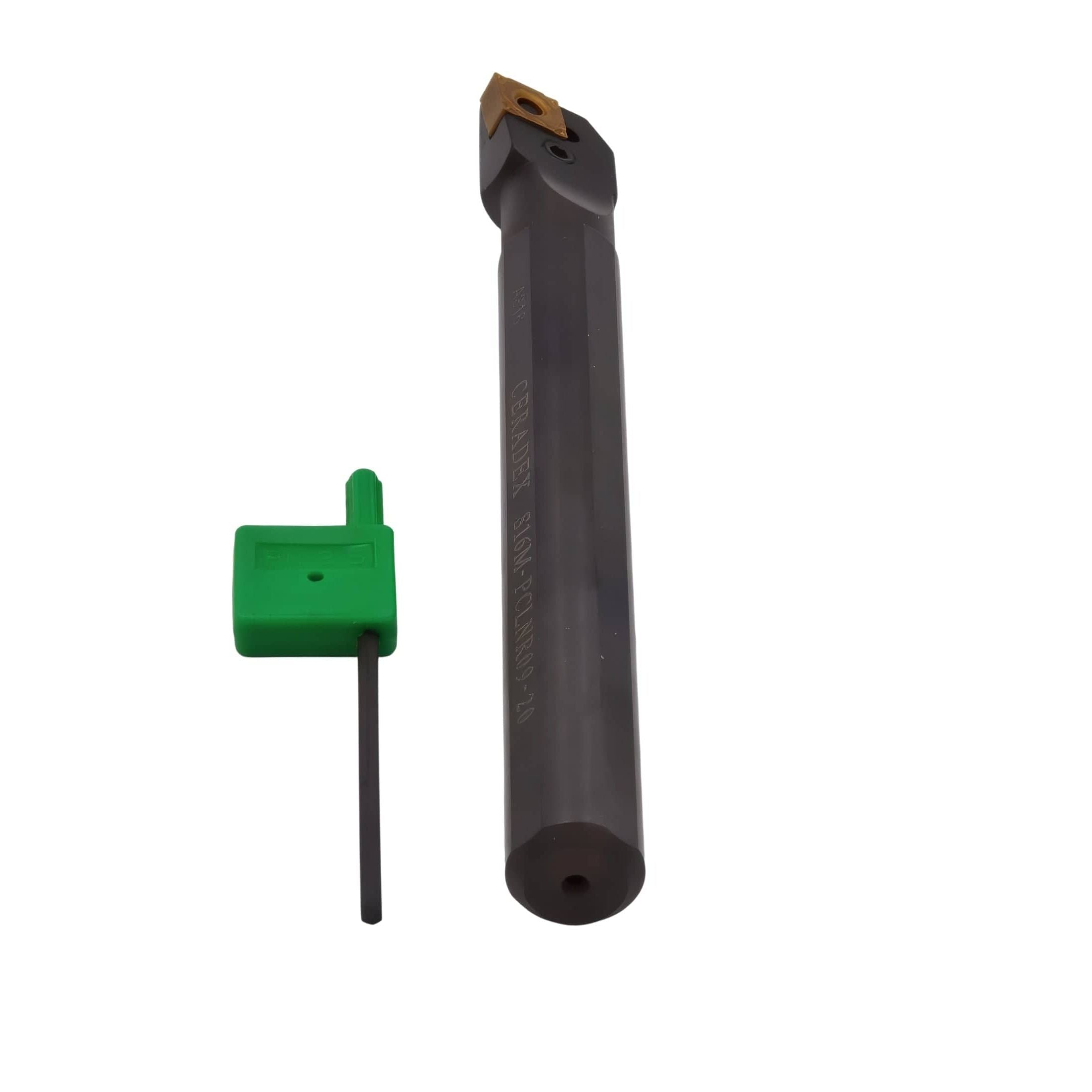

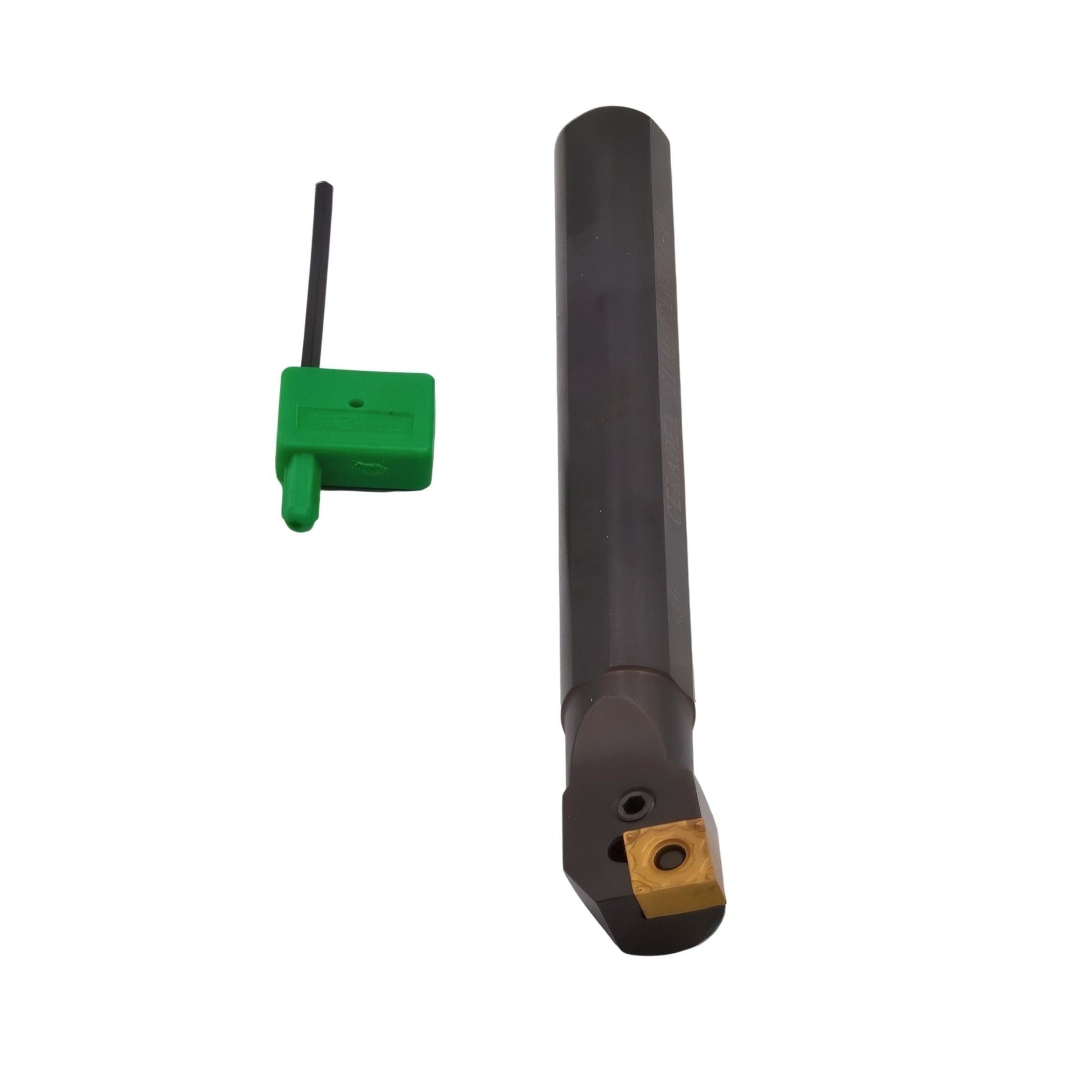

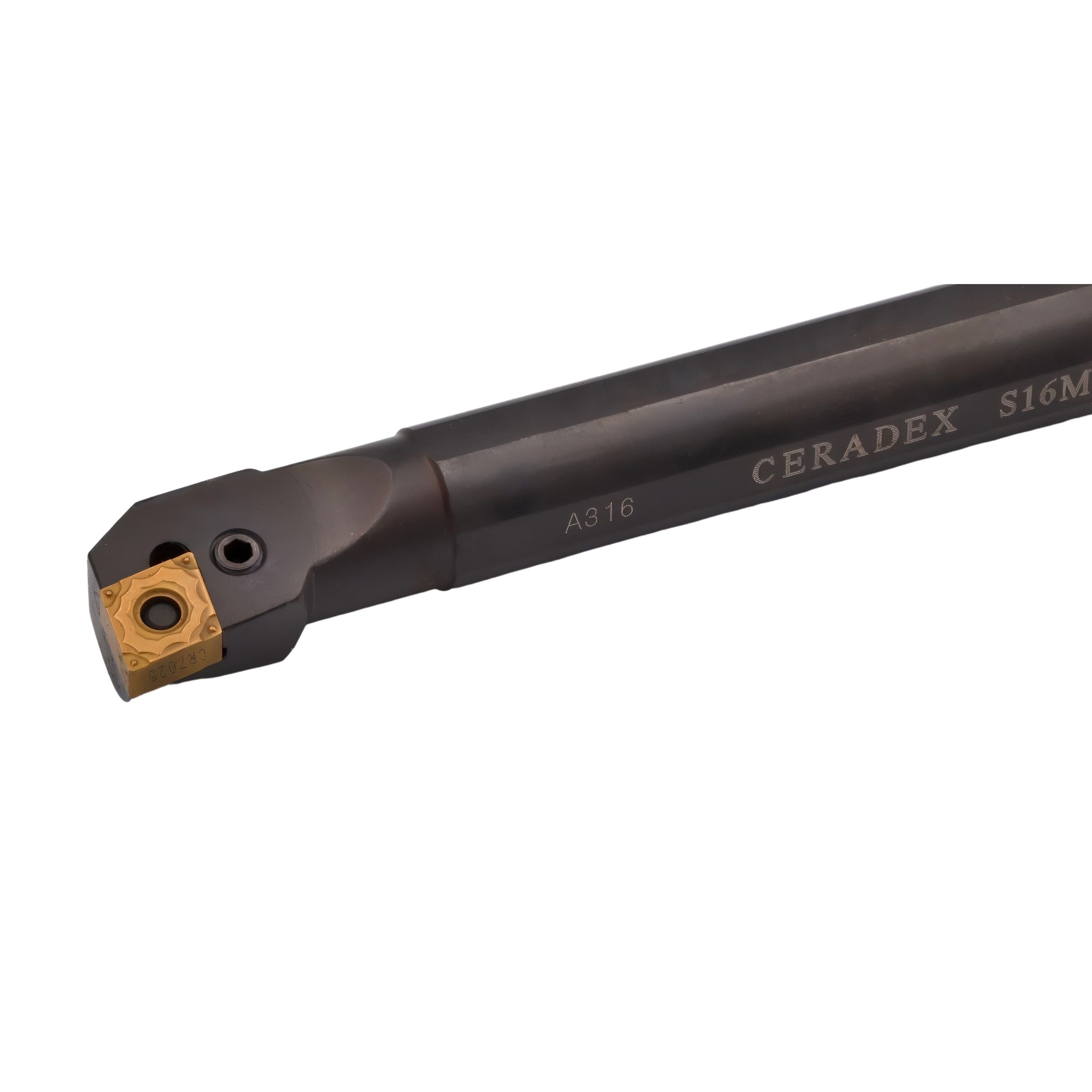

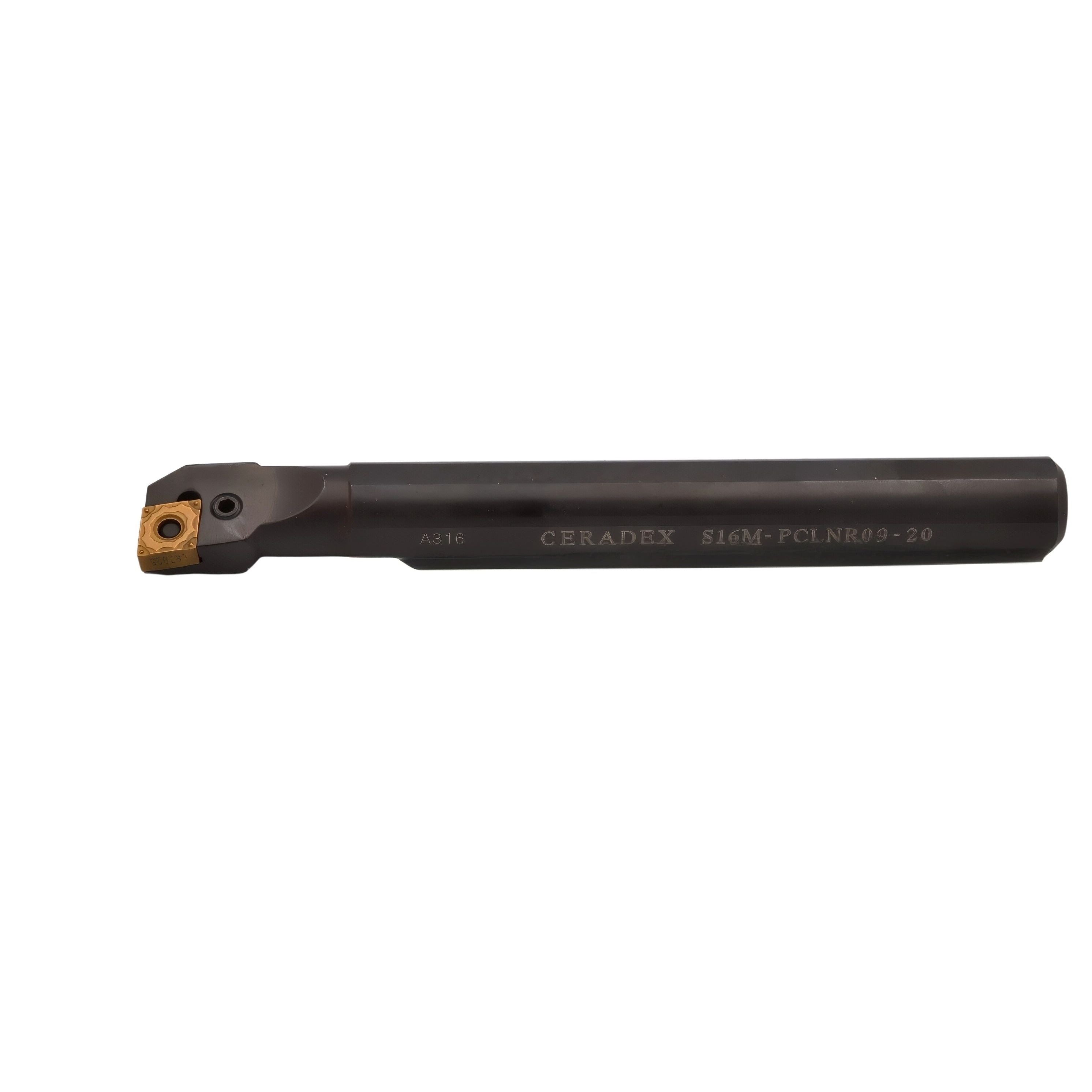

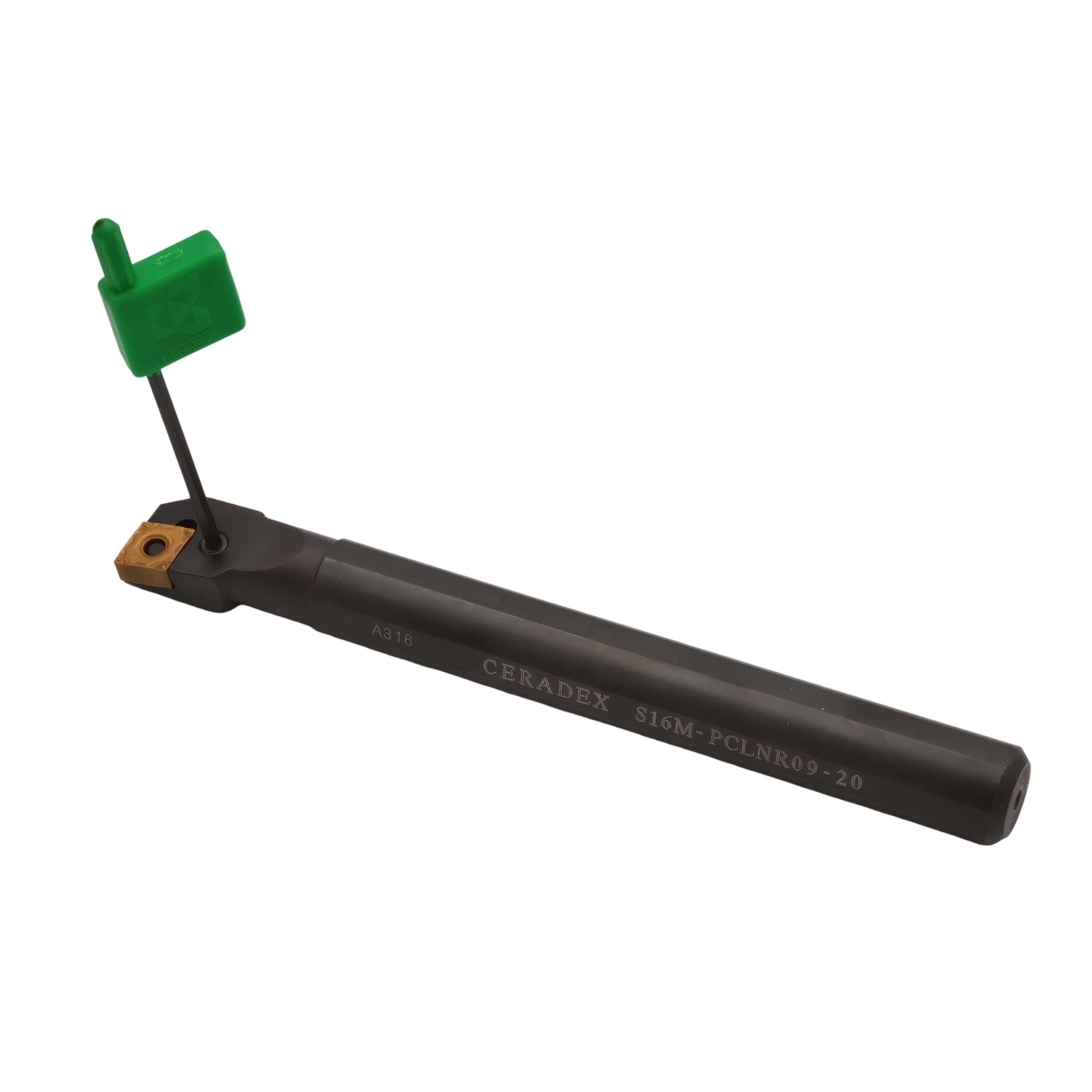

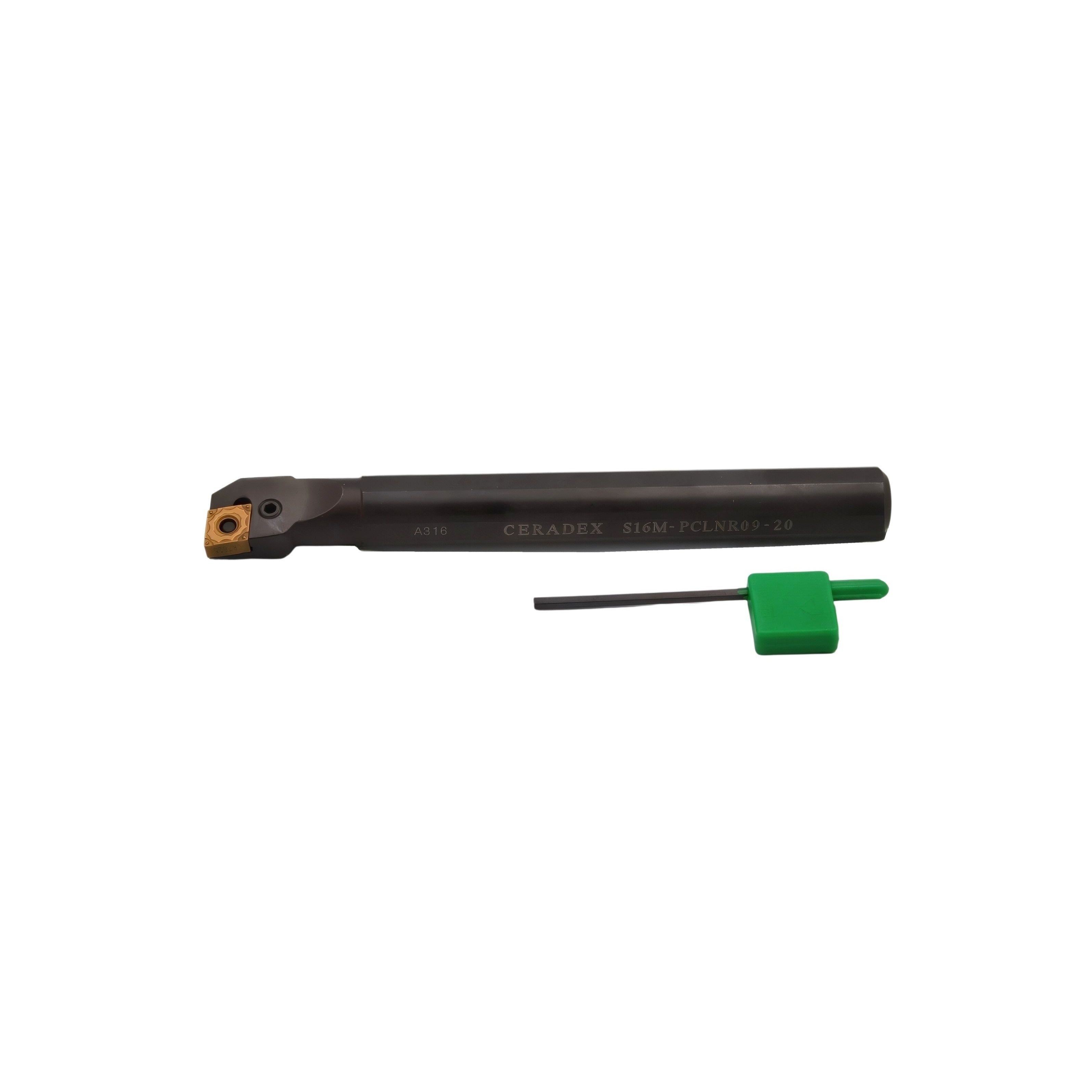

Ceradex S16M-PCLNR09-20 Internal Turning Toolholder
Couldn't load pickup availability
The Ceradex S16M-PCLNR09-20 is a high-performance internal turning toolholder designed for precision boring and internal machining applications. Engineered from durable alloy steel, this toolholder provides excellent rigidity and stability, helping to minimise vibration and maintain consistent cutting accuracy in demanding machining environments.
Featuring the PCLNR holder configuration, this toolholder is designed to securely clamp ISO size 09 inserts for reliable internal turning operations. The 16 mm cylindrical shank ensures secure mounting in boring bar holders, while its optimised geometry allows efficient chip evacuation and smooth cutting performance when machining steels, stainless steels, and general engineering materials.
Key Features & Benefits
- Precision internal turning toolholder for boring applications
- PCLNR holder style compatible with ISO size 09 inserts
- Strong alloy steel construction for rigidity and long tool life
- 16 mm shank diameter for stable internal machining setups
- Reduced vibration for improved surface finish and accuracy
- Optimised geometry for efficient chip control and evacuation
- Suitable for CNC and manual lathe operations
- Ideal for machining steels and general engineering materials
Technical Specifications
- Brand: Kyocera
- Model: S16M-PCLNR09-20
- Item Number: THC08000
- Product Type: Internal Turning Toolholder
- Holder Style: PCLNR
- Insert Size: 09
- Shank Diameter (DCON): 16 mm
- Minimum Bore Diameter: 20 mm
- Total Length (OAL): 150 mm
- Head Length (LH): 34 mm
- Hand: Right Hand
- Material: Steel
Kyocera toolholders are globally recognised for their precision engineering and dependable machining performance. Designed for stability and accuracy, they ensure consistent results across a wide range of internal turning applications in modern machining environments.
