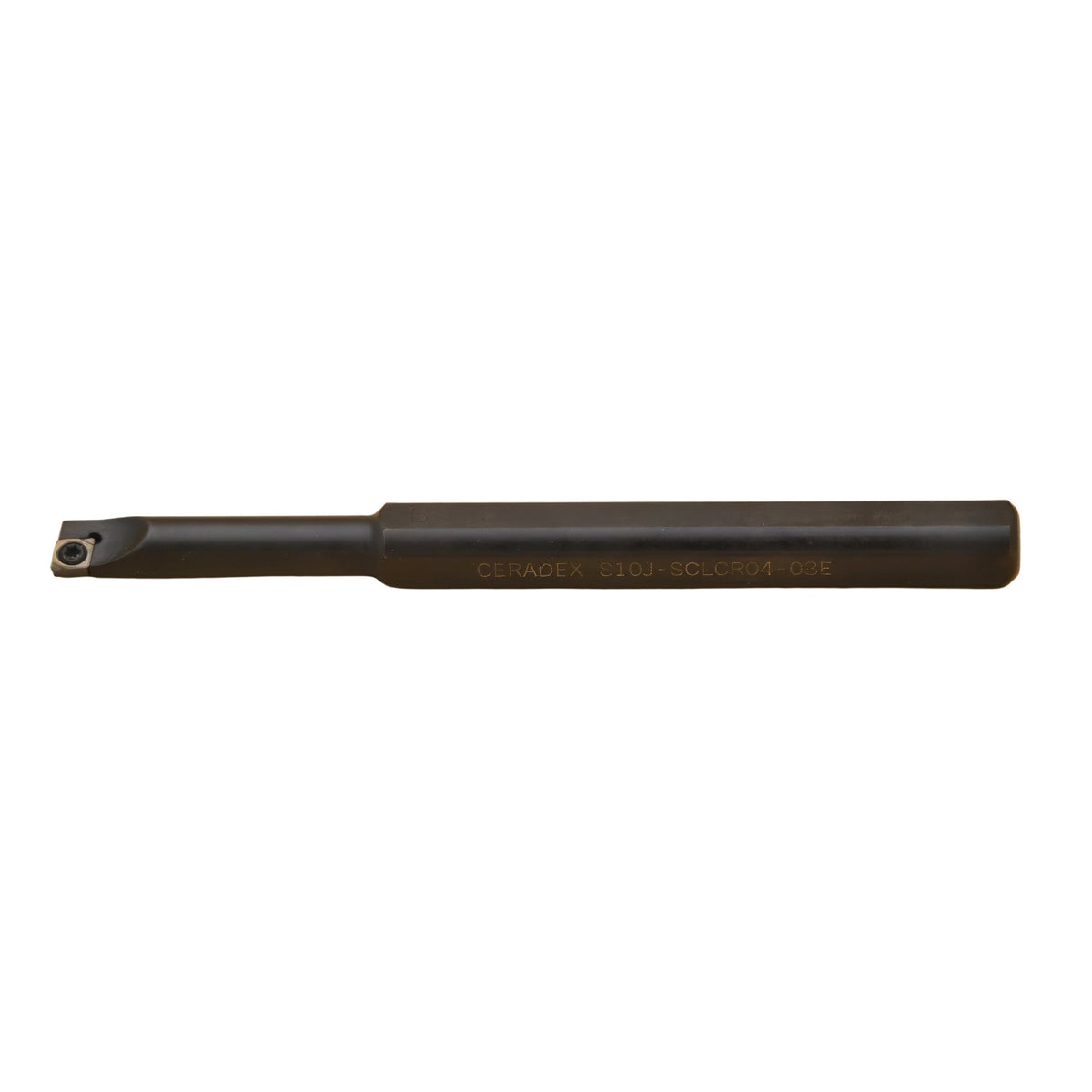

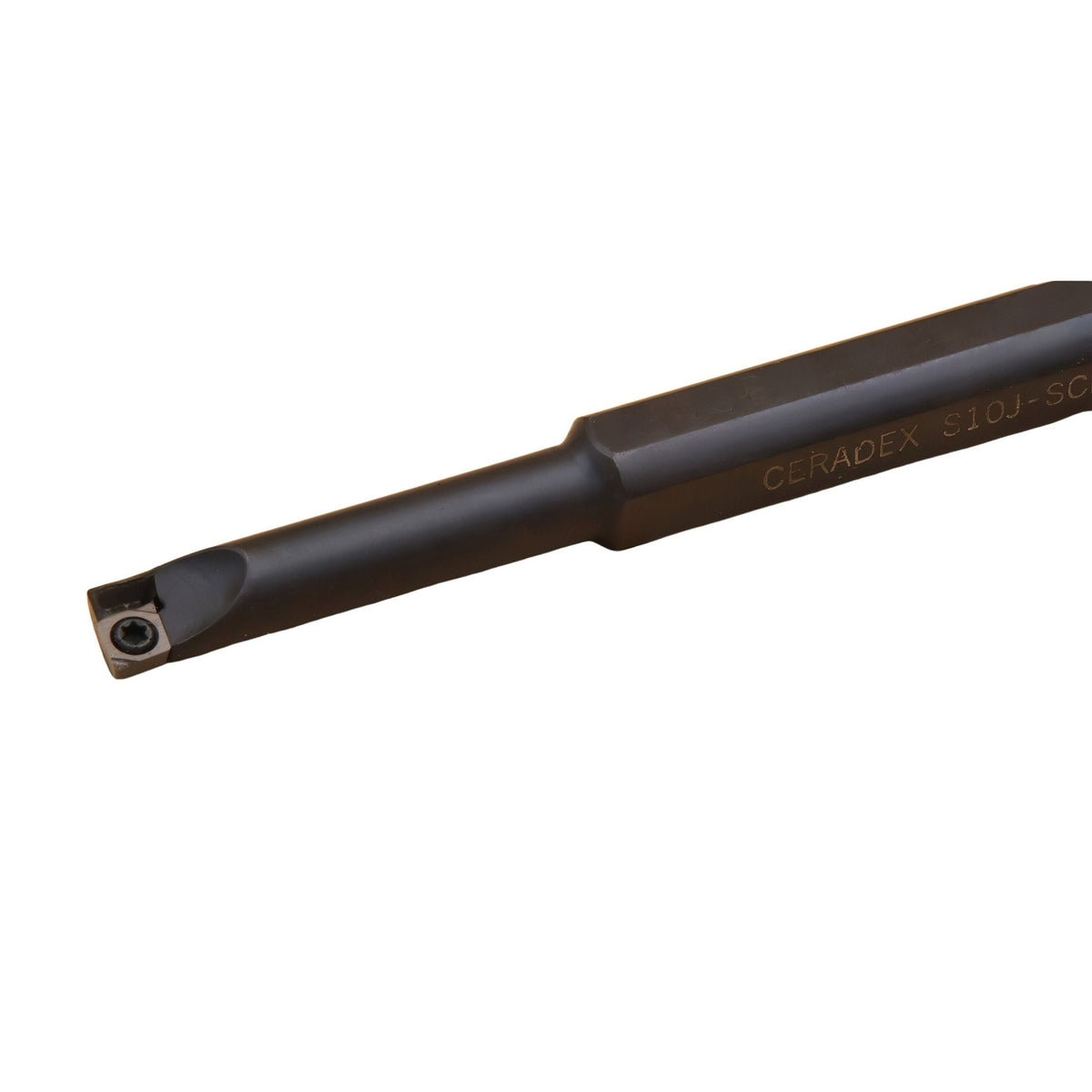

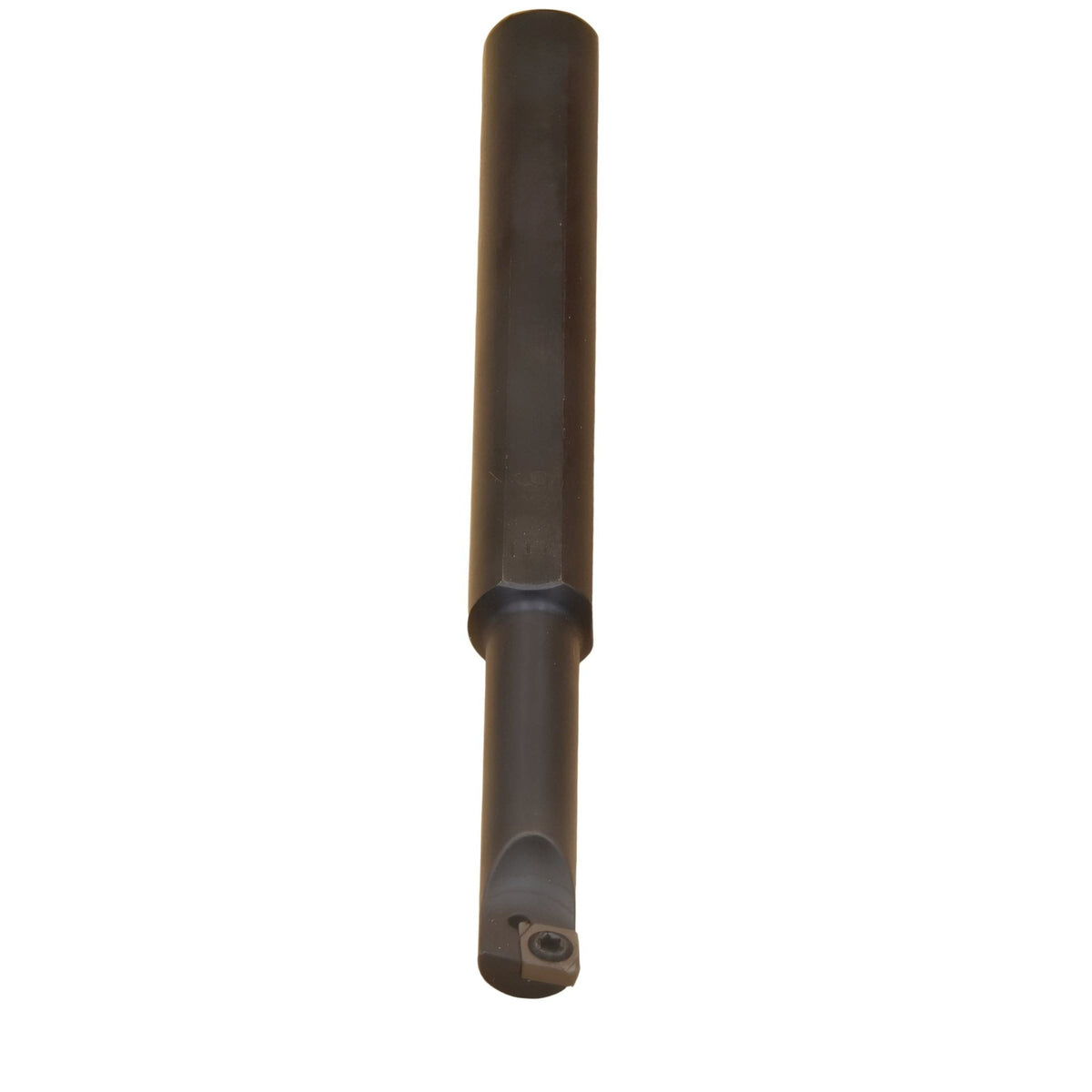

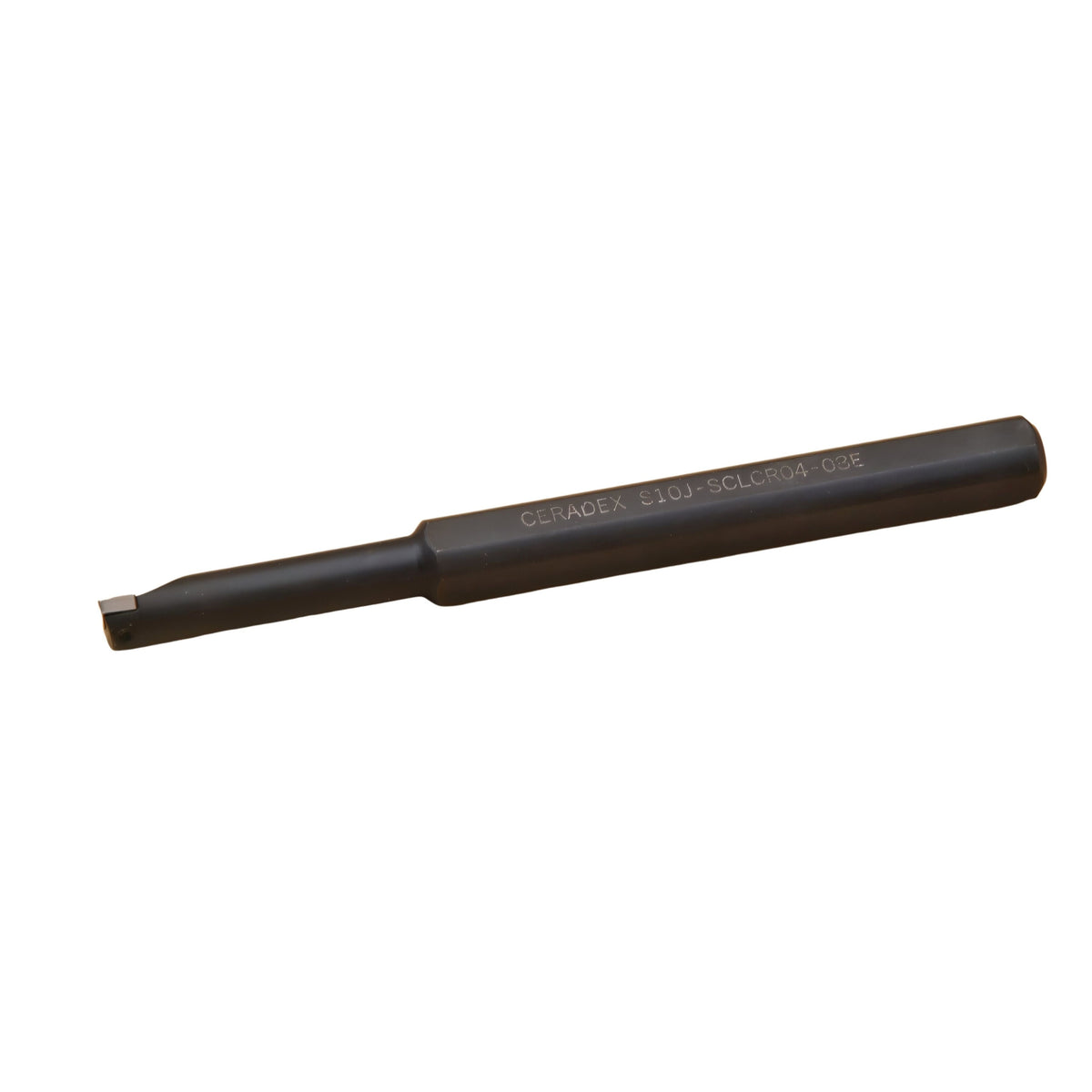

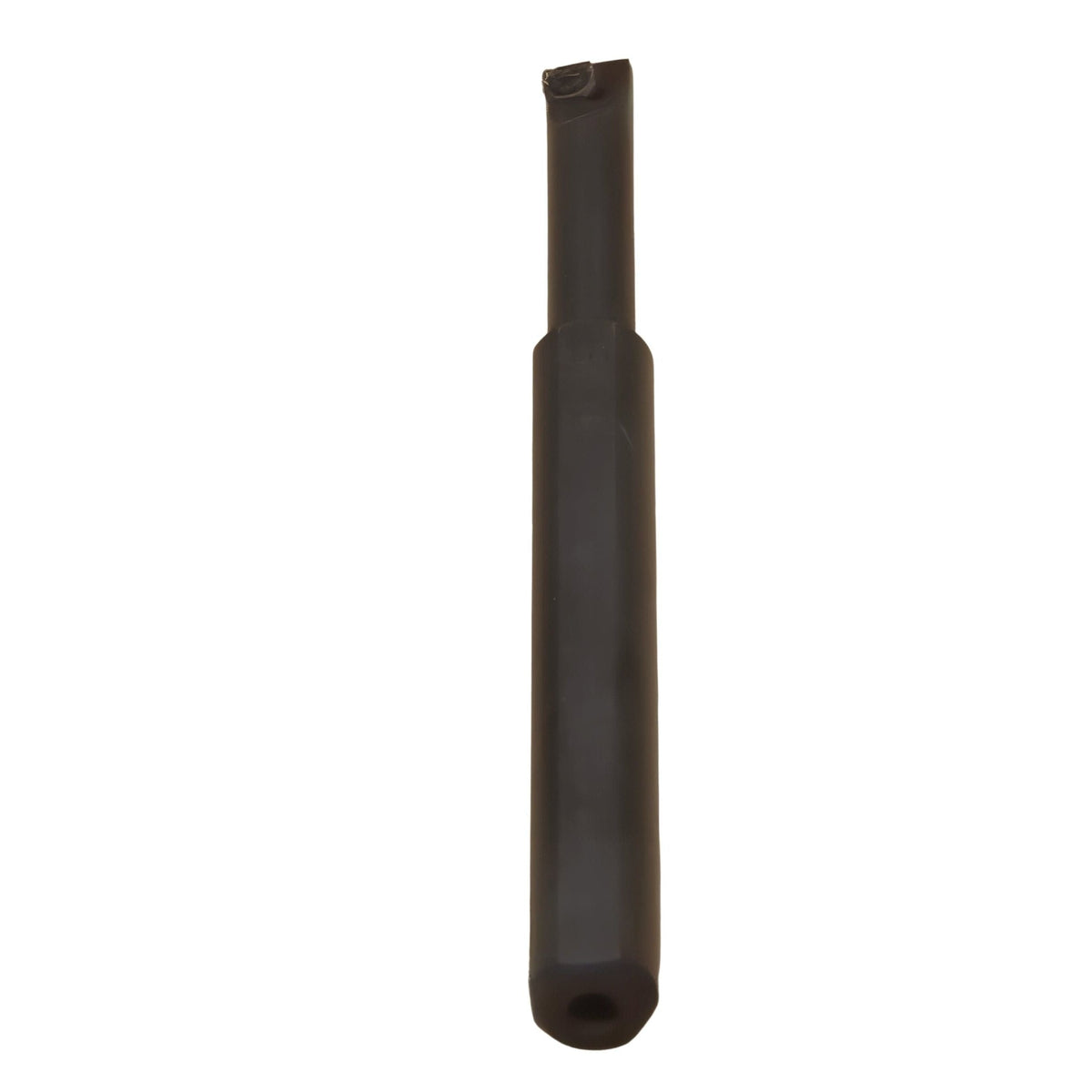

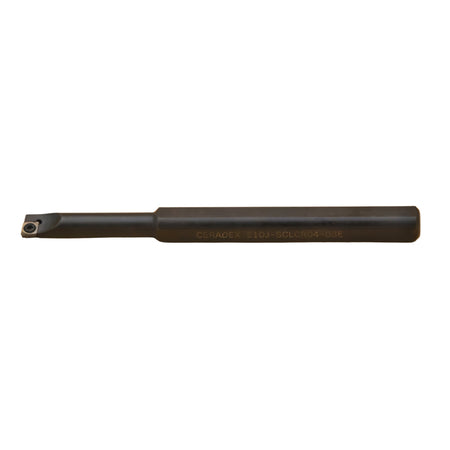

Ceradex S10J-SCLCR04-08E Internal Turning Toolholder
Couldn't load pickup availability
The Ceradex S10J-SCLCR04-08E internal turning toolholder is a precision-engineered boring bar designed for reliable internal machining operations. Built from high-strength alloy steel, this toolholder provides excellent rigidity and vibration resistance, ensuring stable cutting performance and improved surface finishes in a wide range of applications.
Designed with the SCLCR holder configuration, this toolholder is compatible with ISO CCMT 04 inserts, making it ideal for internal turning, profiling, and finishing operations. The 10 mm shank diameter allows access to smaller bore diameters while maintaining strength and stability. Its right-hand cutting orientation and optimised geometry support efficient chip evacuation and consistent machining results.
Key Features & Benefits
- Precision internal turning toolholder for boring and profiling applications
- SCLCR holder style compatible with CCMT 04 inserts
- High-strength alloy steel construction for durability and rigidity
- 10 mm shank diameter for small bore machining applications
- Reduced vibration for improved surface finish and tool life
- Right-hand cutting direction for standard turning operations
- Optimised design for efficient chip control and evacuation
- Suitable for CNC and conventional lathe use
Technical Specifications
- Brand: Ceradex
- Model: S10J-SCLCR04-08E
- Item Number: THC06497
- Product Type: Internal Turning Toolholder (Boring Bar)
- Holder Style: SCLCR
- Insert Type: CCMT
- Insert Size: 04
- Shank Diameter (DCON): 10 mm
- Minimum Bore Diameter: Approx. 12 mm
- Overall Length (OAL): Approx. 125 mm
- Hand: Right Hand
- Material: Alloy Steel
Ceradex tooling solutions are engineered for performance and reliability, offering machinists dependable cutting tools for precision internal turning applications. Designed for durability and consistent results, Ceradex toolholders provide excellent value across a wide range of machining environments.
