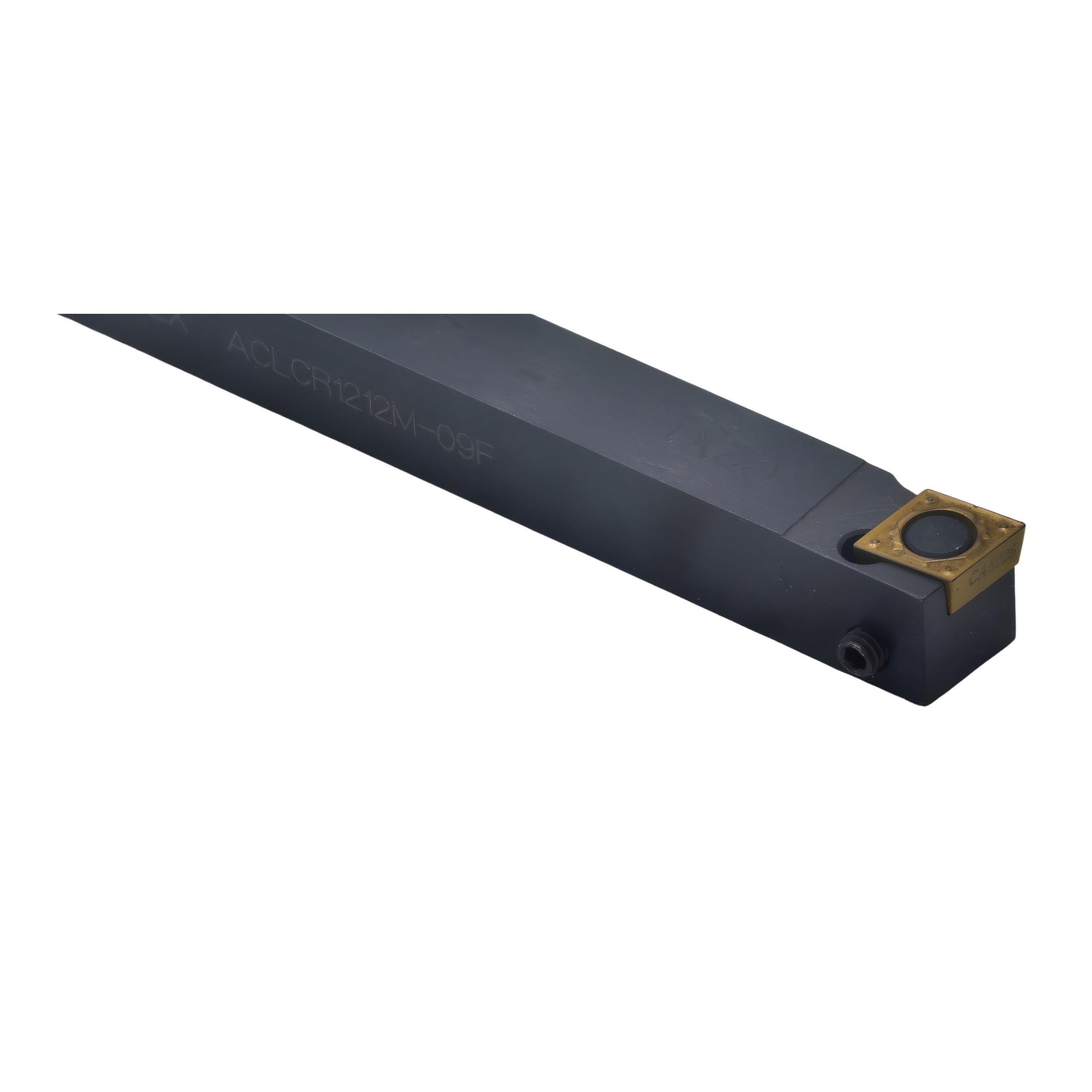

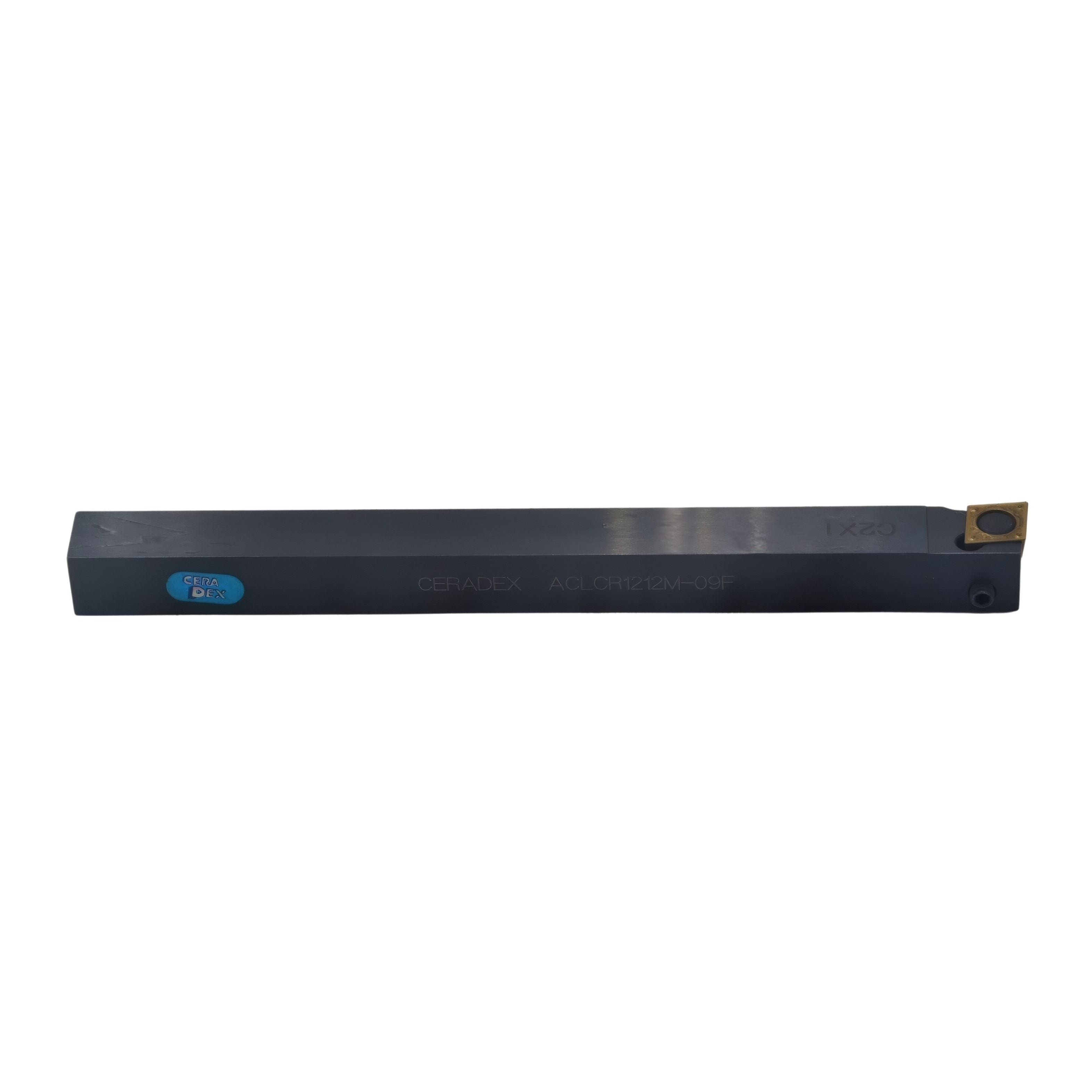

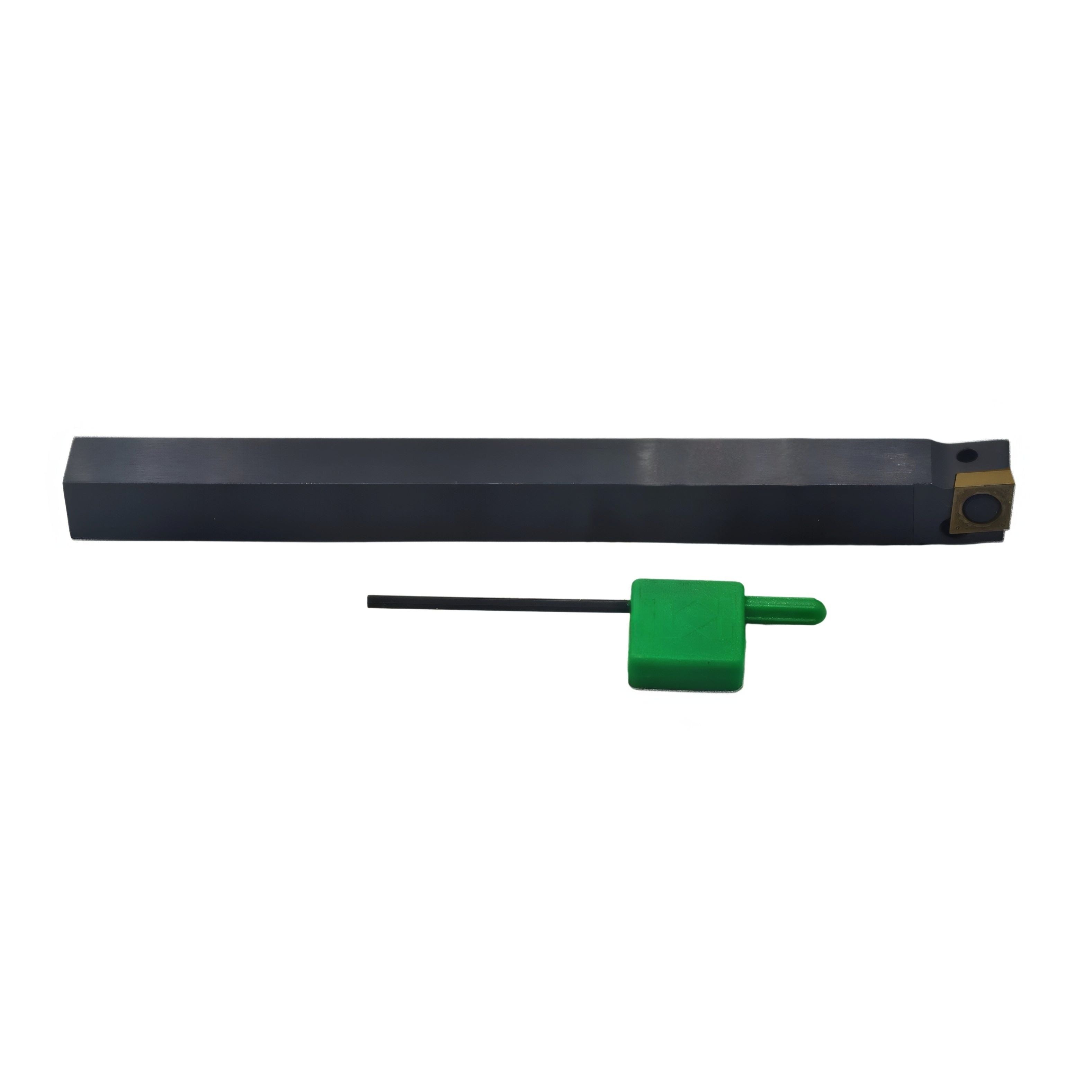

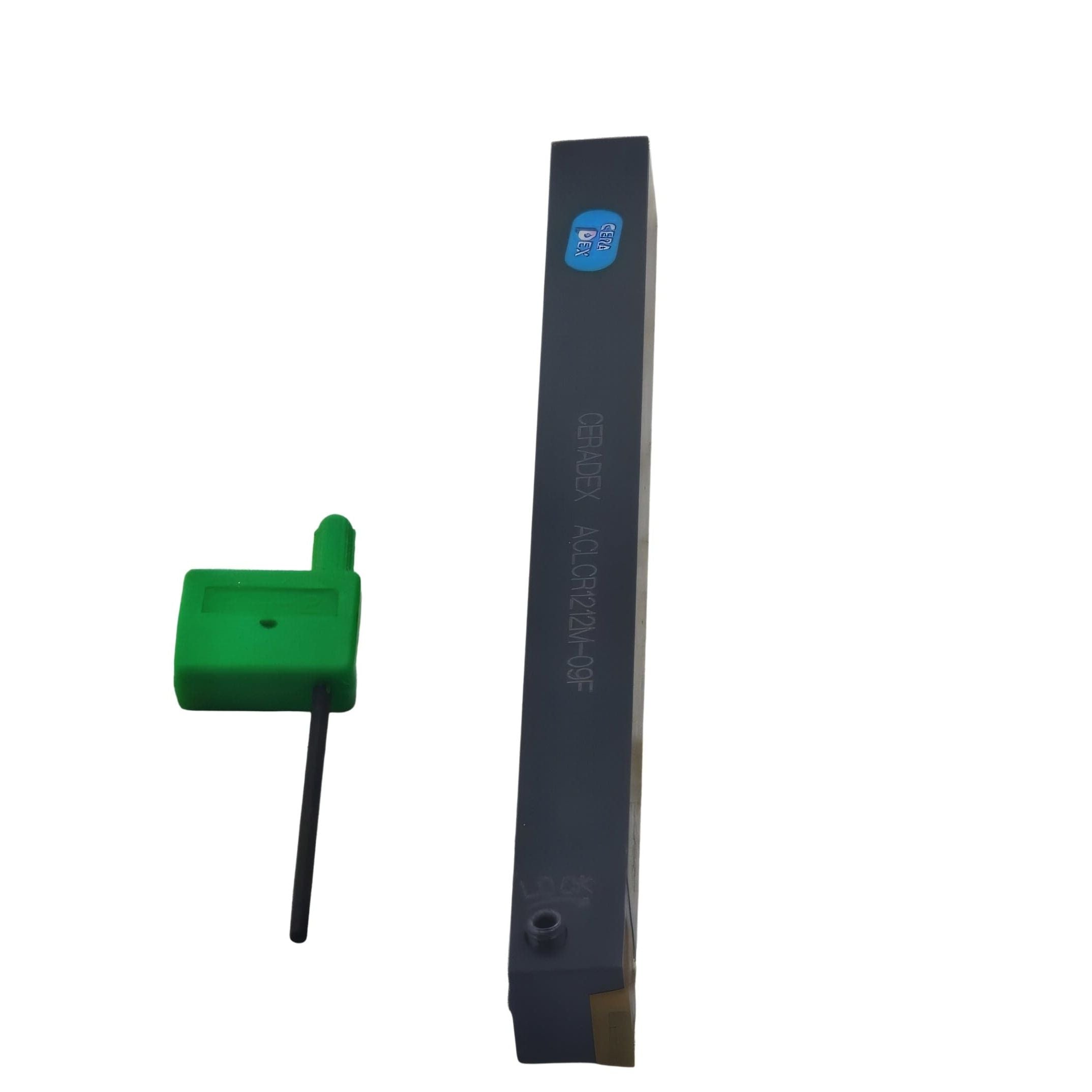

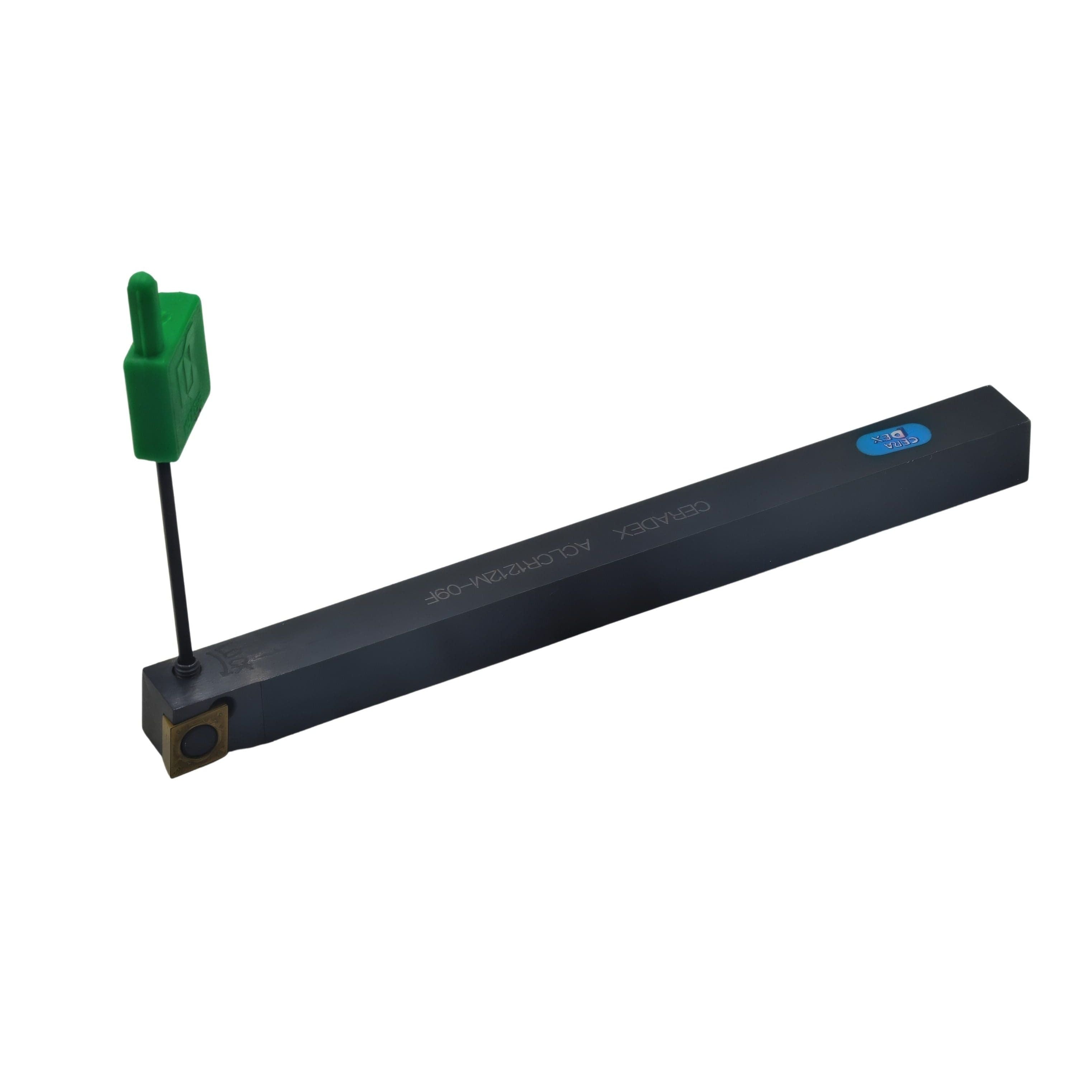

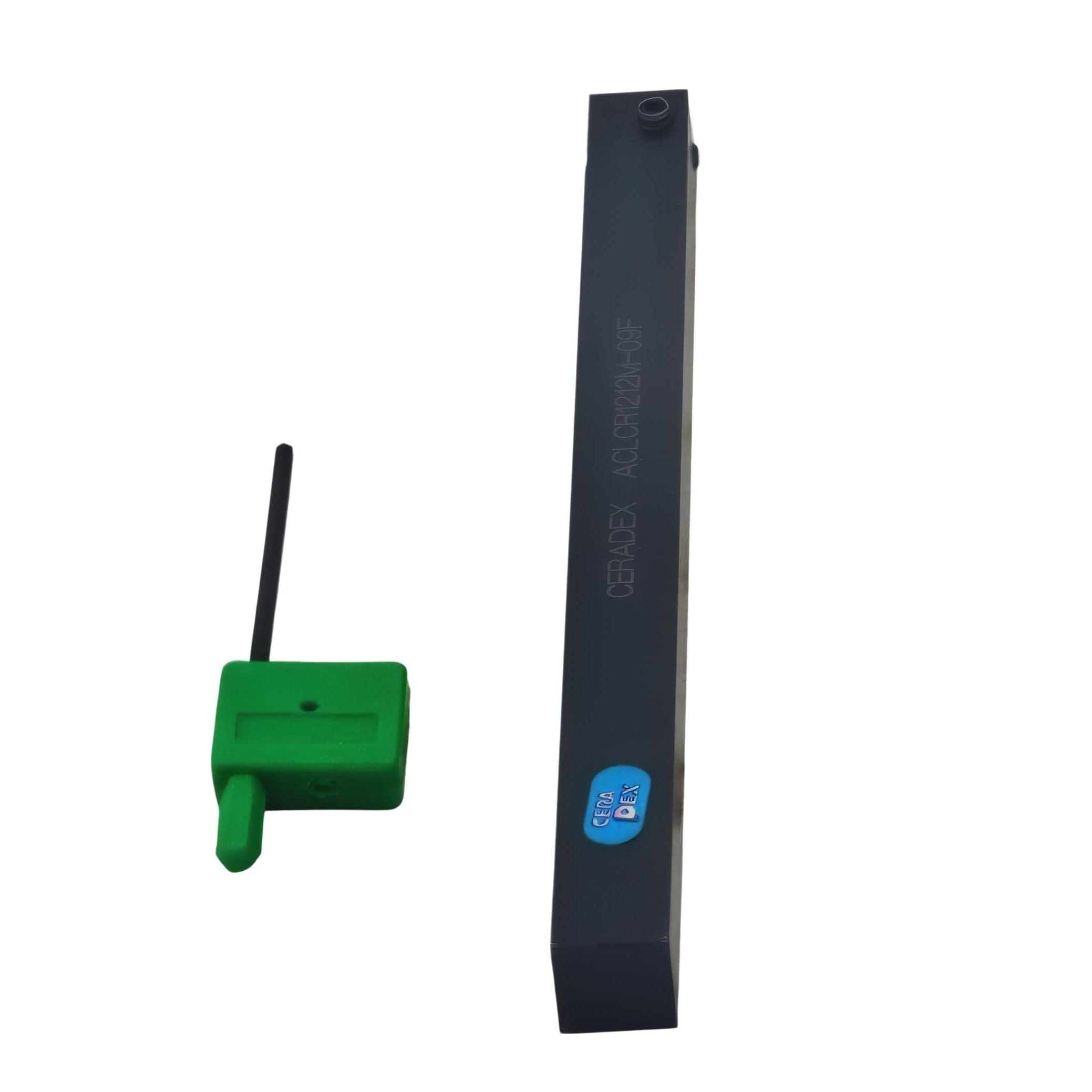

Ceradex ACLCR1212M-09F External Turning Toolholder
Couldn't load pickup availability
The ACLCR1212M-09F is a compact and rigid external turning toolholder designed for precision turning and facing operations using CCMT 09 series positive inserts. Featuring a 12 × 12 mm square shank and a 95° approach angle, this toolholder provides excellent accessibility and control, making it ideal for light to medium-duty machining applications.
Manufactured for reliability and consistent performance, the ACLCR1212M-09F utilises a secure top clamp and screw locking system to ensure stable insert seating and repeatable accuracy. Its right-hand cutting orientation makes it suitable for standard external turning operations on lathes and CNC machines.
Key Features & Benefits
- Insert Compatibility – Designed for CCMT 09 positive inserts.
- Compact Square Shank – 12 × 12 mm size ideal for smaller machines and tight setups.
- Right-Hand Cutting – Suitable for standard external turning and facing.
- Stable Insert Clamping – Secure screw clamp for reliable performance.
- Precision Machining – Optimised for smooth cutting action and surface finish.
Technical Specifications
- Model: ACLCR1212M-09F
- Category: External Turning Toolholder
- Applications: Turning, Facing
- Connection Style: Square Shank
- Shank Size: 12 × 12 mm
- Approach Angle: 95°
- Insert Type: CCMT 09 (Positive)
- Cutting Direction: Right Hand
- Internal Coolant: No
- Grade: THC0701
This toolholder is well suited for toolrooms, CNC lathes, and general engineering applications where accuracy, repeatability, and compact tool geometry are required.
