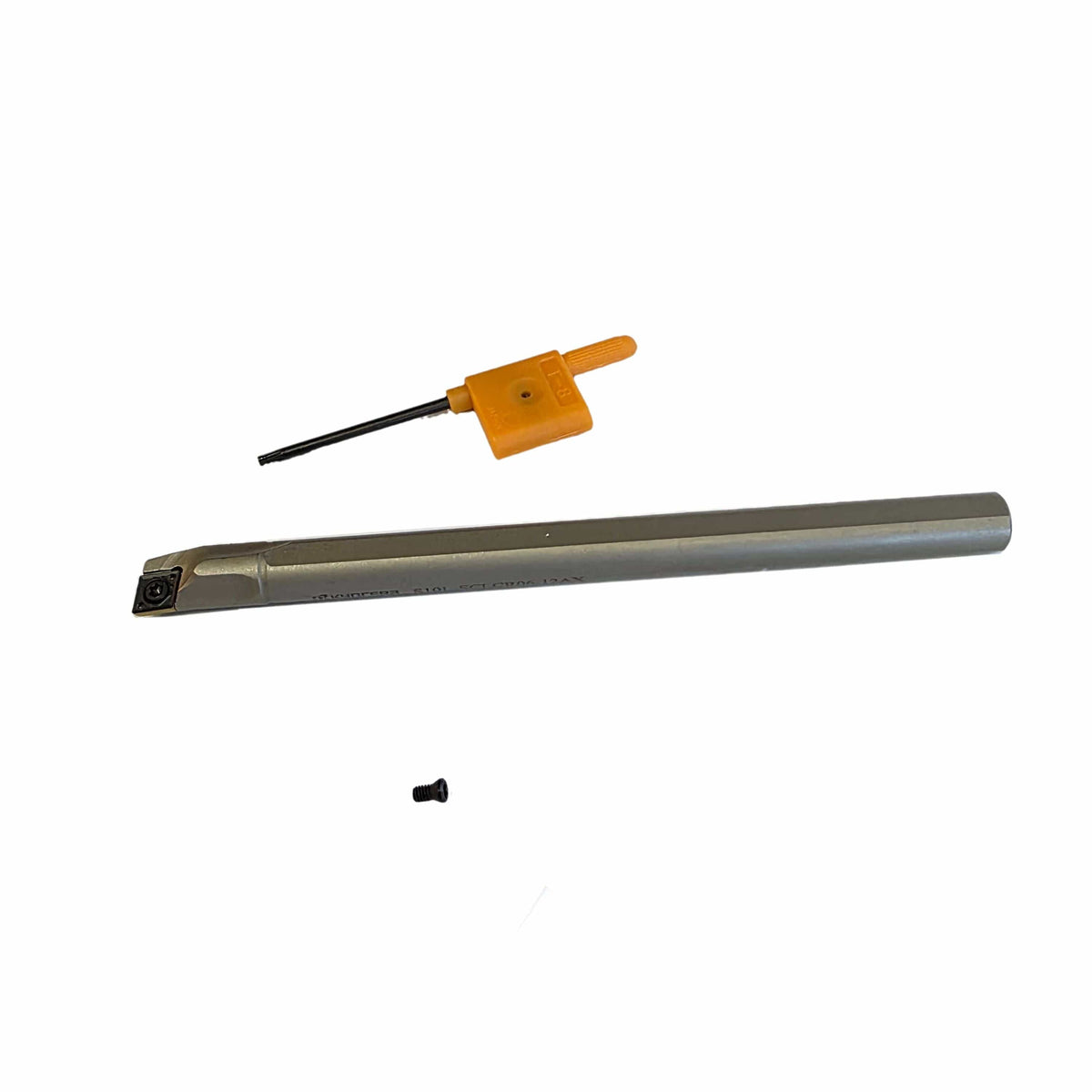

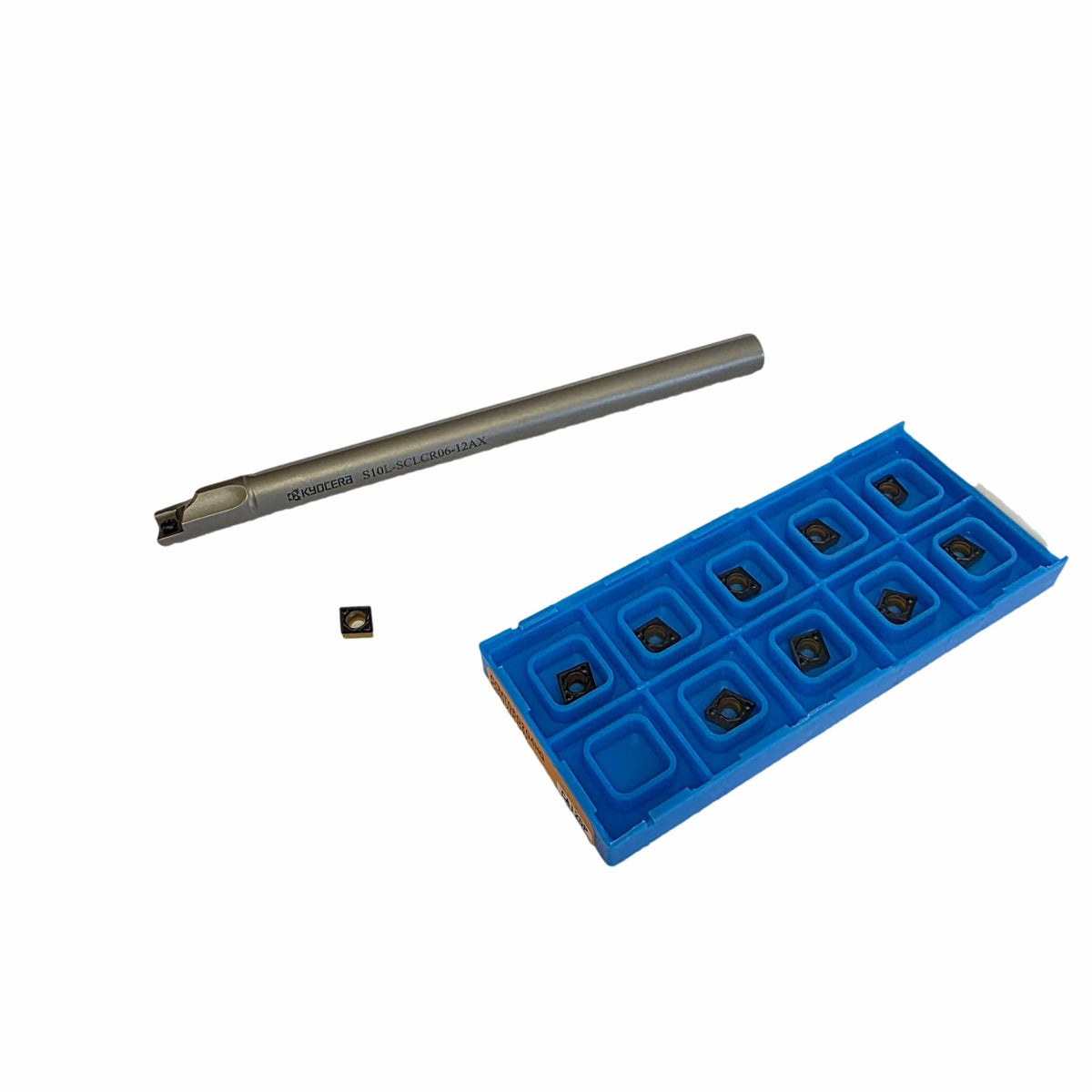

Kyocera S10L-SCLCR06-12A Boring Bar paired with 10pcs CCMT060204HQ CA125P inserts

Kyocera S10L-SCLCR06-12A with CCMT060204HQ CA125P – Dynamic Boring Bar & Insert Set (Medium-Finishing, HQ Chipbreaker)

The Kyocera S10L-SCLCR06-12A is part of Kyocera’s Dynamic Bar series, designed for stable internal turning at depths up to 4×D (four times the bar diameter). With its 10 mm shank and vibration-resistant construction, it provides rigidity, accuracy, and chatter-free performance in small-to-medium diameter bores.

This boring bar is paired with CCMT060204HQ CA125P inserts, positive-type turning inserts designed specifically for steel machining. The inserts feature Kyocera’s HQ chipbreaker, engineered for medium-finishing operations, offering smooth cutting action, reliable chip evacuation, and excellent surface finish.

The CA125P carbide grade ensures long tool life in steels by combining wear resistance with stable edge strength. Together, this bar and insert set delivers consistent, high-quality results in both CNC and manual lathe applications.

Key Features & Benefits

• Dynamic Bar series: Stable boring up to 4×D, providing excellent rigidity and reduced vibration.

• HQ chipbreaker: Optimized for medium-finishing in steels with smooth chip flow and superior surface quality.

• Steel-specific grade: CA125P grade engineered for steel, offering wear resistance and toughness.

• Matched system: Bar and inserts paired together for ready-to-use setup with guaranteed compatibility.

• Precision performance: Reliable surface finish and tool life even in small-to-medium diameter bores.

Applications

• Internal turning and boring in steel, up to 4× bar diameter (4×D).

• Medium-finishing cuts with stable chip evacuation.

• Suitable for continuous or light-interrupted operations.

• Ideal for precision boring in shafts, bushings, housings, and small-to-medium bore steel components.

Technical Specifications

Boring Bar

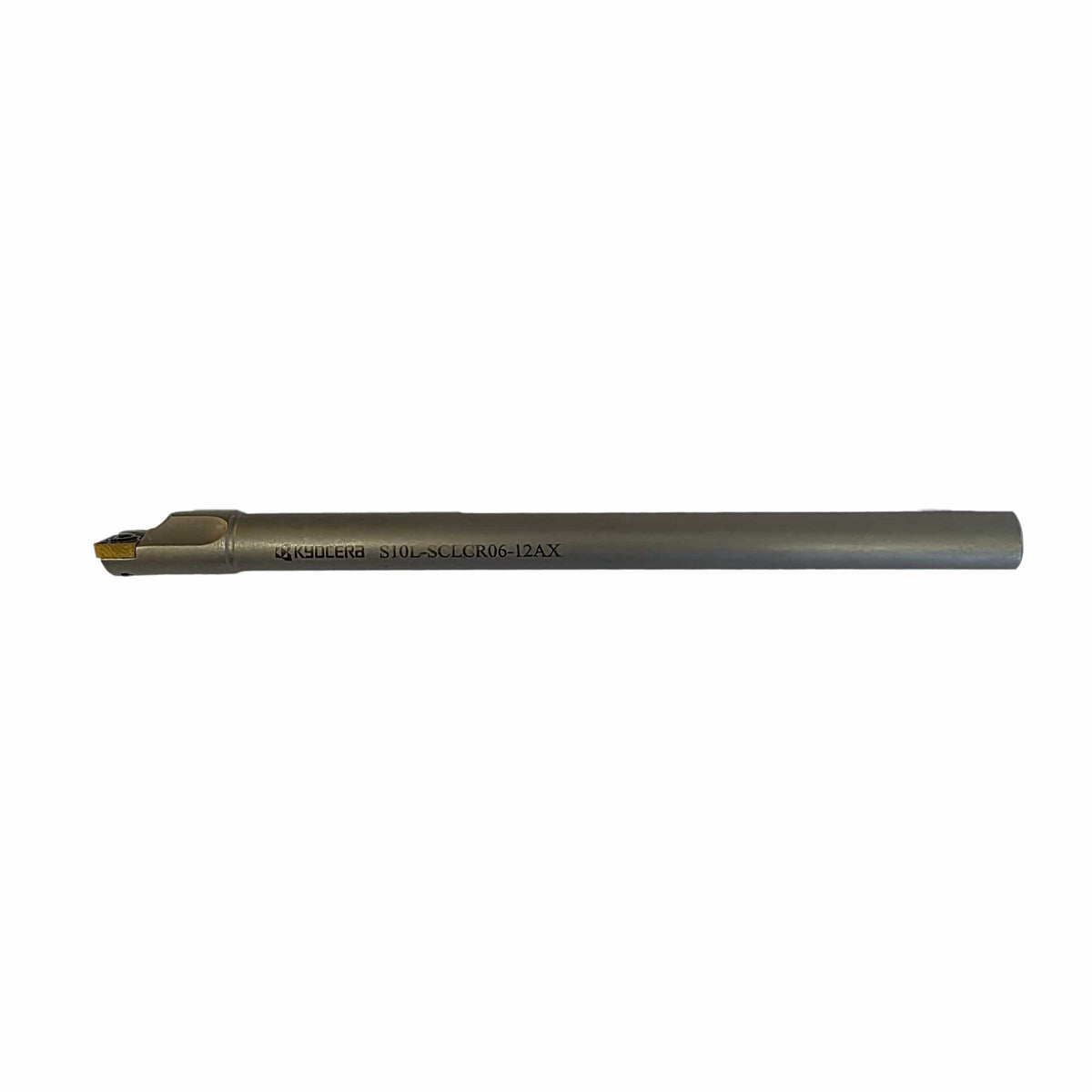

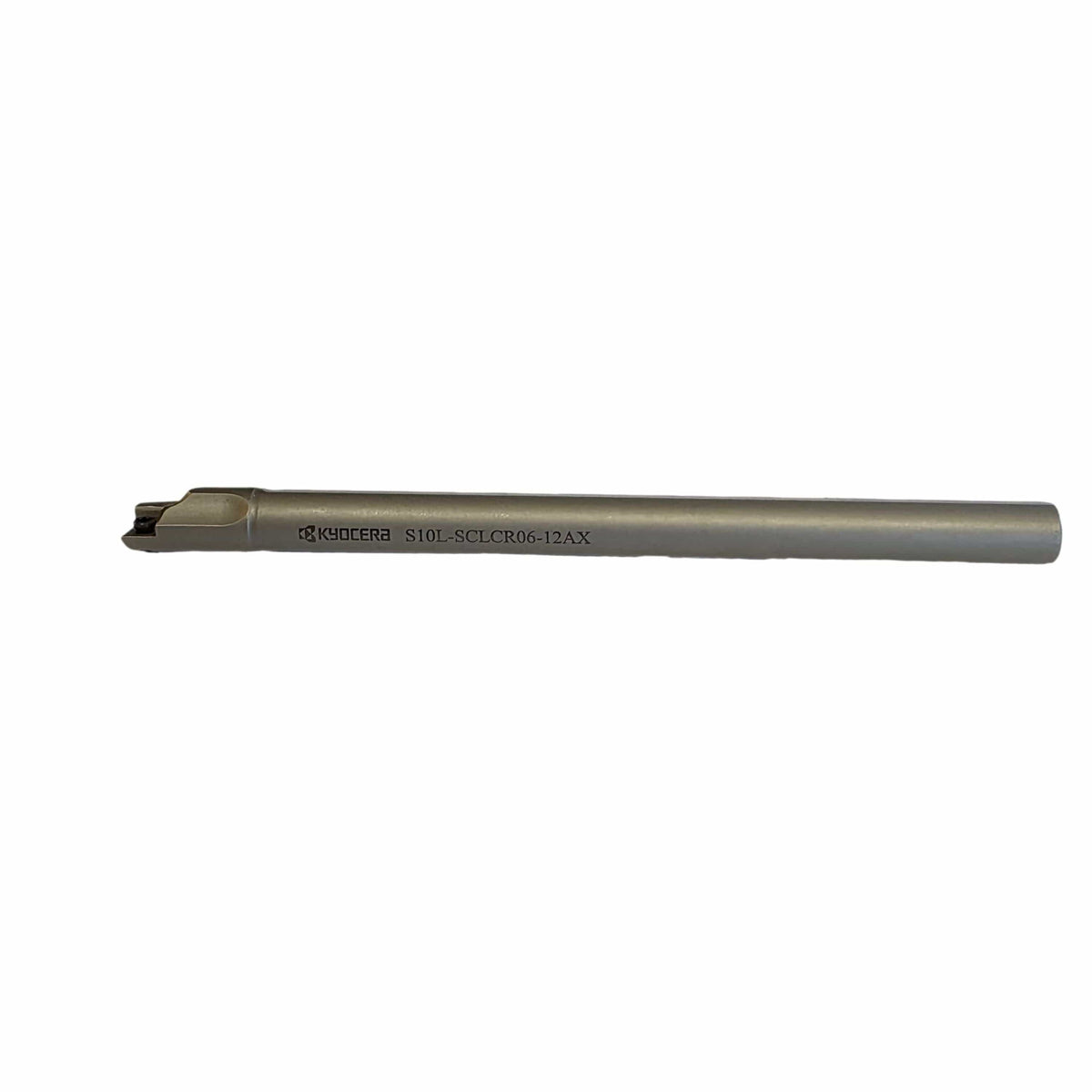

• Designation / Order Code: S10L-SCLCR06-12A

• Series: Kyocera Dynamic Bar (4×D boring capability)

• Shank Diameter: 10 mm

• Overall Length: 150 mm

• Maximum Boring Depth: 40 mm (4×D)

• Cutting Direction: Right-hand

Insert

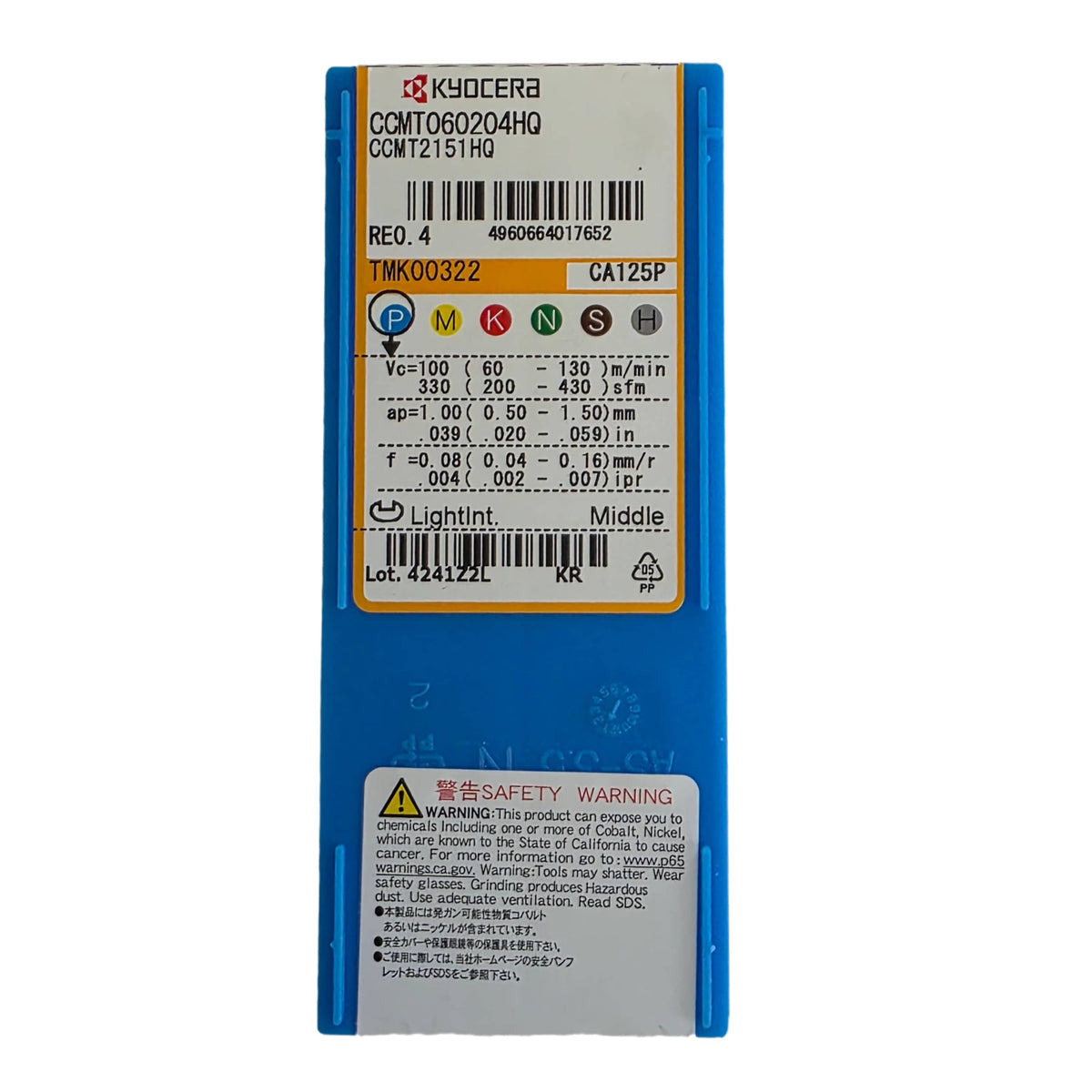

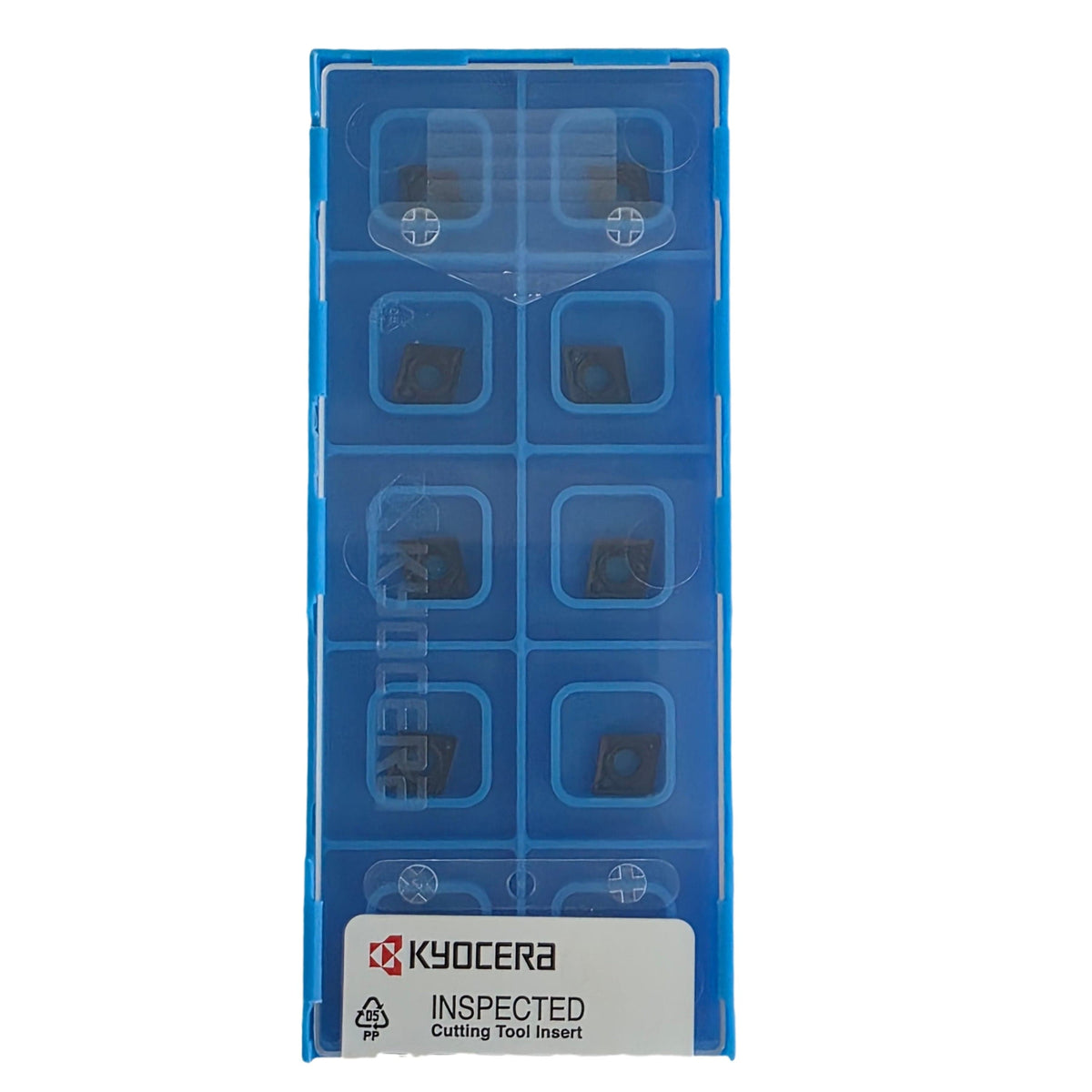

• Designation / Order Code: CCMT060204HQ

• Chipbreaker: HQ (Medium-Finishing)

• Type: Positive insert

• Inscribed Circle (IC): 6.35 mm (1/4")

• Thickness: 2.38 mm

• Hole Diameter: 2.8 mm

• Corner Radius (RE): 0.4 mm

• Grade: CA125P (Steel)
