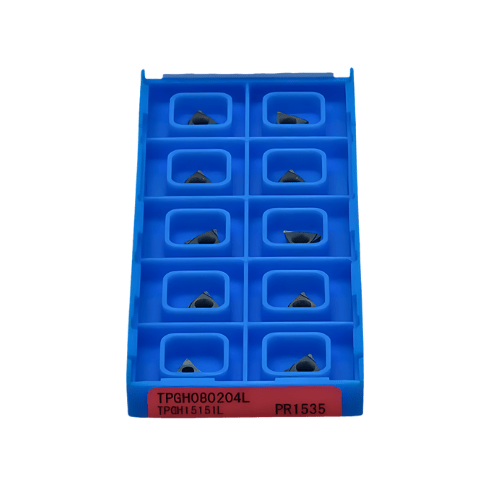

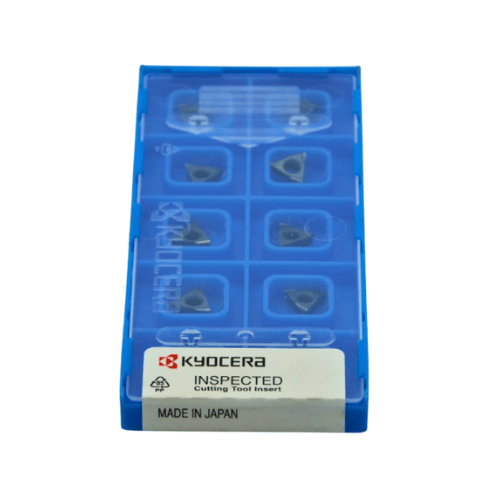

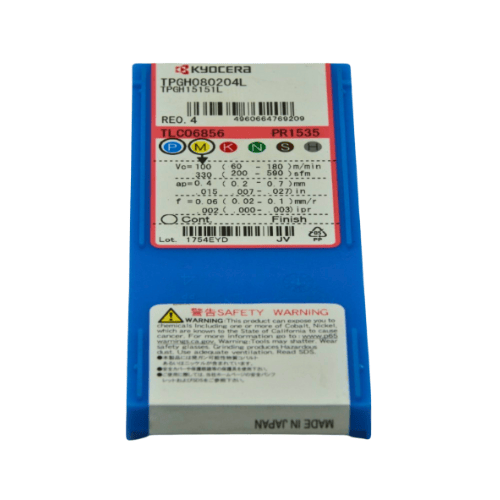

10pc Kyocera TPGH080204L PR1535 – Turning Insert (General Purpose, Precision Finishing)
Couldn't load pickup availability
Kyocera TPGH080204L PR1535 – Turning Insert (10 pcs General Purpose, Precision Finishing)
The Kyocera TPGH080204L PR1535 is a high-precision positive triangular turning insert designed for finishing operations in steel and stainless steel. It features Kyocera’s advanced PR1535 MEGACOAT NANO EX PVD-coated carbide grade, providing excellent wear resistance, heat stability, and long tool life. The precision-ground geometry ensures minimal cutting resistance and superior surface finishes in both continuous and light interrupted cuts.
Key Features & Benefits
- PR1535 Grade: Advanced MEGACOAT NANO EX coating offers exceptional toughness and wear resistance for extended tool life.
- Sharp Cutting Edge: Minimizes cutting forces for fine surface finishing.
- Precision-Ground Geometry: Ensures smooth chip evacuation and reduced friction at the cutting point.
- Stable Performance: Ideal for continuous or lightly interrupted turning in medium to high-speed conditions.
- Versatile Use: Suitable for a variety of steels and stainless steels under finishing conditions.
Technical Specifications
- Designation / Order Code: TPGH080204L PR1535
- Insert Type: Positive Triangular Turning Insert
- Material: PVD-Coated Carbide
- Grade: PR1535 – MEGACOAT NANO EX
- Chipbreaker: L – Finishing Geometry
- Inscribed Circle (IC): 4.76 mm
- Thickness (S): 2.38 mm
- Hole Diameter (D1): 32.3 mm
- Corner Radius (RE): 0.4 mm
- Relief Angle: 11°
- Cutting Direction: Neutral

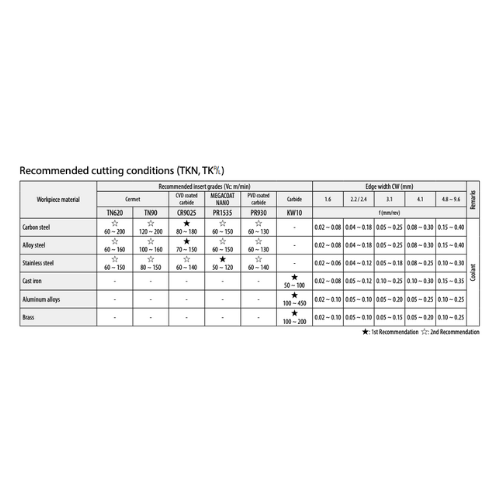

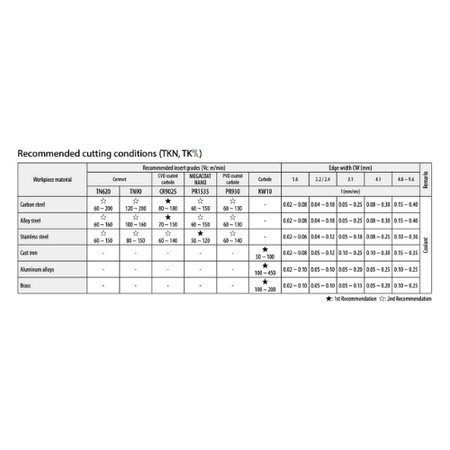

- Recommended Cutting Speed (Vc): 150 – 300 m/min
- Feed per Revolution (fn): 0.05 – 0.20 mm/rev
- Depth of Cut (ap): 0.1 – 1.0 mm
- Tolerance: ISO class G – ±0.025 mm
- Pack Quantity: 10 pcs
About Kyocera PR1535:
Kyocera’s PR1535 MEGACOAT NANO EX grade combines ultra-fine carbide substrate with a high-adhesion PVD coating for exceptional wear resistance and heat protection. It delivers stable and consistent performance for finishing and semi-finishing applications, ensuring superior surface quality and tool longevity.
