10pc Kyocera TNMG160404PS CA025P – Turning Insert (Medium to Roughing, PS Chipbreaker)
Couldn't load pickup availability

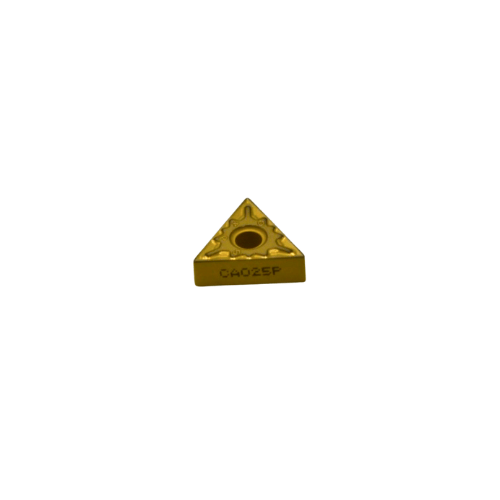

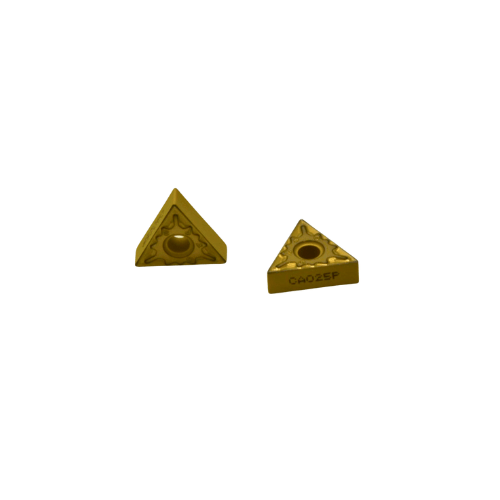

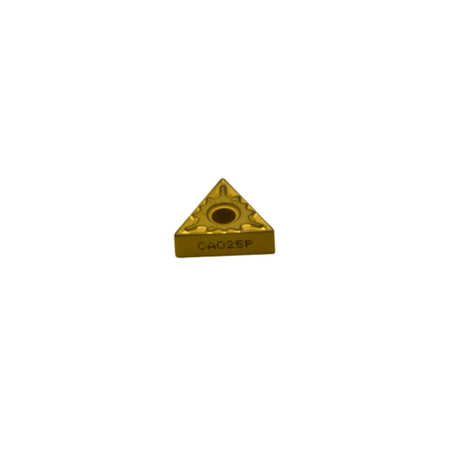

Kyocera TNMG160404PS CA025P – Turning Insert (10 pcs Medium to Roughing, PS Chipbreaker)
The Kyocera TNMG160404PS CA025P is a durable negative-type triangular turning insert engineered for medium to roughing operations on steels and general-purpose materials. It features the PS chipbreaker, designed to provide stable chip control, smooth evacuation, and reduced cutting resistance across a wide range of machining conditions. Manufactured using Kyocera’s CA025P MEGACOAT TOUGH CVD-coated carbide grade, this insert delivers excellent toughness, wear resistance, and heat stability, ensuring consistent tool life and reliable performance in both continuous and light-interrupted cuts.
Key Features & Benefits
- CA025P Grade – MEGACOAT TOUGH: Advanced CVD-coated carbide offering exceptional toughness, thermal resistance, and durability for general steel turning.
- PS Chipbreaker: Medium to roughing geometry for efficient chip control and stable cutting under varying load conditions.
- Stable Edge Strength: Balanced rake and land design reduce wear and prevent premature edge failure.
- Versatile Cutting Performance: Suitable for a wide range of materials and cutting parameters.
- Extended Tool Life: Optimized coating and substrate combination minimize crater wear and maximize productivity.
Technical Specifications
- Designation / Order Code: TNMG160404PS CA025P
- Insert Shape: 60° Triangle (T Type)
- Insert Type: Negative Turning Insert (Double-sided)
- Material: CVD-Coated Carbide
- Grade: CA025P – MEGACOAT TOUGH (CVD)
- Chipbreaker: PS – Medium to Roughing Geometry
- Inscribed Circle (IC): 9.525 mm
- Thickness (S): 4.76 mm
- Hole Diameter (D1): 3.81 mm
- Corner Radius (RE): 0.4 mm
- Relief Angle: 0°

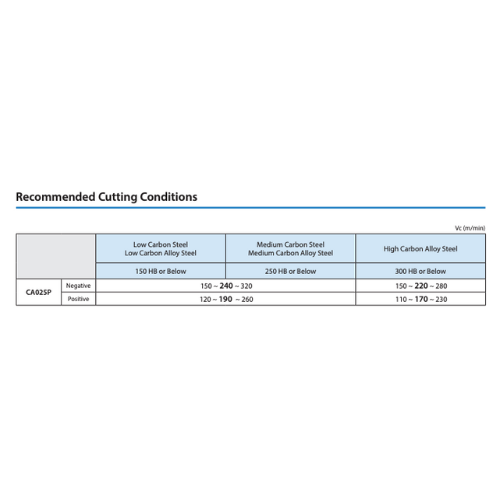

- Cutting Depth (ap): 0.2 – 2.0 mm
- Feed Rate (f): 0.10 – 0.45 mm/rev
- Tolerance (Class G): ±0.025 mm (thickness) / ±0.13 mm (corner height)
- Pack Quantity: 10 pcs
About Kyocera CA025P:
Kyocera’s CA025P MEGACOAT TOUGH grade provides an exceptional combination of toughness and wear resistance for steel turning. Its advanced CVD coating ensures superior edge stability, heat resistance, and long tool life, delivering consistent, high-quality performance in demanding machining environments.
