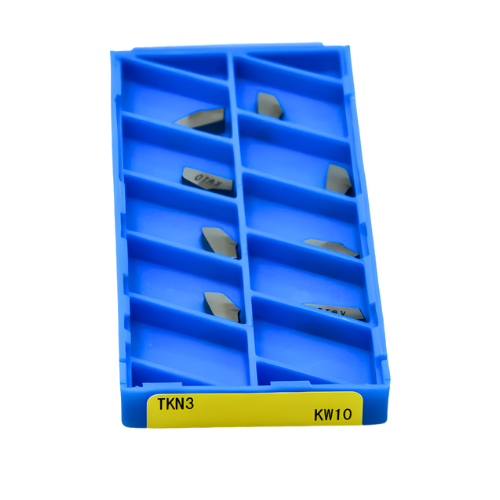

Top-down view of 10 Kyocera TKN3 KW10 cut-off inserts arranged in a tray for aluminium machining

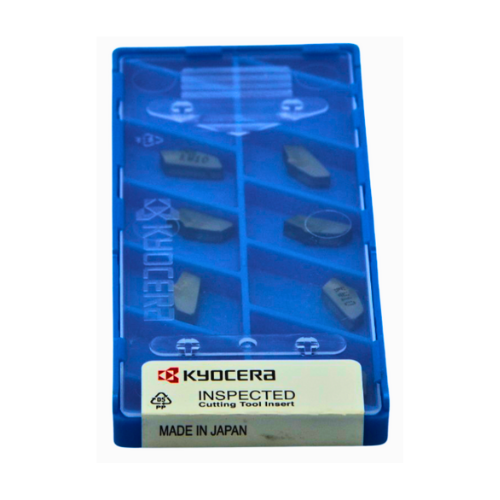

Angled perspective of Kyocera TKN3 KW10 cut-off insert highlighting precise geometry
Set of Kyocera TKN3 KW10 inserts displayed with cutting edges visible for aluminium applications
Macro shot of Kyocera TKN3 KW10 insert showing detailed chipbreaker design for non-ferrous metals
Kyocera TKN3 KW10 cut-off inserts photographed to emphasize edge quality and precision

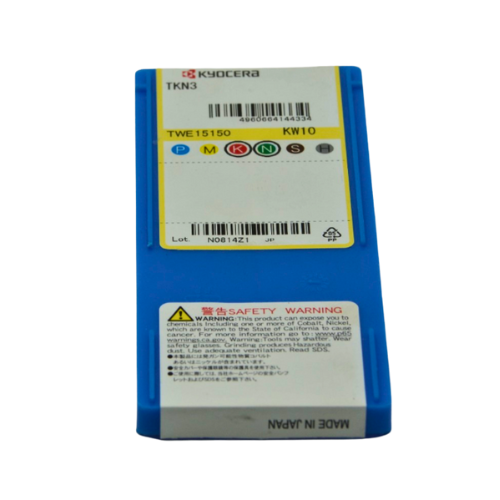

Side view of Kyocera TKN3 KW10 insert highlighting thickness and cutting edge profile
Individual Kyocera TKN3 KW10 cut-off insert shown in close detail for aluminium and non-ferrous use
Close-up of a Kyocera TKN3 KW10 insert showing sharp edges for non-ferrous material cutting
Top-down view of 10 Kyocera TKN3 KW10 cut-off inserts arranged in a tray for aluminium machining
Angled perspective of Kyocera TKN3 KW10 cut-off insert highlighting precise geometry
Set of Kyocera TKN3 KW10 inserts displayed with cutting edges visible for aluminium applications
Macro shot of Kyocera TKN3 KW10 insert showing detailed chipbreaker design for non-ferrous metals
Kyocera TKN3 KW10 cut-off inserts photographed to emphasize edge quality and precision
Side view of Kyocera TKN3 KW10 insert highlighting thickness and cutting edge profile
Individual Kyocera TKN3 KW10 cut-off insert shown in close detail for aluminium and non-ferrous use

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: TKN3KW10-10
(0)

10pc Kyocera TKN3 KW10 – Cut-Off Insert (Aluminium & Non-Ferrous Applications)

Out of stock
$179.00

Kyocera TKN3 KW10 – Cut-Off Insert (10 pcs Aluminium & Non-Ferrous Applications)

The Kyocera TKN3 KW10 is a precision-engineered cut-off insert designed for high-efficiency parting operations on non-ferrous materials such as aluminium, copper, and brass. It features a sharp cutting edge that delivers extremely low cutting resistance, reduced built-up edge, and excellent surface finish. Manufactured from uncoated micro-grain carbide (KW10), this insert ensures superb wear resistance and dimensional accuracy during continuous high-speed operations.

Key Features & Benefits

  • KW10 Grade: Uncoated fine-grain carbide for non-ferrous machining, providing excellent sharpness and resistance to built-up edge.
  • Sharp Cutting Edge: Ideal for aluminium and copper alloys, minimizing burr formation and ensuring mirror-like surface finishes.
  • Low Cutting Force: Reduces spindle load and heat generation for longer tool life and superior dimensional control.
  • Stable Performance: Reliable chip control and edge geometry for consistent cut-off quality at high speeds.
  • Optimized for Light Rigid Tooling: Performs well on CNC lathes and automatic machines with limited rigidity.

Technical Specifications

  • Designation / Order Code: TKN3 KW10
  • Insert Type: Single-edge cut-off insert (TKN series)
  • Material: Uncoated Micro-grain Carbide
  • Grade: KW10
  • Cutting Width (CW): 3.1 mm
  • Relief Angle: Neutral (0°)
  • Corner Radius (RE): 0.25 mm

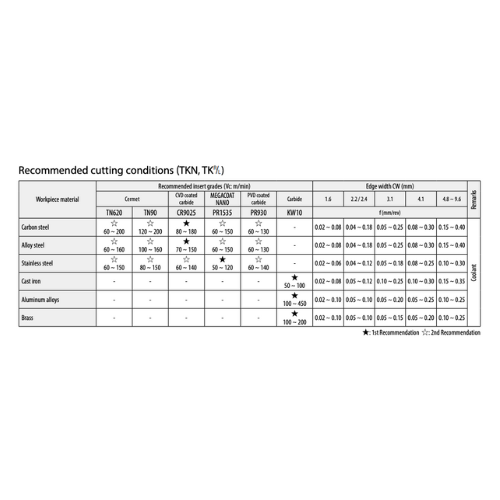

  • Recommended Cutting Speed (Vc): 200 – 500 m/min (Aluminium)
  • Feed Rate (f): 0.02 – 0.08 mm/rev
  • Application Range: Aluminium, Copper, Brass, Non-Ferrous Alloys
  • Compatible Holders: KTKB / KTKH Series (page H72-H73)
  • Pack Quantity: 10 pcs

About Kyocera KW10:
Kyocera’s KW10 carbide grade is optimized for non-ferrous machining. Its fine-grain substrate ensures razor-sharp cutting performance, superior surface finishes, and minimal adhesion. Ideal for high-speed cutting and precision finishing in aluminium and other soft metal applications.
