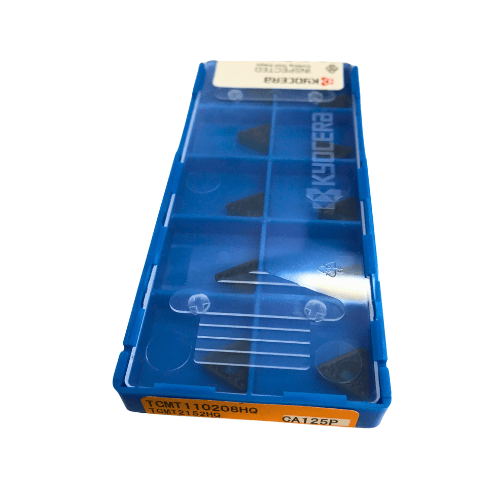

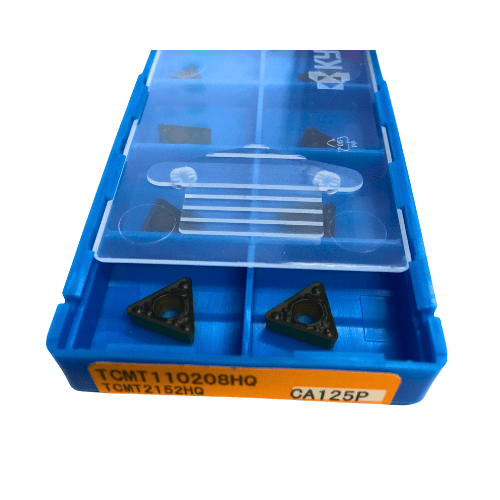

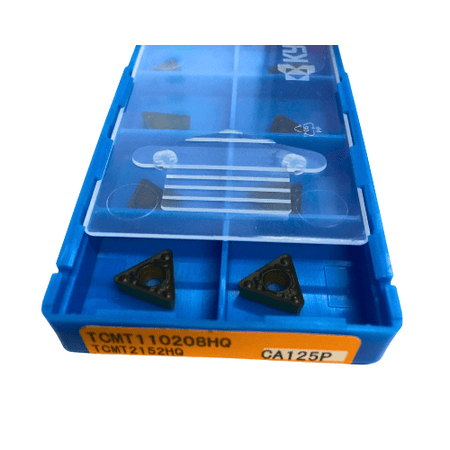

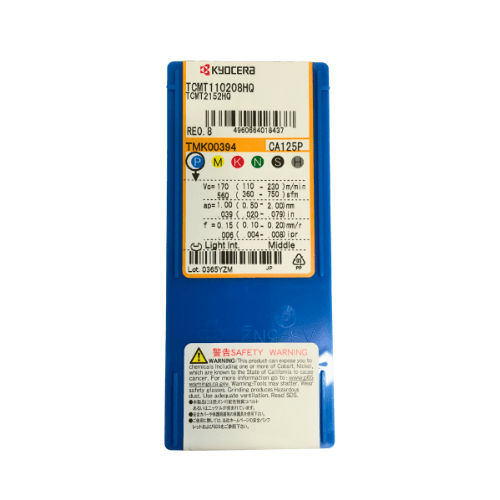

10pc Kyocera TCMT110208HQ CA125P – Turning Insert (Roughing, HQ Chipbreaker)
Out of stock
Regular price
$99.00
Couldn't load pickup availability
Kyocera TCMT110208HQ CA125P – Turning Insert (10 pcs Roughing, HQ Chipbreaker)
The Kyocera TCMT110208HQ CA125P is a positive-type triangular turning insert engineered for roughing operations in steel. It combines the robust CA125P CVD-coated carbide grade, optimized for wear resistance and fracture toughness in continuous to heavy interrupted machining, with the HQ chipbreaker, designed to provide tough edge strength for reliable performance in demanding cutting environments.
Key Features & Benefits
- CA125P Grade: First recommendation for steel machining. Delivers high versatility and stable tool life under heavy interrupted cutting.
- HQ Chipbreaker: Tough edge design enhances resistance to chipping and provides secure cutting during roughing.
- Wear Resistance: Improved alumina film and coating structure reduces crater wear and flank wear compared to conventional grades.
- Stable Performance: Catalog tests show CA125P achieving up to 2× longer tool life than competitors under interrupted machining conditions.
Applications
- Roughing operations in steels such as S45C, SCM415, and SCM435.
- Automotive and industrial components including gears, shafts, nuts, and bolts.
- Effective under wet machining at medium-to-high cutting speeds with large depths of cut.
Technical Specifications
- Designation / Order Code: TCMT110208HQ

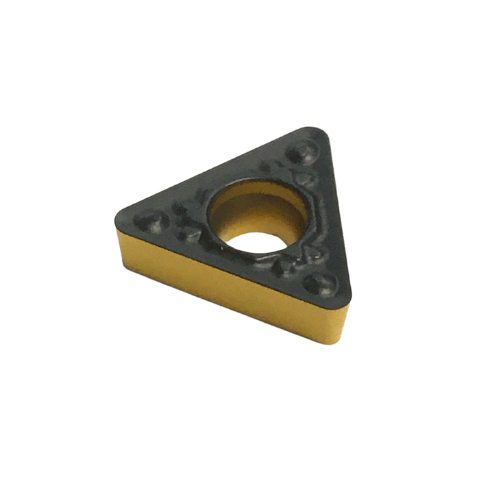

- Insert Type: Positive, 60° triangular
- Inscribed Circle (IC): 6.35 mm
- Thickness: 2.38 mm
- Hole Diameter: 2.8 mm
- Corner Radius (RE): 0.8 mm
- Grade: CA125P (CVD coated carbide)
- Chipbreaker: HQ – Roughing
- Pack Size: 10 pieces
