10pc Kyocera SNMG120408HQ CA125P – Turning Insert (Finishing to Medium)
Couldn't load pickup availability

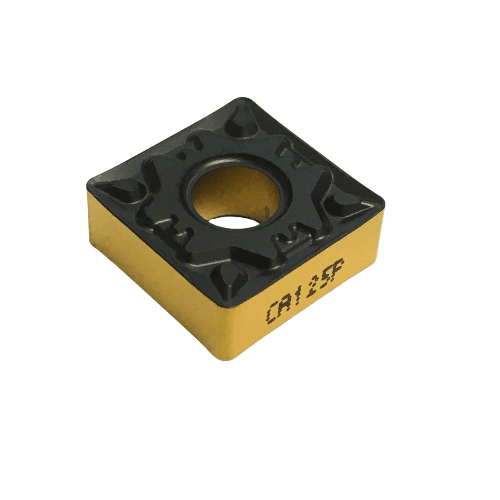

Kyocera SNMG120408HQ CA125P – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker)
The Kyocera SNMG120408HQ CA125P is a negative-type square turning insert designed for finishing to medium operations in steel machining. It features Kyocera’s advanced CA125P CVD-coated carbide grade, engineered for excellent wear resistance, fracture toughness, and edge stability. The HQ chipbreaker ensures smooth chip control, reduced cutting force, and consistent surface quality across a wide range of cutting parameters, making it ideal for both continuous and light interrupted cutting applications.
Key Features & Benefits
- CA125P Grade: CVD-coated carbide optimized for general steel machining with superior wear and chipping resistance.
- Advanced Coating Structure: Uniform alumina and TiCN layers improve heat resistance and coating adhesion for extended tool life.
- HQ Chipbreaker: Provides stable chip formation and excellent surface finish during finishing and medium-depth cutting.
- High Edge Strength: Reinforced cutting edge design ensures reliability in both continuous and slightly interrupted operations.
- Extended Tool Life: Up to 2× longer life than conventional P25 grades in internal Kyocera evaluations.
Applications
- Finishing to medium turning of carbon steels and alloy steels (e.g., S45C, SCM415, SCM440).
- Suitable for automotive, mechanical, and general-purpose steel machining.

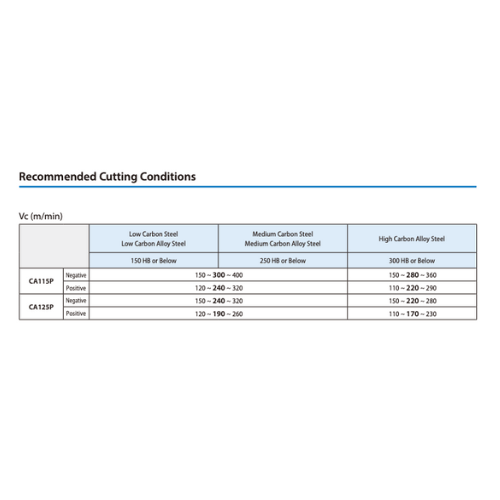

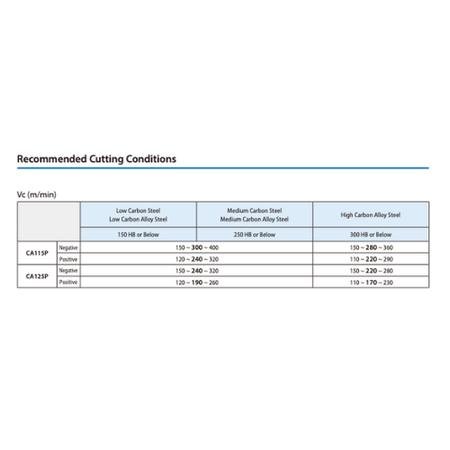

- Recommended cutting conditions: Vc = 180–300 m/min, ap = 0.3–3.0 mm, f = 0.1–0.4 mm/rev (wet cutting).
Technical Specifications
- Designation / Order Code: SNMG120408HQ CA125P
- Insert Type: Negative, 90° square
- Inscribed Circle (IC): 12.70 mm
- Thickness: 4.76 mm
- Hole Diameter: 5.16 mm
- Corner Radius (RE): 0.8 mm
- Relief Angle: 0°
- Grade: CA125P (CVD coated carbide)
- Chipbreaker: HQ – Finishing to Medium

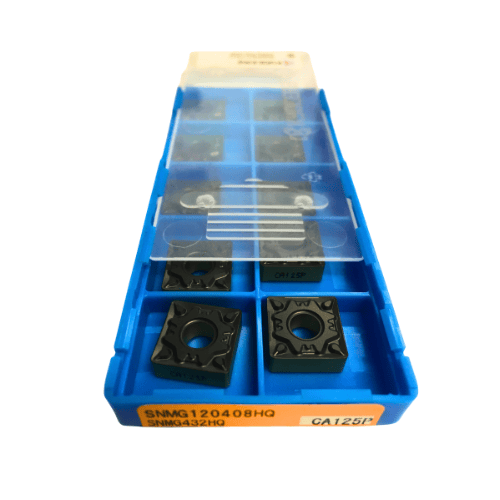

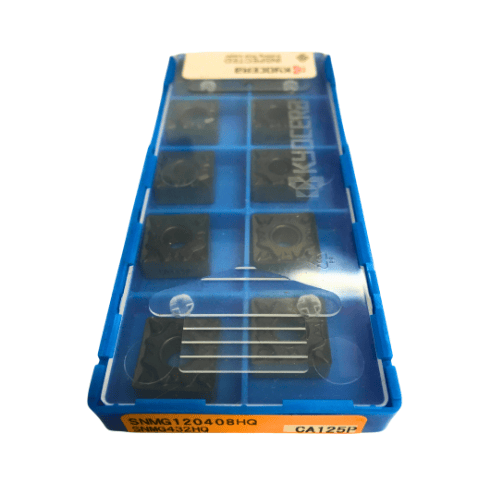

- Pack Quantity: 10 pcs
About Kyocera CA125P:
Kyocera’s CA125P is a next-generation CVD-coated carbide grade for steel machining that delivers exceptional wear resistance, edge strength, and tool life. Its uniform coating structure and refined substrate composition ensure stable performance under both high-speed and interrupted cutting, making it a trusted solution for consistent productivity and precision in steel turning.
