Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: LOMU100404ER-GMPR1535-10
(0)

10pc Kyocera LOMU100404ER-GM PR1535 – Milling Insert (General Purpose, GM Chipbreaker)

In stock
$277.00

Kyocera LOMU100404ER-GM PR1535 – Milling Insert (10 pcs General Purpose, GM Chipbreaker)

The Kyocera LOMU100404ER-GM PR1535 is a precision-engineered double-sided milling insert designed for general-purpose face and shoulder milling operations. Featuring Kyocera’s PR1535 MEGACOAT NANO EX PVD-coated carbide grade, it provides outstanding wear resistance and edge stability across a wide range of steels and stainless steels. The GM chipbreaker offers excellent chip evacuation, low cutting resistance, and reliable performance during medium-load machining operations.

Key Features & Benefits

  • PR1535 Grade: MEGACOAT NANO EX PVD coating ensures superior hardness and heat resistance for extended tool life.
  • GM Chipbreaker: General-purpose geometry optimized for stable chip control and smooth cutting.
  • High Efficiency: Double-sided design with four cutting edges for cost-effective performance.
  • Stable Cutting: Reduces vibration and improves surface finish in both roughing and semi-finishing operations.
  • Versatility: Suitable for steel, stainless steel, and cast iron milling applications.

Technical Specifications

  • Designation / Order Code: LOMU100404ER-GM PR1535
  • Insert Type: Double-Sided Milling Insert
  • Material: PVD-Coated Carbide
  • Grade: PR1535 (MEGACOAT NANO EX)
  • Chipbreaker: GM – General Purpose
  • Thickness (S): 4 mm
  • Hole Diameter (D1): 3.4 mm
  • Corner Radius (RE): 0.4 mm
  • Cutting Edge Length (L): 10.9 mm
  • Width (W1): 6.6 mm
  • Rake Angle: 2.1°
  • Applicable Cutter Body: MEW...-10 / MEWH...-10 Series

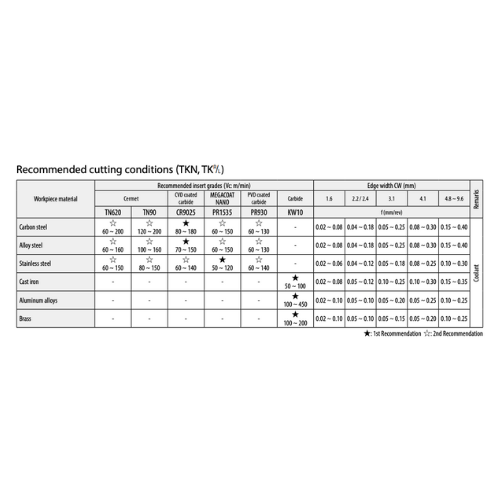

  • Recommended Cutting Speed (Vc): 120 m/min
  • Feed per Tooth (fz): 0.08–0.12 mm/t
  • Tolerance: ±0.05 mm (IC) / ±0.025 mm (S)
  • Pack Quantity: 10 pcs

About Kyocera PR1535:
Kyocera’s PR1535 MEGACOAT NANO EX grade combines ultra-fine substrate carbide with advanced nano-layered coating technology. It provides excellent adhesion, heat resistance, and edge strength, delivering consistent and reliable performance in general-purpose milling of steels and stainless steels.
