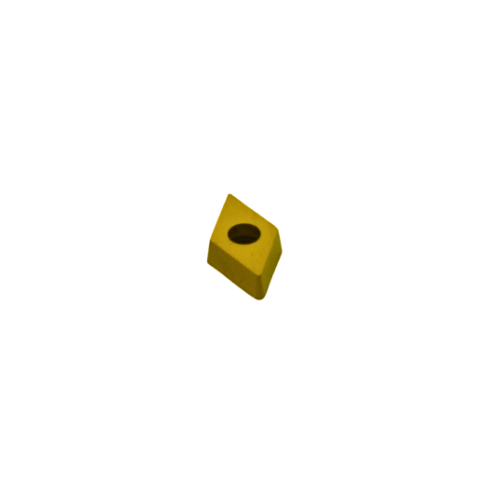

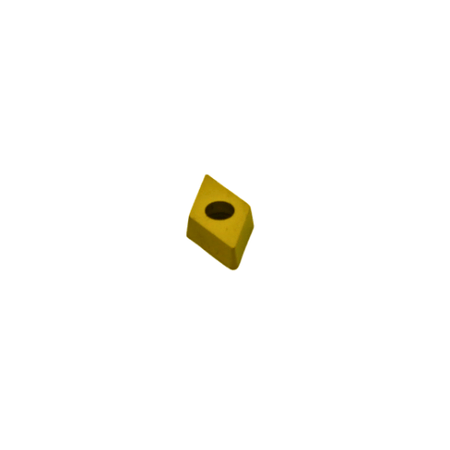

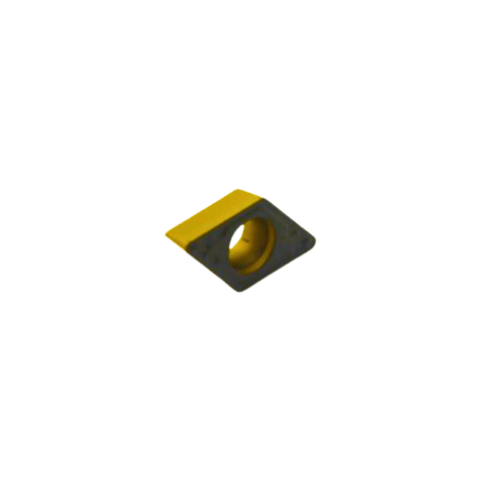

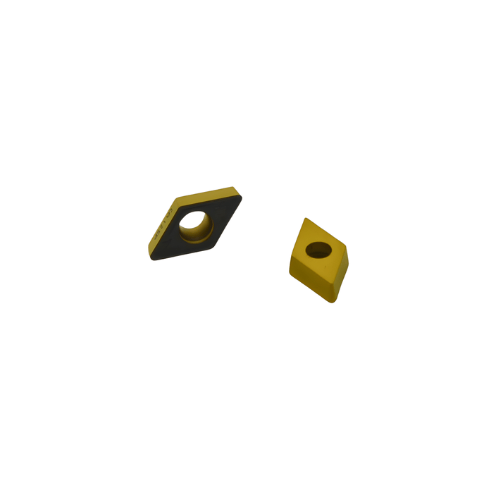

10pc Kyocera DCMT11T308HQ CA125P – Turning Insert (Finishing to Medium, HQ Chipbreaker)
Couldn't load pickup availability
Kyocera DCMT11T308HQ CA125P – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker)
The Kyocera DCMT11T308HQ CA125P is a high-precision positive-type rhombic turning insert engineered for finishing to medium steel machining. It features the advanced HQ chipbreaker, optimized for stable chip control, low cutting resistance, and smooth machining under varying feed conditions. Utilizing Kyocera’s CA125P MEGACOAT TOUGH CVD-coated carbide grade, this insert provides exceptional wear resistance, thermal stability, and edge strength—ensuring consistent tool life and reliable surface quality in both continuous and lightly interrupted cuts.
Key Features & Benefits
- CA125P Grade – MEGACOAT TOUGH: Advanced CVD-coated carbide that balances wear resistance with edge toughness for superior steel machining performance.
- HQ Chipbreaker: Finishing to medium geometry ensures excellent chip evacuation, stable cutting action, and reduced heat buildup.
- Consistent Accuracy: Maintains high dimensional precision in repetitive finishing operations.
- Excellent Surface Finish: Optimized edge design reduces cutting vibration and ensures smooth surface quality.
- Versatile Application: Ideal for carbon steels, alloy steels, and mild stainless steels under wet or dry conditions.
Technical Specifications
- Designation / Order Code: DCMT11T308HQ CA125P
- Insert Shape: 55° Rhombic (D Type)
- Insert Type: Positive Turning Insert
- Material: CVD-Coated Carbide
- Grade: CA125P – MEGACOAT TOUGH (CVD)
- Chipbreaker: HQ – Finishing to Medium Range
- Inscribed Circle (IC): 9.525 mm
- Thickness (S): 3.97 mm
- Hole Diameter (D1): 4.4 mm
- Corner Radius (RE): 0.8 mm
- Relief Angle: 7°
- Cutting Depth (ap): 0.1 – 3.0 mm
- Feed Rate (f): 0.05 – 0.30 mm/rev
- Tolerance (Class G): ±0.025 mm (thickness) / ±0.13 mm (corner height)

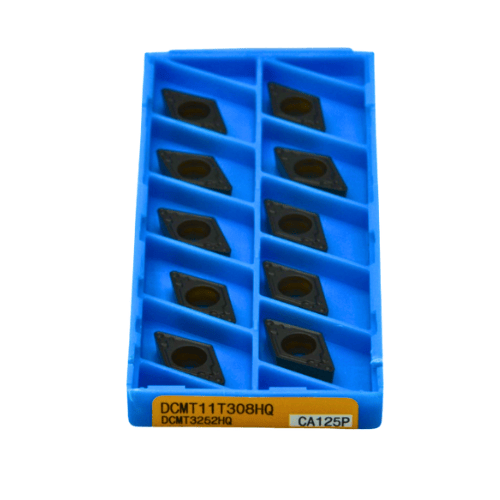

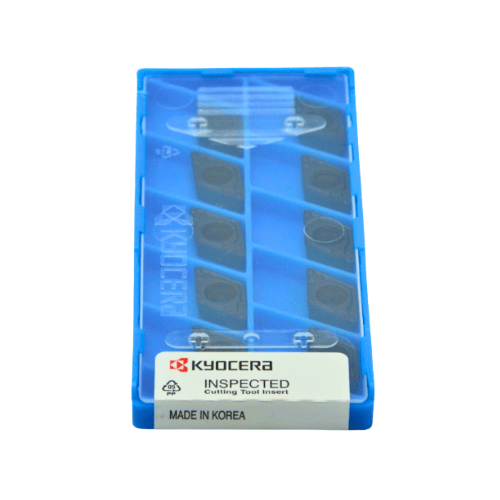

- Pack Quantity: 10 pcs
About Kyocera CA125P:
Kyocera’s CA125P MEGACOAT TOUGH CVD-coated carbide grade combines wear-resistant coating technology with a tough carbide core for outstanding steel-turning performance. It offers superior edge stability, excellent chip control, and extended tool life, ensuring consistent and reliable performance across a wide range of finishing to medium machining operations.
