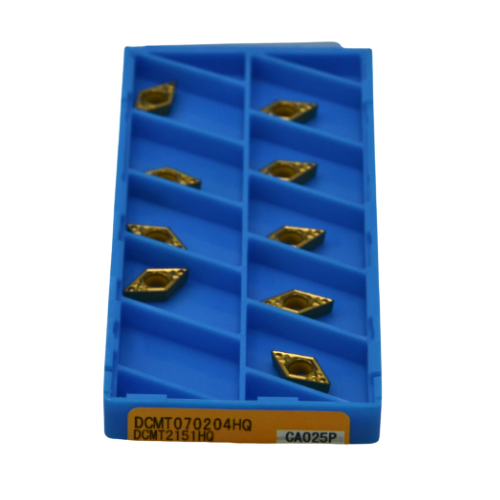

Top view of 10pc Kyocera DCMT070204HQ CA025P turning inserts, showing HQ chipbreaker detail.

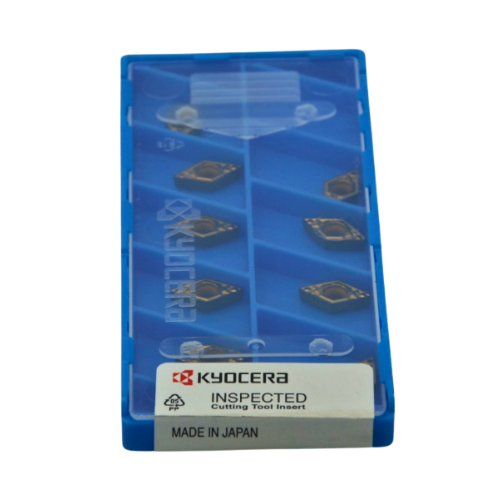

Angled view of 10 Kyocera DCMT070204HQ CA025P inserts in packaging.

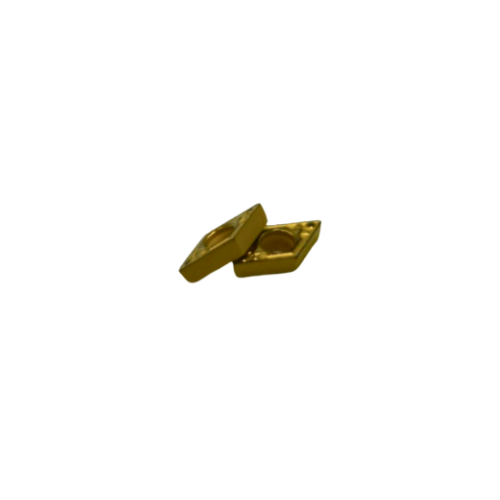

Side profile of Kyocera DCMT070204HQ CA025P insert showing thickness and chipbreaker.
Detailed macro of the cutting edge on a Kyocera DCMT070204HQ CA025P insert.

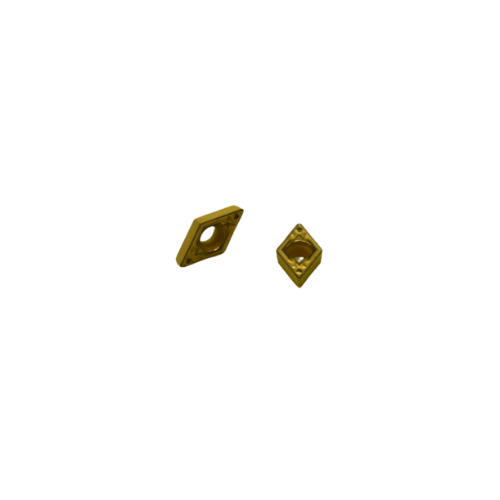

Group shot of 10 Kyocera DCMT070204HQ CA025P turning inserts arranged neatly.
Oblique angle of a single Kyocera DCMT070204HQ CA025P insert highlighting HQ chipbreaker pattern.
Packaged 10pc Kyocera DCMT070204HQ CA025P inserts, showing box and insert layout.
Close-up of a single Kyocera DCMT070204HQ CA025P insert highlighting the cutting edge.
Top view of 10pc Kyocera DCMT070204HQ CA025P turning inserts, showing HQ chipbreaker detail.
Angled view of 10 Kyocera DCMT070204HQ CA025P inserts in packaging.
Side profile of Kyocera DCMT070204HQ CA025P insert showing thickness and chipbreaker.
Detailed macro of the cutting edge on a Kyocera DCMT070204HQ CA025P insert.
Group shot of 10 Kyocera DCMT070204HQ CA025P turning inserts arranged neatly.
Oblique angle of a single Kyocera DCMT070204HQ CA025P insert highlighting HQ chipbreaker pattern.
Packaged 10pc Kyocera DCMT070204HQ CA025P inserts, showing box and insert layout.

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

SKU: DCMT070204HQCA025P-10
(0)

10pc Kyocera DCMT070204HQ CA025P – Turning Insert (Finishing to Medium, HQ Chipbreaker)

Out of stock
$119.00

Kyocera DCMT070204HQ CA025P – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker)

The Kyocera DCMT070204HQ CA025P is a precision-engineered positive-type rhombic turning insert designed for finishing to medium machining of steels. It features the HQ chipbreaker geometry, optimized for smooth chip evacuation, low cutting resistance, and stable surface quality under varying feed conditions. Manufactured with Kyocera’s CA025P CVD-coated carbide grade utilizing MEGACOAT TOUGH technology, this insert offers an excellent balance of wear resistance, thermal stability, and toughness, ideal for continuous and lightly interrupted cutting.

Key Features & Benefits

  • CA025P Grade – MEGACOAT TOUGH: CVD-coated carbide with exceptional wear resistance and strength for stable steel turning.
  • HQ Chipbreaker: Designed for finishing to medium operations, providing superior chip control and reduced cutting load.
  • Excellent Surface Quality: Minimizes built-up edge and vibration for smooth and accurate finishes.
  • Thermal Stability: Maintains consistent cutting edge integrity under both dry and wet machining conditions.
  • Reliable Performance: Ideal for continuous or light interrupted cuts on carbon and alloy steels.

Technical Specifications

  • Designation / Order Code: DCMT070204HQ CA025P
  • Insert Shape: 55° Rhombic (D Type)
  • Insert Type: Positive Turning Insert
  • Material: CVD-Coated Carbide
  • Grade: CA025P – MEGACOAT TOUGH (CVD)
  • Chipbreaker: HQ – Finishing to Medium Geometry
  • Inscribed Circle (IC): 6.35 mm
  • Thickness (S): 2.38 mm
  • Hole Diameter (D1): 2.8 mm
  • Corner Radius (RE): 0.4 mm
  • Relief Angle: 7°
  • Recommended Cutting Depth (ap): 0.1 – 2.0 mm
  • Feed Rate (f): 0.05 – 0.25 mm/rev
  • Pack Quantity: 10 pcs

About Kyocera CA025P:
Kyocera’s CA025P MEGACOAT TOUGH grade is optimized for steel turning applications that demand high performance and durability. It offers outstanding tool life, reliable cutting under tough conditions, and consistent results with minimized edge wear.
