Kyocera CCMT09T308HQ CA525 – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker)
The Kyocera CCMT09T308HQ CA525 is a positive-type turning insert designed for finishing to medium operations in steel machining. Supplied in a pack of 10 inserts, it features the robust CA525 CVD-coated carbide grade, engineered to balance wear resistance and toughness for consistent performance across varied cutting conditions. Combined with the HQ chipbreaker, it ensures smooth chip evacuation, stable edge strength, and reliable performance in both continuous and light interrupted cuts—delivering excellent surface finishes and long tool life.
Key Features & Benefits
- CA525 Grade: Proven CVD-coated carbide optimized for steel turning, providing excellent wear resistance and toughness.
- HQ Chipbreaker: Designed for stable chip control and efficient chip evacuation in finishing to medium cutting operations.
- Improved Edge Strength: Superior resistance to chipping and deformation extends tool life under variable cutting loads.
- Stable Performance: Delivers consistent surface quality and dimensional accuracy even during semi-interrupted machining.

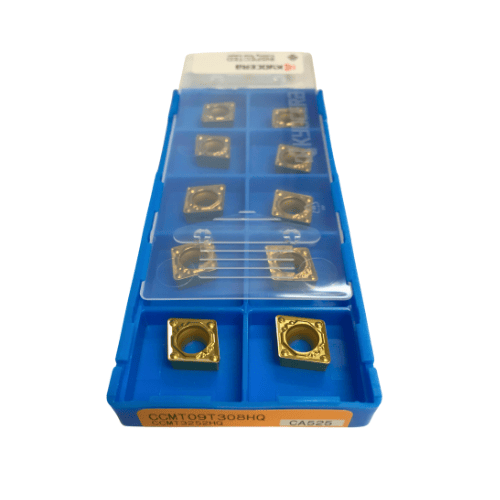

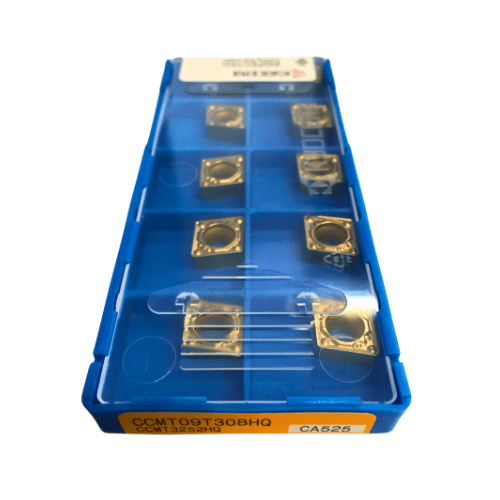

- Pack Quantity: Supplied as a pack of 10 inserts for production efficiency and convenience.
Applications
- General turning of carbon steels and alloy steels such as SCM415, SCM440, and S45C.
- Ideal for automotive components, shafts, bushings, and other precision parts.

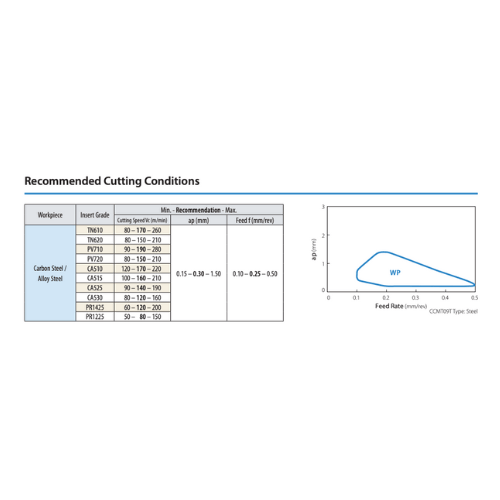

- Recommended cutting conditions: Vc = 90–140–190 m/min, ap = 0.3–1.5 mm, f = 0.1–0.35 mm/rev (wet cutting).
Technical Specifications
- Designation / Order Code: CCMT09T308HQ
- Insert Type: Positive, 80° rhombic
- Inscribed Circle (IC): 9.525 mm
- Thickness: 3.97 mm
- Hole Diameter: 4.4 mm
- Corner Radius (RE): 0.8 mm
- Relief Angle: 7°
- Grade: CA525 (CVD-coated carbide)
- Chipbreaker: HQ – Finishing to Medium
- Pack Quantity: 10 pcs
