10 pc Kyocera VNMG160404HQ CA125P – Turning Insert (Finishing to Medium, HQ Chipbreaker)
Couldn't load pickup availability
Kyocera VNMG160404HQ CA125P – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker)

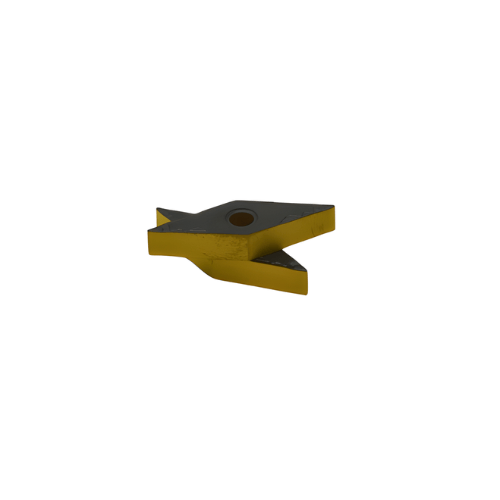

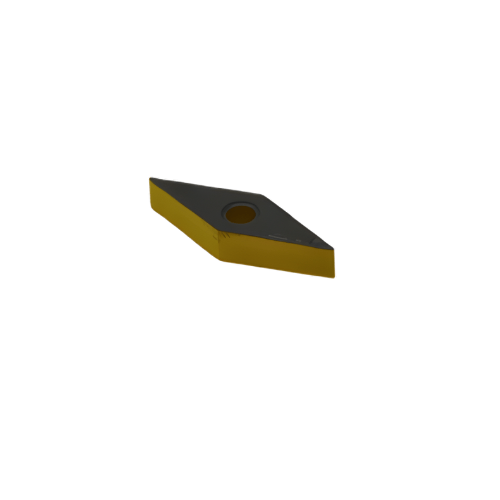

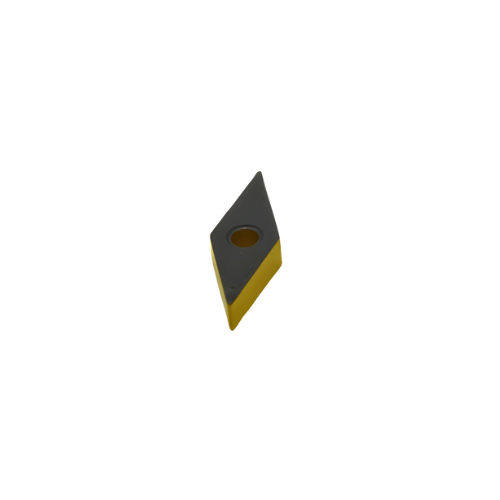

The Kyocera VNMG160404HQ CA125P is a high-precision negative-type rhombic turning insert designed for finishing to medium machining of steels and stainless steels. It utilizes Kyocera’s HQ chipbreaker, engineered to deliver smooth chip evacuation, reduced cutting resistance, and superior surface finish stability. Combined with the CA125P CVD-coated carbide grade, this insert provides outstanding wear resistance and edge toughness, ensuring consistent tool life and accuracy in both continuous and light-interrupted cuts.
Key Features & Benefits
- CA125P Grade: CVD-coated carbide optimized for steel turning, providing excellent wear resistance and thermal stability.
- HQ Chipbreaker: Finishing to medium geometry designed for smooth chip flow and reliable edge control.
- Reduced Cutting Force: Sharp rake and optimized clearance minimize cutting resistance and vibration.
- Stable Machining: Delivers consistent performance in continuous and semi-interrupted operations.
- Excellent Surface Finish: Achieves high-quality results even at elevated cutting speeds.
Technical Specifications
- Designation / Order Code: VNMG160404HQ CA125P
- Insert Shape: 35° Rhombic (V Type)
- Insert Type: Negative Double-Sided Turning Insert
- Material: CVD-Coated Carbide
- Grade: CA125P – Steel Machining Grade
- Chipbreaker: HQ – Finishing to Medium
- Inscribed Circle (IC): 9.525 mm
- Thickness (S): 4.76 mm
- Hole Diameter (D1): 3.81 mm
- Corner Radius (RE): 0.4 mm
- Relief Angle: 0° (Negative Type)
- Cutting Depth (ap): 0.1 – 2.0 mm
- Feed Rate (f): 0.05 – 0.30 mm/rev

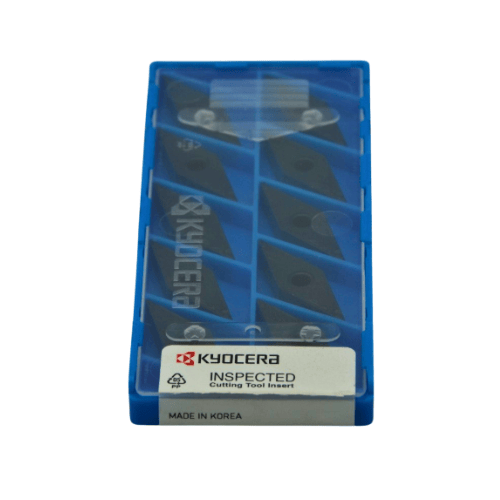

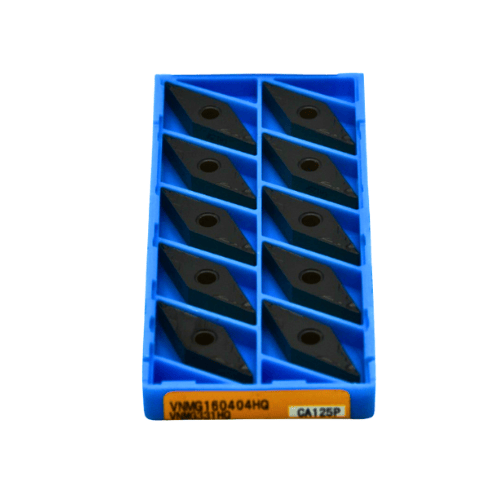

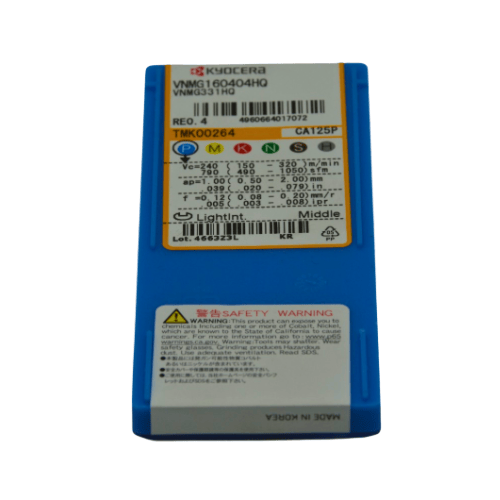

- Pack Quantity: 10 pcs
About Kyocera CA125P:
Kyocera’s CA125P is a CVD-coated carbide grade offering a superior balance between wear resistance and edge toughness for steel turning. It maintains excellent cutting edge integrity under dry or wet conditions, ensuring reliable performance and a long, predictable tool life across a wide range of turning operations.
