Kyocera TPMR160308HQ CA125P – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker)

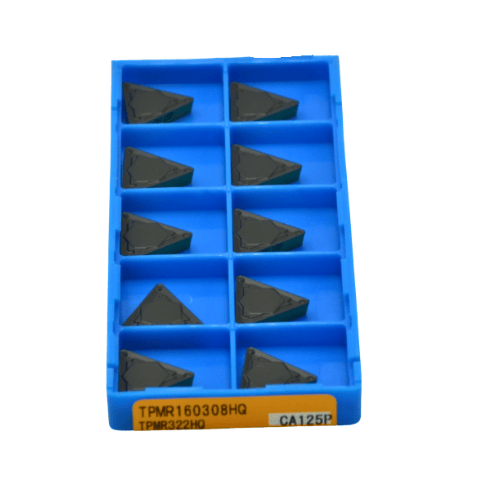

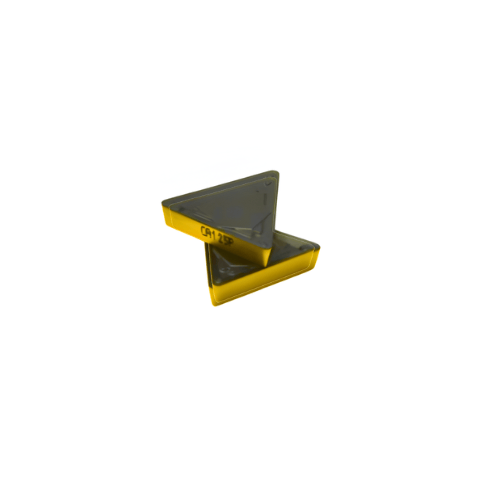

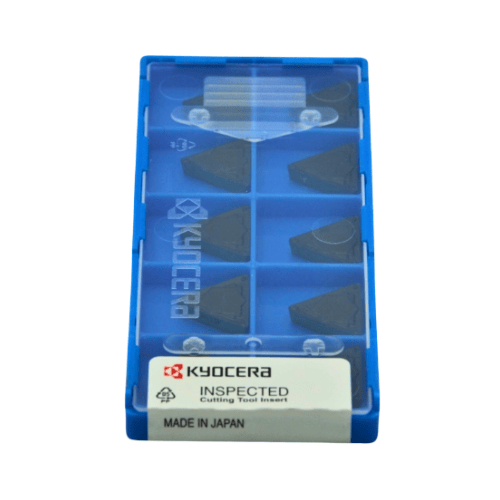

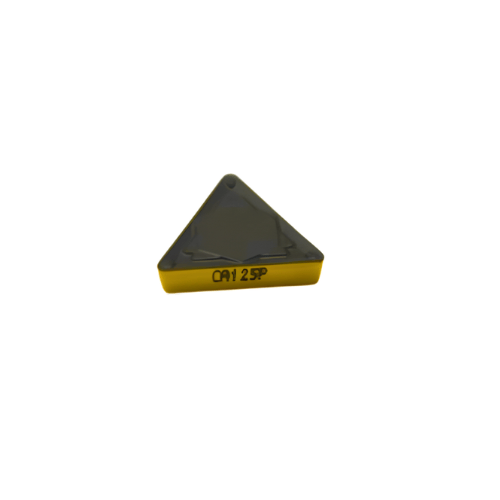

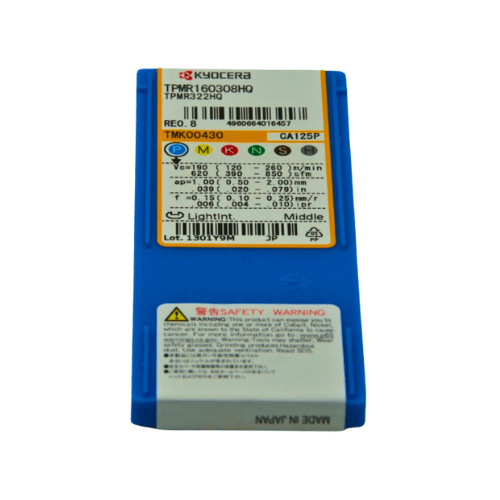

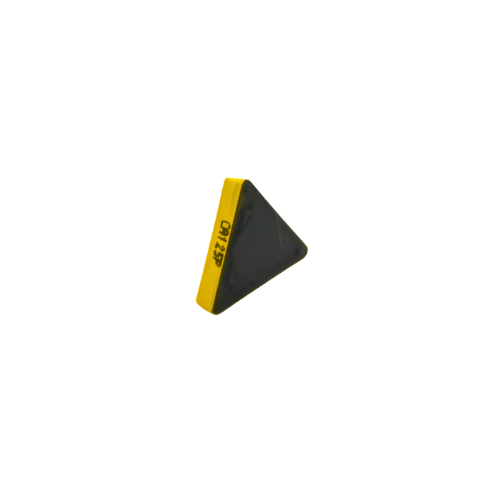

The Kyocera TPMR160308HQ CA125P is a positive-type triangular turning insert designed for finishing to medium operations in steel machining. It uses Kyocera’s CA125P CVD-coated carbide grade, providing excellent wear resistance, edge strength, and stability under both continuous and light interrupted cutting. The HQ chipbreaker offers smooth chip evacuation, low cutting forces, and high-quality surface finishes, making it ideal for general-purpose steel turning across a wide range of conditions.
Key Features & Benefits
- CA125P Grade: Multi-purpose CVD-coated carbide grade optimized for steel machining applications.
- HQ Chipbreaker: Sharp and stable cutting geometry ensures excellent chip control and smooth finishes.
- Wear Resistance: Improved coating adhesion and thermal stability for long tool life.
- Edge Strength: Balanced cutting edge design minimizes chipping and deformation.
- Reliable Performance: Suitable for both continuous and slightly interrupted cuts in steel turning.
Technical Specifications
- Designation / Order Code: TPMR160308HQ CA125P
- Insert Type: Positive, 60° triangular
- Inscribed Circle (IC): 9.525 mm
- Thickness: 3.18 mm
- Corner Radius (RE): 0.8 mm
- Relief Angle: 11°
- Grade: CA125P (CVD-coated carbide)
- Chipbreaker: HQ – Finishing to Medium
- Application: Steel (P) – Finishing to Medium Turning
- Pack Quantity: 10 pcs
