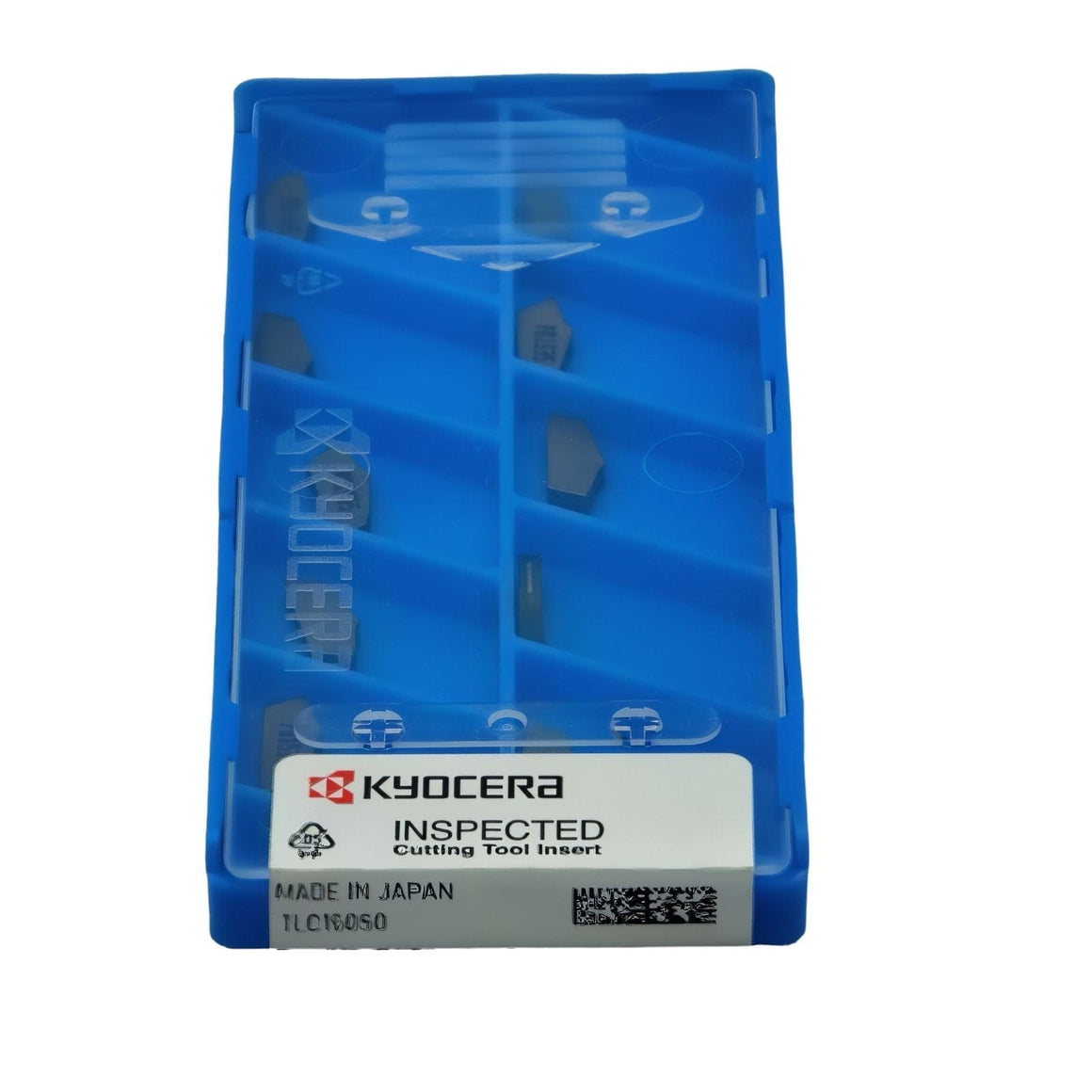

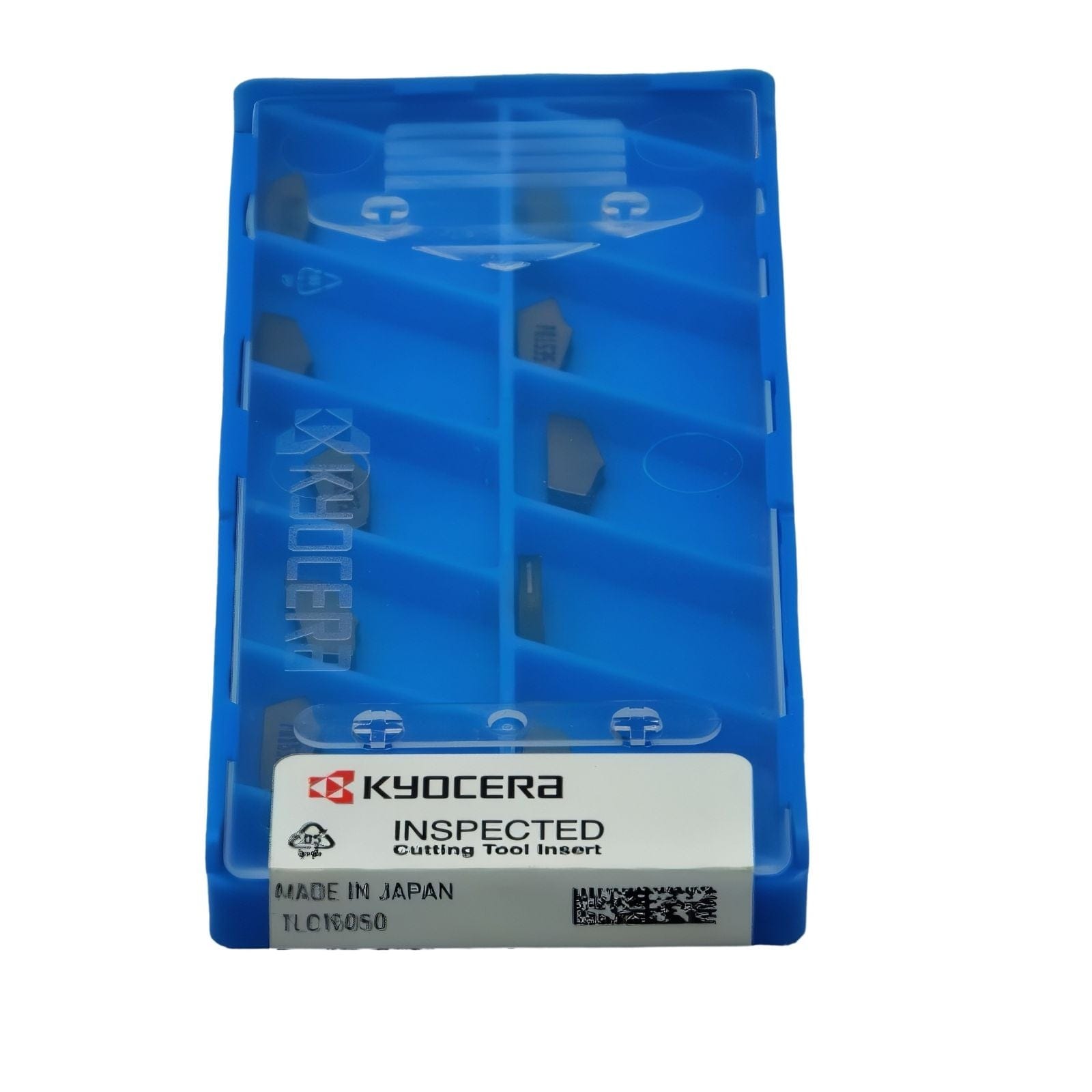

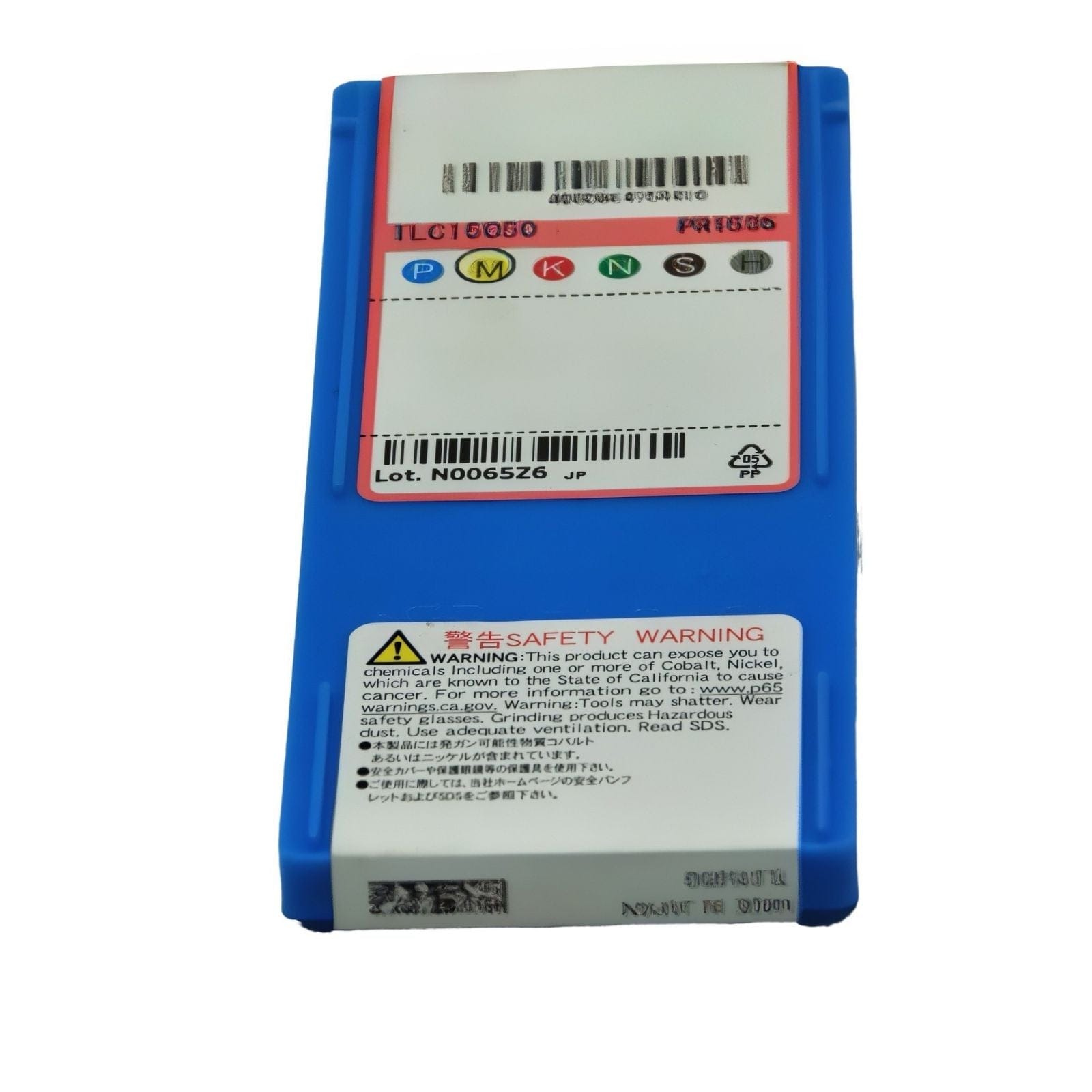

10 pc Kyocera TKN2 PR1535 – Cut-Off & Grooving Insert (Medium Feed, PR1535 Grade)

Kyocera TKN2 PR1535 – Cut-Off & Grooving Insert (10 pcs Medium Feed, PR1535 Grade)

The Kyocera TKN2 PR1535 is a precision-engineered cut-off and deep-grooving insert designed for stable and efficient parting operations across steels, stainless steels, and cast irons. It forms part of Kyocera’s KTK system, known for its secure clamping and high rigidity. Featuring Kyocera’s advanced PR1535 MEGACOAT NANO PLUS CVD-coated carbide grade, this insert ensures long tool life, superior wear resistance, and stable performance under medium-to-high feed conditions.

Key Features & Benefits

• PR1535 Grade: CVD-coated carbide optimized for excellent wear resistance and edge toughness.
• Stable Grooving: Neutral edge design for smooth parting and consistent chip control.
• Secure Clamping: Compatible with Kyocera’s KTK self-clamping system for high rigidity and minimal vibration.
• High Productivity: Handles medium to high feed rates efficiently with reduced cutting resistance.
• Versatile Application: Suitable for steels (P), stainless steels (M), and cast irons (K).

Technical Specifications

• Designation / Order Code: TKN2 PR1535
• Insert Type: Cut-Off & Grooving Insert
• Material: CVD-Coated Carbide
• Grade: PR1535 – MEGACOAT NANO PLUS
• Cutting Width (CW): 2.2 mm
• Corner Radius (RE):  0.2 mm
• Cutting Edge: Neutral

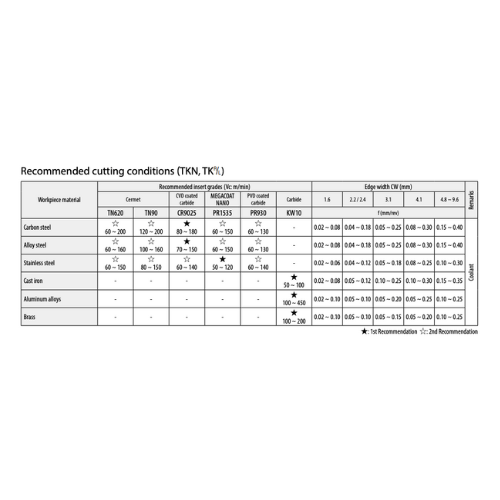

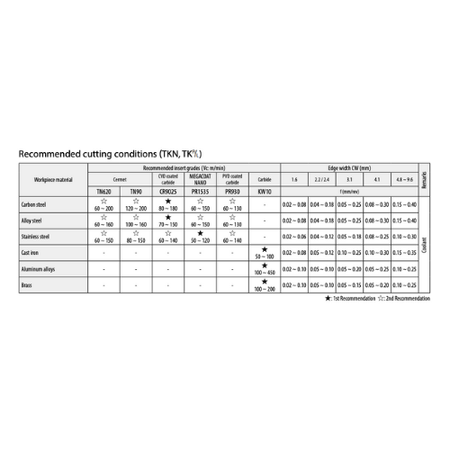

• Recommended Feed Rate (f): 0.08 – 0.20 mm/rev
• Cutting Diameter Capacity: Up to Ø120 mm
• Coolant: Wet or Dry (Wet recommended for best finish)
• Applicable Holders: KTKH-S (Integral Type), KTKB-S (Blade Type)
• Tolerance (CW): ±0.05 mm
• Pack Quantity: 10 pcs

About Kyocera PR1535:
Kyocera’s PR1535 MEGACOAT NANO PLUS grade combines an ultra-tough carbide substrate with a high-adhesion nanolayer CVD coating. It offers superior wear resistance, excellent heat resistance, and stable edge strength in both continuous and interrupted cuts—ideal for parting and grooving operations demanding consistency and long tool life.
