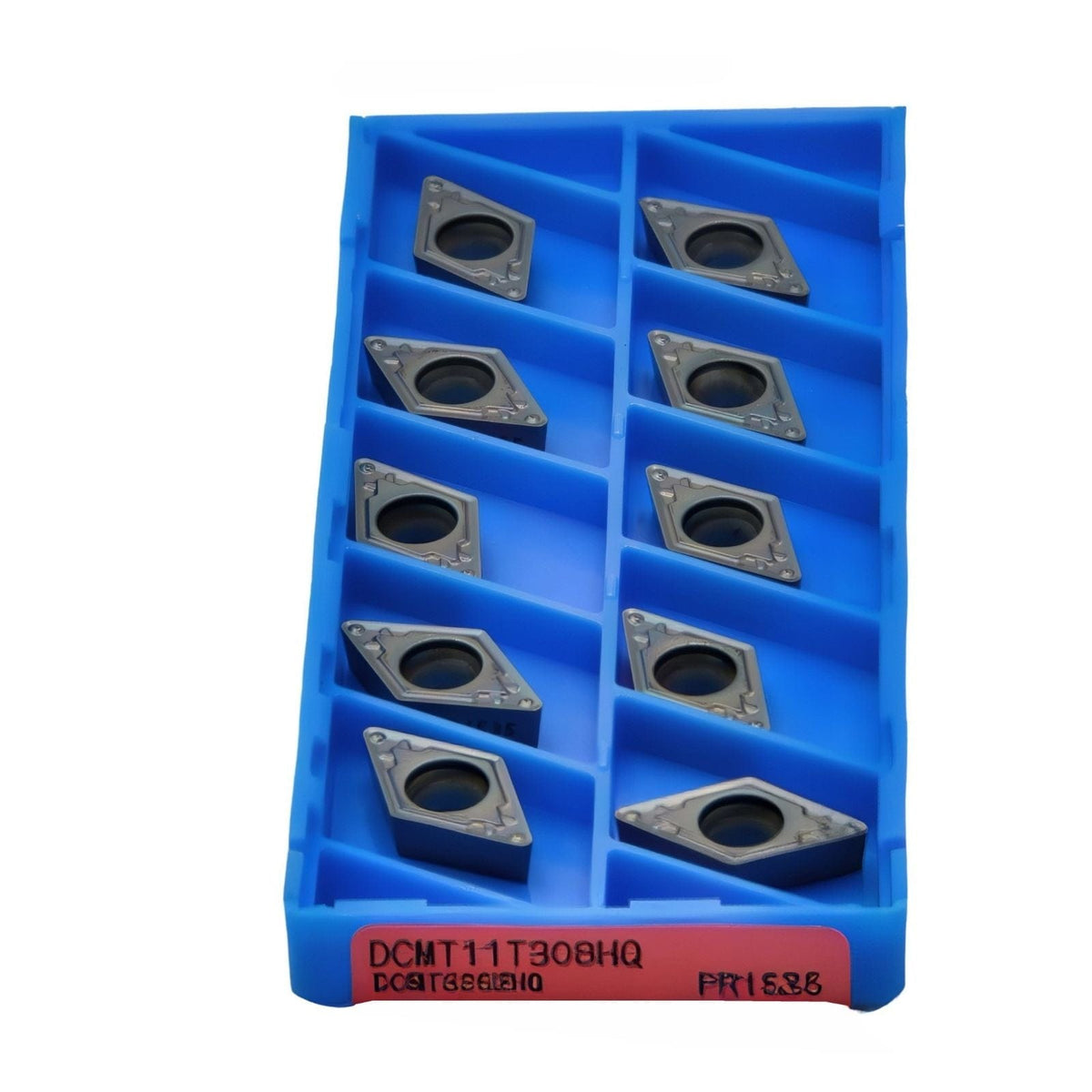

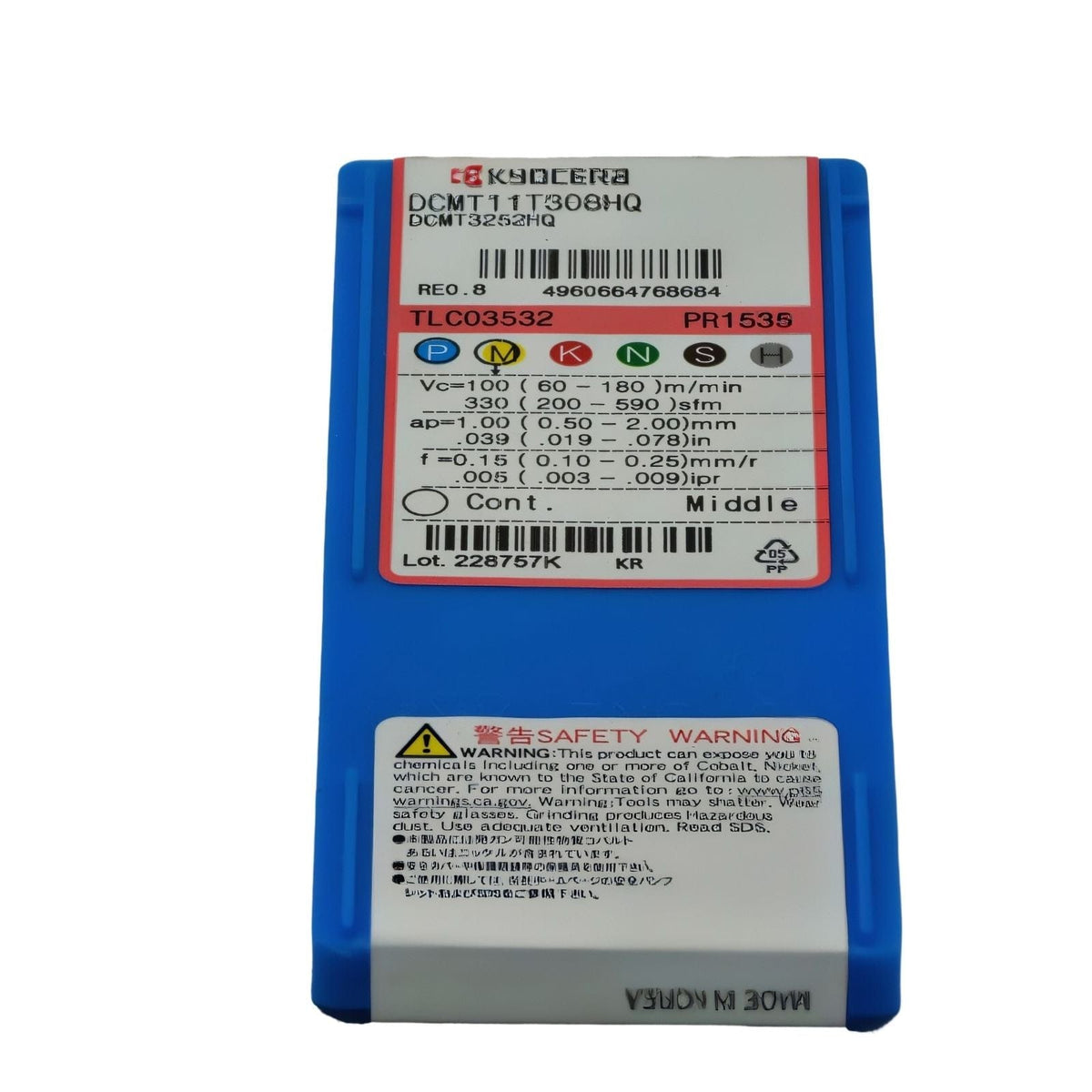

Kyocera DCMT11T308HQ PR1535 – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker)

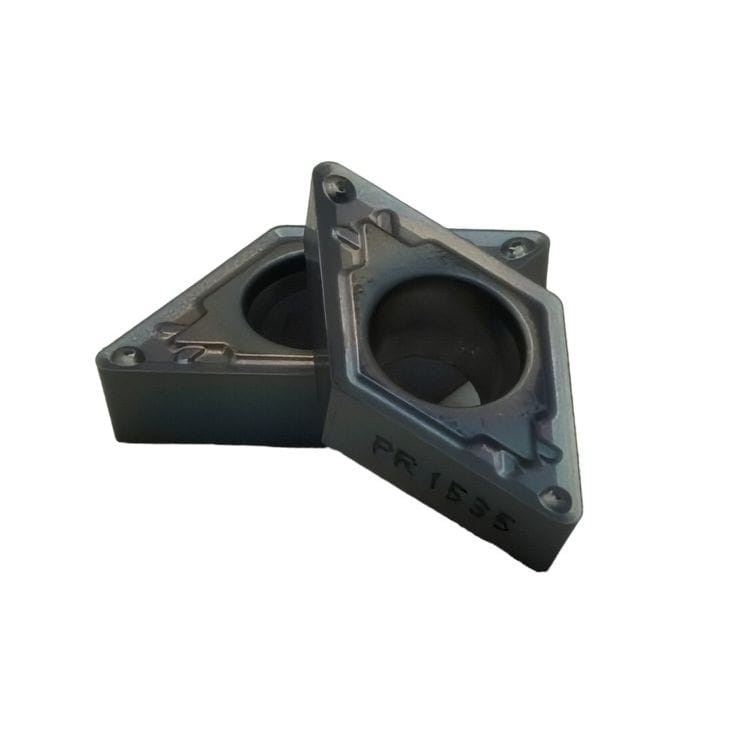

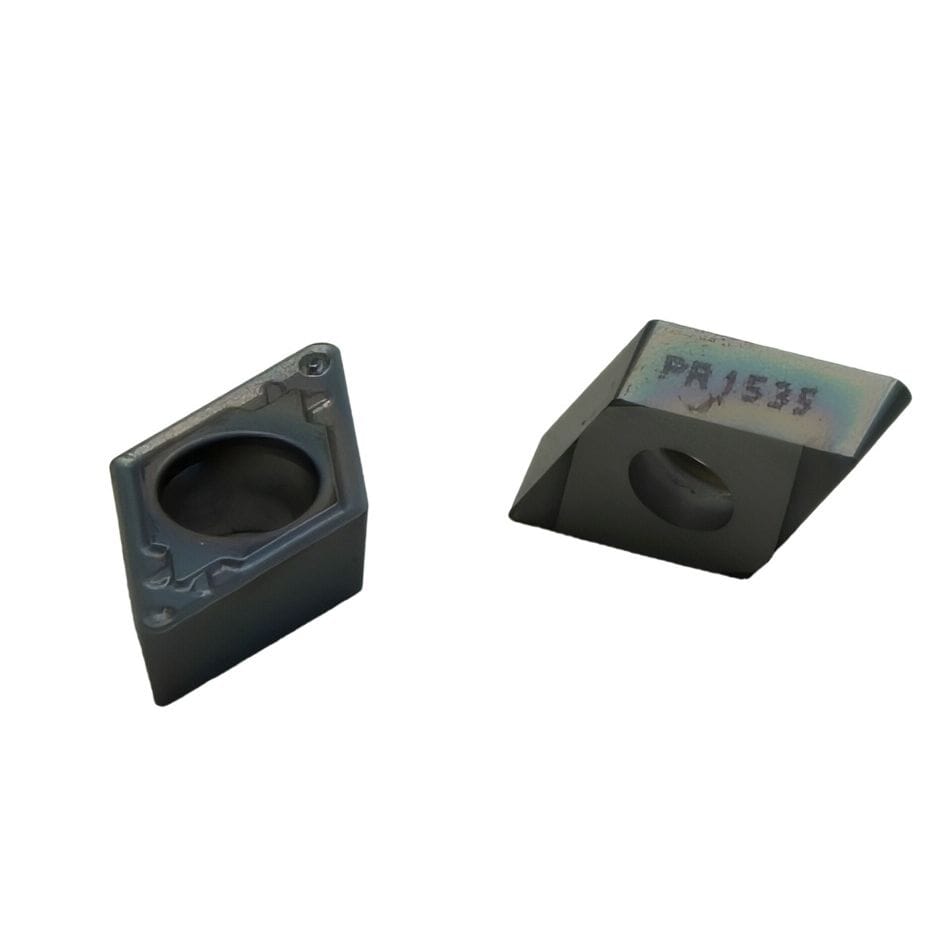

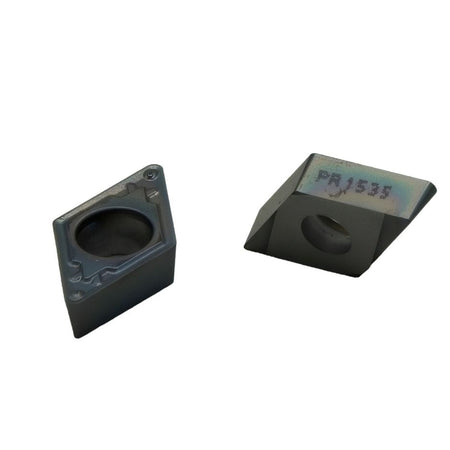

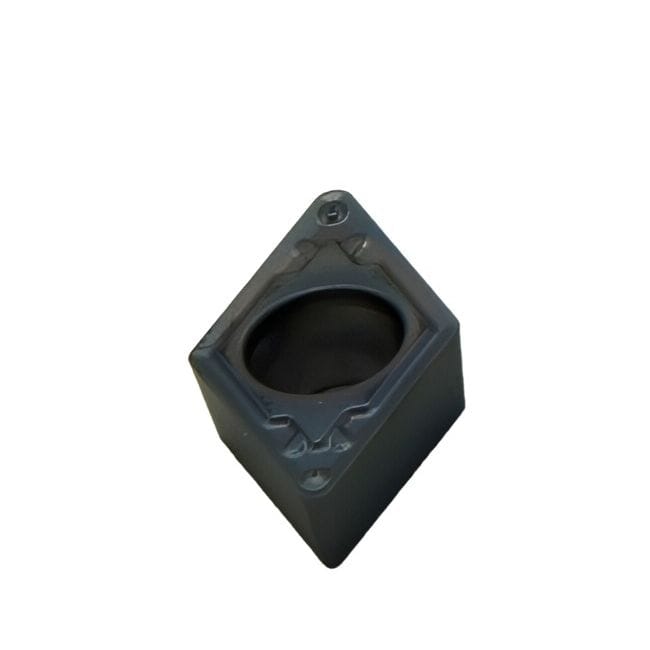

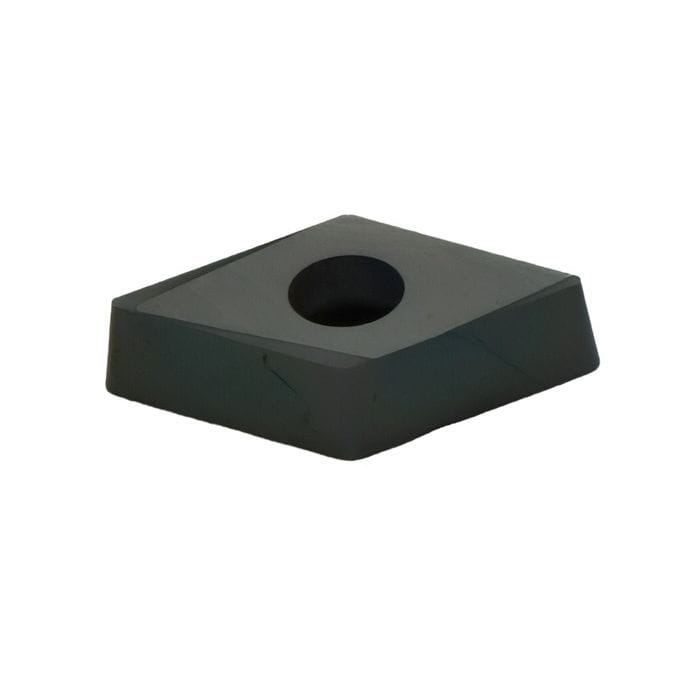

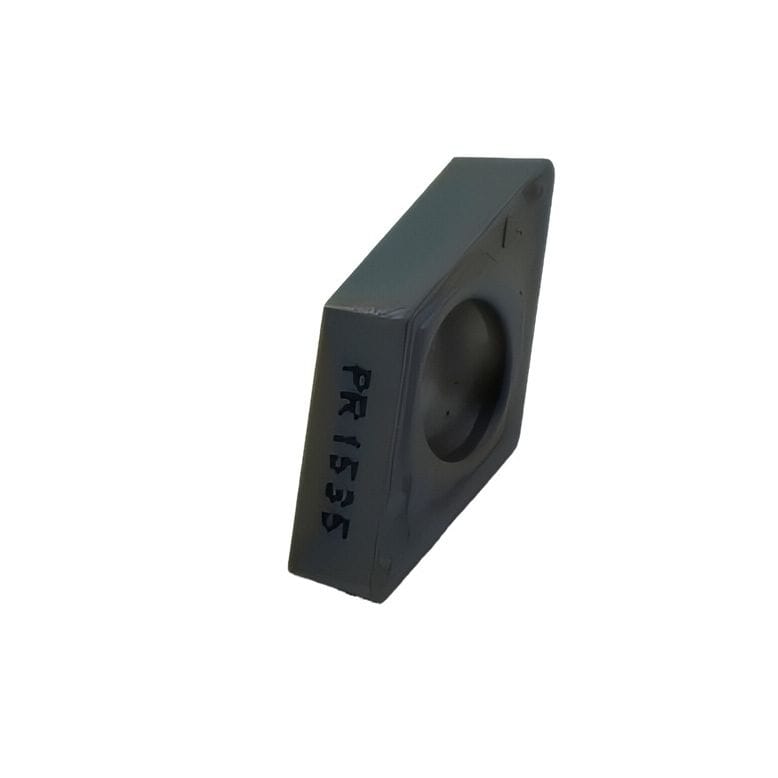

The Kyocera DCMT11T308HQ PR1535 is a precision-engineered positive-type rhombic turning insert designed for finishing to medium cutting applications on steels and stainless steels. It features Kyocera’s versatile HQ chipbreaker, optimized for smooth chip evacuation, stable edge strength, and low cutting resistance. Combined with the proven PR1535 MEGACOAT NANO PLUS PVD-coated carbide grade, this insert delivers exceptional wear resistance, toughness, and consistent surface finish performance across a broad range of cutting conditions.
Key Features & Benefits
- PR1535 Grade: MEGACOAT NANO PLUS PVD coating offers outstanding balance between wear resistance and edge toughness.
- HQ Chipbreaker: Provides smooth chip control and excellent stability under varying feed and depth conditions.
- Low Cutting Force: Sharp-edged geometry ensures reduced cutting load and excellent surface finish.
- Reliable Performance: Stable operation for continuous and light interrupted turning.
- Material Compatibility: Ideal for steel (P) and stainless steel (M) machining in finishing to medium conditions.
Technical Specifications
- Designation / Order Code: DCMT11T308HQ PR1535
- Insert Shape: 55° Rhombic (D Type)
- Insert Type: Positive Turning Insert
- Material: PVD-Coated Carbide
- Grade: PR1535 – MEGACOAT NANO PLUS
- Chipbreaker: HQ – Finishing to Medium Range
- Inscribed Circle (IC): 9.525 mm
- Thickness (S): 3.97 mm
- Hole Diameter (D1): 4.4 mm
- Corner Radius (RE): 0.8 mm
- Relief Angle: 7°

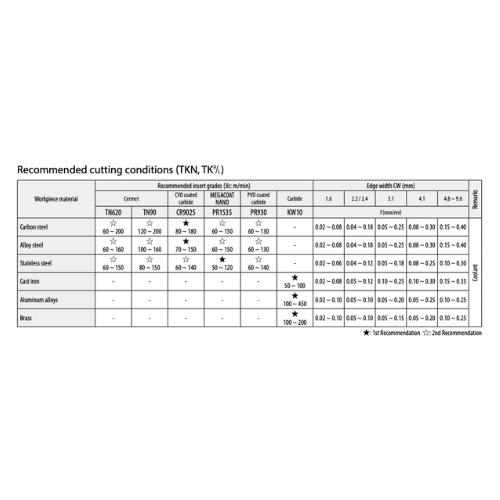

- Cutting Depth (ap): 0.1 – 2.0 mm
- Feed Rate (f): 0.05 – 0.25 mm/rev
- Tolerance (Class G): ±0.025 mm thickness / ±0.13 mm corner height

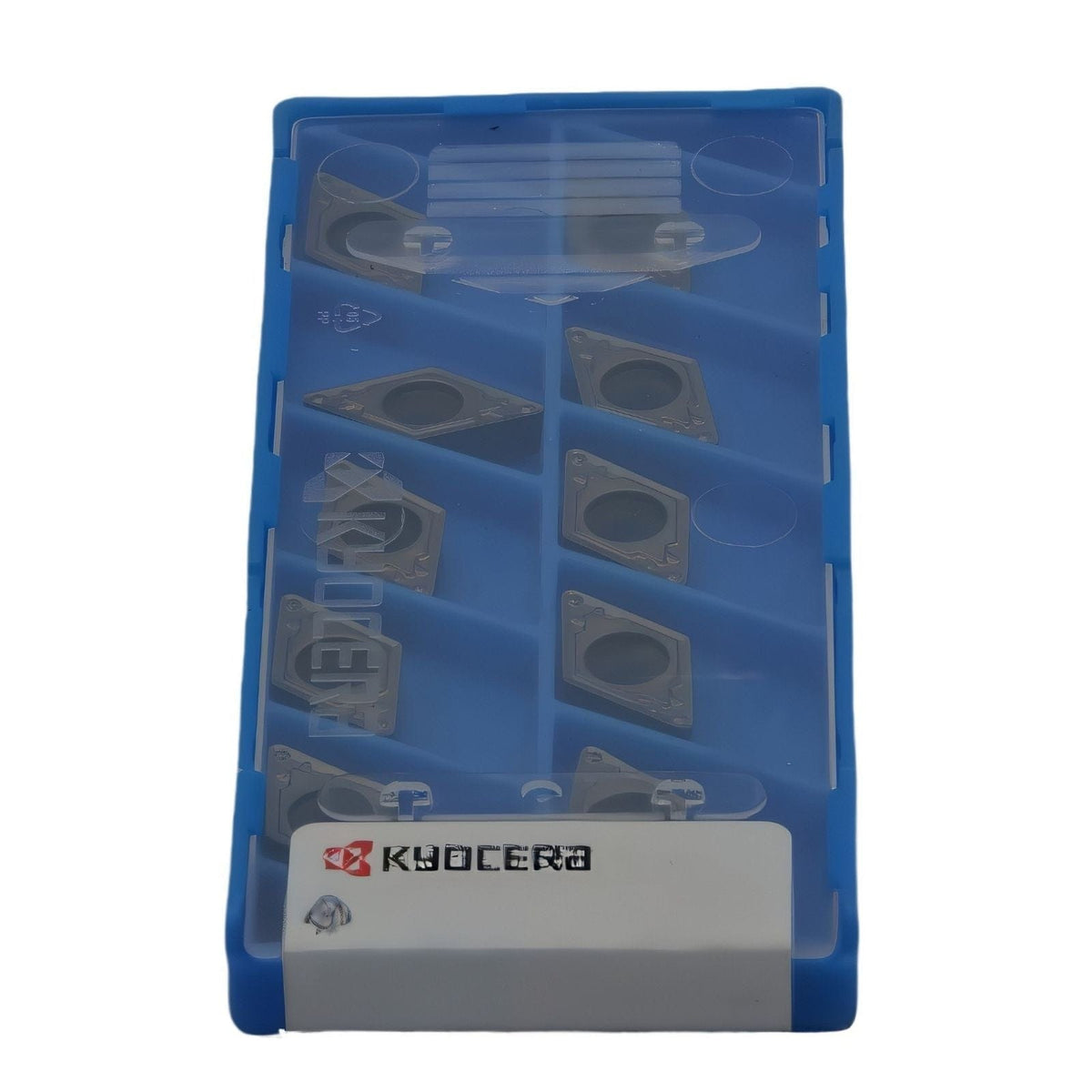

- Pack Quantity: 10 pcs
About Kyocera PR1535:
Kyocera’s PR1535 MEGACOAT NANO PLUS grade combines a fine-grained carbide substrate with a nano-multilayer PVD coating for excellent heat resistance, edge stability, and wear control. This allows for high-speed finishing and medium turning with outstanding surface quality and consistent tool life in both steels and stainless steels.
