Kyocera CNMG120412MS PR1535 – Turning Insert (10 pcs Medium to Finishing, MS Chipbreaker)
The Kyocera CNMG120412MS PR1535 is a versatile negative-type turning insert engineered for medium to finishing operations in steels and stainless steels. It features the advanced MS chipbreaker, designed for stable chip control and low cutting resistance in medium-feed cutting, while maintaining excellent surface finish quality. Combined with Kyocera’s latest PR1535 MEGACOAT NANO PLUS PVD-coated carbide grade, this insert provides superior wear resistance, toughness, and thermal stability for consistent tool life and reliable performance.
Key Features & Benefits
- PR1535 Grade: MEGACOAT NANO PLUS PVD-coated carbide offering exceptional wear and heat resistance.
- MS Chipbreaker: Optimized for medium to finishing applications with smooth chip evacuation and stable edge strength.
- Wide Cutting Range: Delivers consistent performance in both continuous and light interrupted cutting.
- High Efficiency: Designed for superior cutting balance, reducing cutting force while improving chip flow.
- Surface Quality: Produces fine surface finishes and dimensional precision in steel turning.
Technical Specifications

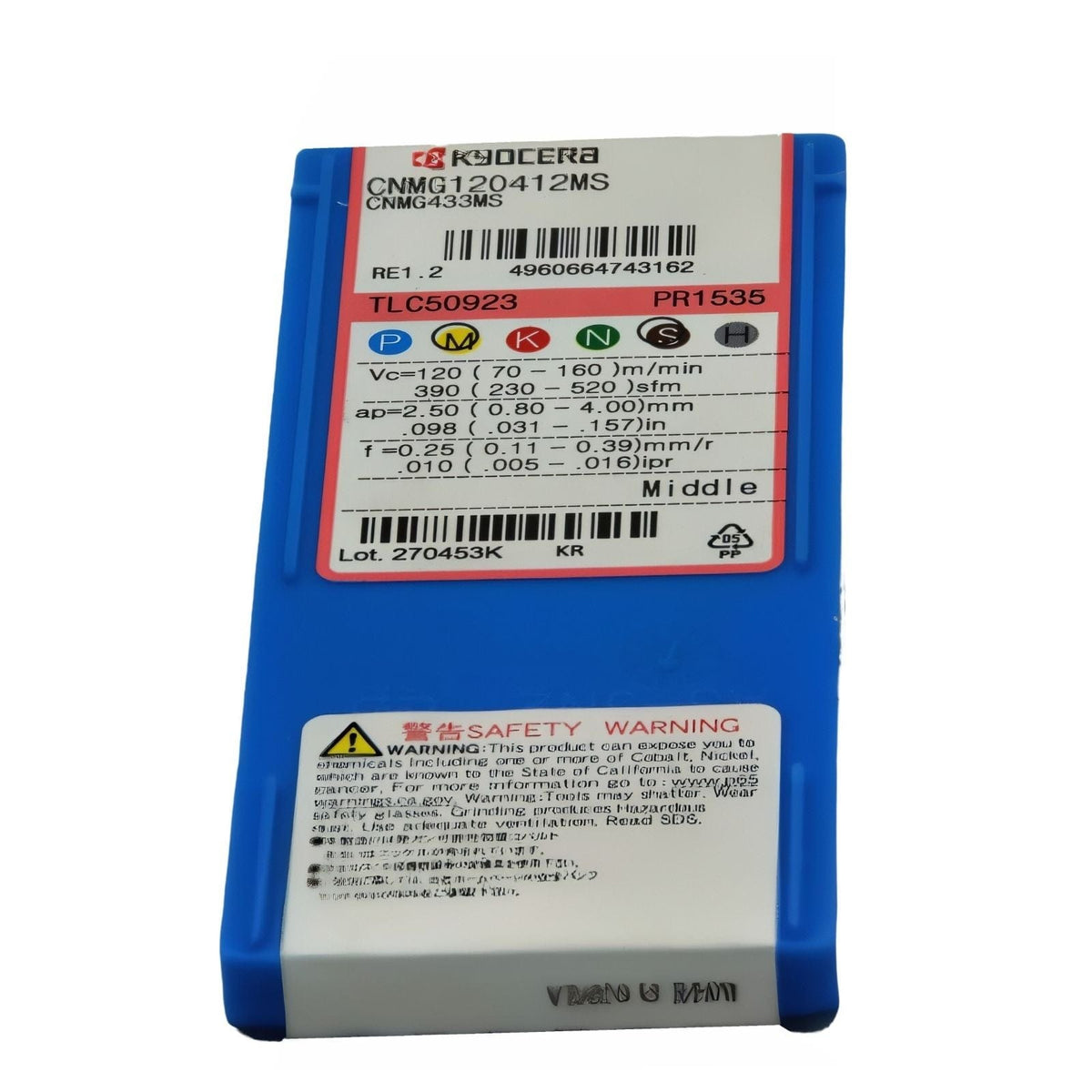

- Designation / Order Code: CNMG120412MS PR1535

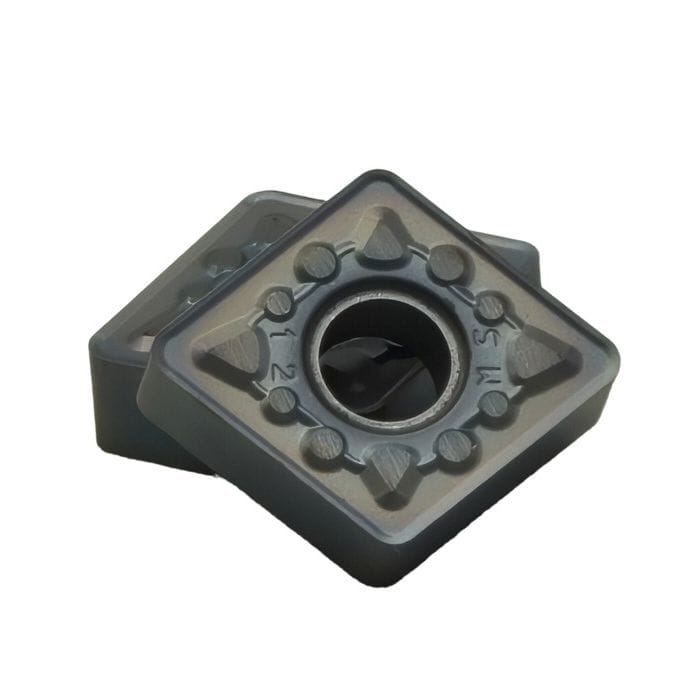

- Insert Shape: 80° Rhombic (C Type, Negative)
- Insert Type: Double-Sided Negative Turning Insert
- Material: PVD-Coated Carbide
- Grade: PR1535 – MEGACOAT NANO PLUS
- Chipbreaker: MS – Medium to Finishing Range
- Inscribed Circle (IC): 12.70 mm
- Thickness (S): 4.76 mm
- Hole Diameter (D1): 5.16 mm
- Corner Radius (RE): 1.2 mm
- Relief Angle: 0° (Negative Type)
- Cutting Depth (ap): 0.3 – 3.0 mm
- Feed Rate (f): 0.1 – 0.45 mm/rev
- Tolerance (Class M): ±0.025 mm thickness / ±0.13 mm corner height

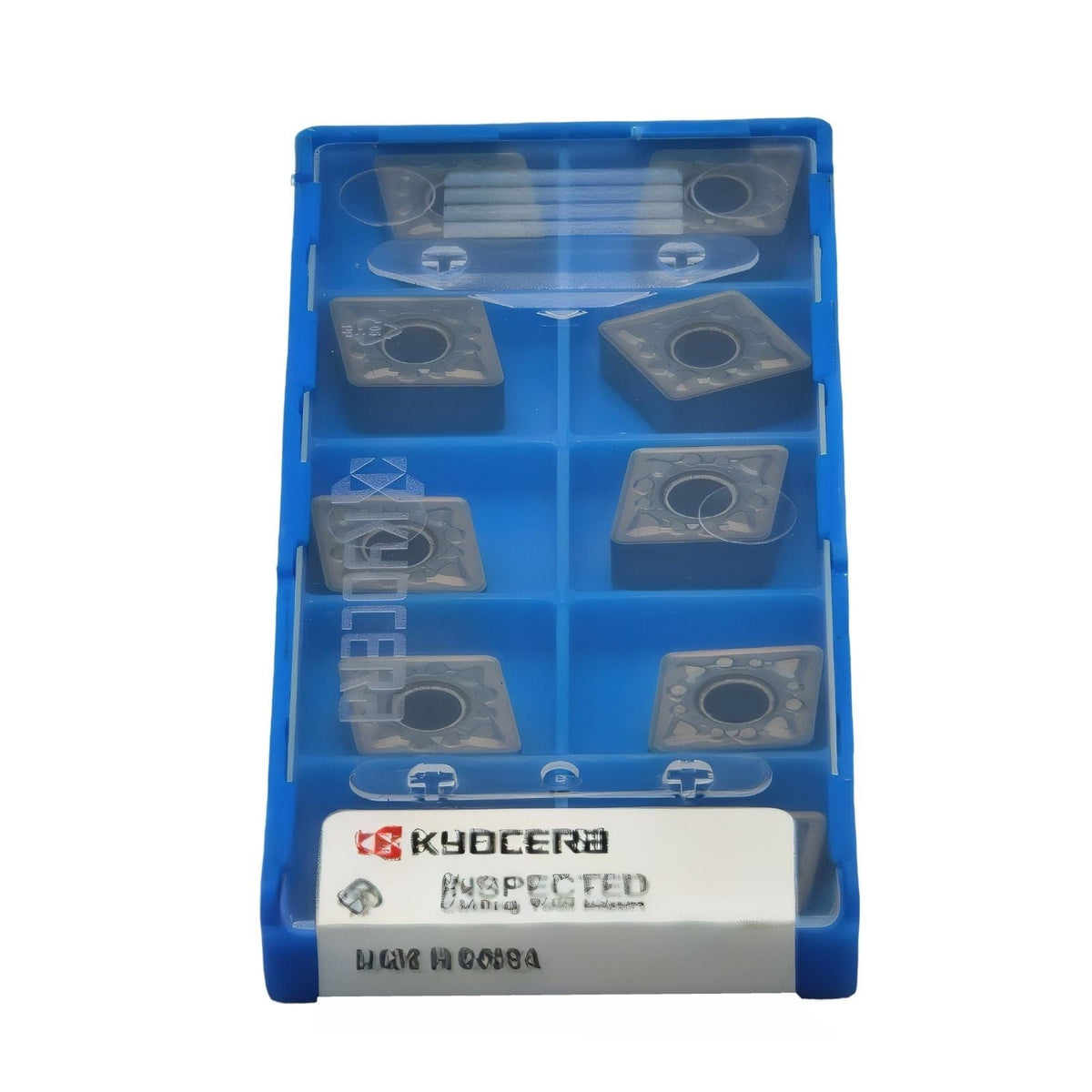

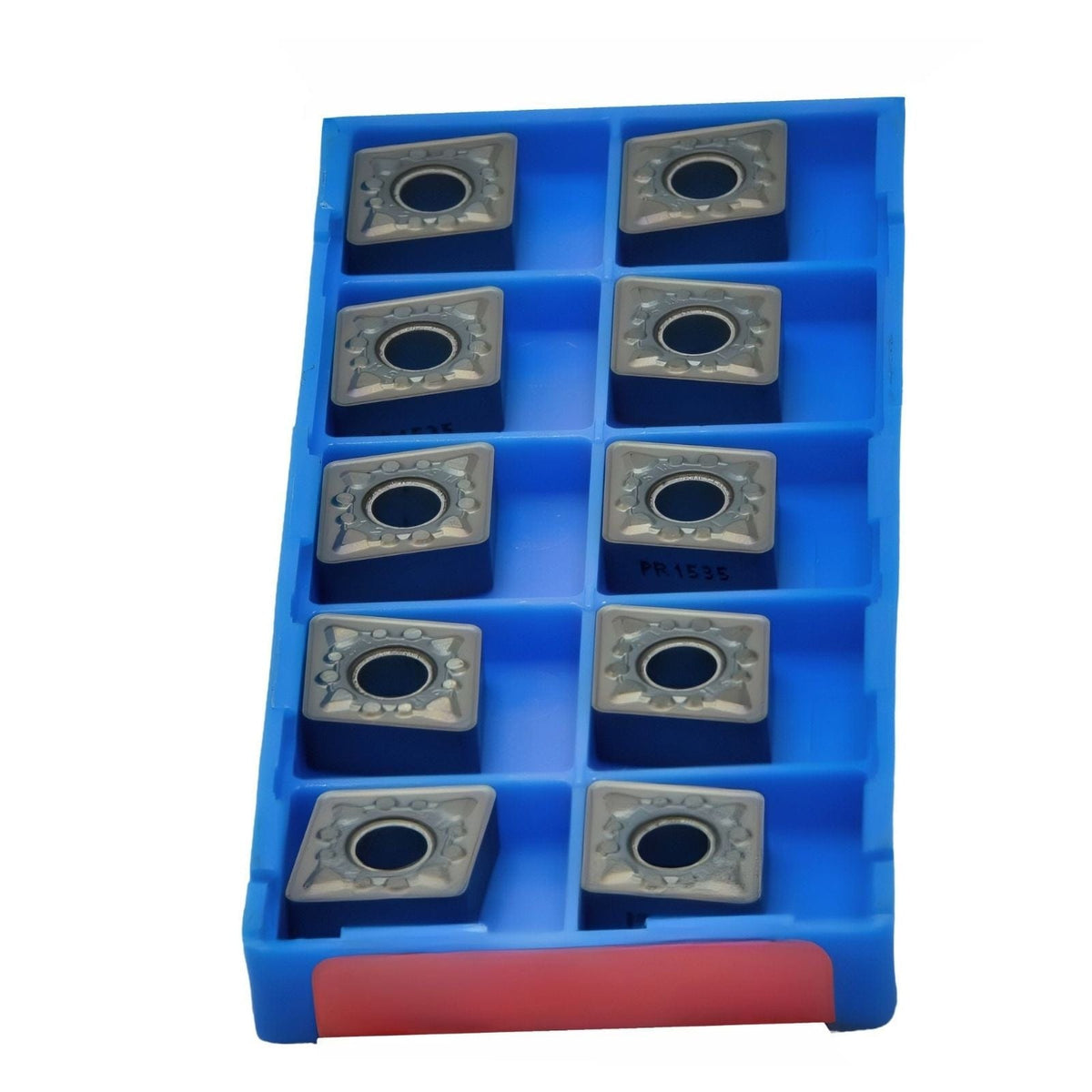

- Pack Quantity: 10 pcs
About Kyocera PR1535:
Kyocera’s PR1535 MEGACOAT NANO PLUS PVD coating combines a nano-multilayer structure with an ultra-tough carbide substrate, providing a perfect balance of wear resistance and toughness. It ensures stable cutting performance in medium and finishing steel applications, extending tool life and maintaining excellent surface quality across a range of cutting conditions.
