10 pc Kyocera CCMT060204GK PR1535 – Turning Insert (Finishing, GK Chipbreaker)

Out of stock
$142.00

Kyocera CCMT060204GK PR1535 – Turning Insert (10 pcs Finishing, GK Chipbreaker)

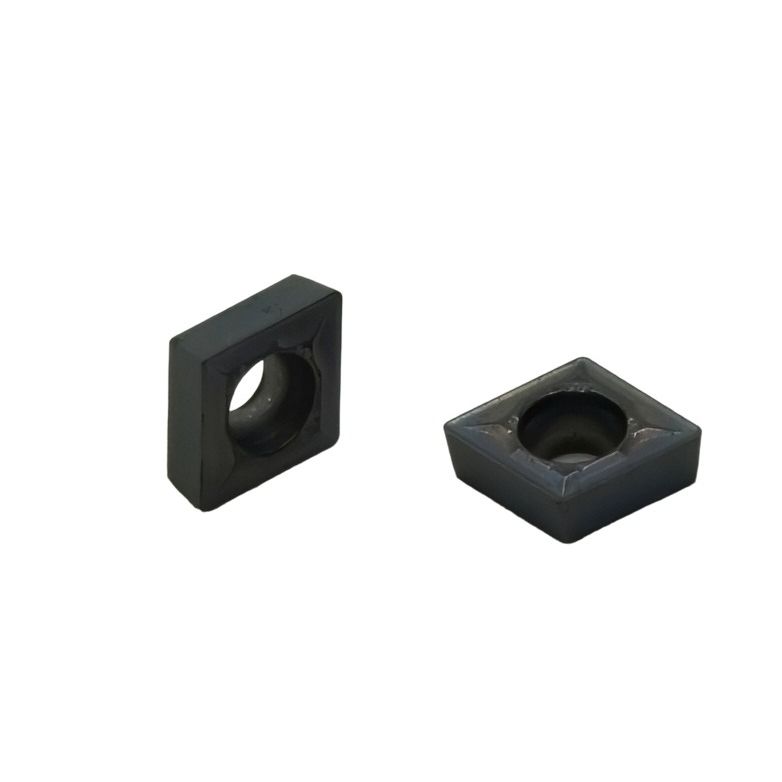

The Kyocera CCMT060204GK PR1535 is a high-precision positive-type turning insert engineered for finishing applications on steels and stainless steels. It features Kyocera’s GK chipbreaker, optimized for low cutting resistance and smooth chip control at light depths of cut. Paired with the proven PR1535 MEGACOAT NANO PLUS PVD-coated carbide grade, this insert ensures excellent wear resistance, edge sharpness, and reliable surface finish consistency, even under high-speed cutting conditions.

Key Features & Benefits

  • PR1535 Grade: MEGACOAT NANO PLUS coating delivers outstanding toughness, adhesion strength, and wear resistance.
  • GK Chipbreaker: Finishing geometry designed for precise cutting with excellent chip evacuation at low feeds.
  • Sharp Cutting Edge: Minimizes cutting forces and prevents built-up edge formation during fine finishing.
  • Stable and Consistent: Ideal for continuous cutting and achieving excellent dimensional accuracy.
  • Application Range: Suitable for steels (P) and stainless steels (M) under light cutting conditions.

Technical Specifications

  • Designation / Order Code: CCMT060204GK PR1535
  • Insert Shape: 80° Rhombic (C Type)
  • Insert Type: Positive Turning Insert
  • Material: PVD-Coated Carbide
  • Grade: PR1535 – MEGACOAT NANO PLUS
  • Chipbreaker: GK – Finishing Geometry
  • Inscribed Circle (IC): 6.35 mm
  • Thickness (S): 2.38 mm
  • Hole Diameter (D1): 2.8 mm
  • Corner Radius (RE): 0.4 mm
  • Relief Angle: 7°
  • Cutting Depth (ap): 0.1 – 1.0 mm
  • Feed Rate (f): 0.03 – 0.20 mm/rev
  • Tolerance (Class G): ±0.025 mm

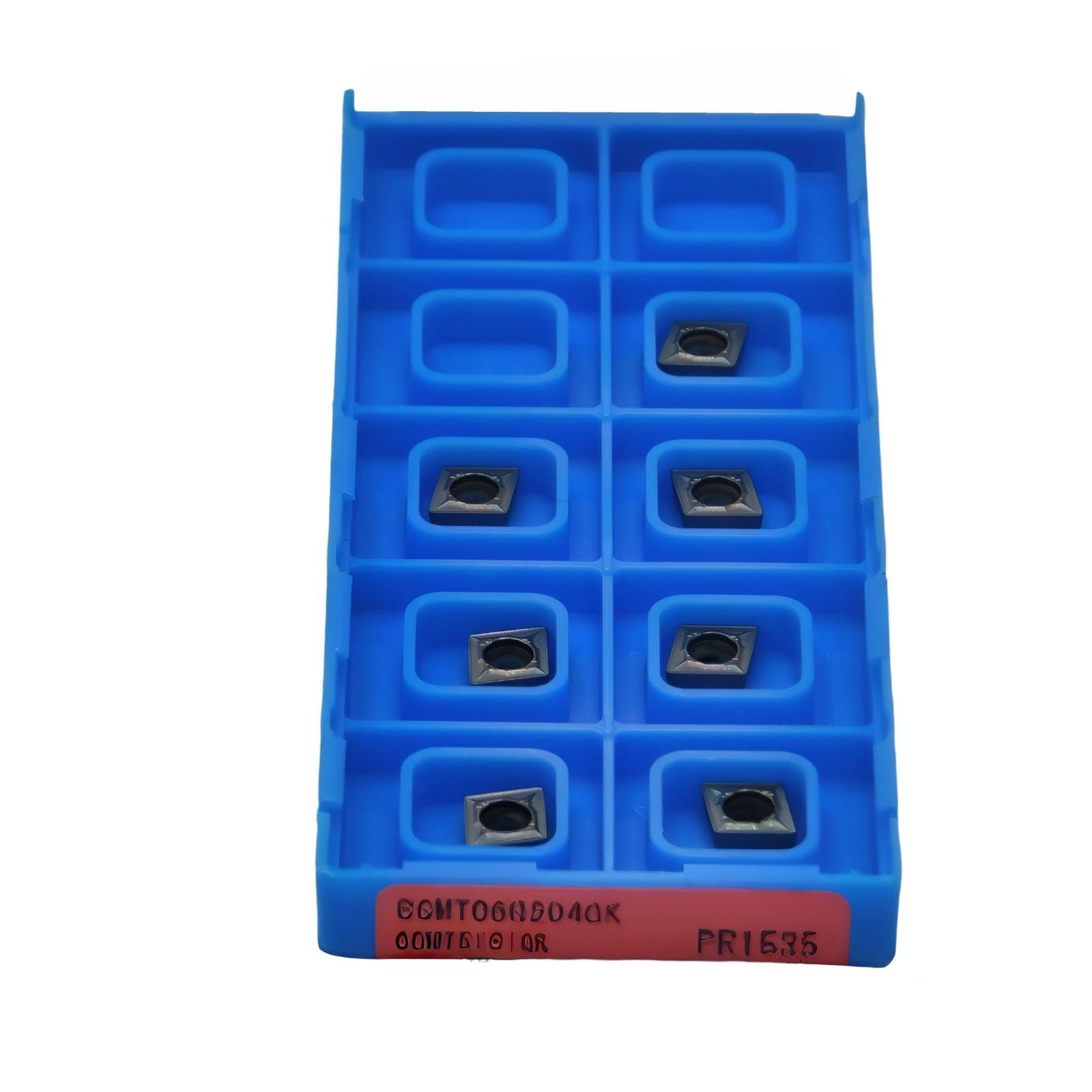

  • Pack Quantity: 10 pcs

About Kyocera PR1535:
Kyocera’s PR1535 MEGACOAT NANO PLUS is a PVD-coated carbide grade engineered to deliver the ideal combination of edge toughness and wear resistance. Its nano-multilayer structure ensures stable performance in finishing operations, enabling consistent surface quality, long tool life, and predictable performance in steels and stainless steels.
